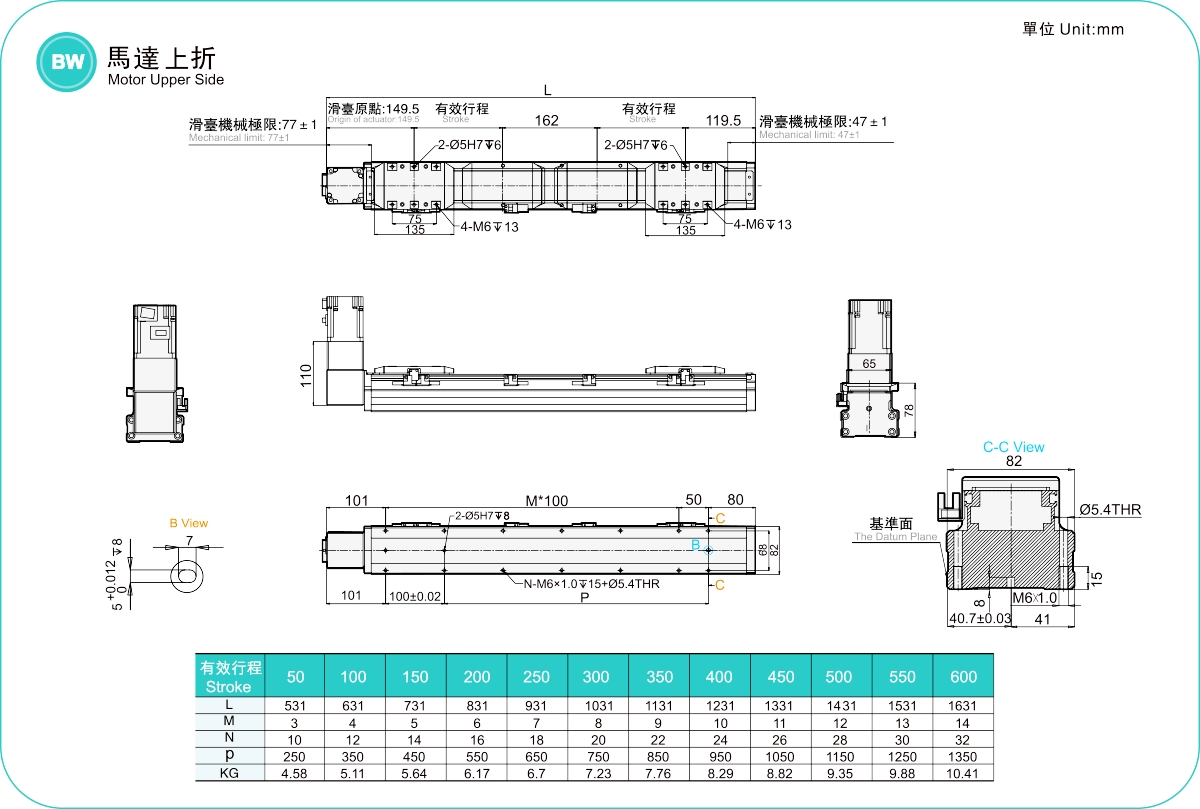

Current location：Home > Product > Standard Belt Actuator > GRP Series > GRP8M > Motor Upper Side

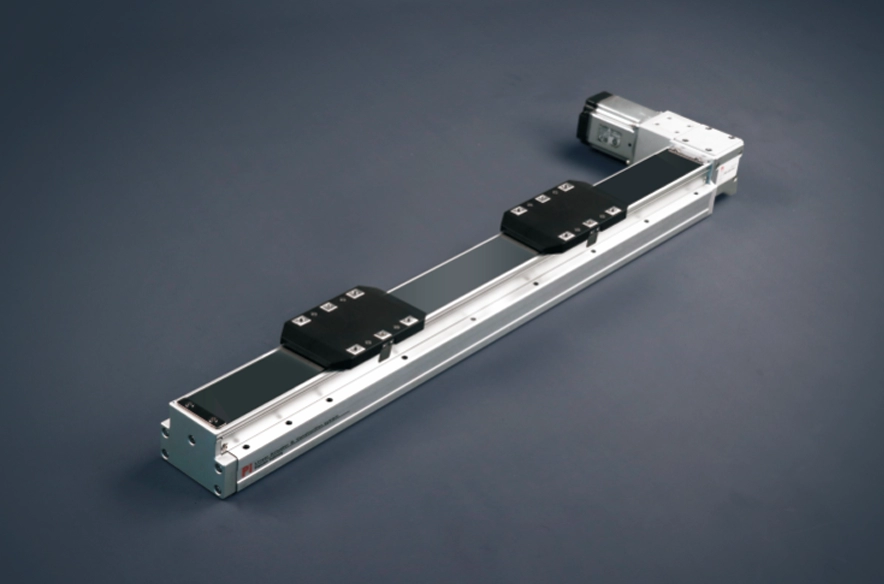

Lightweight and Long Lifespan

Repeatability：±0.04mm

Horizontal Load：15kg

Lead：48mm

Maximum Speed：2000mm/s

Stroke Pitch：50-600mm

Set the motor acceleration and deceleration to0.2seconds.

PDF

3D download

Cadenas3 Ddownload

High precision embedded ball guide rail

Adjustable belt tension and diverse selection of slide seats

High rigidity body: Explore the use of integrated aluminum extrusion structure and obtain the best rigidity to weight ratio structural design through element analysis. Anti winding upper cover: With a special anti winding design, the upper cover is not easily twisted or deformed during long-distance use.

Multi style selection

Can be paired with servo motors from various brands. Multiple directional motor installation positions are available for selection, making machine design more flexible. The appropriate type of belt can be selected based on the usage scenario

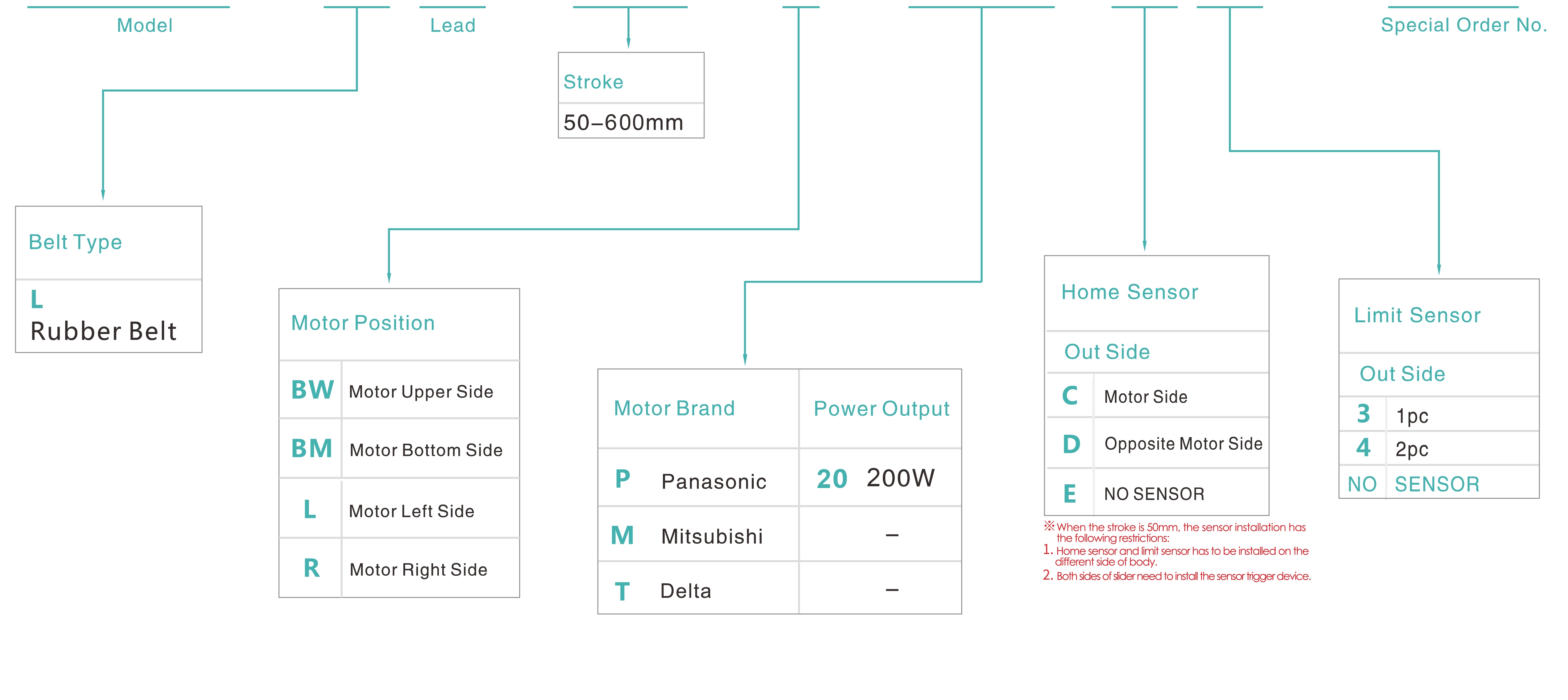

Ordering Method

GRP5 - L 40 -100 - L -M10 -C 4 - 0001

Specification

Spec	Repeatability(mm)		±0.04
	Lead (mm)		40
	Maximum Speed (mm/s)		2000
	Maximum Payload	Horizontal (kg)	5
		Vertical (kg)	-
	Rated Thrust (N)		48
	Stroke Pitch (mm)		50-1450mm/50mm Pitch
Parts	AC Servo Motor Power (W)		100W
	Ball Width (mm)		9
	Coupling (mm)		8X8
	Home Sensor	Outside	EE-SX674(NPN)

Sensor Layout

Acceleration and deacceleration value is set 0.4 second.

Allowable Overhang

(Unit : mm)

Horizontal Installation	A	B	C
2kg	320	120	130
3.5kg	220	70	80
5kg	175	55	60

(Unit : mm)

Wall Installation	A	B	C
2kg	130	120	320
3.5kg	75	70	320
5kg	65	55	170

Static Loading Moment

(Unit : Nm)

MY	103
MP	103
MR	144

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Reducer Mechanism	Motor Output (w)	Width (mm)	Repeatability (mm)	Belt spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Reducer Mechanism	Motor Output (w)	Width (mm)	Repeatability (mm)	Belt width(mm)	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Standard	Balt	GRP 5	No	100W	54	±0.04	9	40	5	-	2000
		GRP 8	No	200W	82	±0.04	15	48	15	-	2400
		GRP 12	Yes	400W	120	±0.04	25	40	25	-	2000
		GRP 15	Yes	400W	150	±0.04	30	40	45	-	2000

*1The highest speed is based on the maximum servo motor's rpm(3000).

Long Stroke Ball Screw Actuator

Use Where	Driven Mode	Model Specification	Reducer Mechanism	Motor Output (w)	Width (mm)	Repeatability (mm)	Belt spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Reducer Mechanism	Motor Output (w)	Width (mm)	Repeatability (mm)	Belt width(mm)	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Standard	Balt	GRP 5M	No	100W	54	±0.04	9	40	10	-	2000
		GRP 8M	No	200W	82	±0.04	15	48	15	-	2400
		GRP12M	No	400W	120	±0.04	25	40	25	-	2000

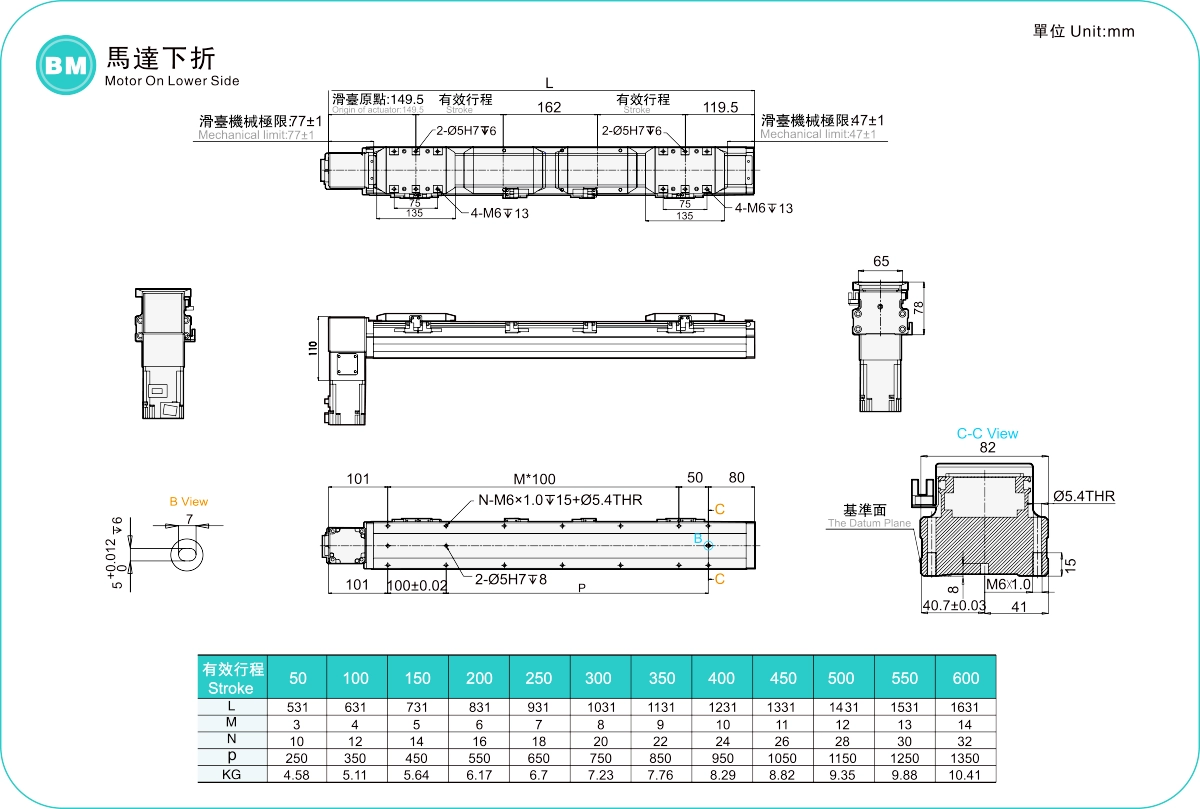

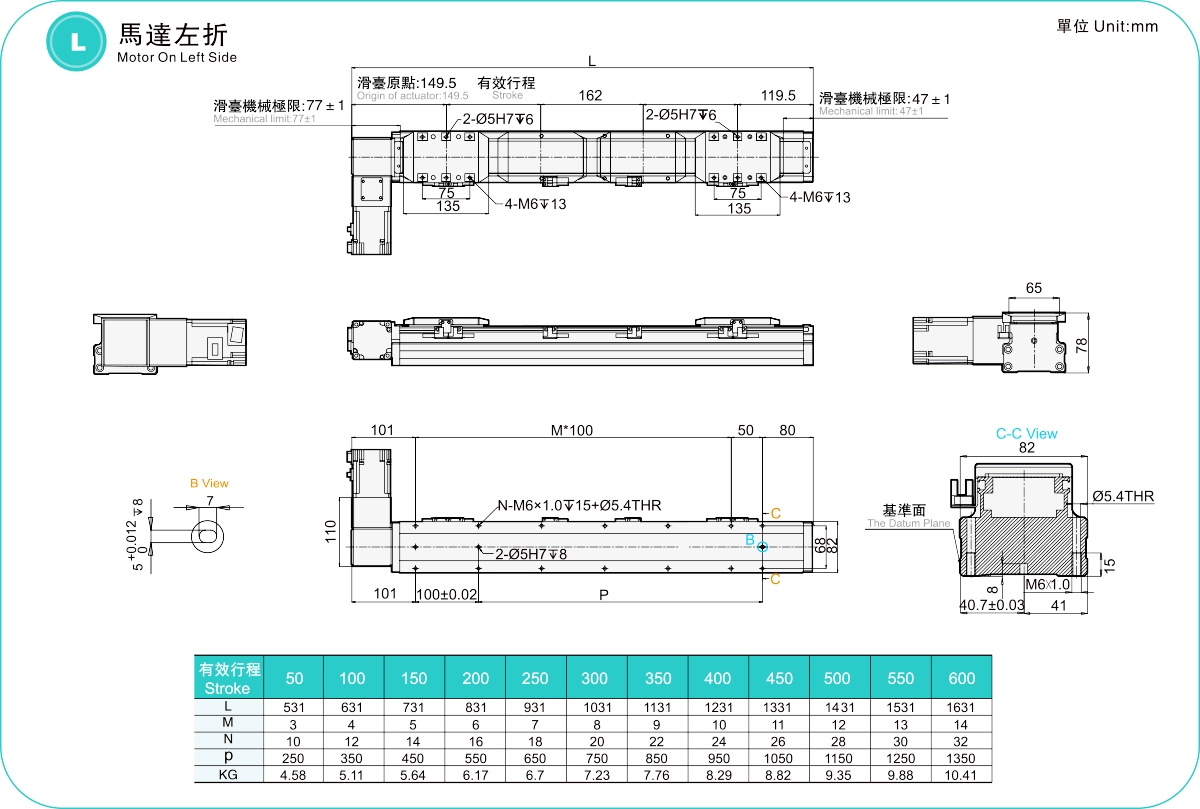

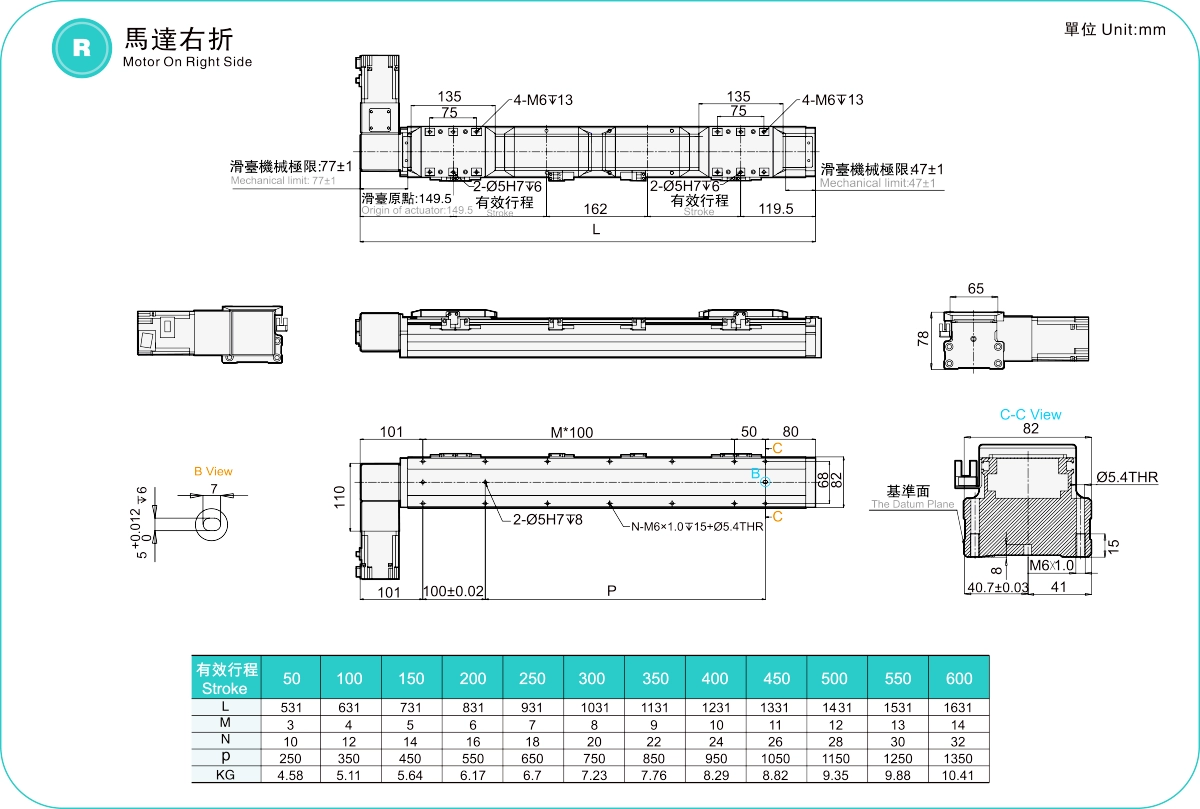

Motor Left / Motor Right
