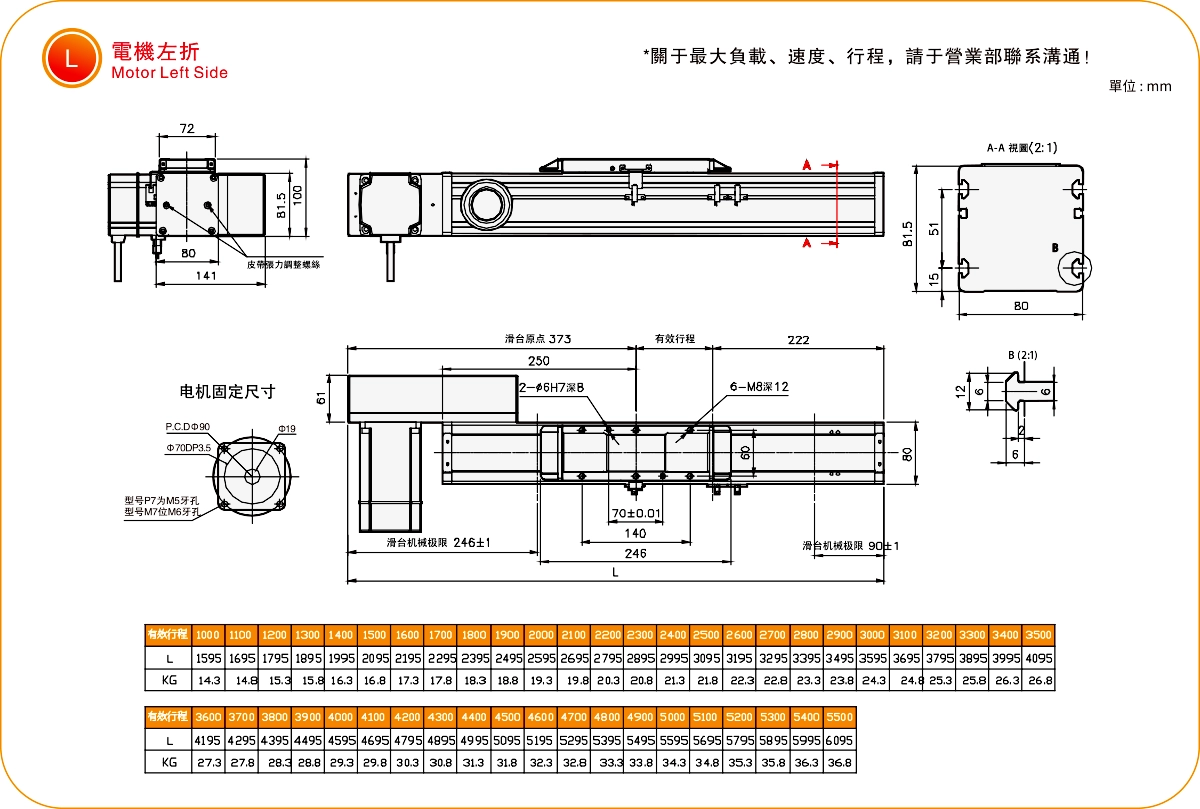

Current location：Home > Product > Standard Belt Actuator > MKR Series > MKR80 > Motor Left Side

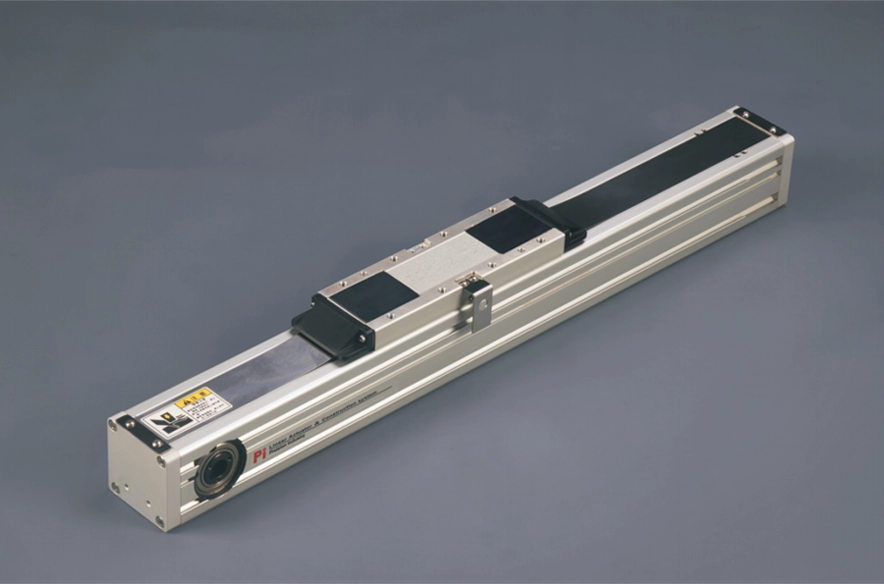

Lightweight and Long Lifespan

Repeatability：±0.1mm

Horizontal Load：100kg

Lead：200mm

Maximum Speed：2000mm/s

Stroke Pitch：100-5500mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Long travel, high precision

Maximum stroke:16m
Repeatability:+ 0.1mm
Design of steel roller support easy to produce dust
Easy maintenance

Adjustable belt tension

Excellent torque performance

Complete styles - many advantages

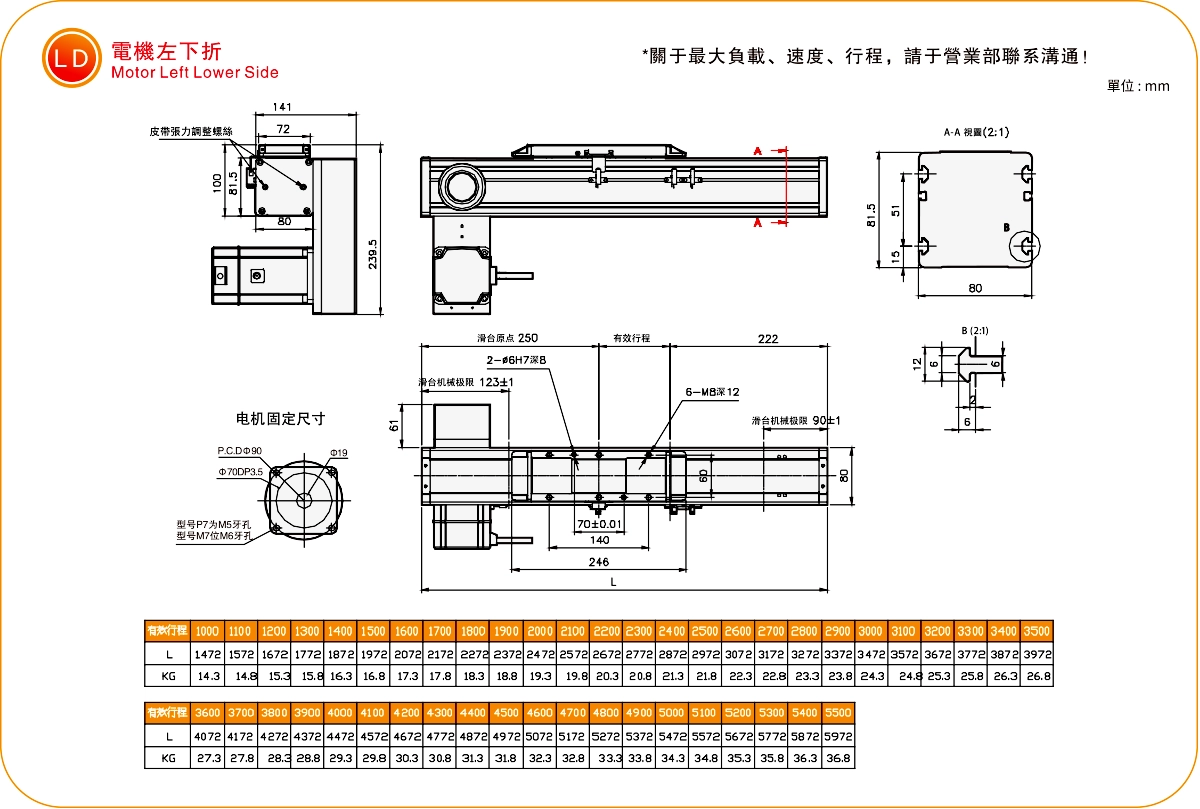

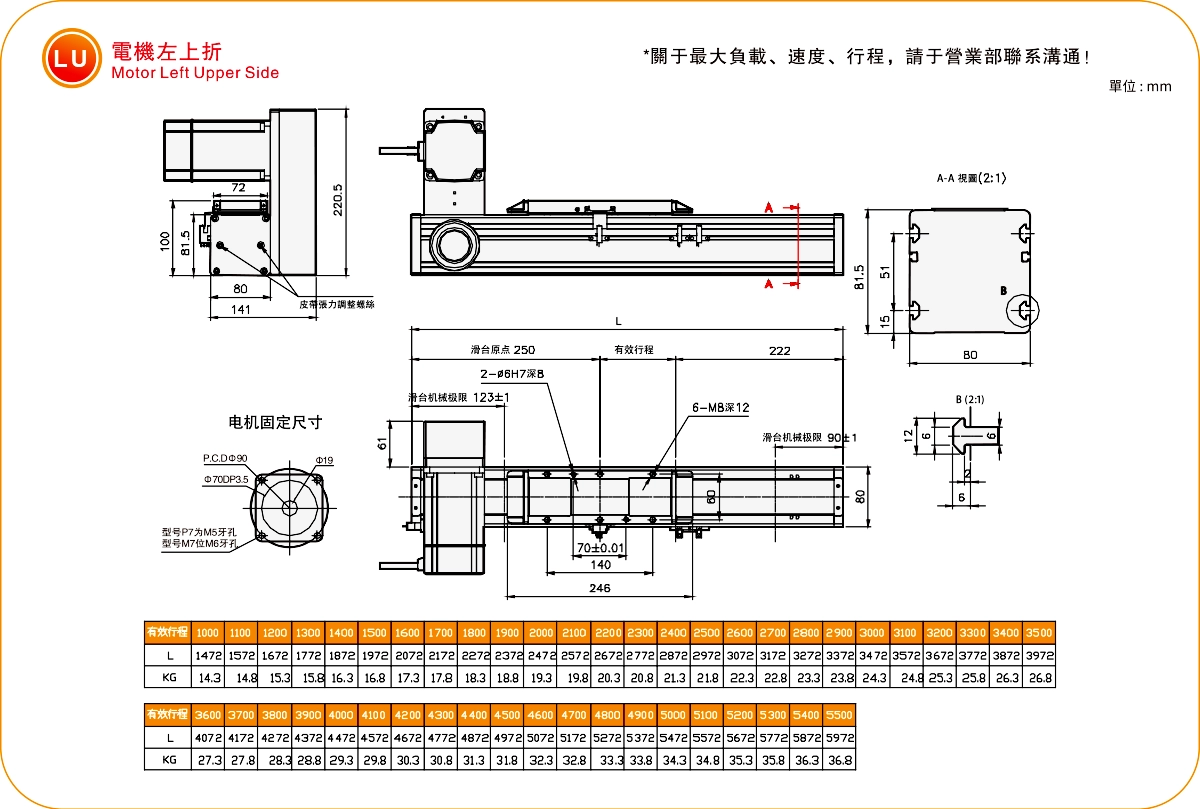

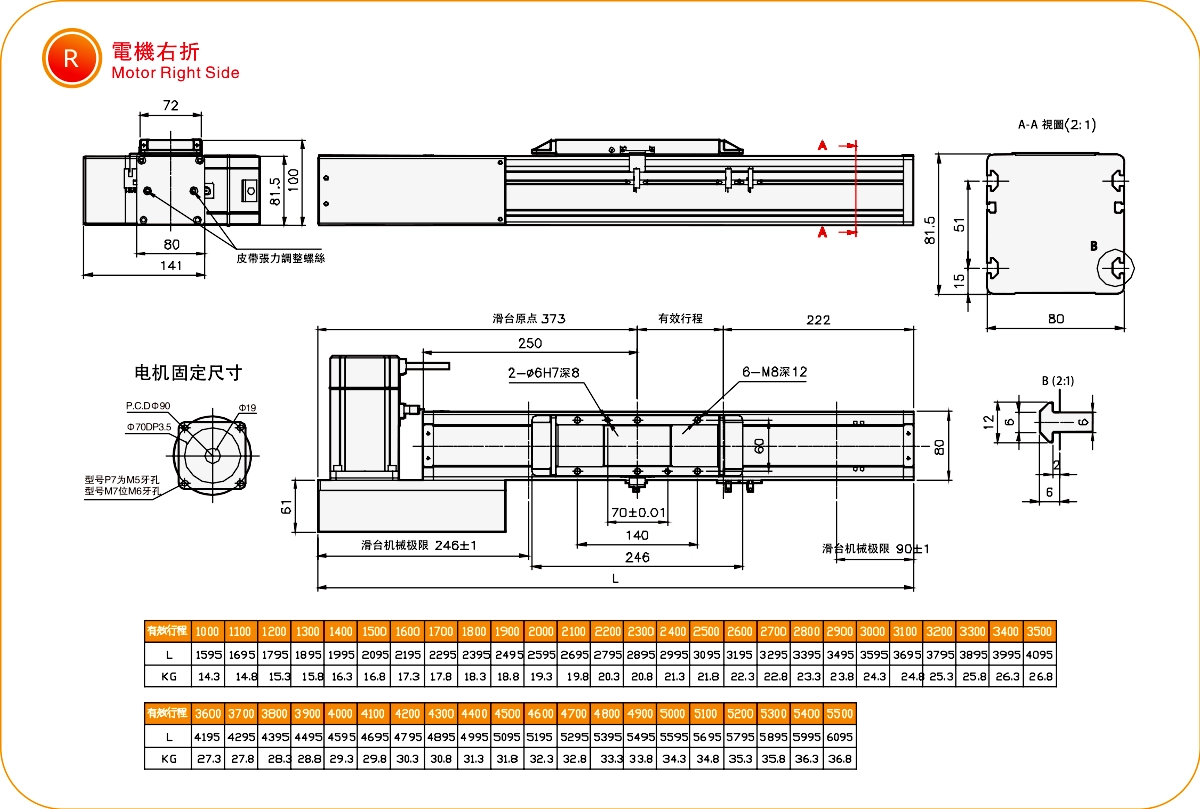

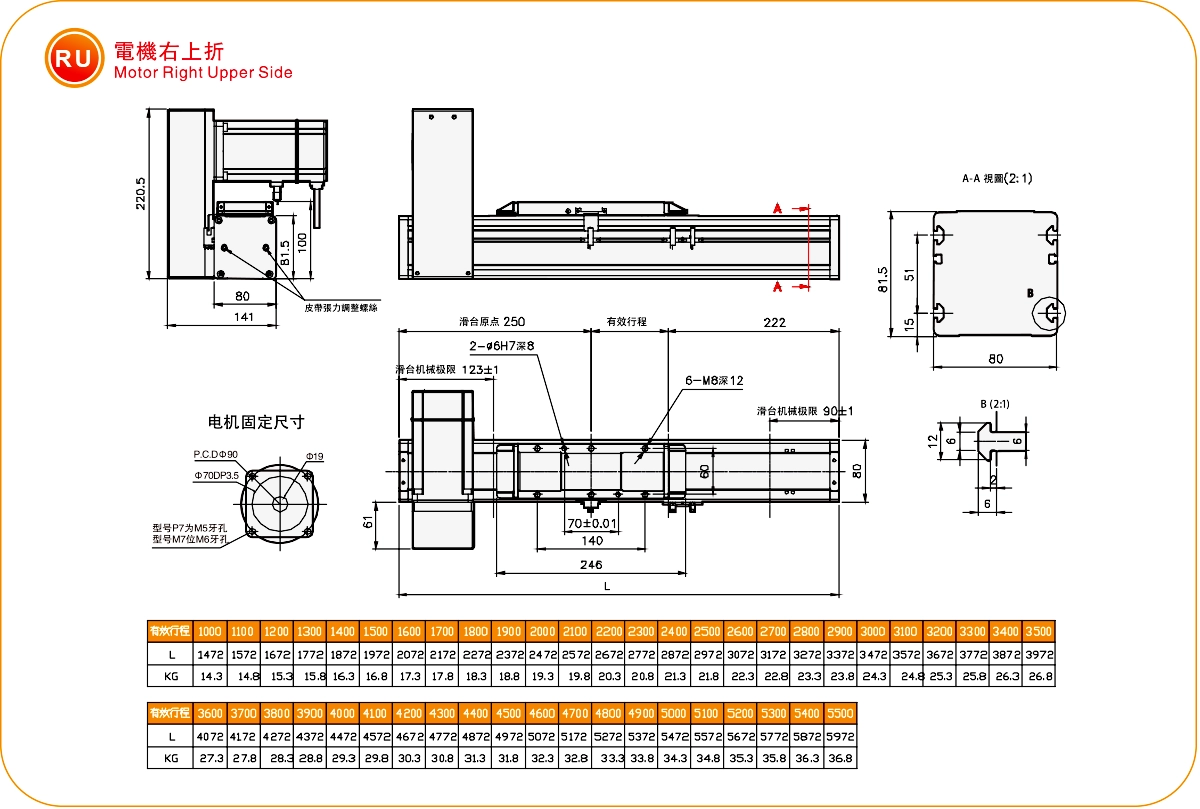

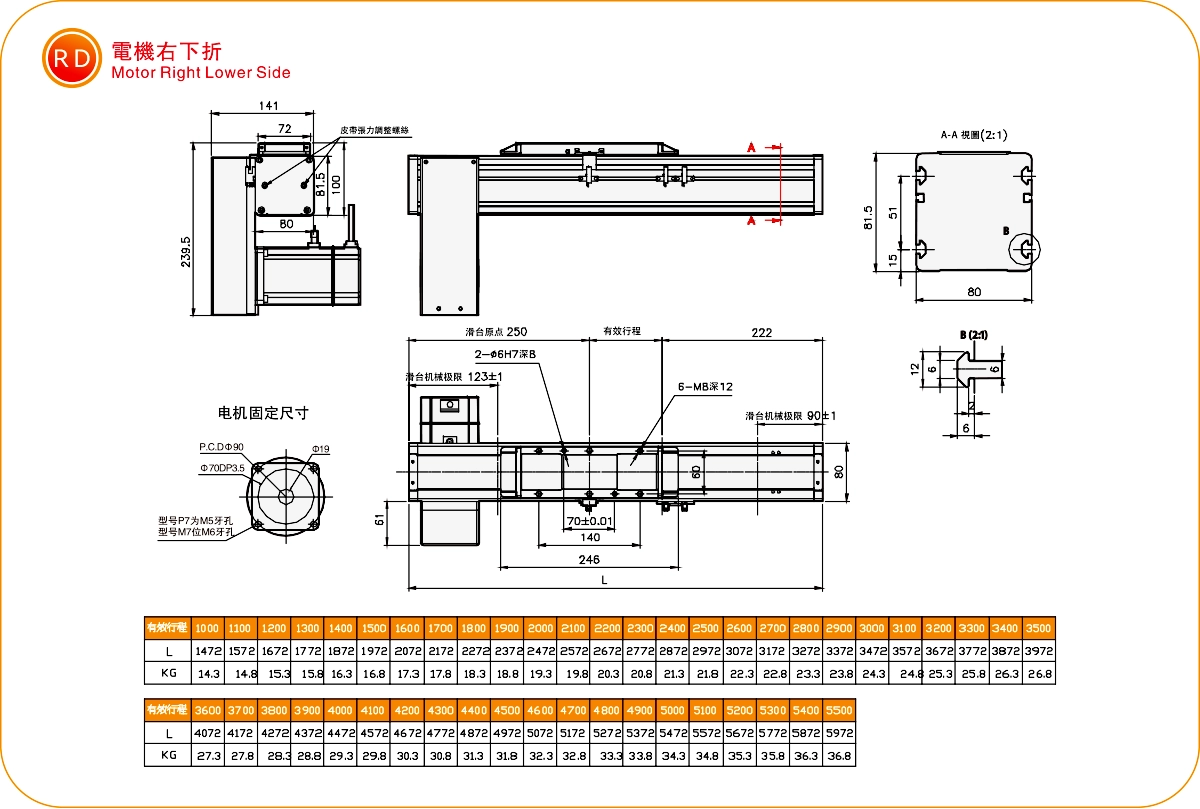

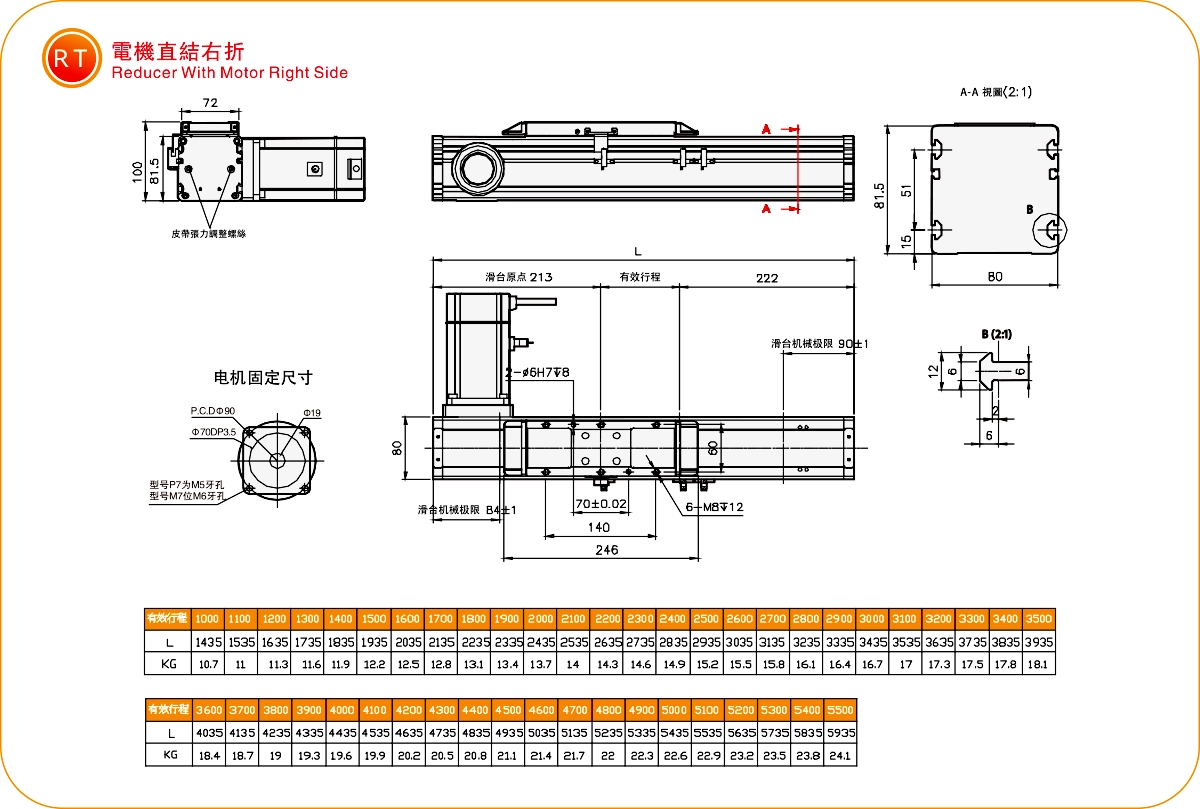

Multi directional motor installation positions are available for selection, making machine design more flexible

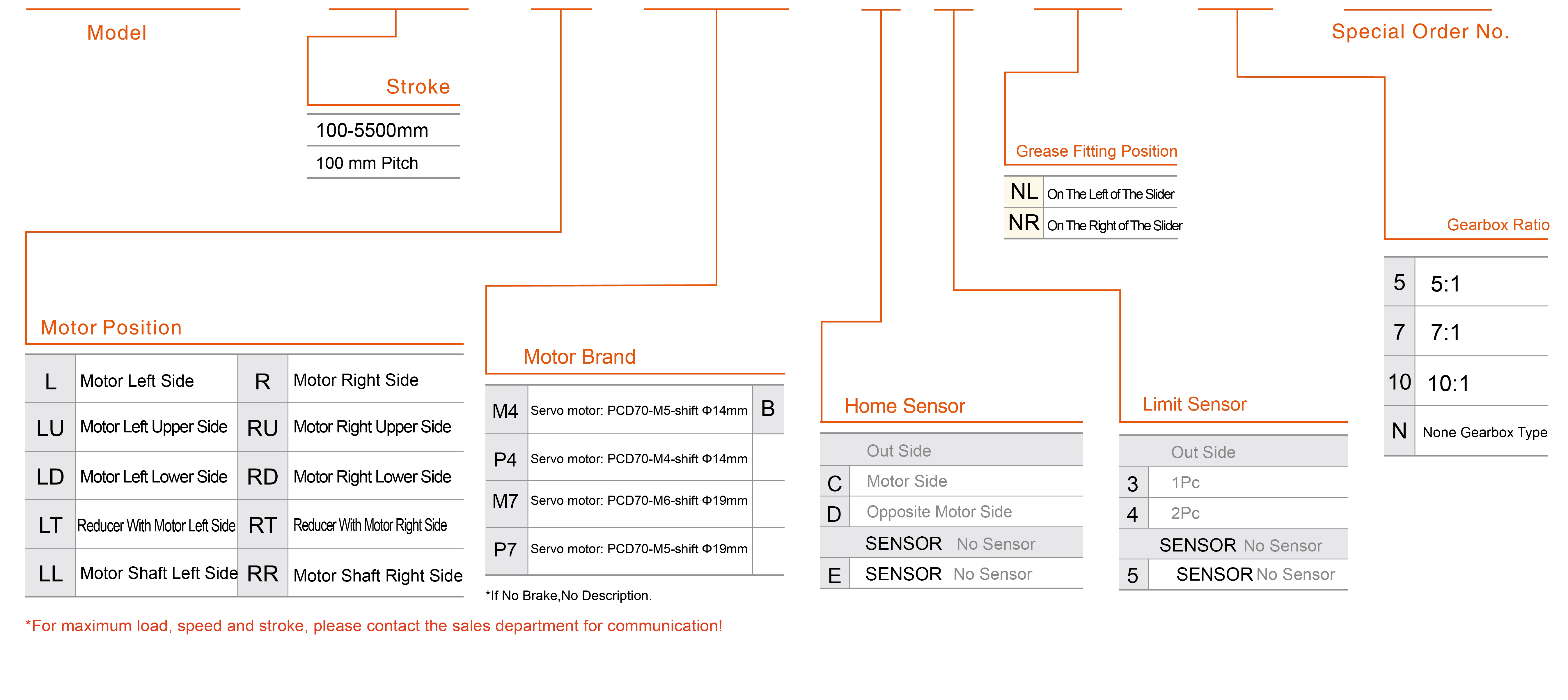

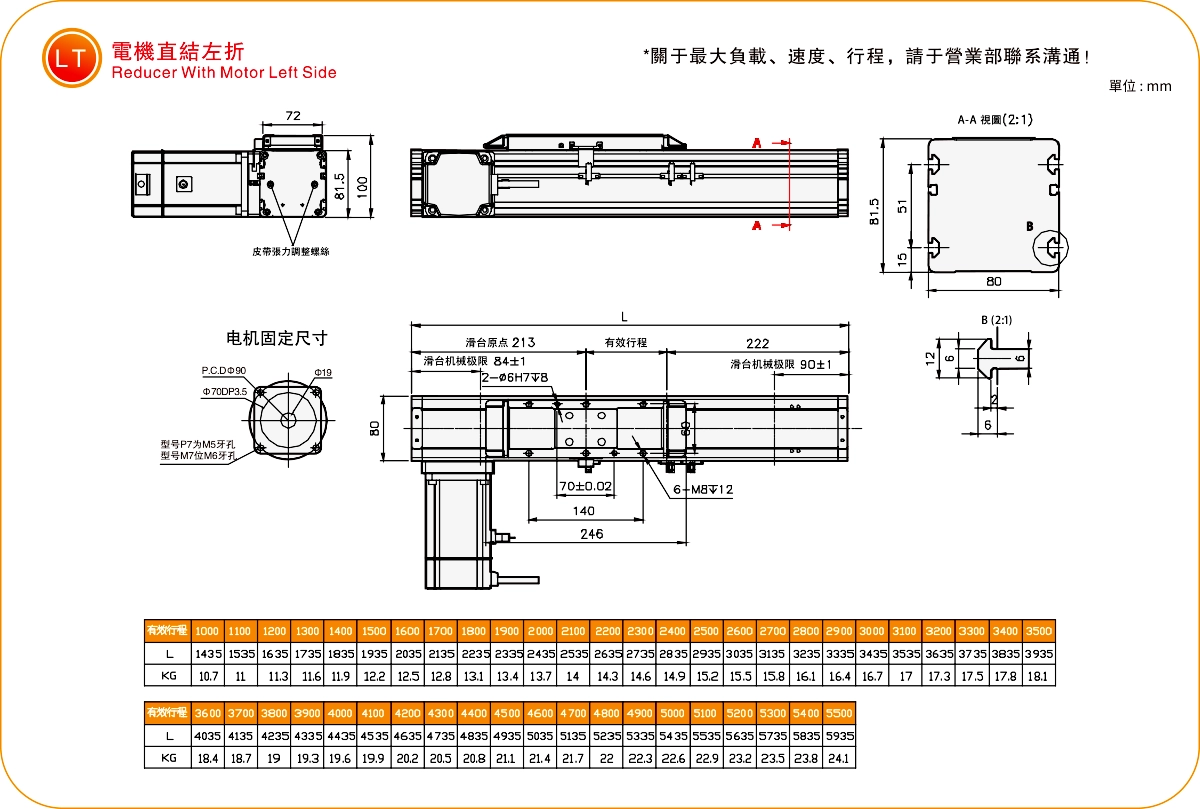

Ordering Method

MKR80-5500-L-M4B-C4-NL- 10- A001

Specification

Spec	Repeatability(mm)		±0.1
	Lead (mm)		200
	Reduction ratio		5:1		7:1		10:1
	Maximum Speed (mm/s)		2000		1428		1000
	Maximum Payload	Horizontal (kg)	40		60		100
		Vertical (kg)	14		21		24
	Rated Thrust (N)		196	362	274	506	392	724
	Stroke Pitch (mm)		100-5500mm/100mm Pitch
Parts	AC Servo Motor Power (W)		392/750W
	Ball Width (mm)		30
	High Rigidity LinearGuide(mm)		W20XH16
	Home Sensor	Outside	EE-SX672(NPN)

Sensor Layout

Allowable Overhang

(Unit : mm)

Horizontal Installation		A	B	C
5∶1	20kg	900	280	40
	30kg	550	160	22
	40kg	400	110	15
7∶1	40kg	750	160	22
	50kg	575	115	16
	60kg	420	85	12
10∶1	60kg	900	140	20
	80kg	700	105	15
	100kg	550	75	10

(Unit : mm)

Wall Installation		A	B	C
5∶1	20kg	40	280	900
	30kg	22	160	600
	40kg	15	110	400
7∶1	40kg	22	160	750
	50kg	16	115	575
	60kg	12	85	450
10∶1	60kg	20	140	950
	80kg	15	105	750
	100kg	10	75	600

(Unit : mm)

Vertical Installation		A	C
5∶1	5kg	1250	1250
	10kg	650	650
	14kg	450	450
7∶1	15kg	600	600
	18kg	480	480
	21kg	400	400
10∶1	18kg	550	550
	20kg	450	450
	24kg	350	350

Static Loading Moment

(Unit : Nm)

MY	867.7
MP	867.7
MR	122.8

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Reducer Mechanism	Motor Output (w)	Width (mm)	Repeatability (mm)	Belt spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Reducer Mechanism	Motor Output (w)	Width (mm)	Repeatability (mm)	Belt width(mm)	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Standard	Timing Belt	MKR40	Yes	100W	40	±0.1	15	90	8	2	4500
		MKR65	Yes	400W	65	±0.1	30	130	60	17	5000
		MKR80	Yes	750W	80	±0.1	35	200	100	24	5000
		MKR110	Yes	750W/1000	110	±0.1	50	280	200	50	5000
		OBB65	Yes	400W	65	±0.1	30	110	25	6	5000
