Lightweight and Long Lifespan

Body width：178-76mm

Repeatability：±0.003mm

P64-C1 Load：23kg

P64-C3 Load：70kg

Maximum Speed：2500mm/s

Travel Range：96-3744mm

PDF

3D download

Cadenas3 Ddownload

High precision, high rigidity, external oil injection

The only patented fuel nozzle design in the industry, with a single fuel nozzle on the slide seat for oil injection, allows for simultaneous oil injection and maintenance of both the slide rail and slider, making maintenance more convenient and time-saving.

Long journey with complete specifications and convenient positioning

Four column ball type embedded linear motor slide table, with a stroke of up to 3744mm, and the stroke can be increased according to customer needs

Embedded ball slide rail structure

After embedding the sliding rail into the aluminum extrusion type, the parallel and equally high-precision tracks on both sides are ground by the grinding equipment, which will result in better accuracy than locking two standard line rails with the aluminum extrusion type.

Multiple optional drivers

Ordering Method

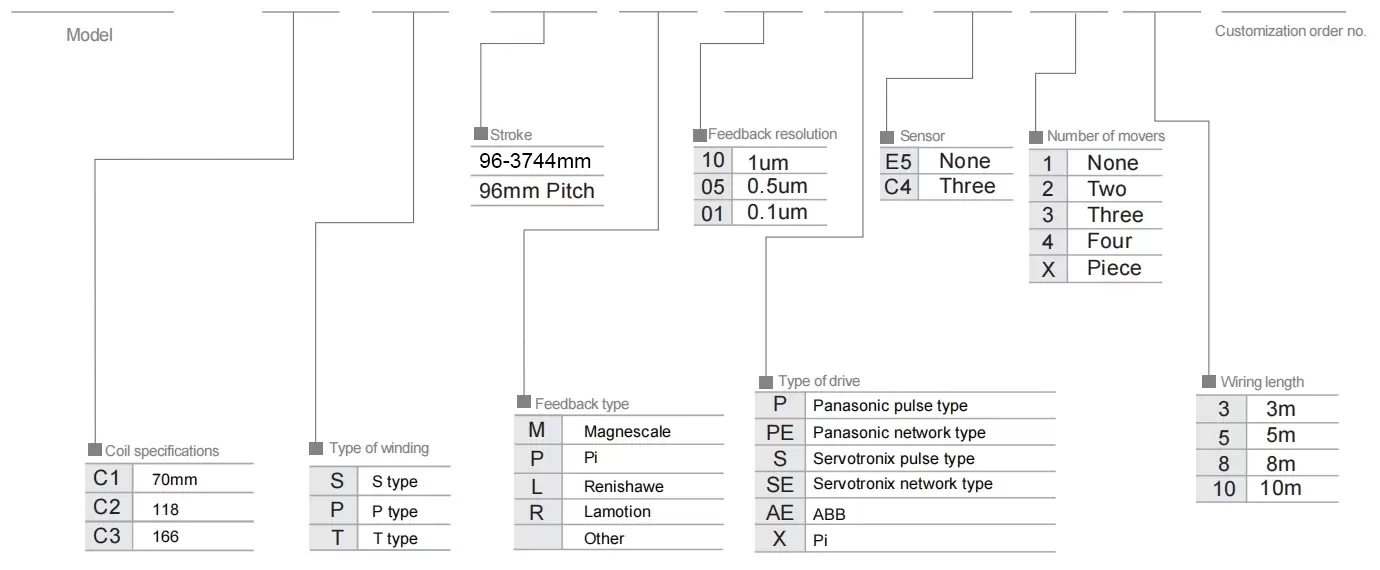

GSL18 - C1 -S - 96 - M - 10 -P -C 4 - 1- 3- 0001

Specification

Directory	Wire circle specifications	P88-C1	P88-C3
Spec	Repeatability(mm)	±0.003
	Maximum Payload(kg)	23	70
	Maximum Speed (mm/s)	2500
	Continuous thrust(N)	136	408
	Peak thrust(N)	299	897
	Continuous current(Ams)	3.3	3.3
	Peak current(Arms)	10.5	10.5
	Force constant(N/Arms)	41.5	123.6
	Inductance(mH)	24.5	73.4
	Resistance(ohm)	4.2	12.6
	Magnetic pole distance(mm)	24

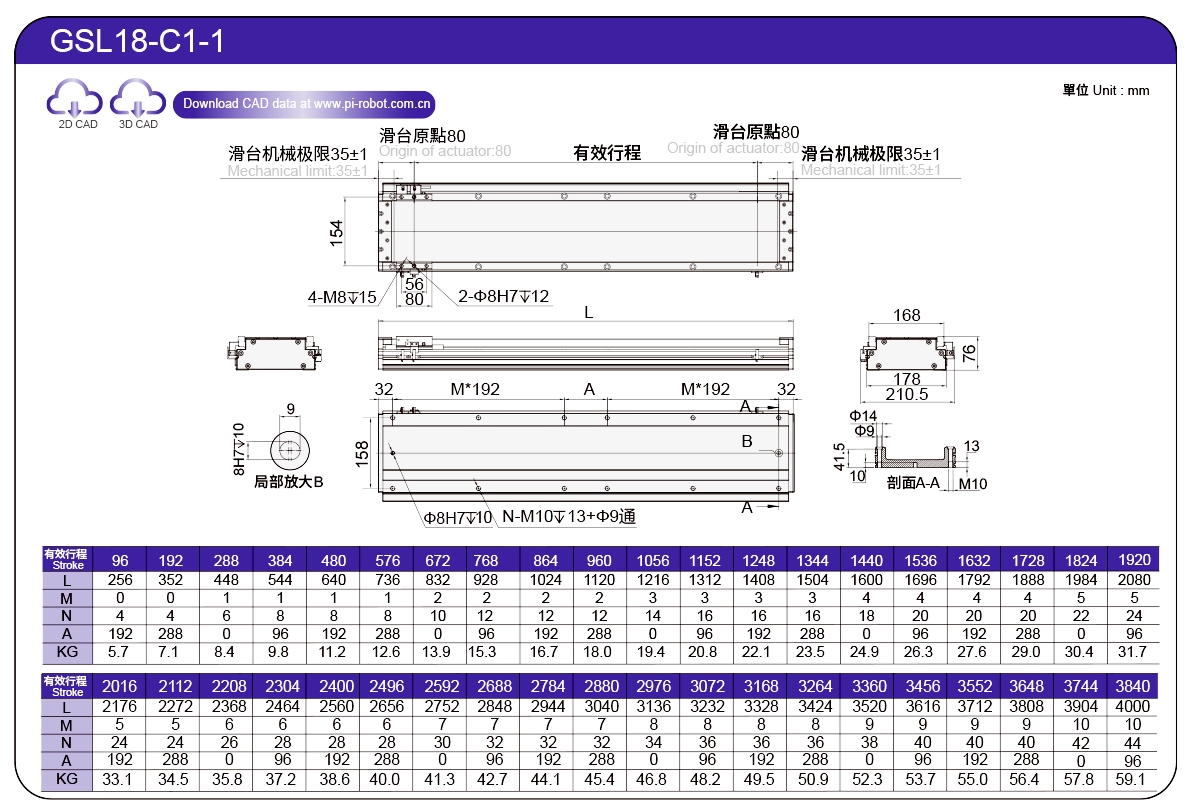

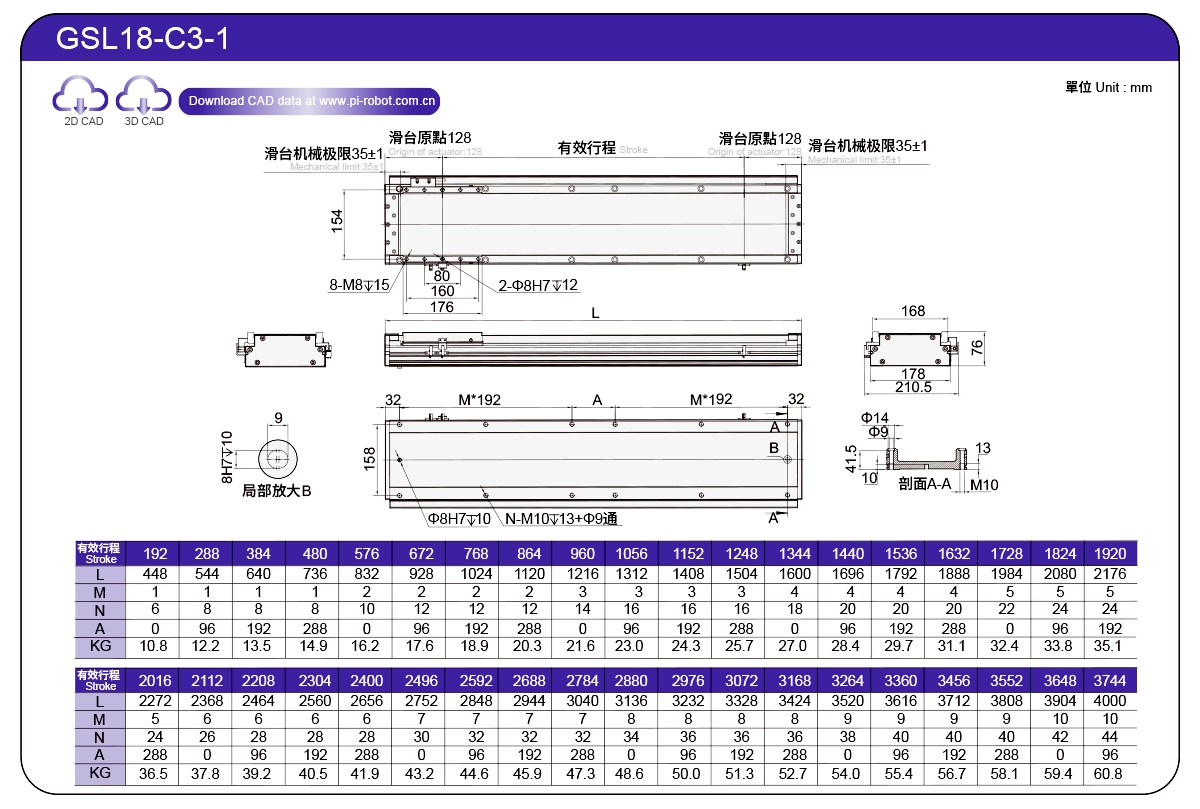

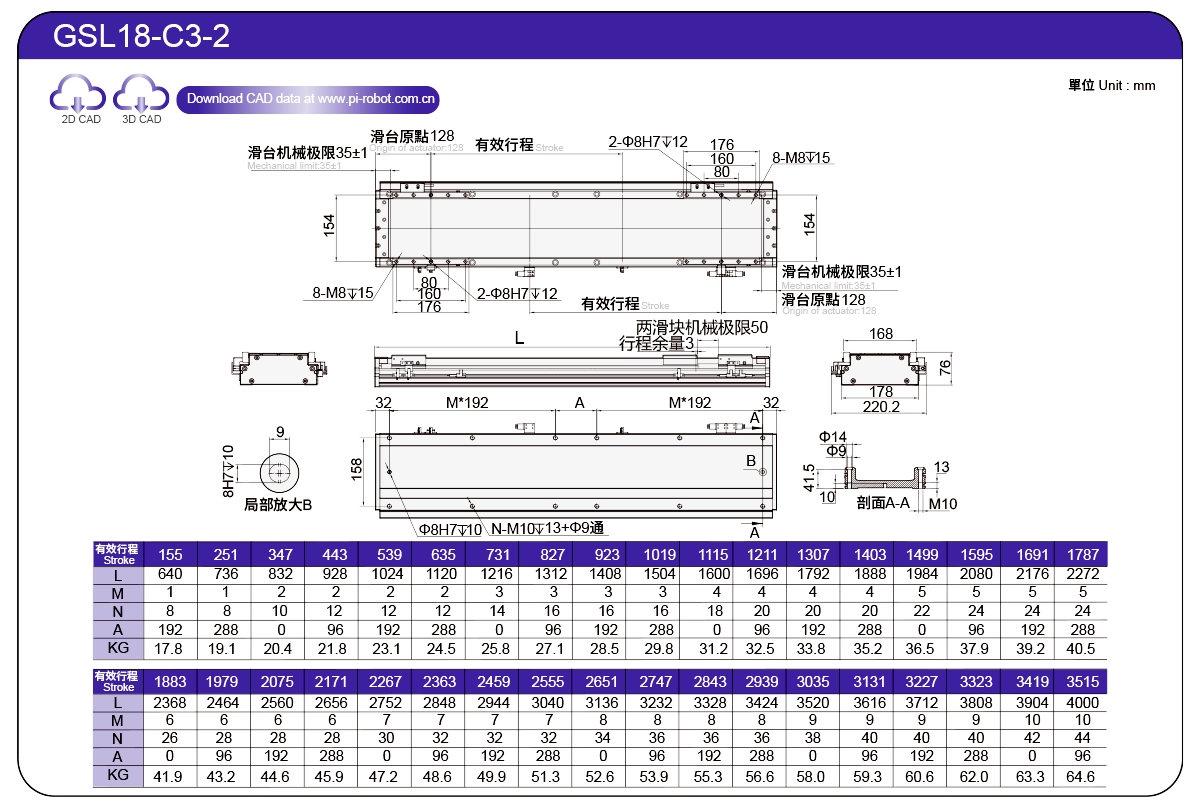

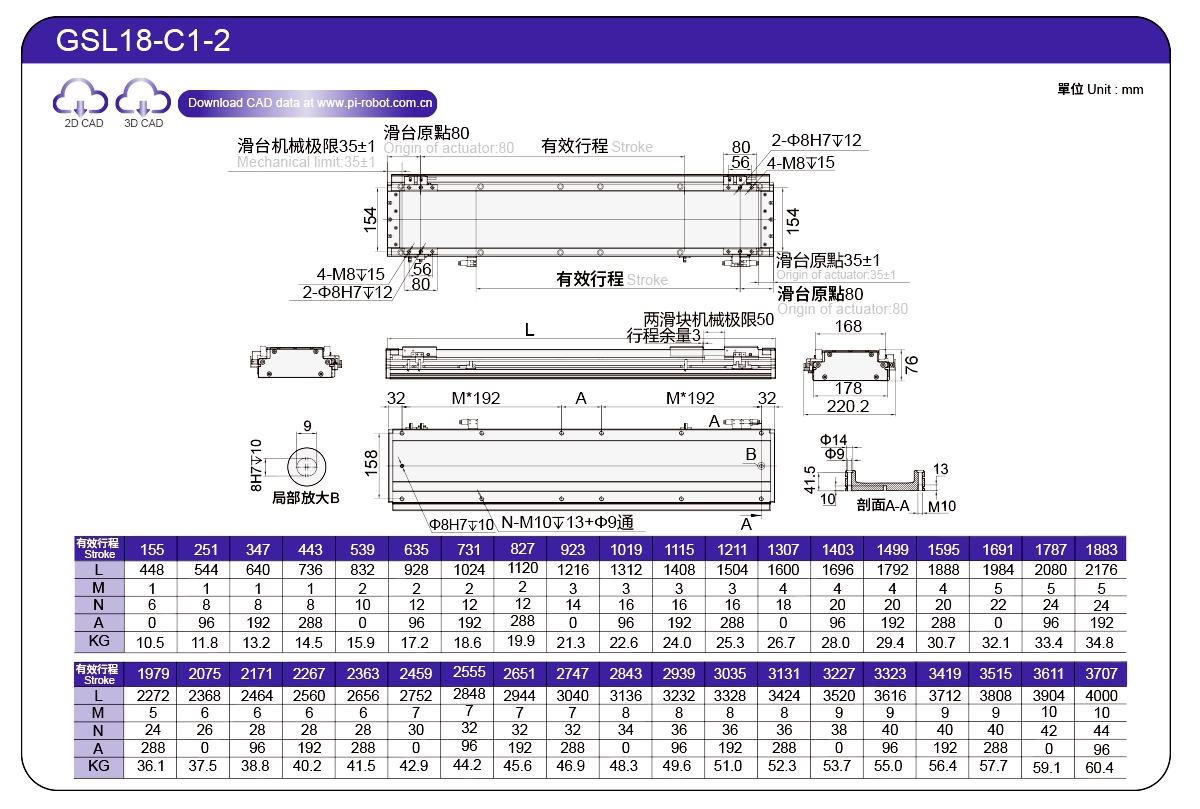

Sensor Layout

※1 Acceleration and deacceleration value is set 0.2 second.

※2 When the stroke is over 600mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.Please reeer to P85 for details.

Operation life is 10,000km when the product is using under the specified conditions.

Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Allowable Overhang

(Unit : mm)

Horizontal Installation		Load	A	B	C
Load	P88-C1	10kg	130	100	100
		13kg	90	80	80
		17kg	70	60	60
		20kg	60	50	50
		23kg	50	40	40
	P88-C3	30kg	160	120	120
		40kg	110	95	95
		50kg	100	70	70
		60kg	70	60	60
		70kg	60	50	50

(Unit : mm)

Wall Installation		Load	A	B	C
Load	P88-C1	10kg	100	100	130
		13kg	80	80	90
		17kg	60	60	70
		20kg	50	50	60
		23kg	40	40	50
	P88-C3	30kg	120	120	160
		40kg	95	95	110
		50kg	70	70	100
		60kg	60	60	70
		70kg	50	50	60

Static Loading Moment

(Unit : Nm)

Direction	P64-C1	P64-C3
MY	283	1403
MP	283	1403
MR	1503	3383

The Relationship Between Speed And Acceleration

P88-C1

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s	3m/s	3.5m/s
10	1.7	1.7	1.7	1.7	1.7	1.5
13	1.4	1.4	1.4	1.3	1.3	1.23
17	1.1	1.1	1.1	1	1	0.9
20	0.9	0.9	0.9	0.9	0.9	0.8
23	0.8	0.8	0.8	0.8	0.8	0.7

P88-C3

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s
30	2.1	1.9	1.1	0.5
40	1.7	1.3	0.8	0.4
50	1.4	1.1	0.6	0.3
60	1.2	0.9	0.5	0.2
70	1.1	0.8	0.4	0.2

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Specifications	The width of the body(mm)	The height of the body(mm)	Repeatability(mm)	Continuous thrust(N)	Peak thrust(N)	lrms(A)	Maximum Payload(kg)	Maximum speed (mm/s)*1
Standard	Linear Motor Robot	GSL7	P27-C1	75	65	±0.003	26	57	3.3	6	2500
		GSL7	P27-C2	75	65	±0.003	52	114	3.3	10
		GSL8	P35-C1	87	65	±0.003	40	88	3.3	10
		GSL8	P35-C2	87	65	±0.003	80	176	3.3	20
		GSL14	P44-C1	134	70	±0.003	48	105	3.3	11
		GSL14	P44-C3	134	70	±0.003	144	315	3.3	25
		GSL16	P64-C1	154	70	±0.003	88	193	3.3	20
		GSL16	P64-C3	154	70	±0.003	264	580	3.3	50
		GSL18	P88-C1	178	76	±0.003	136	299	3.3	23
		GSL18	P88-C3	178	76	±0.003	408	897	3.3	70
