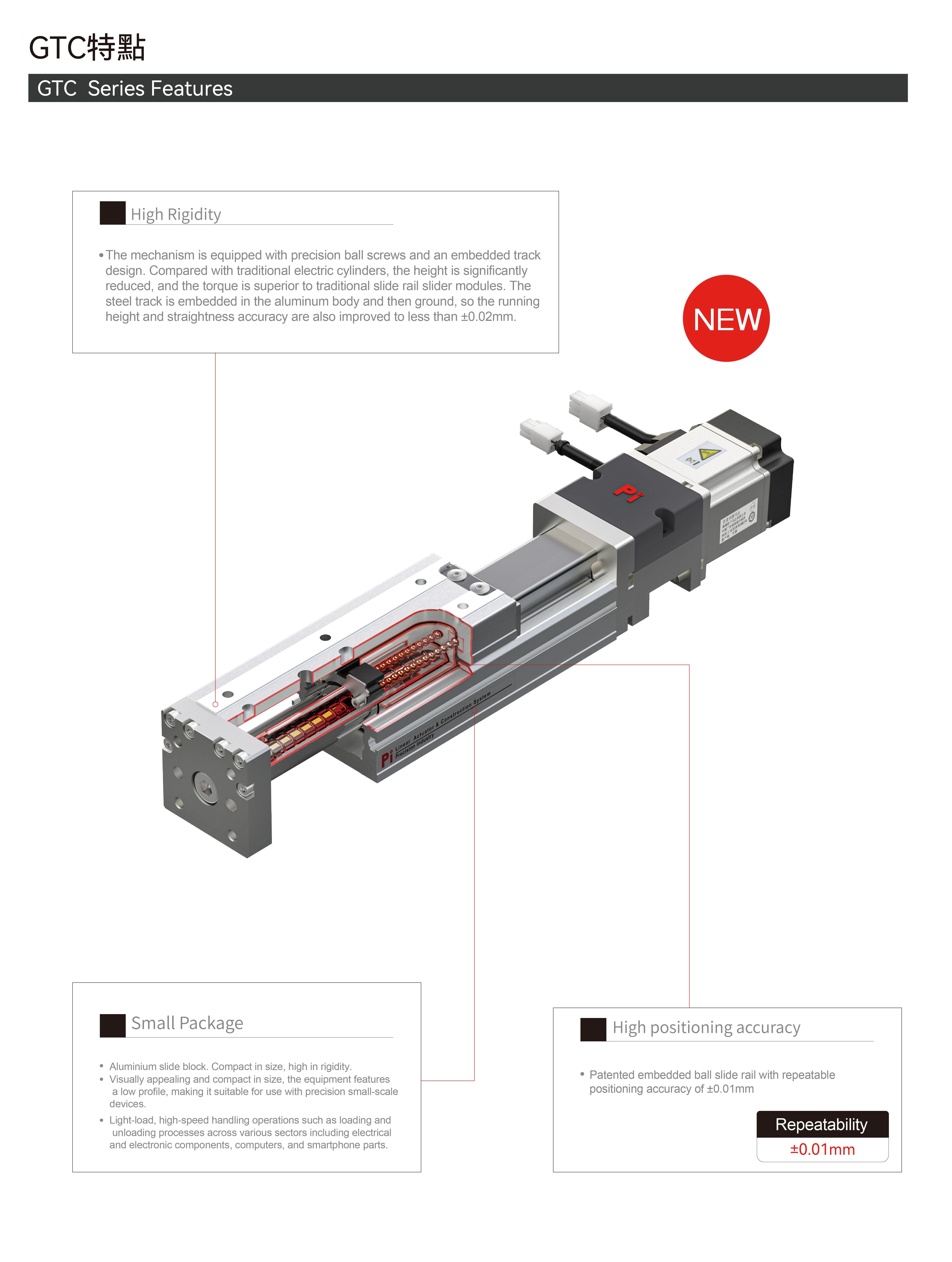

The mechanism is equipped with precision ball screws and an embedded trackdesign. Compared with traditional electric cylinders, the height is significantlyreduced, and the torque is superior to traditional slide rail slider modules. Thesteel track is embedded in the aluminum body and then ground, so the runningheight and straightness accuracy are also improved to less than +0.02mm.
High positioning accuracy
Patented embedded ball slide rail with repeatable positioning accuracy of ±0.01mm
