Lightweight and Long Lifespan

Body width：60-200mm

Repeatability：±0.005/0.01mm

Horizontal Load：150kg

Vertical Load：55kg

Maximum Speed：250mm/s

Travel Range：800-2600mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

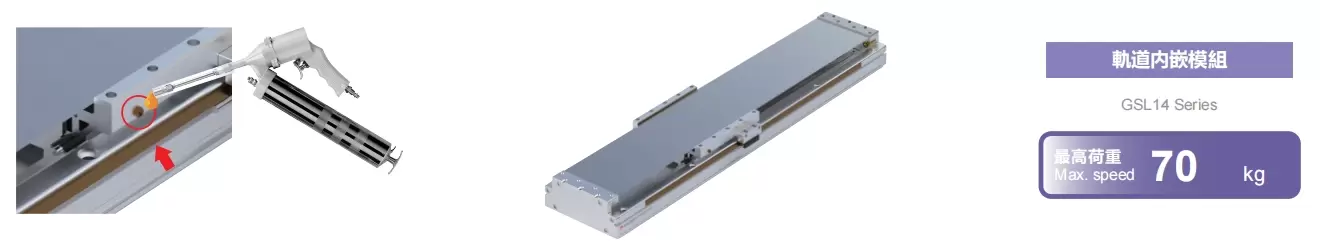

High precision, high rigidity, external oil injection

The only patented fuel nozzle design in the industry, with a single fuel nozzle on the slide seat for oil injection, allows for simultaneous oil injection and maintenance of both the slide rail and slider, making maintenance more convenient and time-saving.

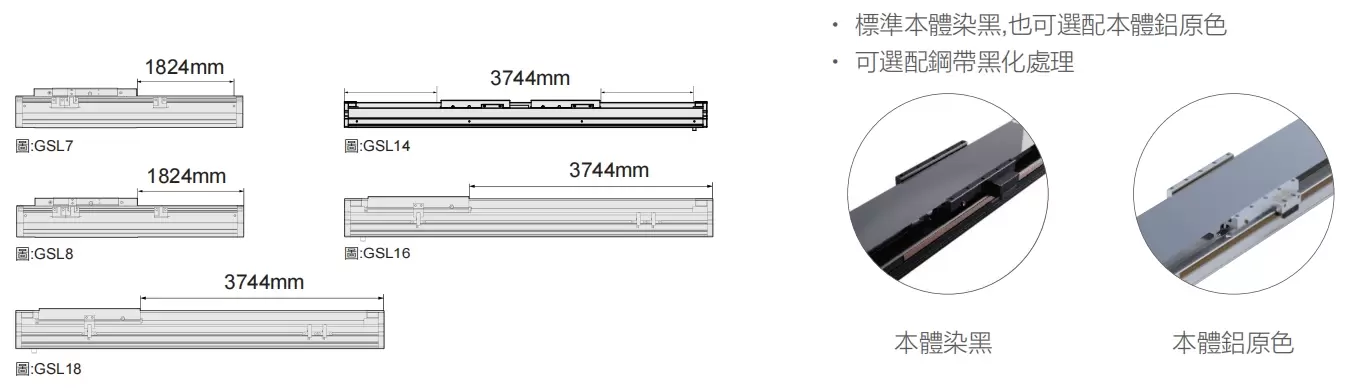

Long journey with complete specifications and convenient positioning

Four column ball type embedded linear motor slide table, with a stroke of up to 3744mm, and the stroke can be increased according to customer needs

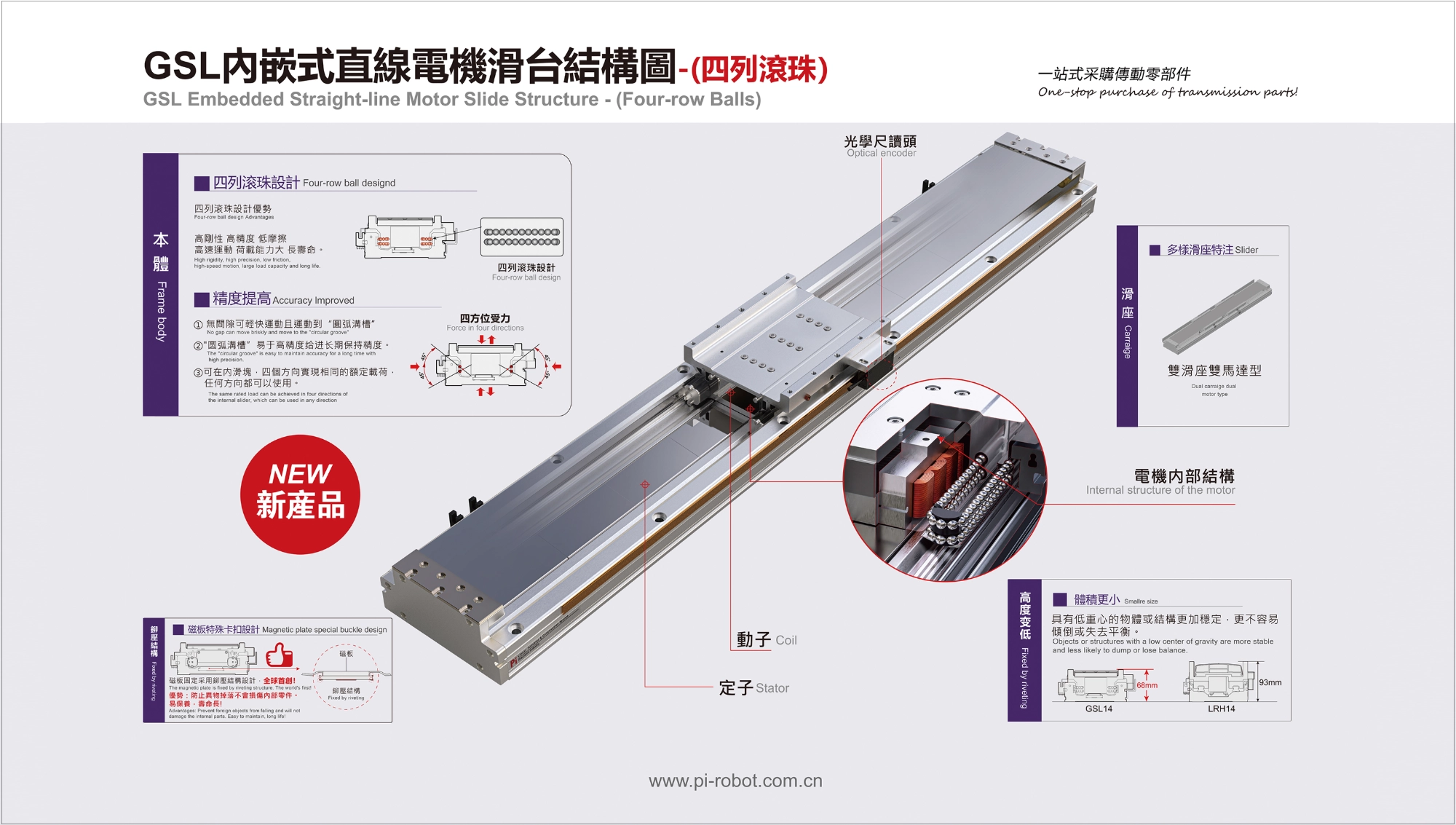

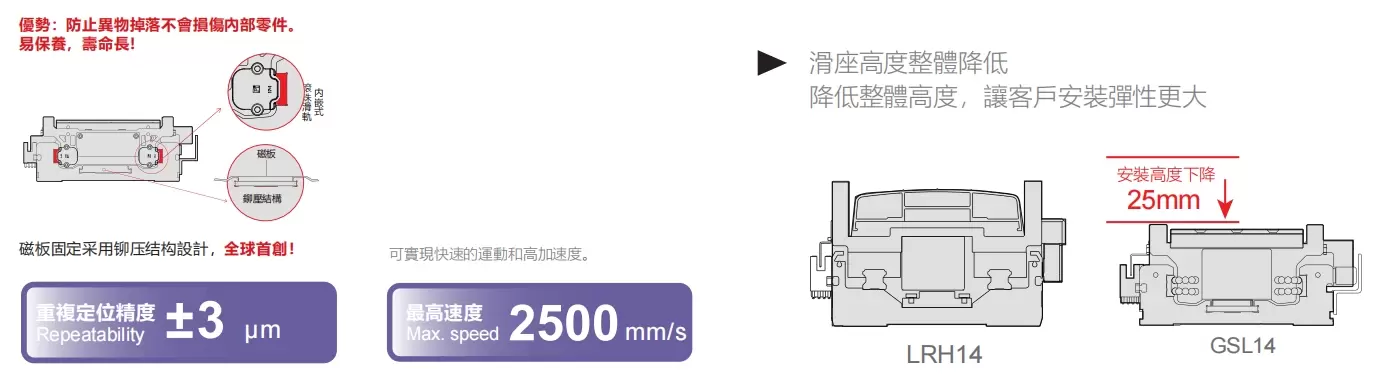

Embedded ball slide rail structure

After embedding the sliding rail into the aluminum extrusion type, the parallel and equally high-precision tracks on both sides are ground by the grinding equipment, which will result in better accuracy than locking two standard line rails with the aluminum extrusion type.

Multiple optional drivers

Ordering Method

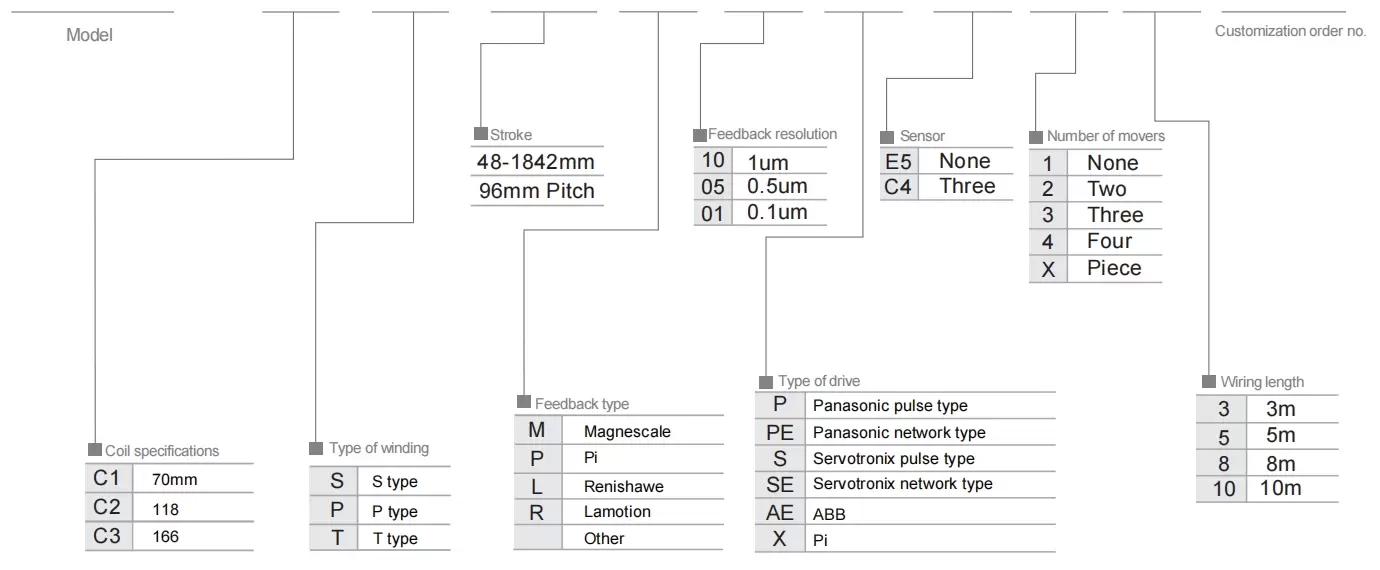

GSL14- C1 -S-96-M-10-P-C4-1-3-0001

Specification

Directory	Wire circle specifications	P44-C1	P44-C3
Spec	Repeatability(mm)	±0.003
	Maximum Payload(kg)	11	25
	Maximum Speed (mm/s)	2500
	Continuous thrust(N)	48	144
	Peak thrust(N)	105	315
	Continuous current(Ams)	3.3	3.3
	Peak current(Arms)	10.5	10.5
	Force constant(N/Arms)	14.5	43.5
	Inductance(mH)	10.3	30.9
	Resistance(ohm)	1.9	5.7
	Magnetic pole distance(mm)	24

Sensor Layout

※1 Acceleration and deacceleration value is set 0.2 second.

※2 When the stroke is over 600mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.Please reeer to P85 for details.

Operation life is 10,000km when the product is using under the specified conditions.

Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Allowable Overhang

(Unit : mm)

Horizontal Installation		Load	A	B	C
Load	P44-C1	3kg	300	250	250
		5kg	200	130	130
		7kg	120	100	100
		9kg	90	70	70
		11kg	80	60	60
	P44-C3	10kg	300	260	260
		15kg	200	160	160
		20kg	150	120	120
		25kg	120	90	90
		30kg	80	80	80

(Unit : mm)

Wall Installation		Load	A	B	C
Load	P44-C1	3kg	250	250	300
		5kg	130	130	200
		7kg	100	100	120
		9kg	70	70	90
		11kg	60	60	80
	P44-C3	10kg	260	260	300
		15kg	160	160	200
		20kg	120	120	150
		25kg	90	90	120
		30kg	80	80	80

Static Loading Moment

(Unit : Nm)

Direction	P44-C1	P44-C3
MY	283	1403
MP	283	1403
MR	990	2229

The Relationship Between Speed And Acceleration

P35-C1

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s	3m/s	3.5m/s
3	2.2	2.2	2.2	2.1	1.9	1.8
5	1.6	1.6	1.5	1.3	1.3	1.2
7	1.2	1.2	1	0.9	0.9	0.9
9	1	0.9	0.9	0.8	0.8	0.7
11	0.8	0.8	0.7	0.7	0.7	0.6

P44-C3

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s	3m/s	3.5m/s
10	2.1	2.1	2.1	2.1	2.1	2
15	1.6	1.6	1.6	1.5	1.5	1.4
20	1.3	1.2	1.2	1.2	1.2	1.1
25	1.0	1.0	1.0	1.0	0.9	0.8

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Specifications	The width of the body(mm)	The height of the body(mm)	Repeatability(mm)	Continuous thrust(N)	Peak thrust(N)	lrms(A)	Maximum Payload(kg)	Maximum speed (mm/s)*1
Standard	Linear Motor Robot	GSL7	P27-C1	75	65	±0.003	26	57	3.3	6	2500
		GSL7	P27-C2	75	65	±0.003	52	114	3.3	10
		GSL8	P35-C1	87	65	±0.003	40	88	3.3	10
		GSL8	P35-C2	87	65	±0.003	80	176	3.3	20
		GSL14	P44-C1	134	70	±0.003	48	105	3.3	11
		GSL14	P44-C3	134	70	±0.003	144	315	3.3	25
		GSL16	P64-C1	154	70	±0.003	88	193	3.3	20
		GSL16	P64-C3	154	70	±0.003	264	580	3.3	50
		GSL18	P88-C1	178	76	±0.003	136	299	3.3	23
		GSL18	P88-C3	178	76	±0.003	408	897	3.3	70

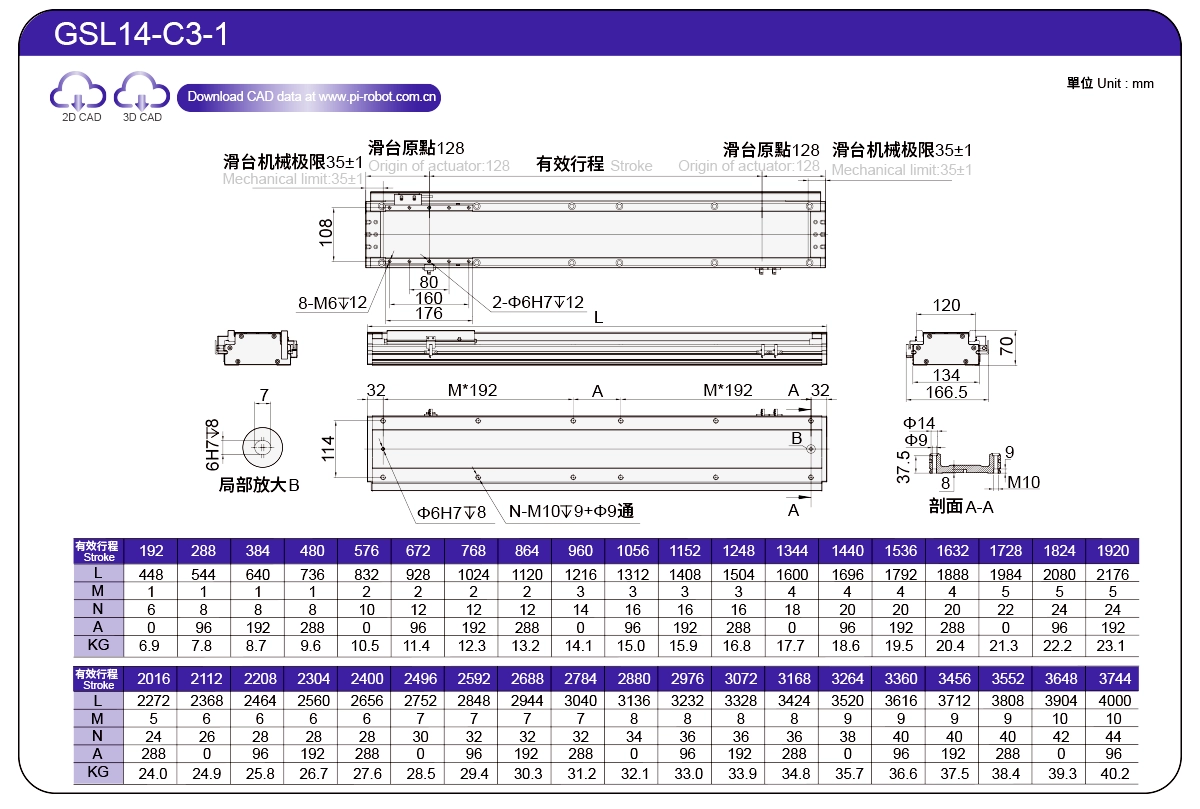

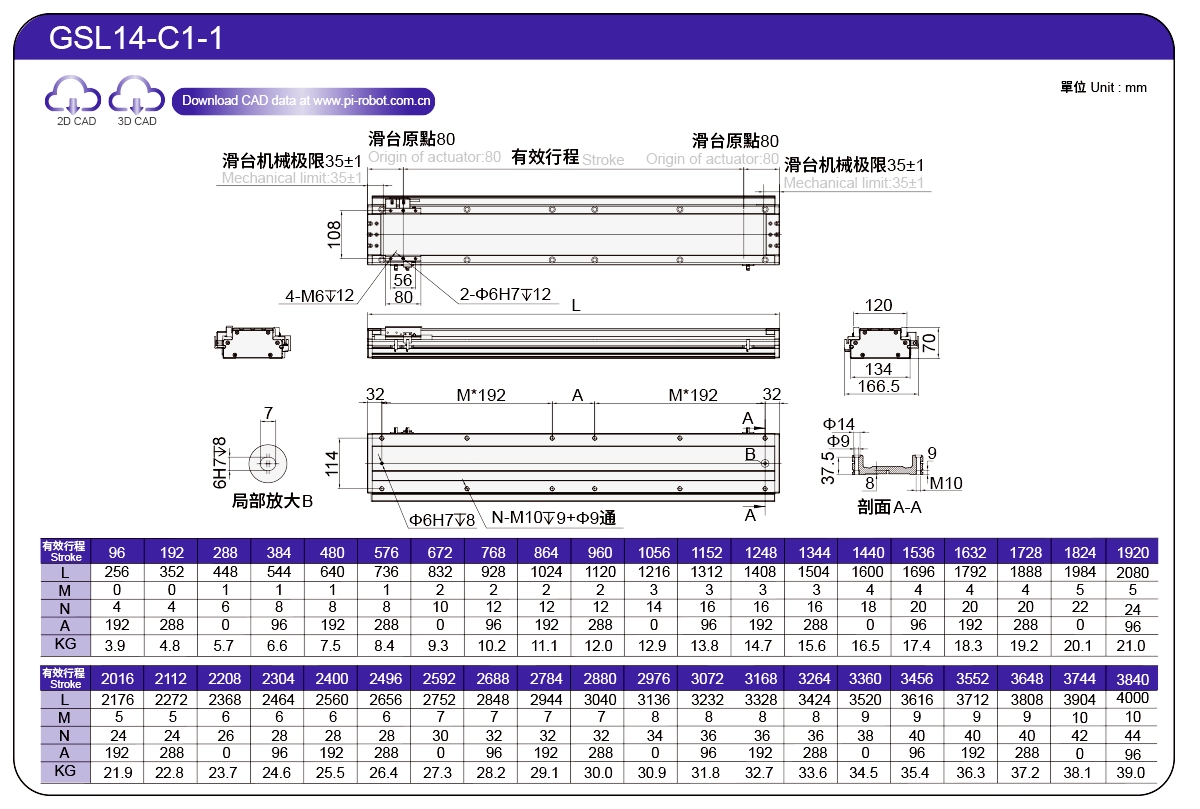

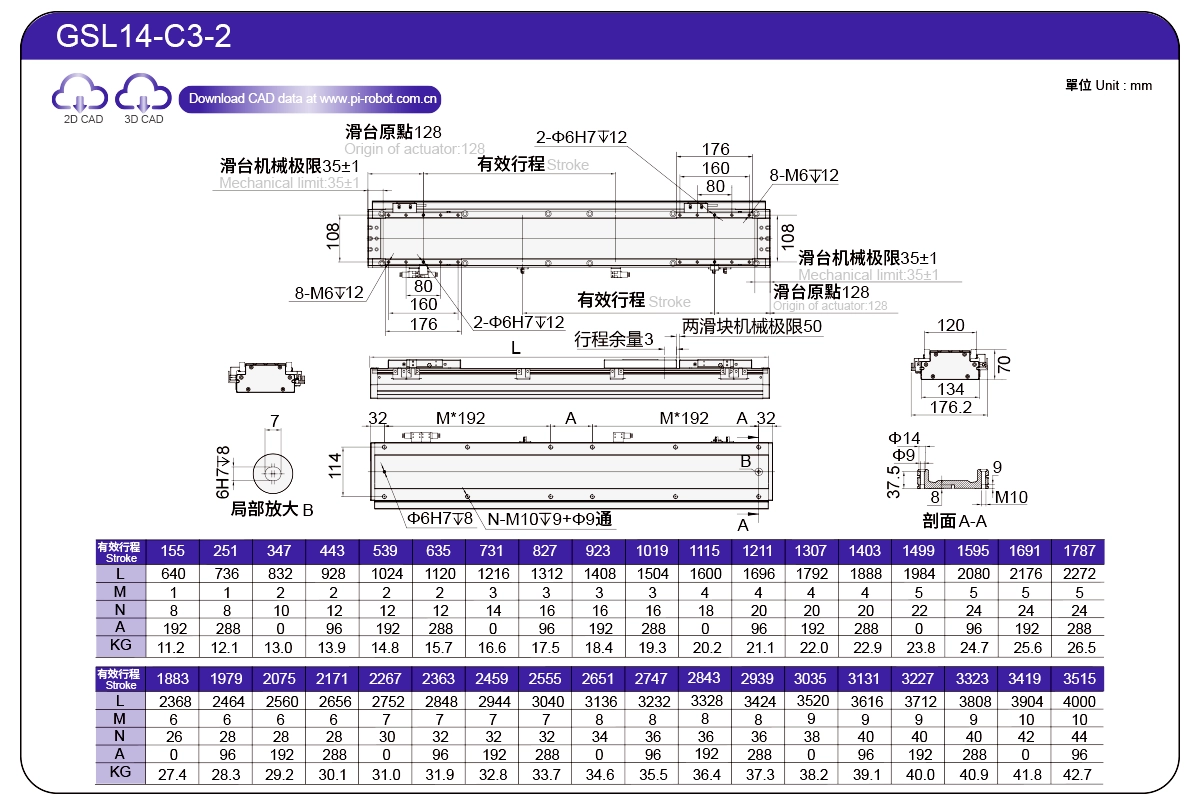

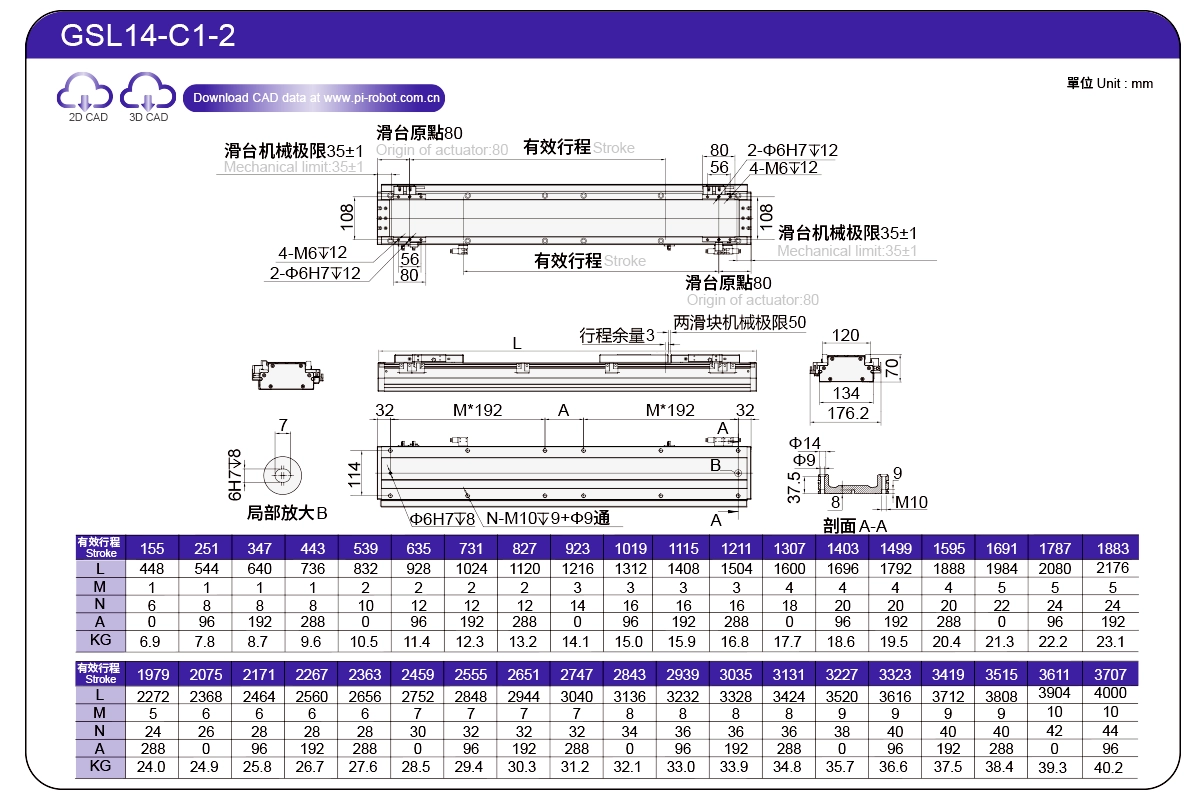

C1-1/C1-2
