Current location：Home > Product > Electric cylinder > STC Series > SCT 11 > Motor Exposed

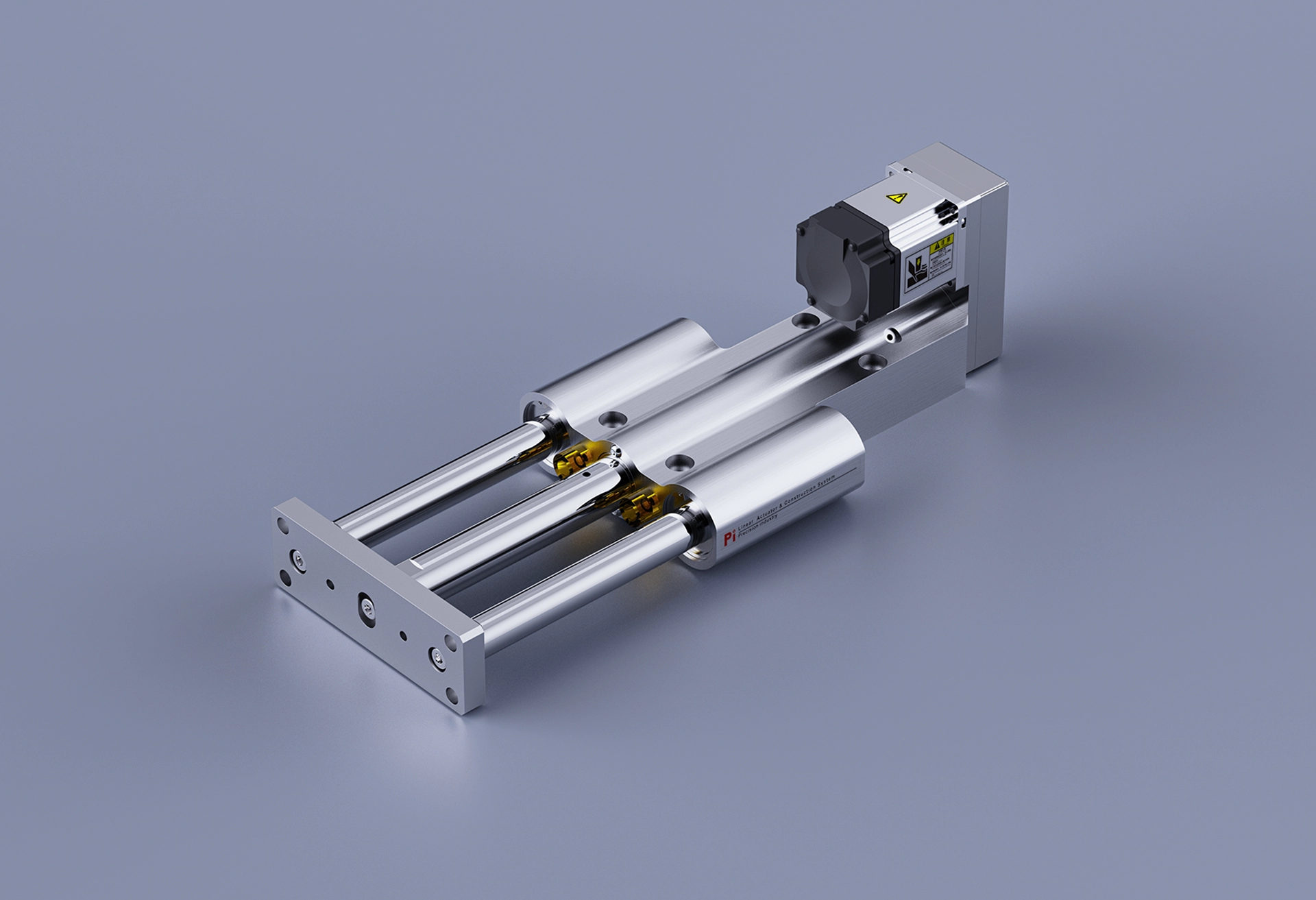

STC Series

Lightweight and Long Lifespan

Repeatability：±0.01mm

Vertical Load：5kg

Maximum Speed：135mm/s

Travel Range：50-300mm

Delivery time: 7-10 days

PDF
3D download
Cadenas3 Ddownload

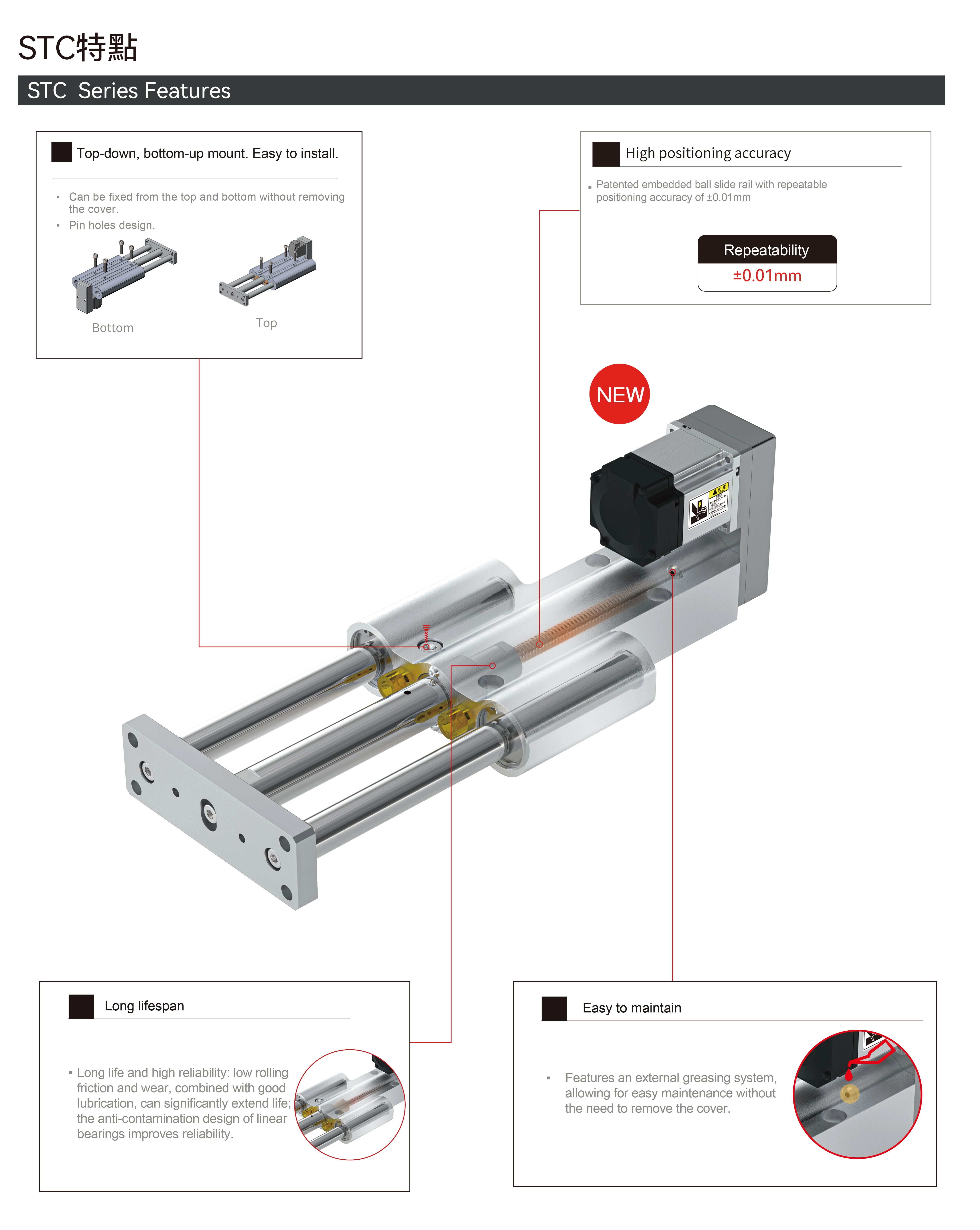

Top-down, bottom-up mount. Easy to install.
1.Can be fixed from the top and bottom without removing the cover.  2.Pin holes design.

High positioning accuracy
Patented embedded ball slide rail with repeatable  positioning accuracy of ±0.01mm

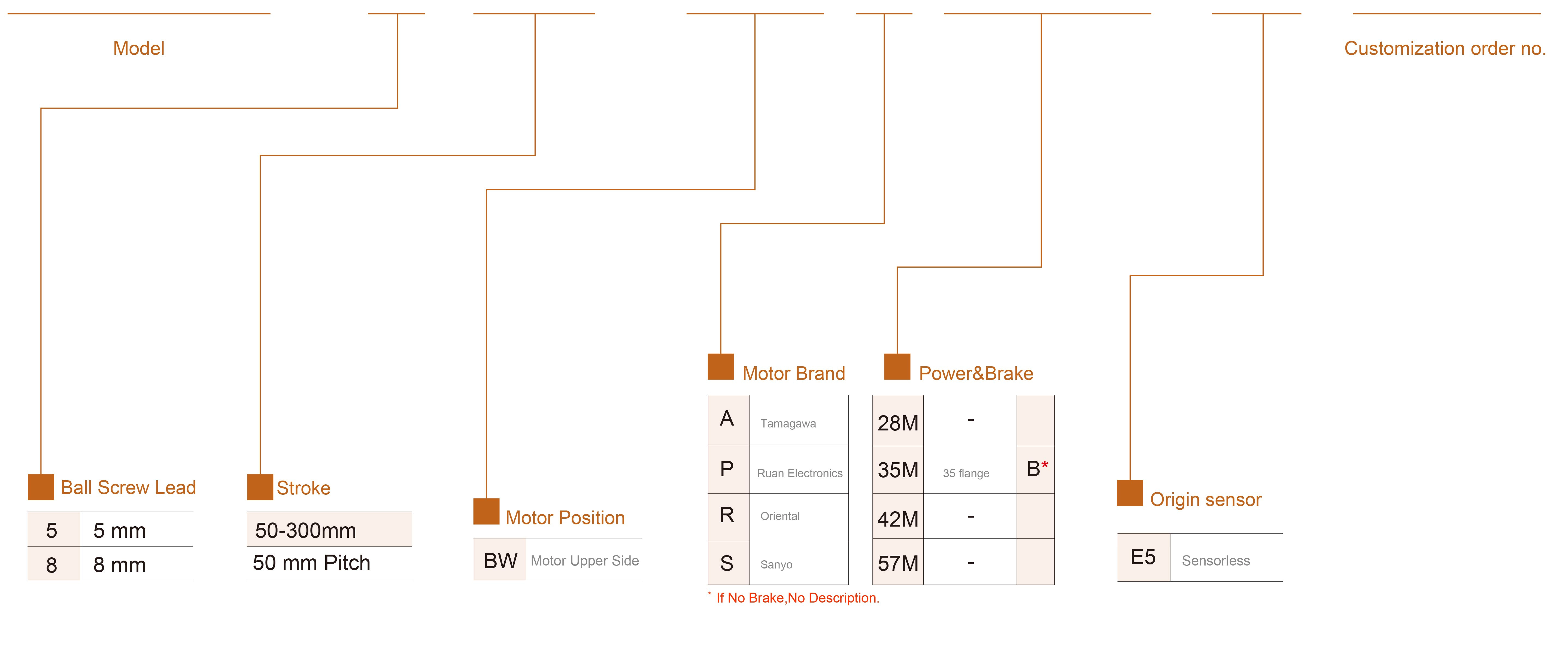

Ordering Method
GCT16 - L2  - 10 0 - BC - P28MB - E5 - 0001

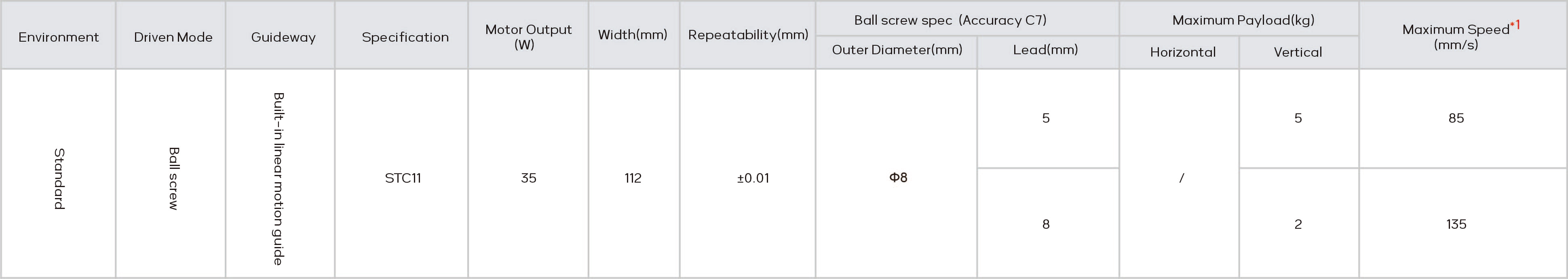

Specification

SensorLayout

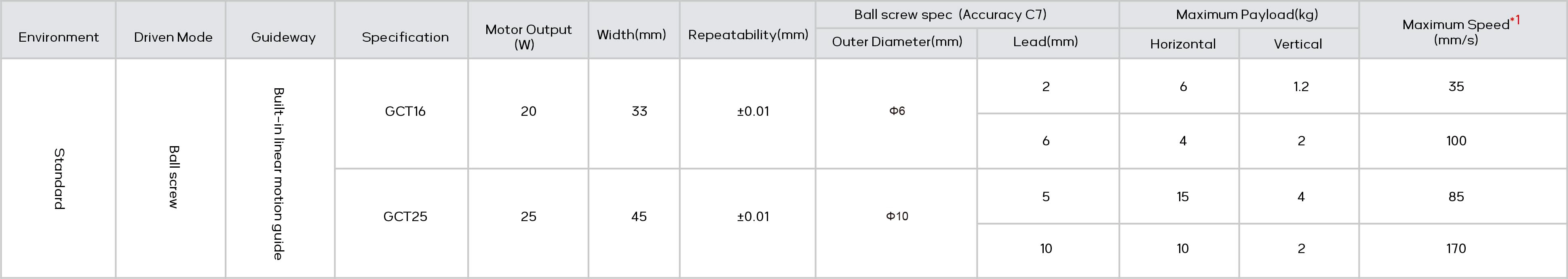

Spec Index of Electric Actuator

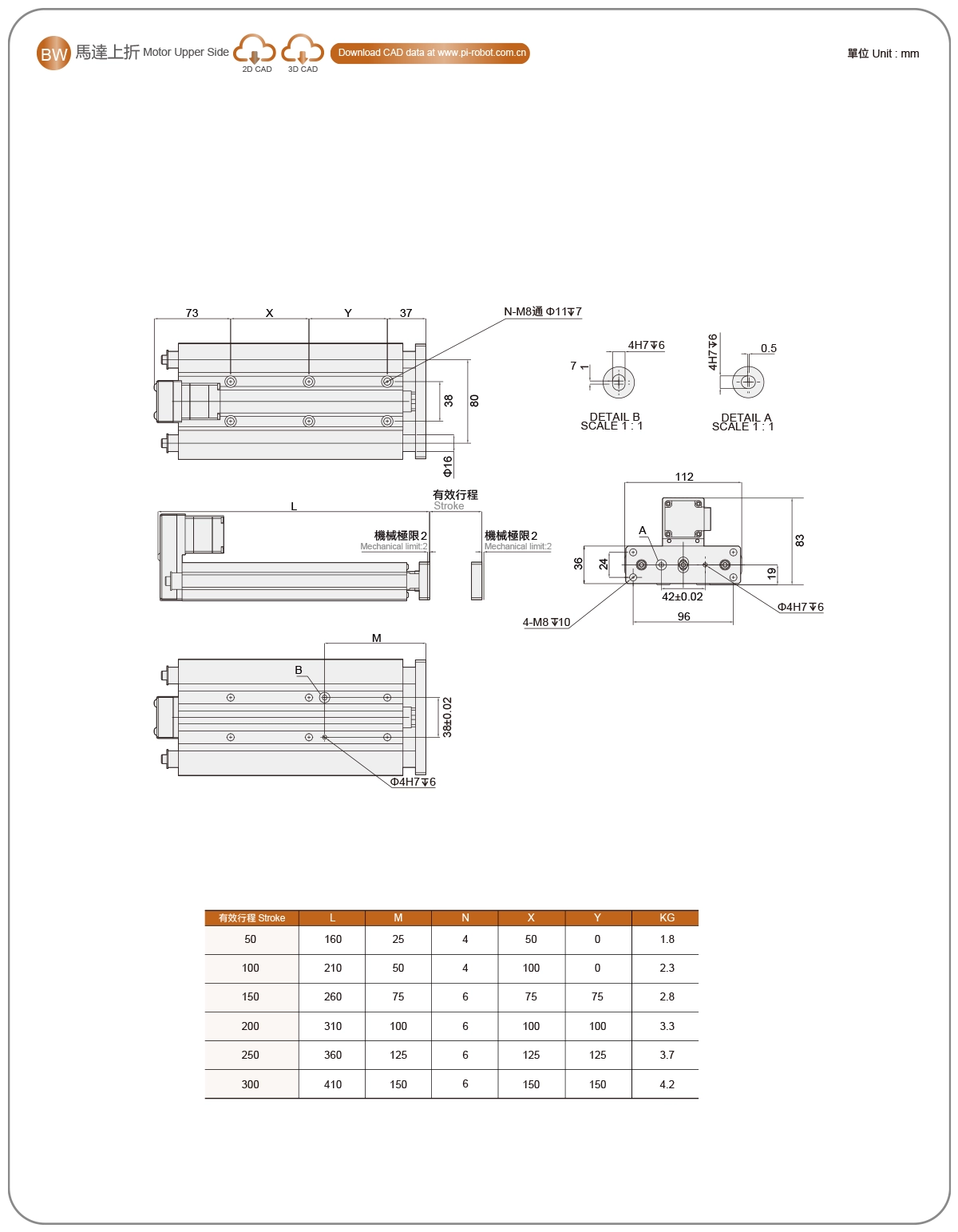

Motor Exposed
