PC Series

Lightweight and Long Lifespan

Body width:30mm

Repeatability:±0.01mm

Horizontal Load:4kg

Vertical Load:1.5kg

Maximum Speed:100mm/s

Travel Range:50-100mm

Delivery time: 7-10 days

Embedded push rod screw slide table
The longest journey is up to 800mm
Accuracy ± 0.1mm
Maximum load 110kg
Easy maintenance

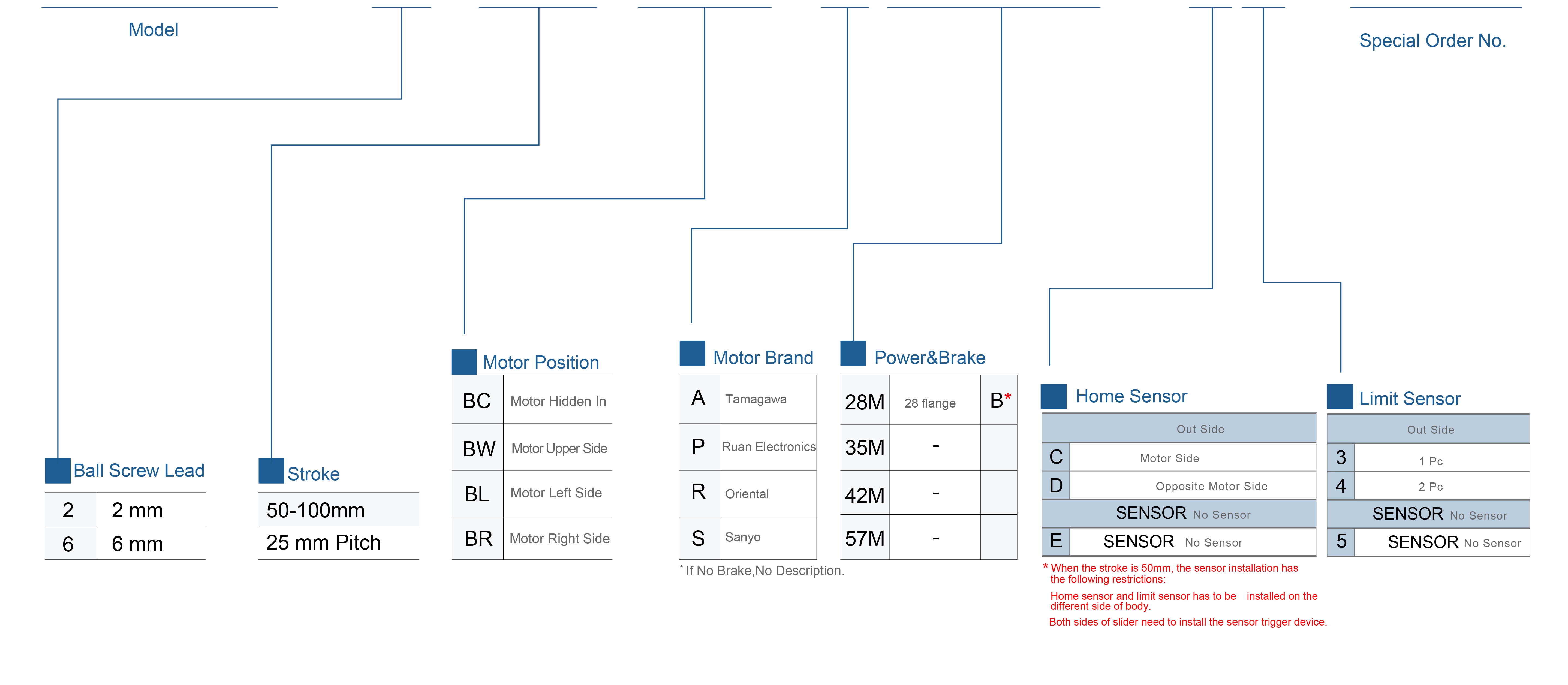

Ordering Method
PC16 -L2 - 50 - BC - P28MB - C4  - 0001

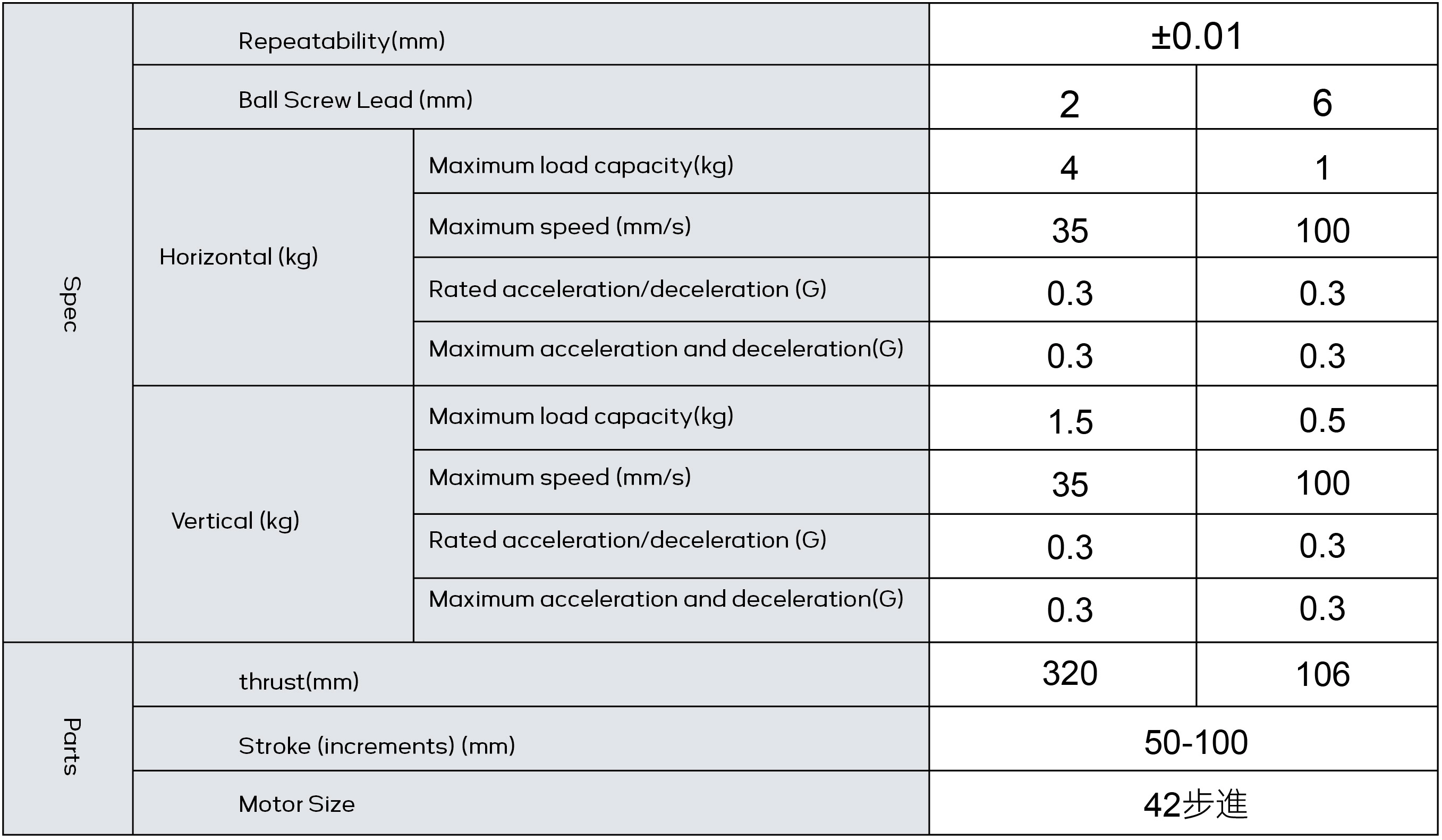

Specification

Shaft Output Deforation Value

SensorLayout

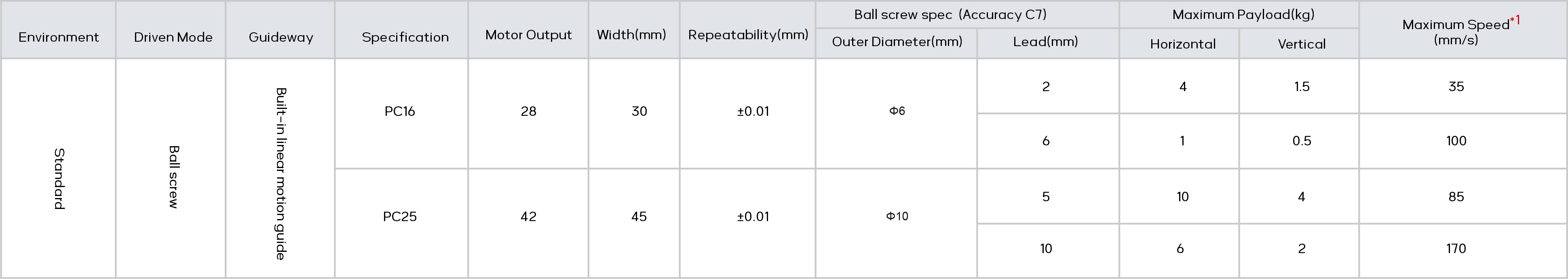

Spec Index of Electric Actuator

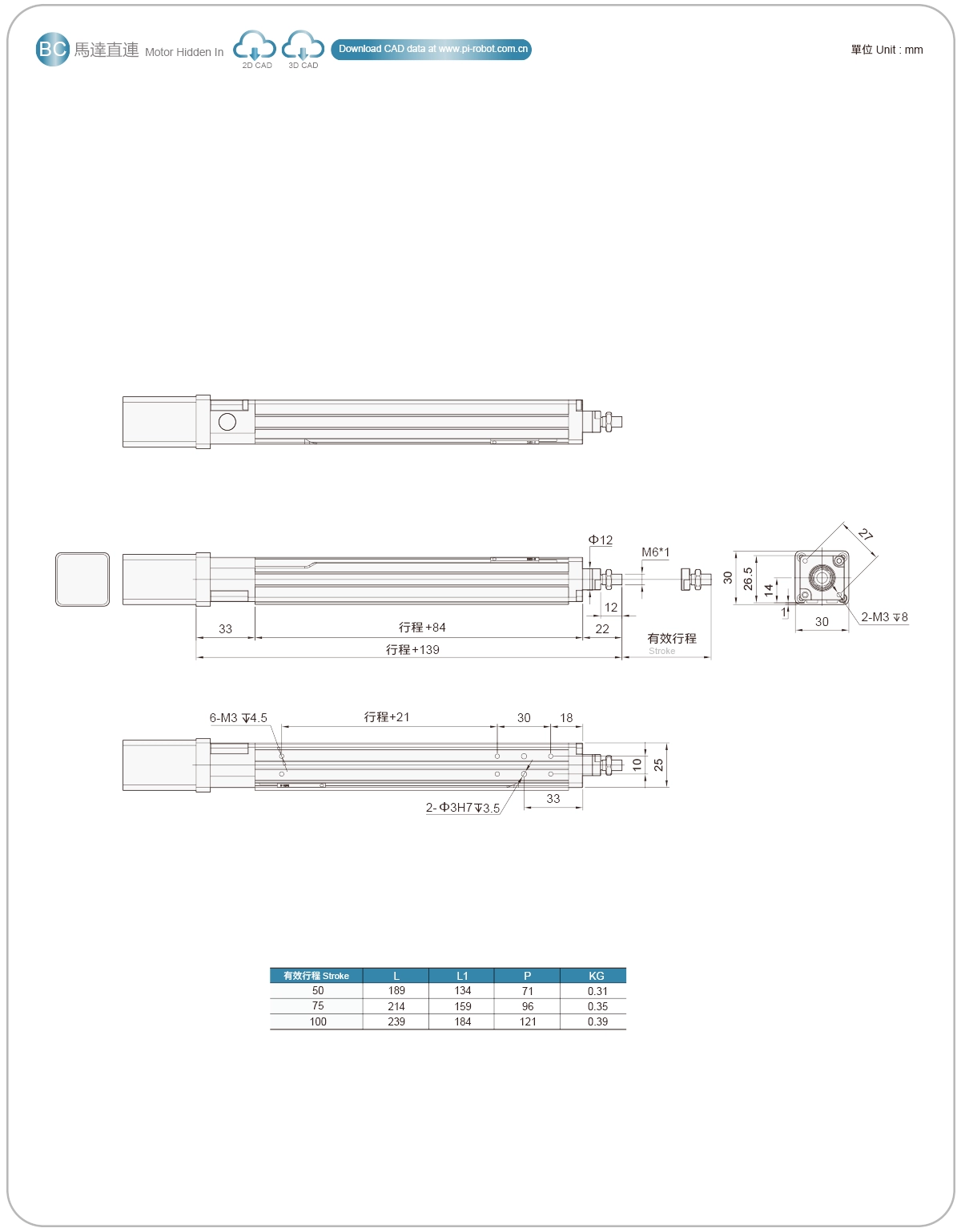

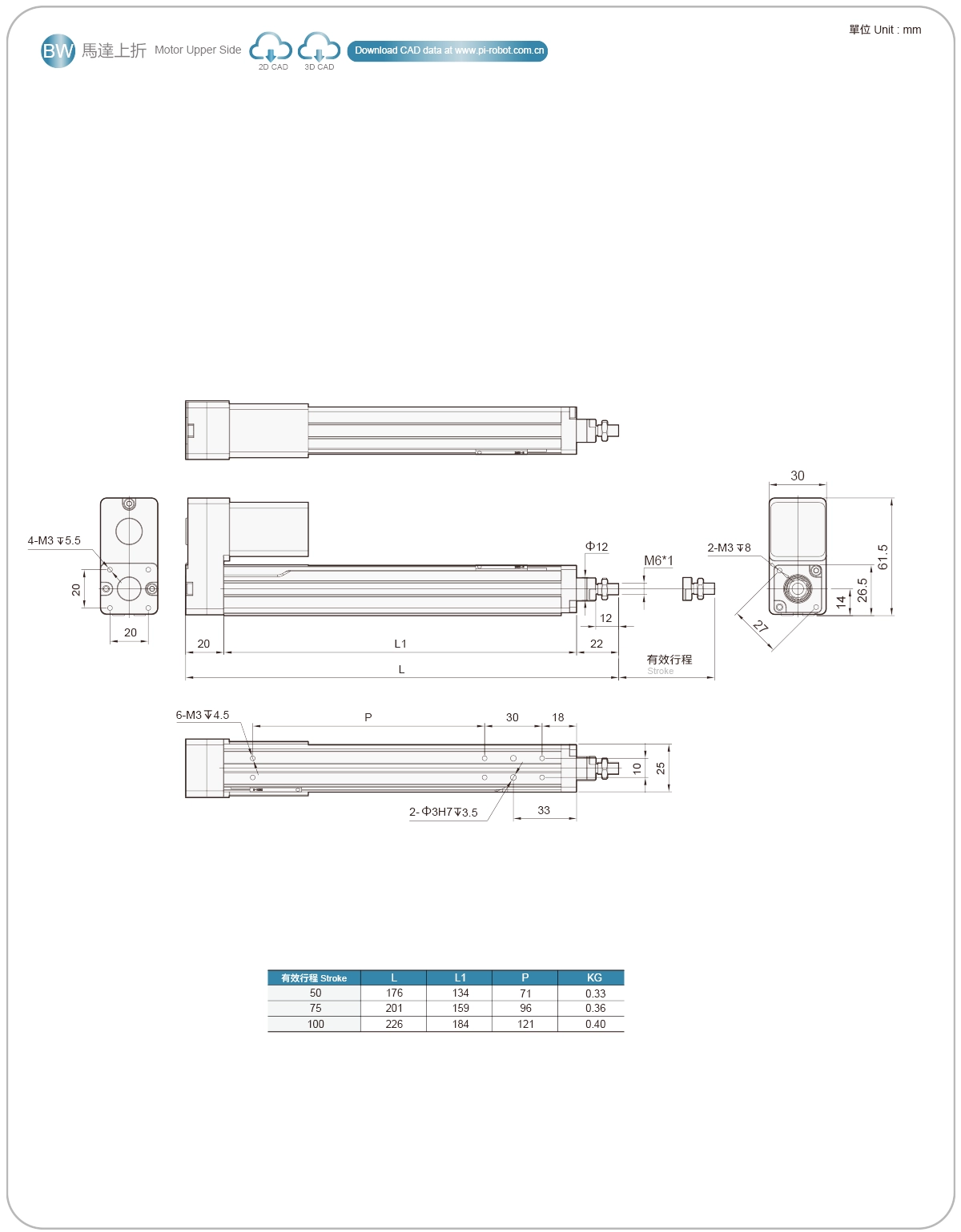

Motor Exposed/Motor Upper Side

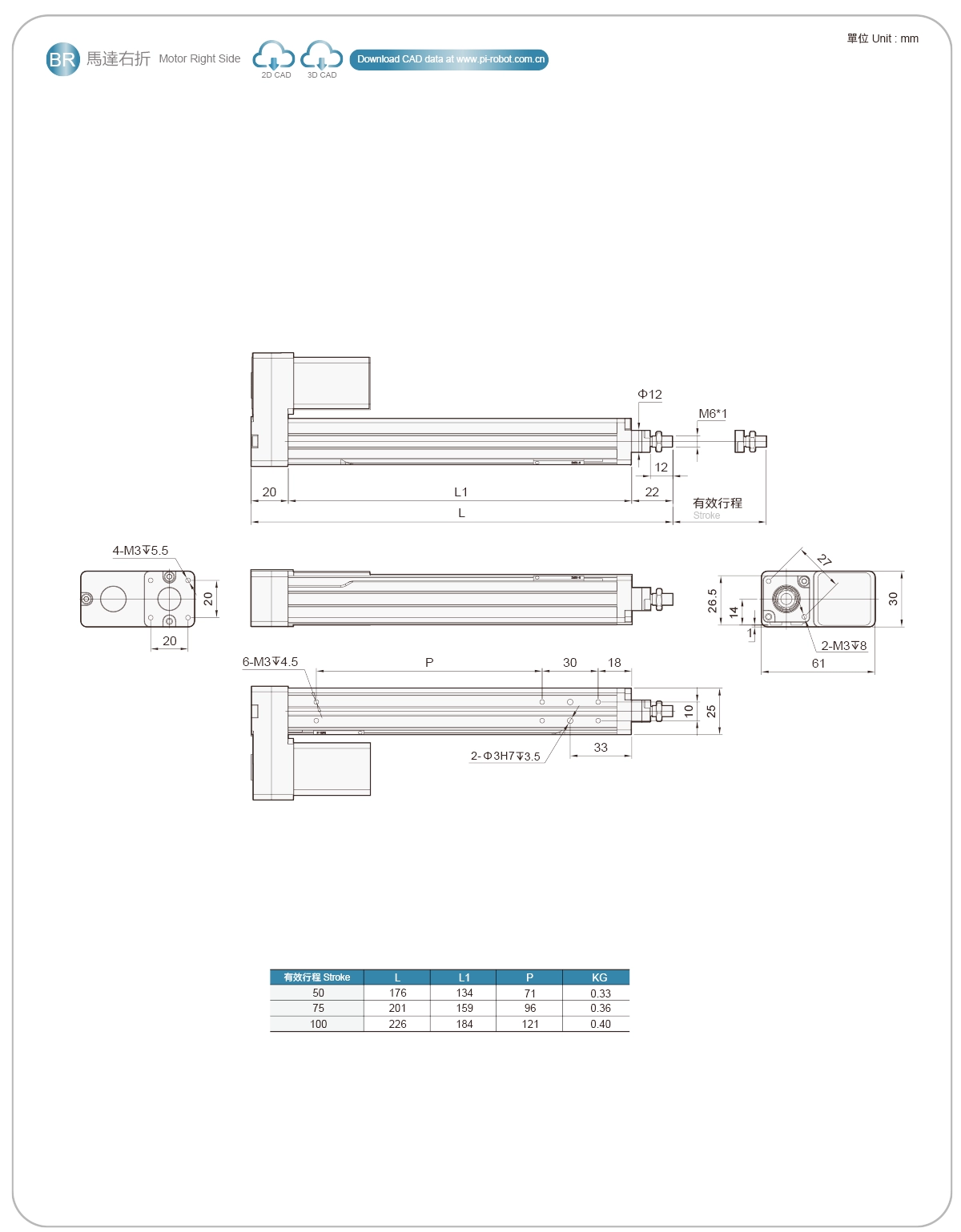

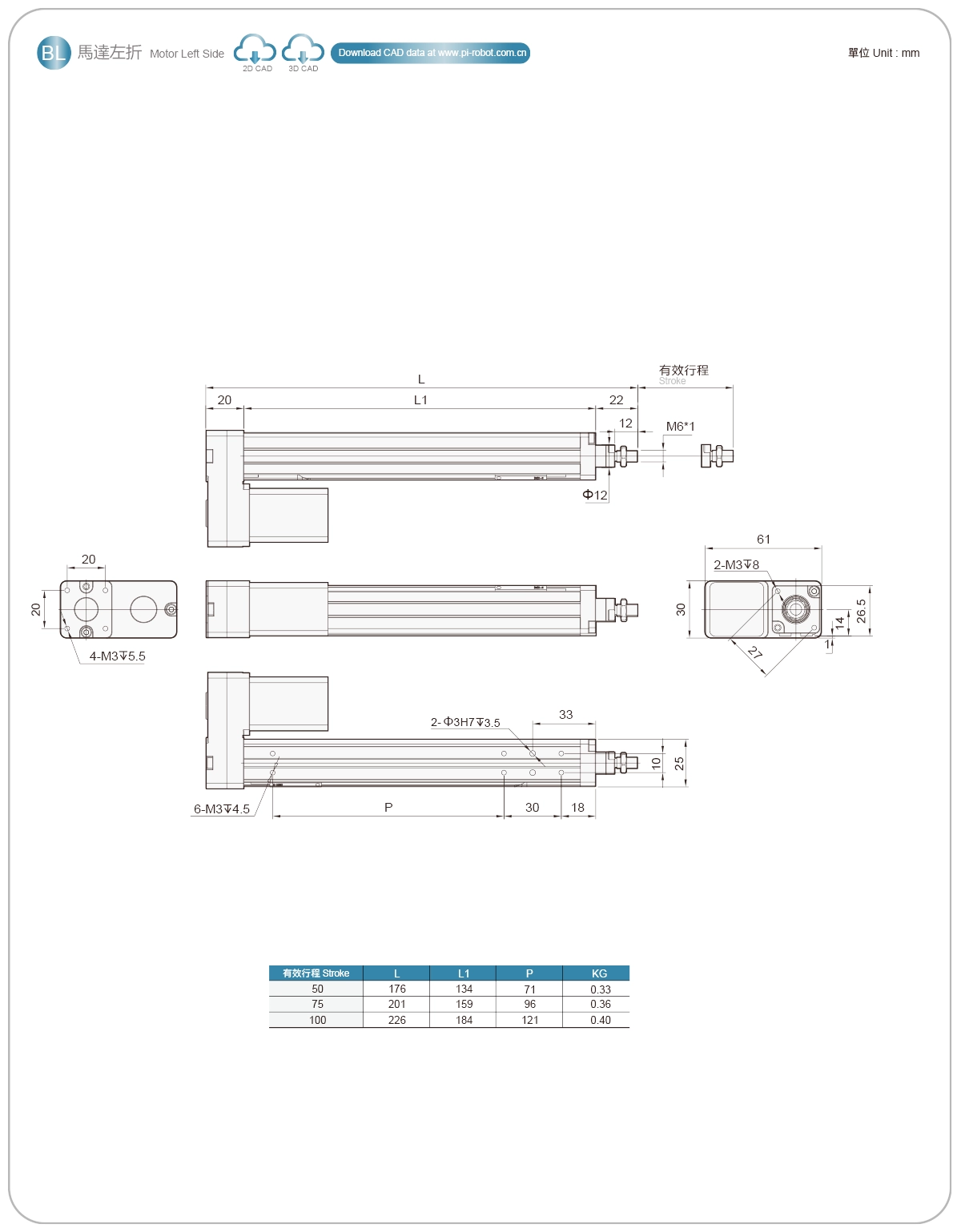

Motor Left Side/Motor Right Side
