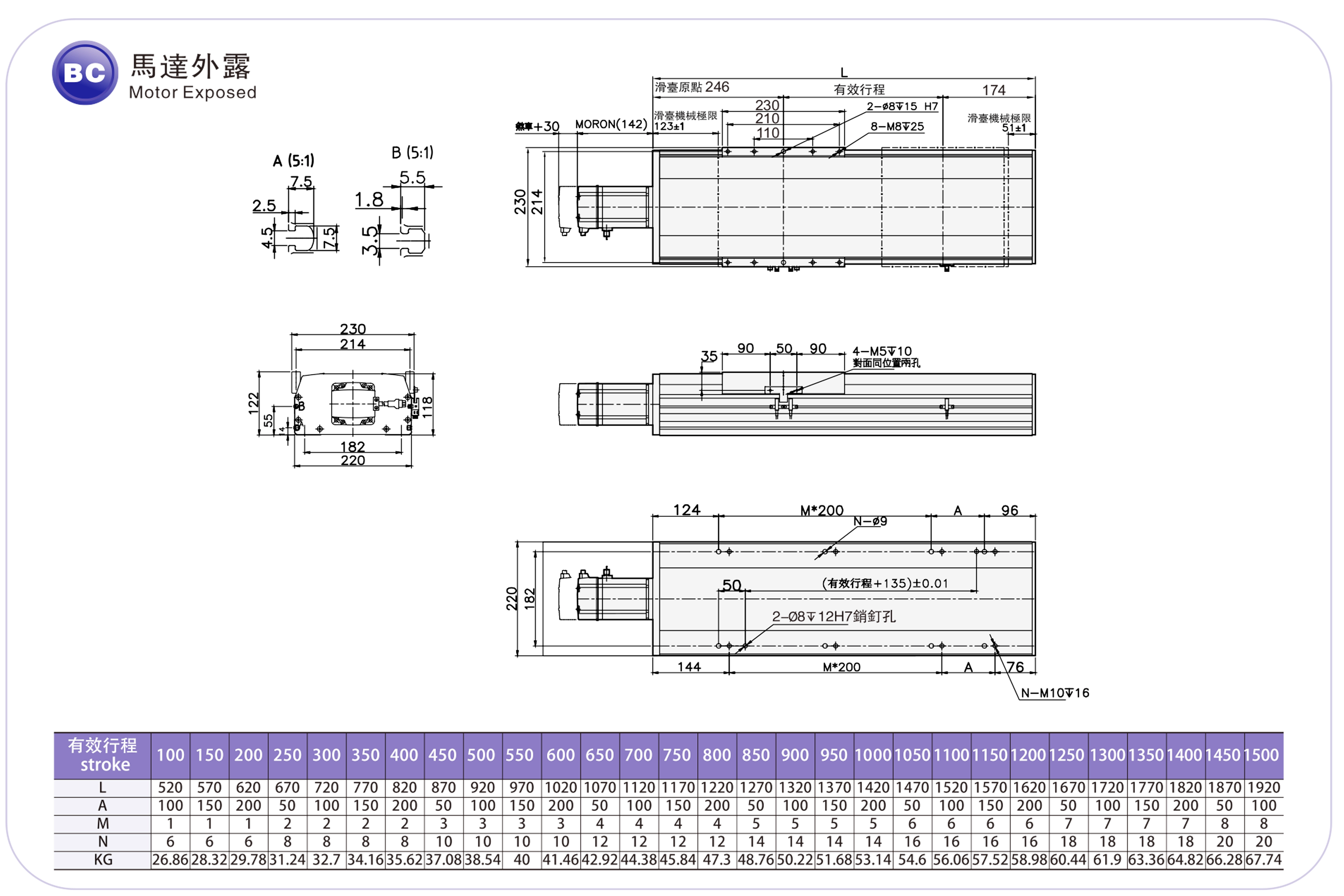

Current location：Home > Product > Screw slide table > RMH Series > RMH22 > Motor Exposed

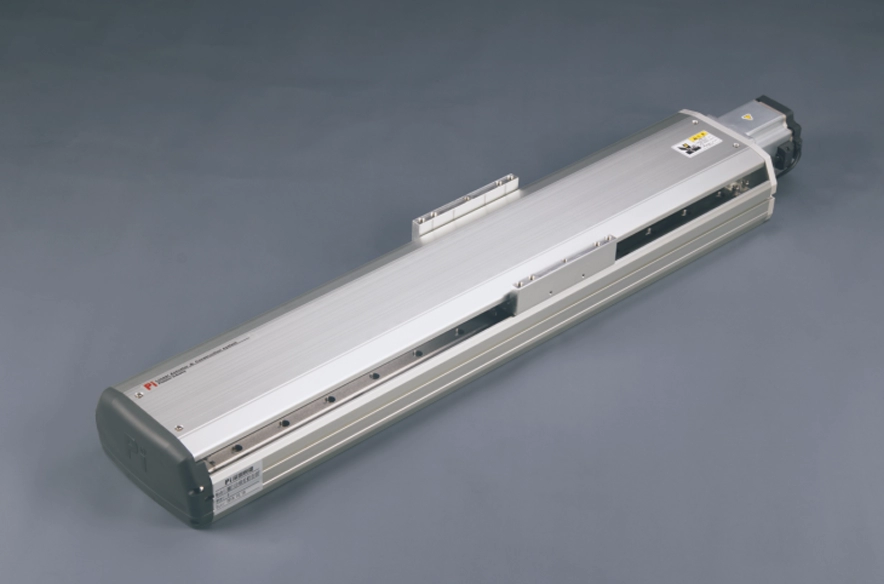

Lightweight and Long Lifespan

Repeatability：±0.01mm

Horizontal Load：50kg

Vertical Load：12kg

Maximum Speed：250mm/s

Stroke Pitch：100-1050mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Diverse slide seat styles

The body and slide are integrally formed, which improves the problem of poor rigidity and reduces the width, making the installation space of the equipment smaller. The only patented fuel nozzle design in the industry, which uses a single fuel nozzle on the slide to inject oil. It can simultaneously inject oil and maintain the nut and multiple sets of sliders, making maintenance more convenient and time-saving for you. The installation direction of the fuel nozzle can be selected according to customer needs.

High rigidity body/high rigidity upper cover

High rigidity body: Explore the use of integrated aluminum extrusion structure and obtain the best rigidity to weight ratio structural design through element analysis. Anti winding upper cover: With a special anti winding design, the upper cover is not easily twisted or deformed during long-distance use.

Motor brand

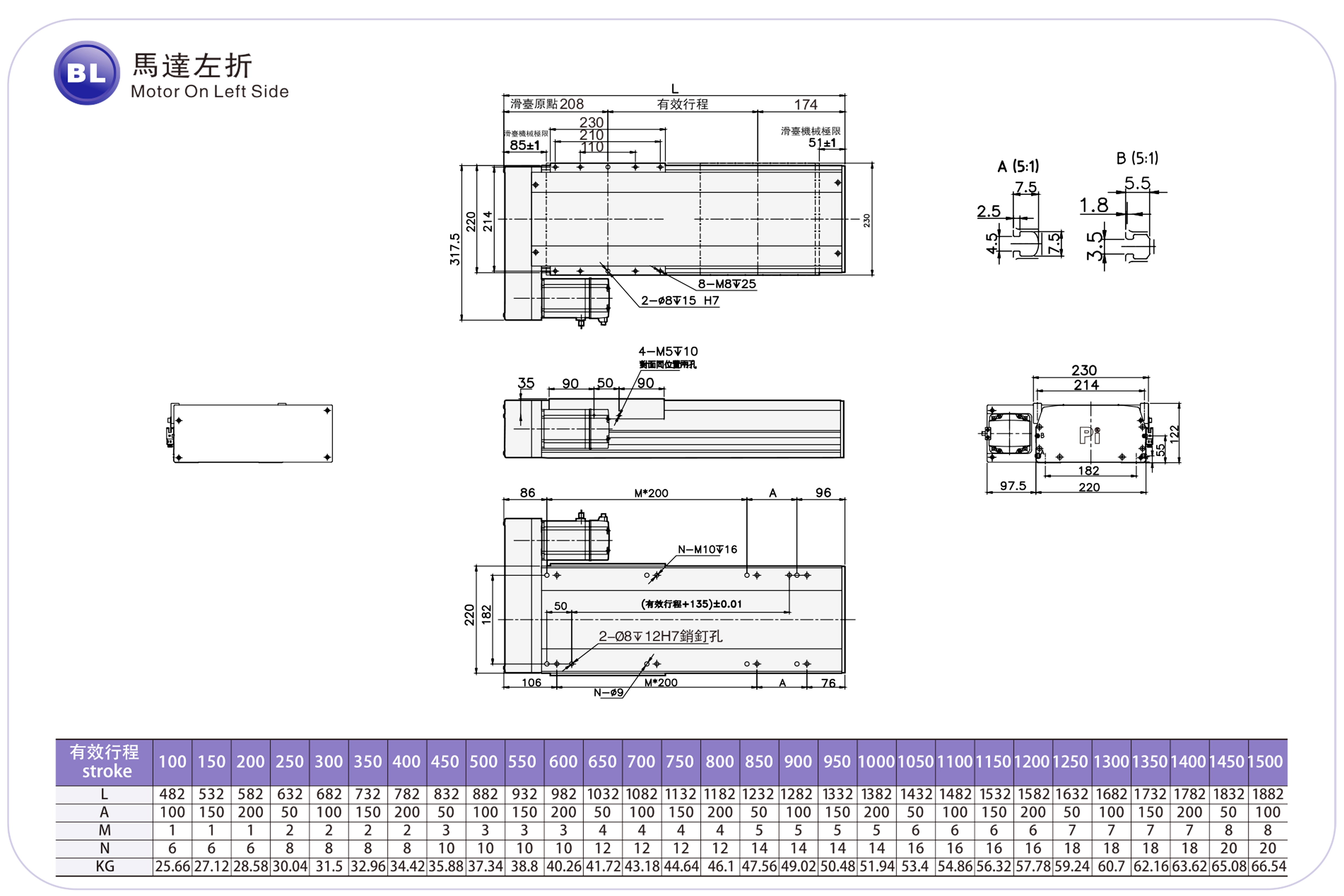

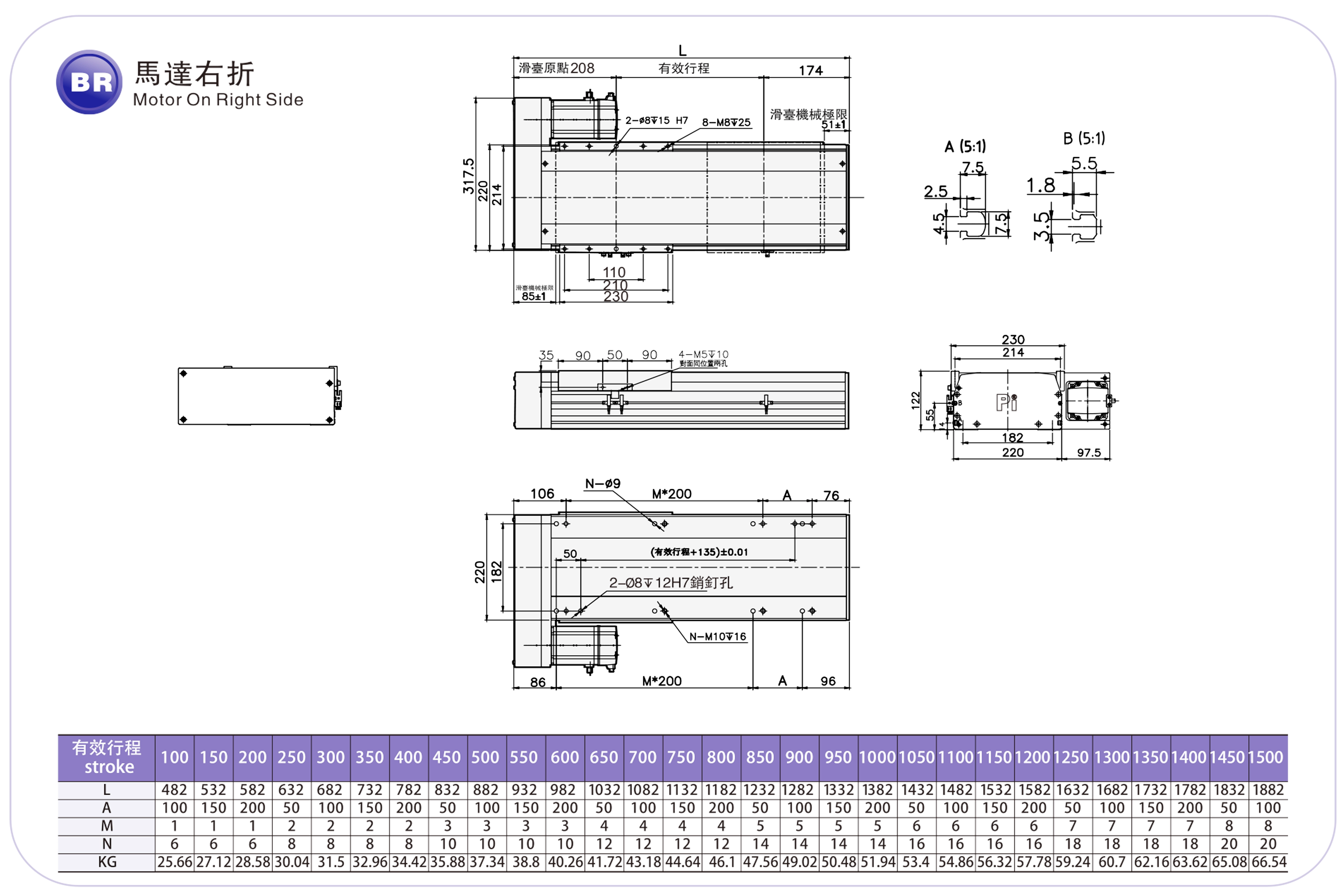

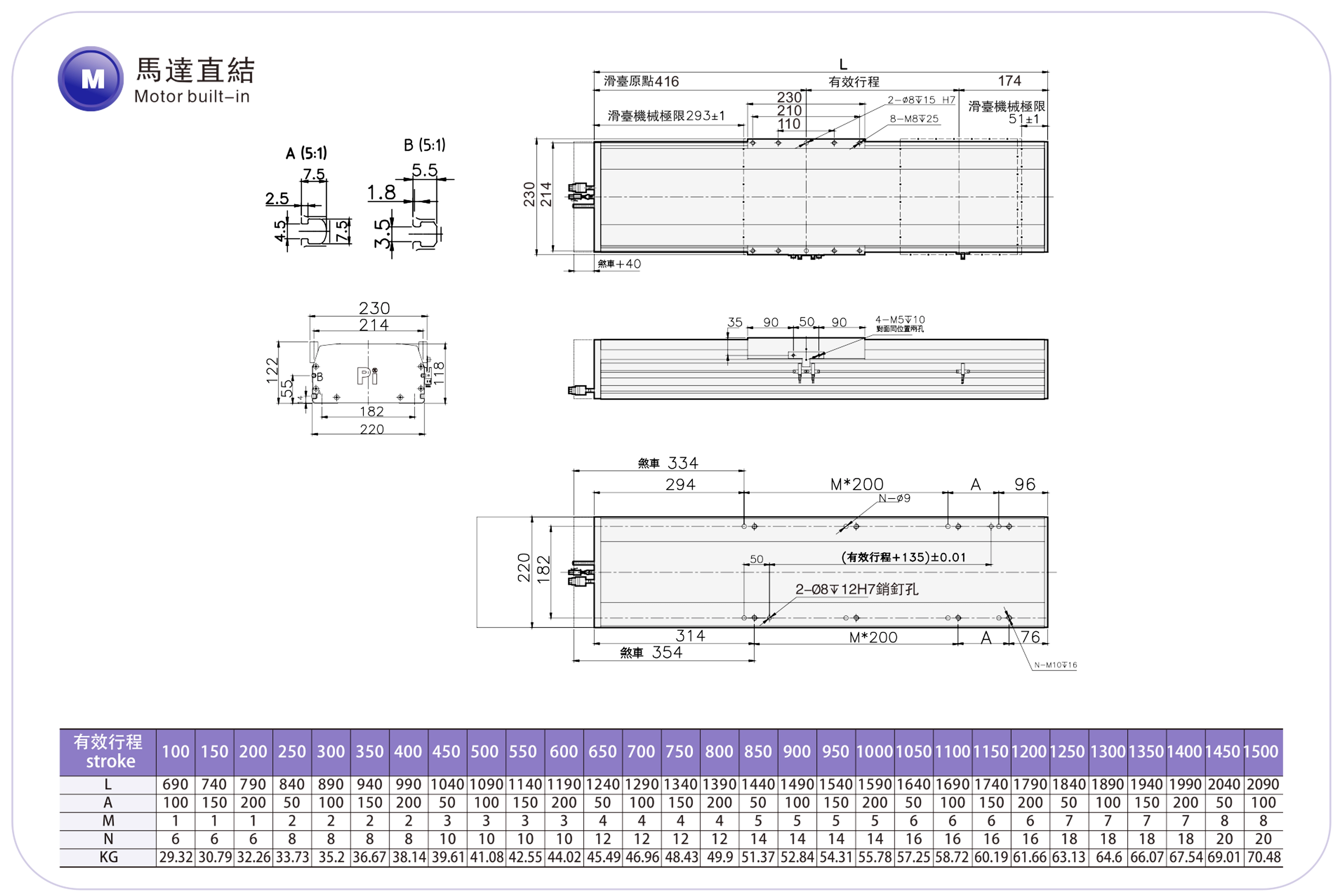

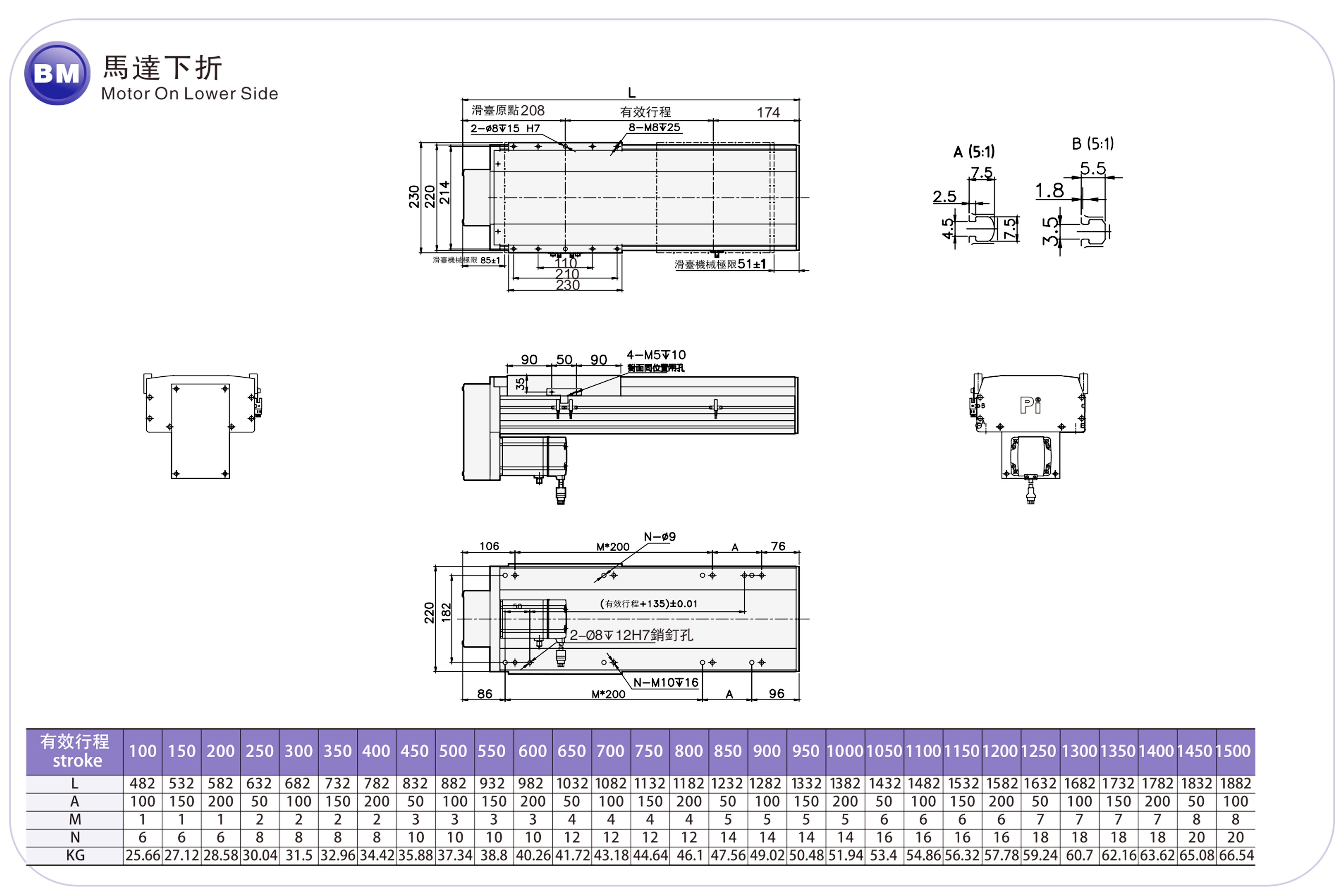

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Motor brand

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Screw brand lead, no seat available for selection

Suitable screw specifications and brands can be selected based on different precision and speed.

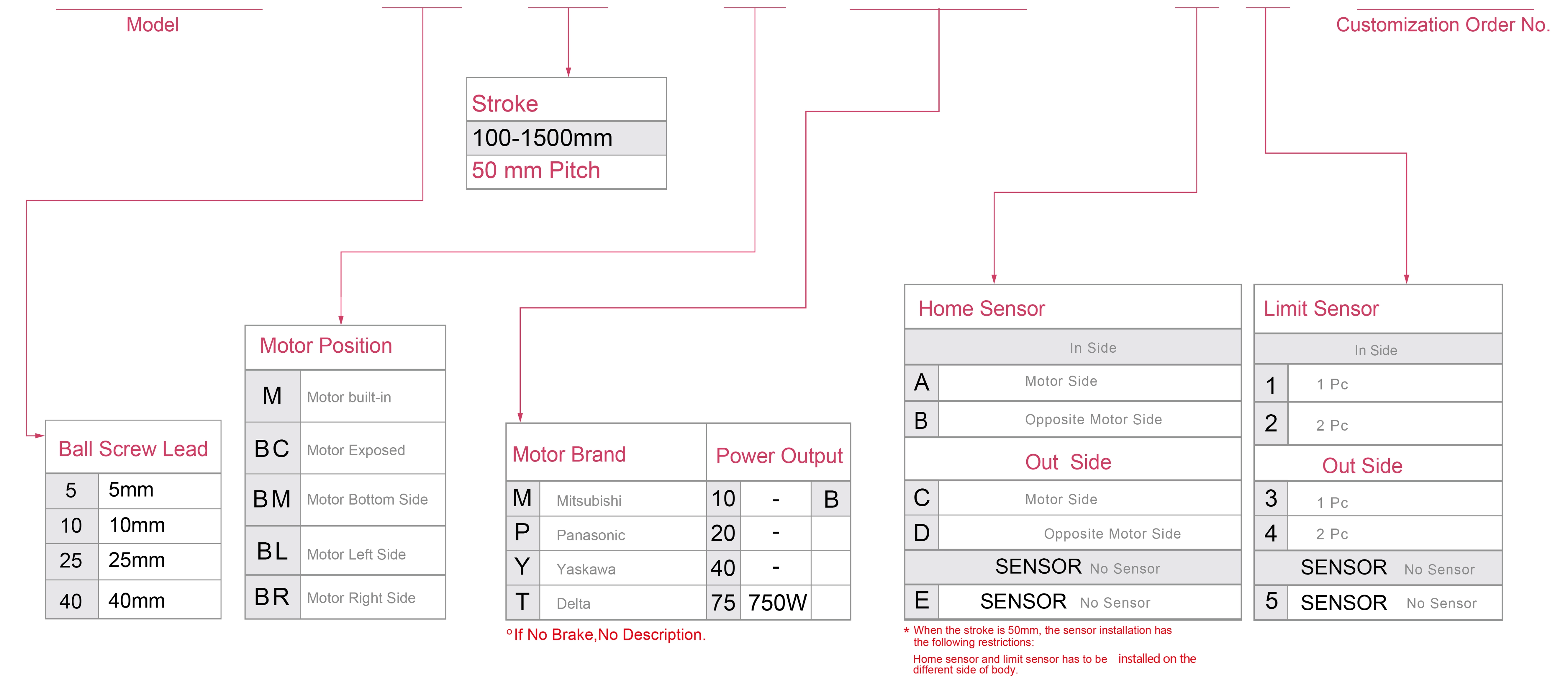

Ordering Method

RMH17 - L5-100- M -M40B - C4 -0001

Specification

Spec	Repeatability(mm)		±0.01
	Ball Screw Lead (mm)		5	10	20	40
	Maximum Speed (mm/s)		250	500	1000	2000
	Maximum Payload	Horizontal (kg)	120	110	75	22
		Vertical (kg)	40	30	14	7
	Rated Thrust (N)		1388	694	347	174
	Stroke Pitch (mm)		100-1250mm/50mm Pitch
Parts	AC Servo Motor Power (W)		400W
	Ball Screw Ø (mm)		C7Ø20
	High Rigidity Linear Guide (mm)		W20XH15
	Coupling (mm)		12X14
	Home Sensor	Outside	EE-SX672(NPN)
		Built-In	EE-SX674(NPN)

Sensor Layout

Acceleration and deacceleration value is set 0.2 second.

*When the stroke is over 750mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances. Please refer to P85 for details.

Allowable Overhang

(Unit : mm)

Horizontal Installation		A	B	C
Lead5	70kg	3235	349	408
	90kg	2482	263	306
	120kg	1850	187	217
Lead10	65kg	1911	338	373
	85kg	1445	248	276
	110kg	1102	182	202
Lead20	35kg	1666	547	538
	55kg	1030	331	328
	75kg	733	231	230
Lead40	15kg	1126	740	557
	22kg	755	491	384
	-	-	-	-

(Unit : mm)

Wall Installation		A	B	C
Lead5	75kg	377	322	2988
	95kg	288	246	2333
	120kg	218	187	1850
Lead10	60kg	408	368	2092
	80kg	296	266	1554
	110kg	202	182	1102
Lead20	30kg	633	644	1961
	50kg	365	369	1143
	75kg	230	231	733
Lead40	12kg	729	936	1417
	22kg	384	491	755
	-	-	-	-

(Unit : mm)

Vertical Installation		A	C
Lead5	20kg	1368	1368
	30kg	911	911
	40kg	683	683
Lead10	15kg	1618	1618
	25kg	970	970
	30kg	808	808
Lead20	10kg	1922	1922
	14kg	1377	1377
	-	-	-
Lead40	4kg	2377	2377
	7kg	1356	1356
	-	-	-

Static Loading Moment

(Unit : Nm)

MY	1032
MP	1034
MR	908

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Stndard Environment	Ball Screw	RMH12	100W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
			200W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
		RMH14	200W	135	±0.01	16	5	95	27	250
							10	75	18	500
							20	35	7	1000
							32	15	-	1600
			400W	135	±0.01	16	5	110	33	250
							10	88	22	500
							20	40	10	1000
							32	30	8	1600
		RMH17	400W	170	±0.01	20	5	120	40	250
							10	110	30	500
							20	75	14	1000
							40	22	7	2000
			750W	170	±0.01	20	5	120	50	250
							10	120	40	500
							20	83	25	1000
							40	43	12	2000
		RMH22	750W	220	±0.01	25	5	150	55	250
							10	150	45	500
							25	105	20	1250
						20	40	43	12	2000
		RMH28	1500W	280	±0.01	32	10	320	150	500
							20	180	75	1000
							32	75	35	1600

Extra long stroke series

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Stndard Environment	Ball Screw	RMH17S	400W	170	±0.01	16	5	110	33	200
							10	90	22	400
							20	40	10	800
							32	30	8	1280
			750W	170	±0.01	16	5	120	40	200
							10	95	25	400
							20	50	15	800
							32	35	12	1280
		RMH22S	750W	220	±0.01	20	5	130	50	200
							10	130	40	400
							20	85	25	800
							40	43	12	1600
