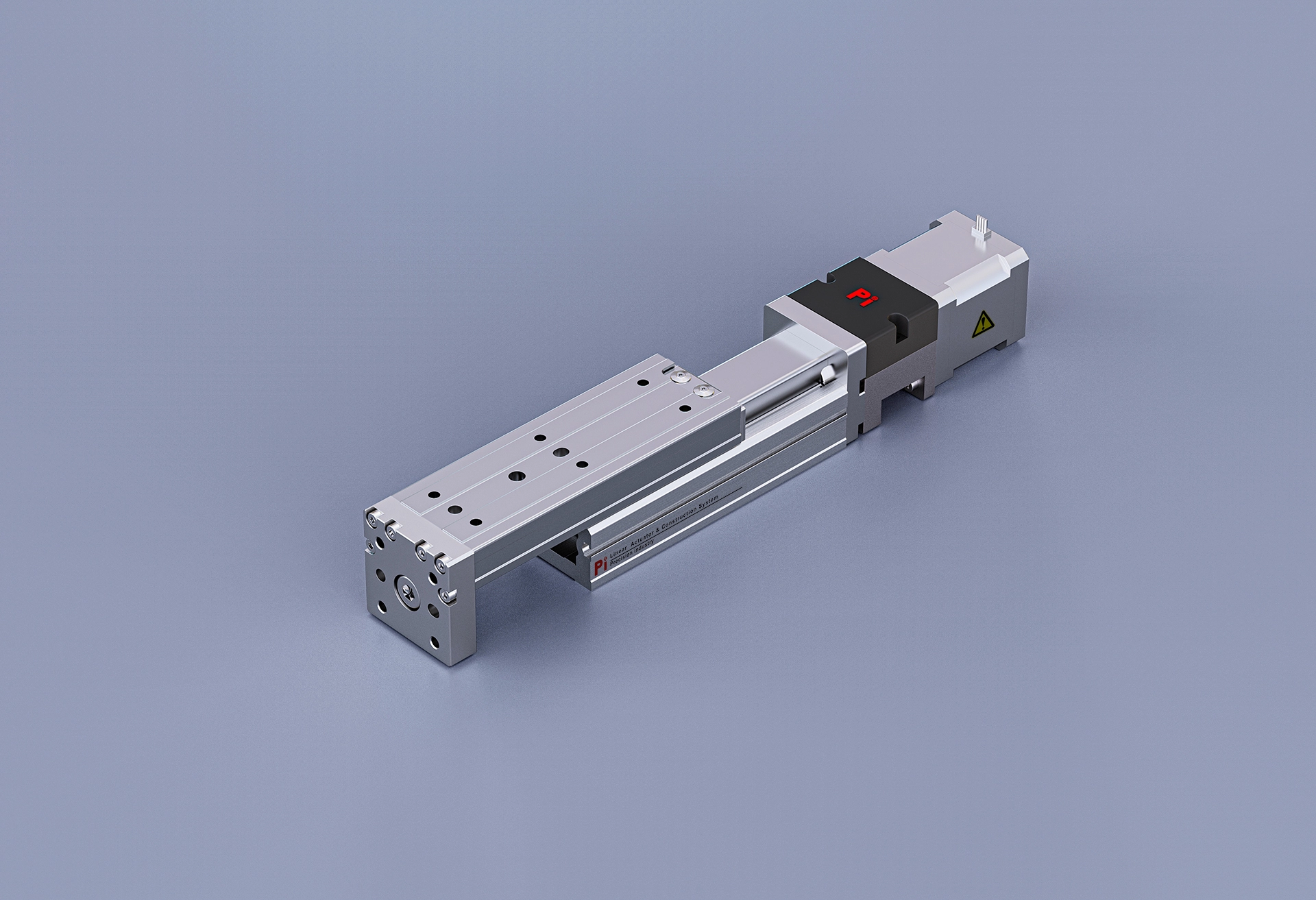

Current location：Home > Product > Platform Type Actuator > GCT Series > GCT 16 > Motor Exposed

Lightweight and Long Lifespan

Repeatability：±0.01mm

Horizontal Load：6kg

Vertical Load：2kg

Maximum Speed：100mm/s

Travel Range：20-100mm

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Add-on output shaft guide rods

The output shaft features an external guide rod to reduce deflection.
The output shaft's external dimensions can be customized to meet customer needs.
The main unit features a fixed oil filler plate, allowing for easy removal and lubrication during maintenance, saving time and convenience.
The main unit is fully grooved and can be fixed on all four sides to accommodate various fixture installation orientations.

Various motor directions and specifications

Motor can be selected as direct drive or inverted drive

Ordering Method

EC50 -L5 - 100 - BC -M10 B - C 4 -0001

Specification

Spec	Repeatability(mm)		±0.01
	Lead (mm)		5	10
	Maximum Speed (mm/s)		250	500
	Maximum Payload	Horizontal (kg)	30	15
		Vertical (kg)	12	5
	Rated Thrust (N)		341	170
	Stroke Pitch (mm)		50-500mm/50Pitch
	AC Servo Motor Output (w)		100W
Parts	Ball Screw Ø(mm)		C7Ø12
	Coupling (mm)		8X8
	Home Sensor	Outside	CS-6T

SensorLayout

Anti-rotating Accuracy of Rod

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Moter Output(w)	Width(mm)	Repeatability(mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Moter Output(w)	Width(mm)	Repeatability(mm)	Outer Diameter(mm)	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Standard Environment	Ball Screw	EC 50	100W	52	±0.01	12	5	30	12	250
		EC 50	100W	52	±0.01	12	10	15	5	500
		EC 50L	100W	52	±0.01	12	5	50	15	250
		EC 50L	100W	52	±0.01	12	10	30	8	500
		EC 50T	100W	52	±0.01	12	5	50	15	250
		EC 50T	100W	52	±0.01	12	10	30	8	500
		EC 65	400W	65	±0.01	16	5	110	33	250
							10	88	22	500
							16	48	10	800
							20	40	8	100
		EC 65L	400W	65	±0.01	16	5	110	33	250
							10	88	22	500
							16	48	10	800
							20	40	8	100
		EC 65T	400W	65	±0.01	16	5	110	33	250
							10	88	22	500
							16	48	10	800
							20	40	8	100
		EC 80	700W	80	±0.01	25	5	200	65	250
							10	180	55	500
							25	138	25	1000
		EC 80T	700W	80	±0.01	25	5	200	65	250
							10	180	55	500
							25	138	25	1000
