Lightweight and Long Lifespan

Body width：60-200mm

Repeatability：±0.005/0.01mm

Horizontal Load：150kg

Vertical Load：55kg

Maximum Speed：250mm/s

Travel Range：800-2600mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

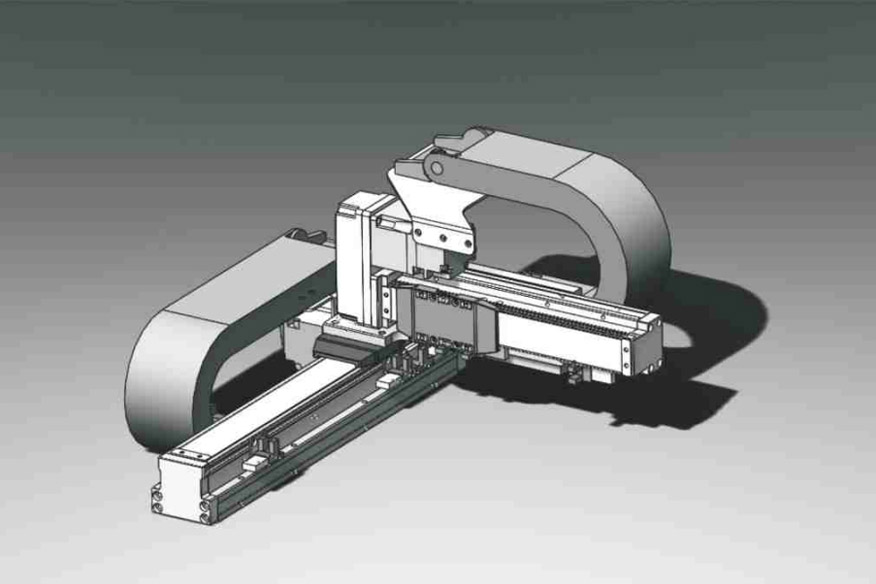

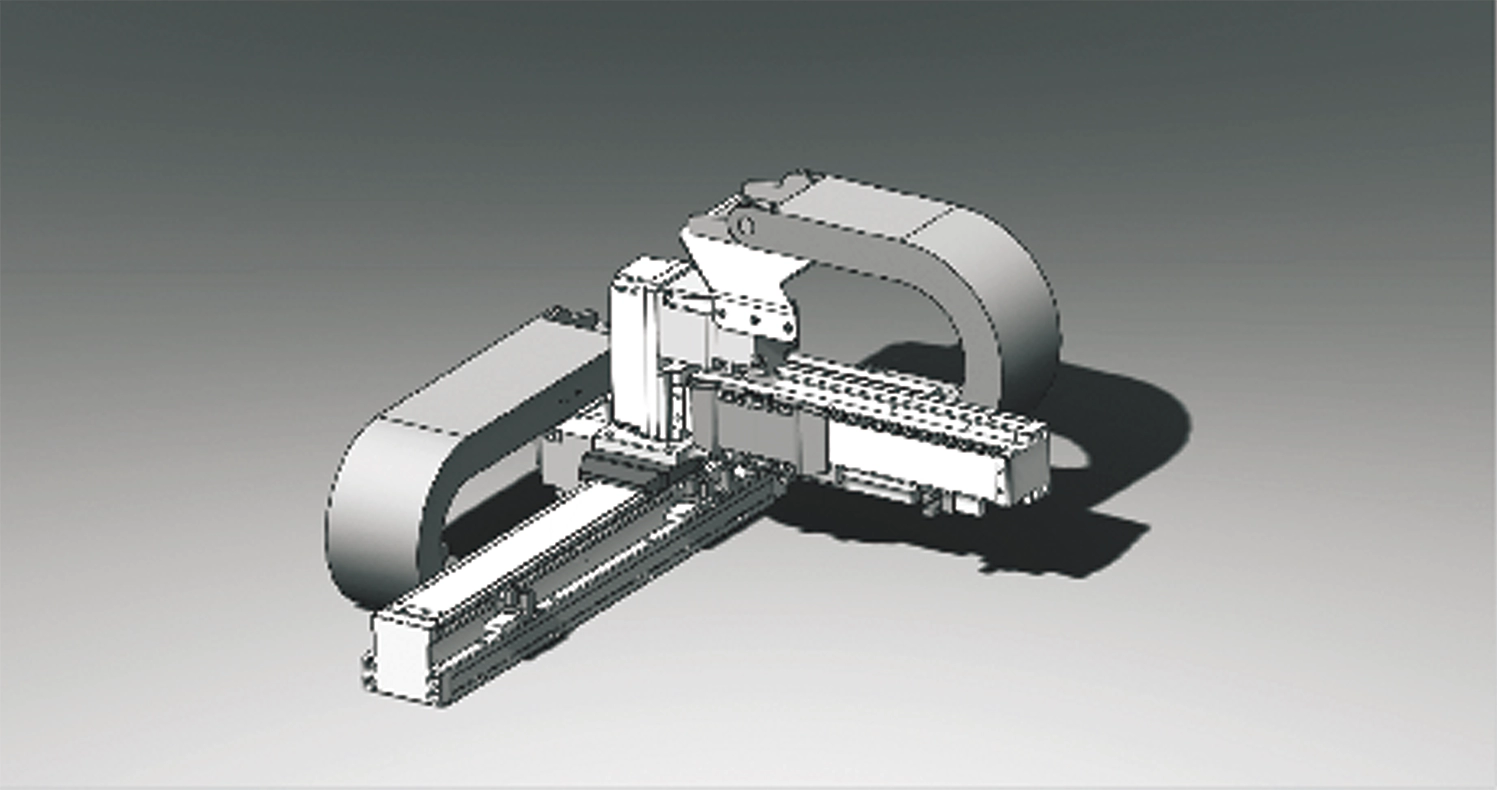

Multi axis combination explanation

Through multiple combinations of single axis sliding tables, we have developed 2-axis and 3-axis multi axis manual operations
(1) Compared with vertical multi section robots, the low price
(2) Clever mechanical design achieves high rigidity orthogonal robots, which can reduce vibration and deformation
(3) Various possible combinations of single axis sliding table

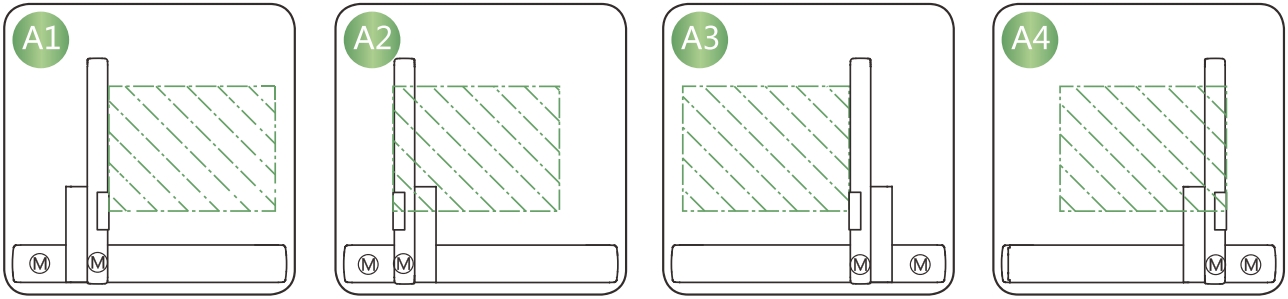

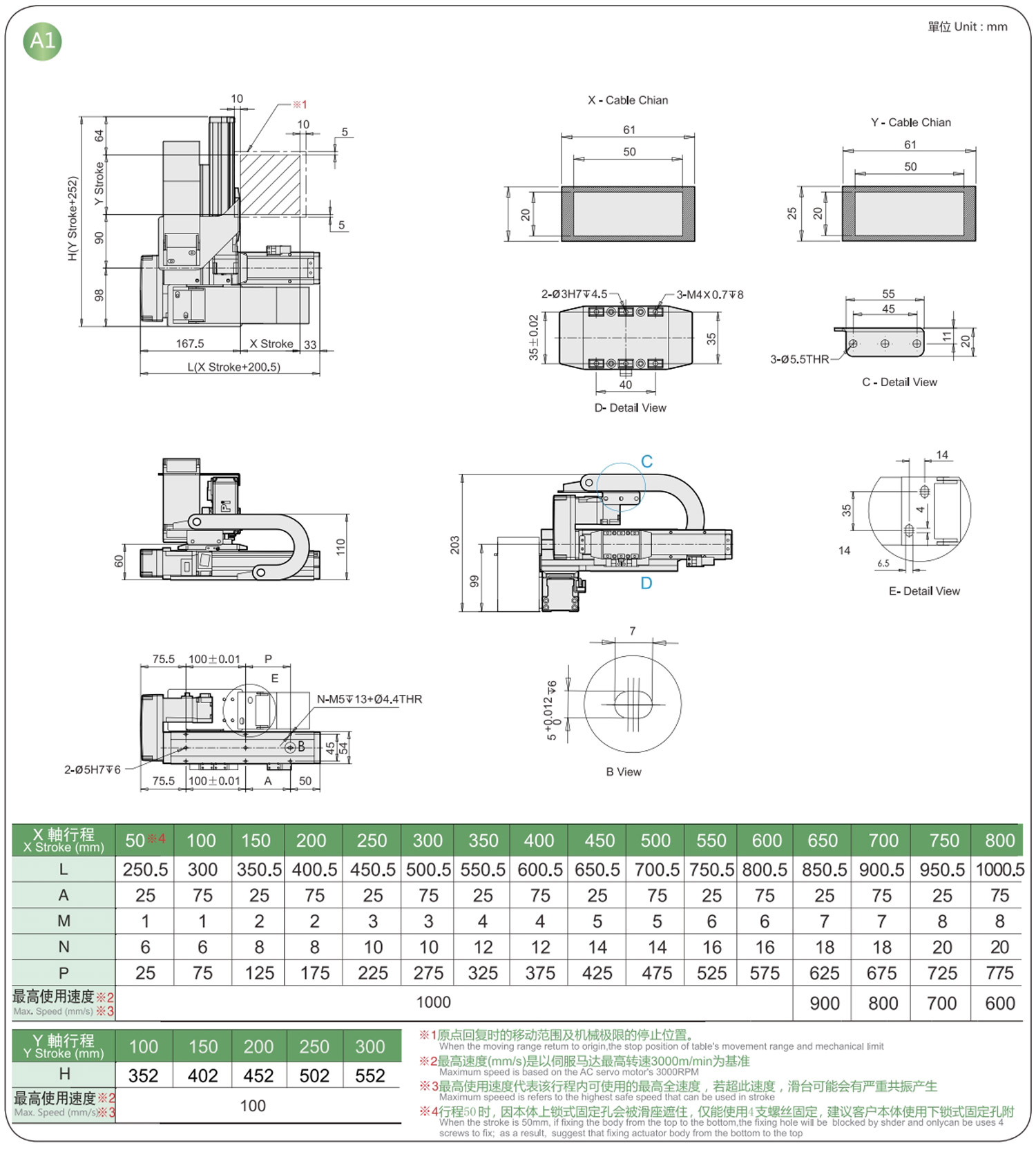

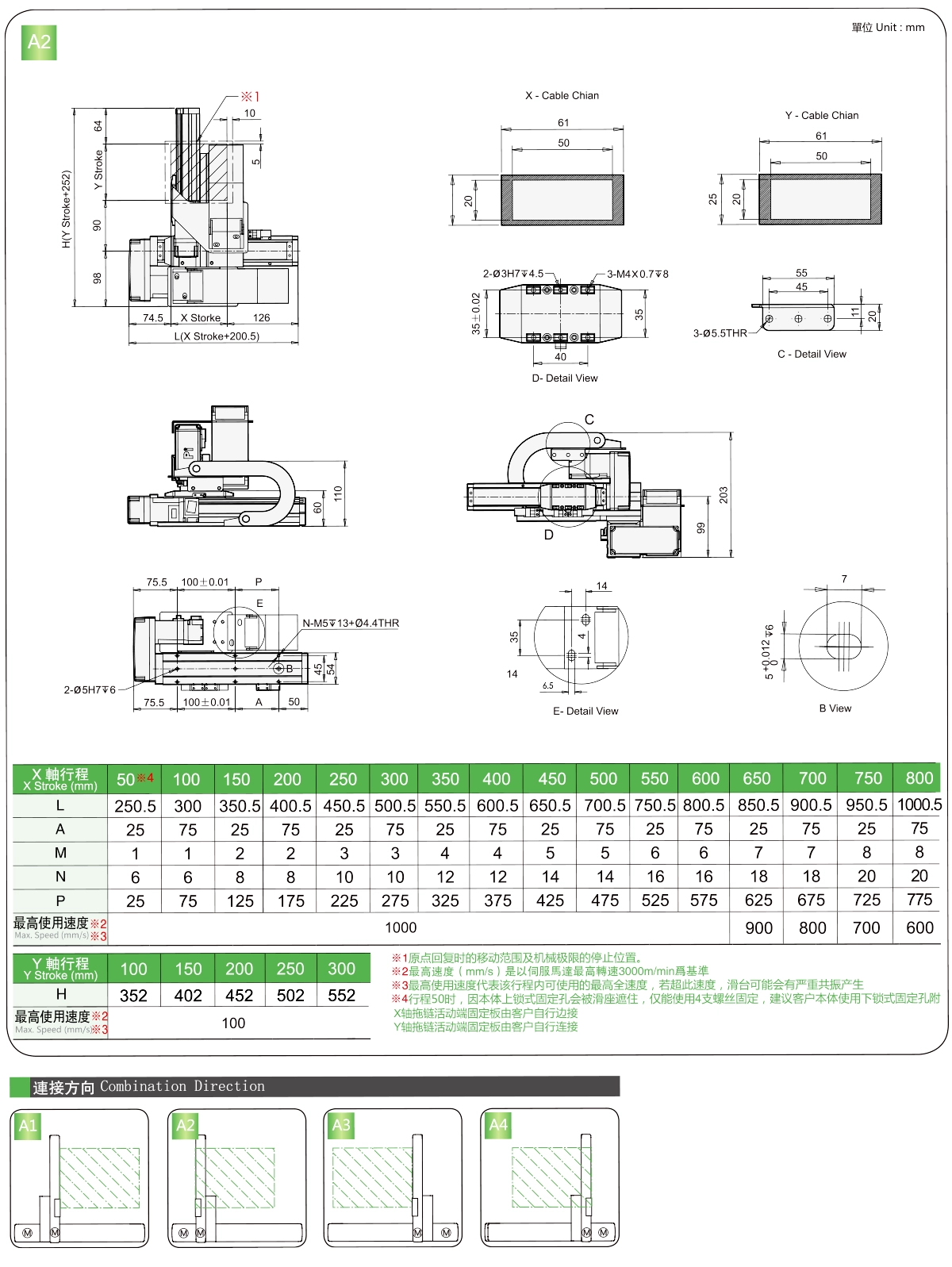

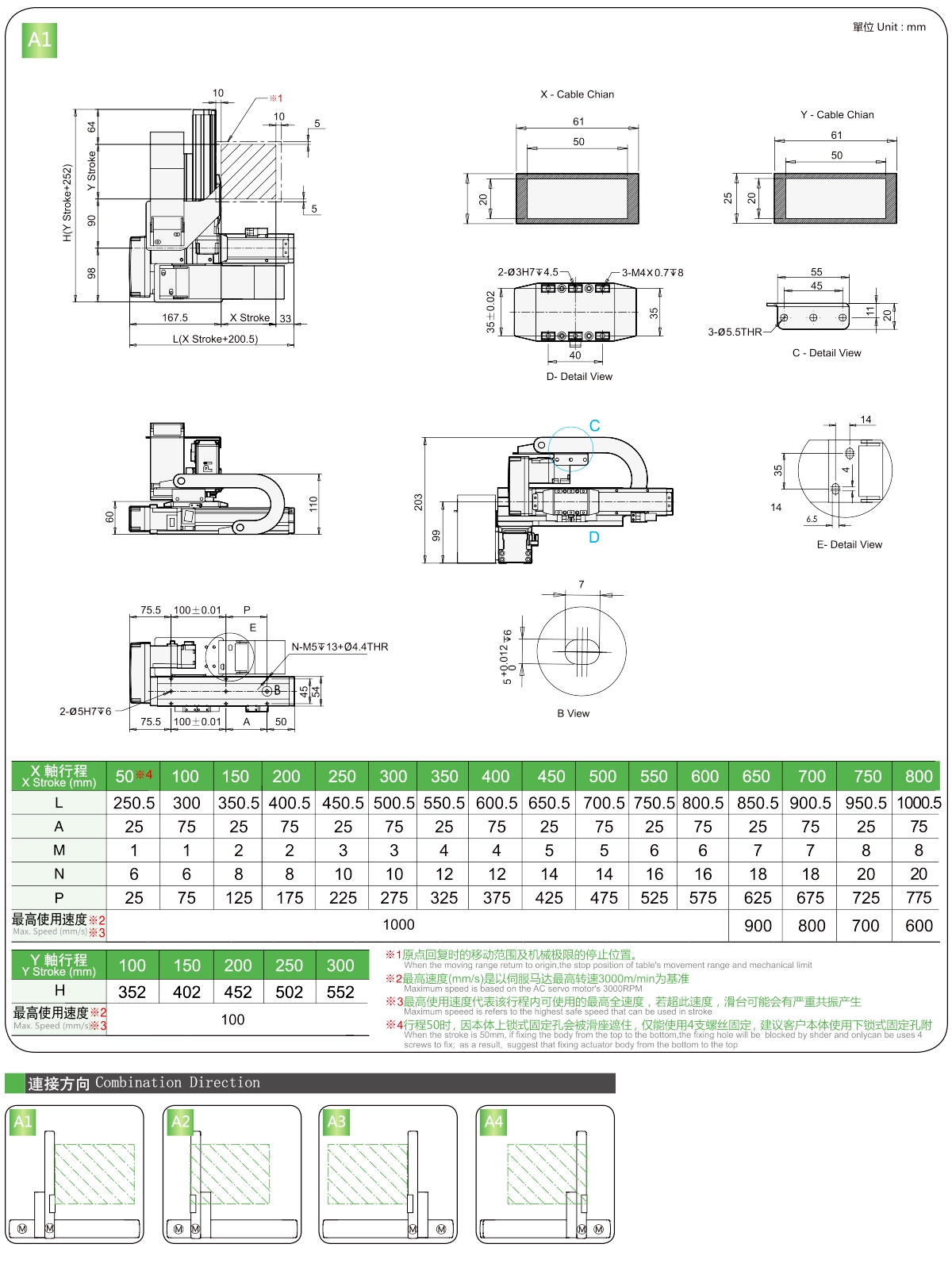

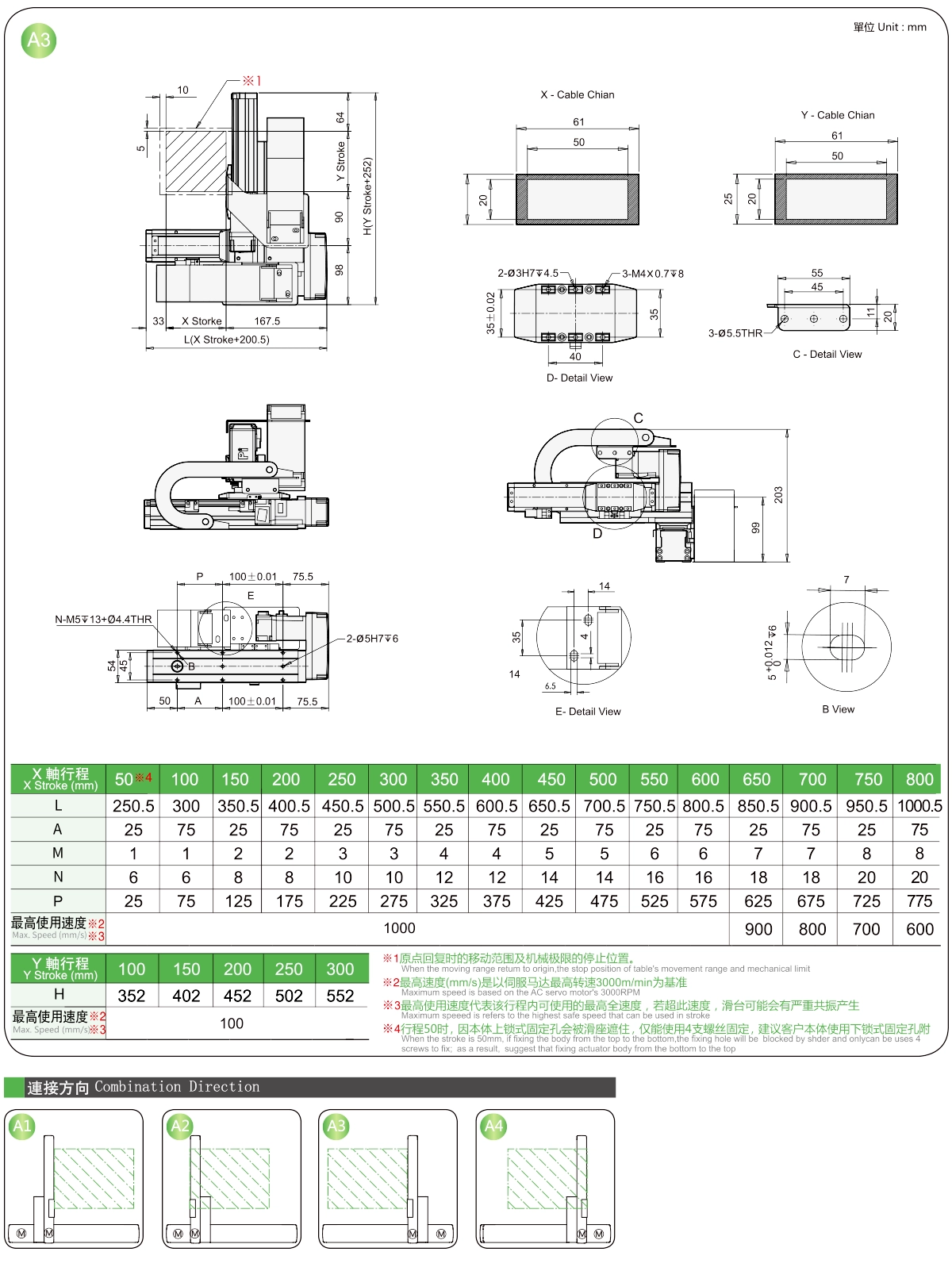

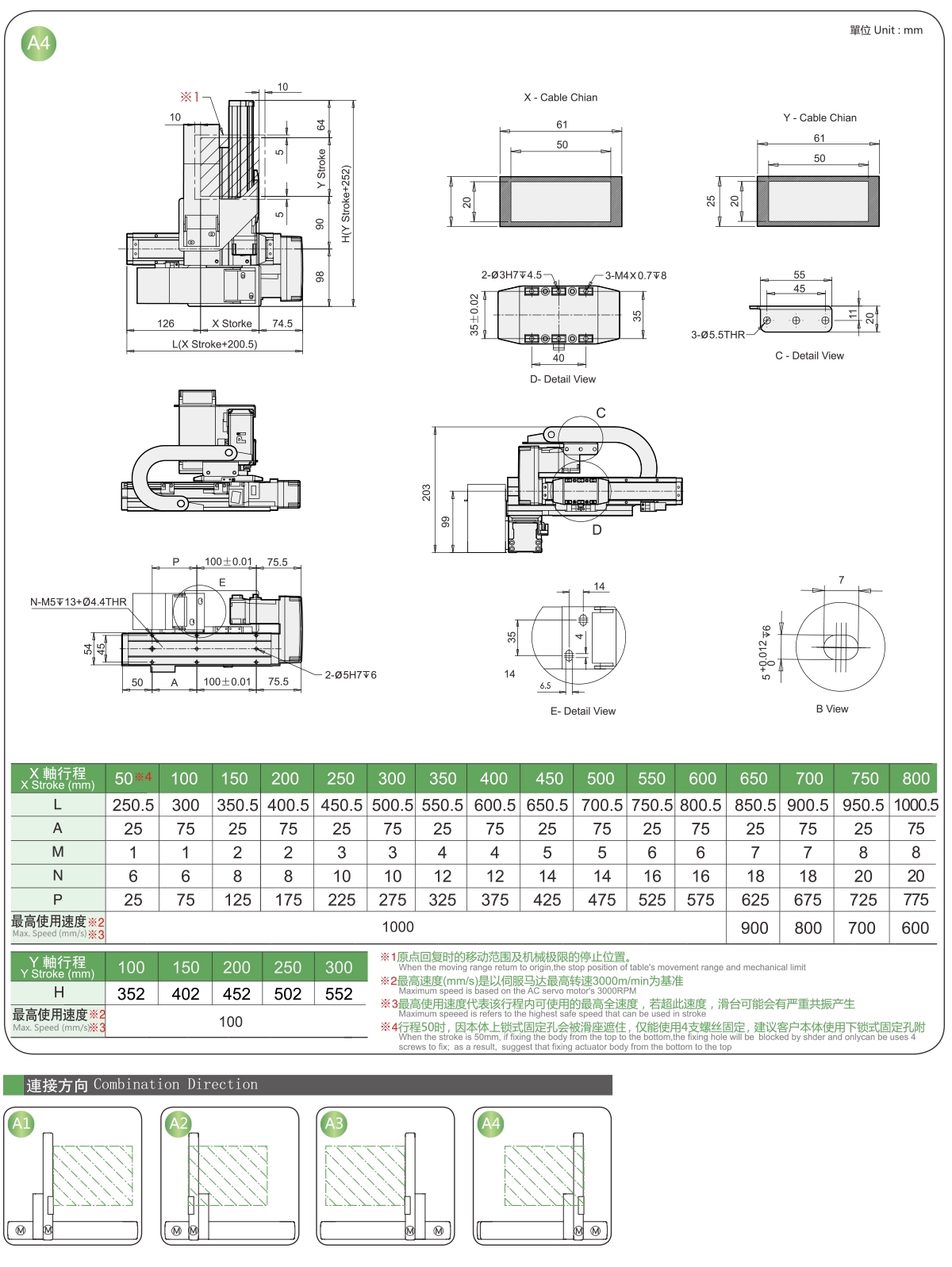

Connection direction

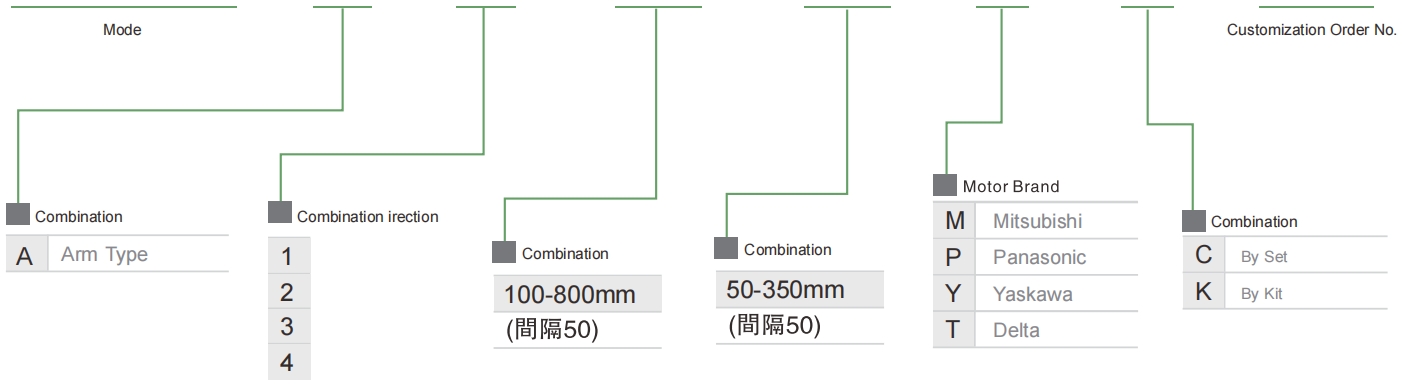

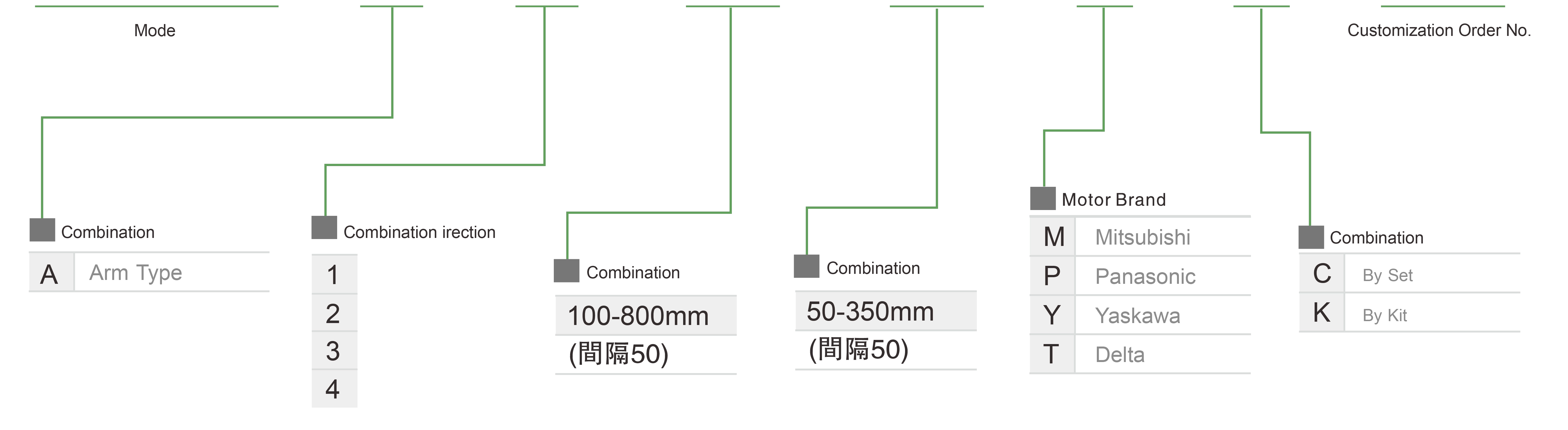

Ordering Method

XYGH210-A- 1 - 300 -300- M - C-0001

Specification

Item	X axis	Y axis
Model Type	GRH5	GRH4
Repeatability(mm)	±0.005	±0.005
Ball Screw Lead (mm)	20	2
Maximum Speed (mm/s)※1	1000	100
Stroke 50 mm Pitch(mm)	50-800	100-300
AC Servo Motor Output (w)	100	50
Environment	0~40°C, Below 85% RH

※2 Maximum speed is based on the AC servo motor 3000RPM.

Maximum Payload

Y Stroke (mm)	100	150	200	250	300
Y Payload (kg)	4.5	3.9	3.6	3	2.8

*Only for horizontal installation

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Combination	Axis Numbers	Lead			Maximum speed(mm/s)			Stroke(mm)
Use Where	Driven Mode	Model Specification	Combination	Axis Numbers	X Axis	Y Axis	Z Axis	X Axis	Y Axis	Z Axis	X Axis	Y Axis	Z Axis
Standard	Ball Screw	XYGH210-A	Arm Type	2-axis	20	2	-	1000	100	-	500~800	100~300	-
		XYGH320-A			20	10	-	1000	500	-	500~1100	100~500	-
		XYGH430-A			20	10	-	1000	500	-	500~1250	100~600	-
		XYGH430-A			20	20	-	1000	1000	-	500~1250	100~600	-
		XYGH440-A			20	20	-	1000	1000	-	500~1250	100~500	-
		XYGH440-A			10	10	-	500	500	-	500~1250	100~600	-
		XYGH321-A		3 Axis	20	10	2	1000	500	100	500~1100	100~500	50~100
		XYGH432-A		3 Axis	20	10	5	1000	500	250	500~1250	100~550	50~350
