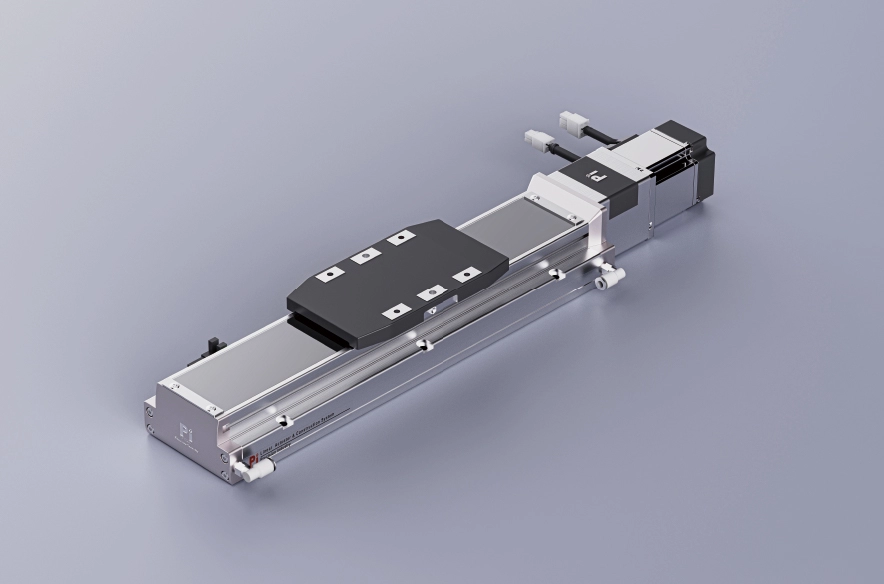

Lightweight and Long Lifespan

Body width：60-200mm

Repeatability：±0.005/0.01mm

Horizontal Load：60kg

Vertical Load：22kg

Maximum Speed：250mm/s

Travel Range：50-1050mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Four column ball design - improved accuracy

Without gaps, it can move lightly and easily to the "circular arc groove", which is easy to maintain high precision for a long time.

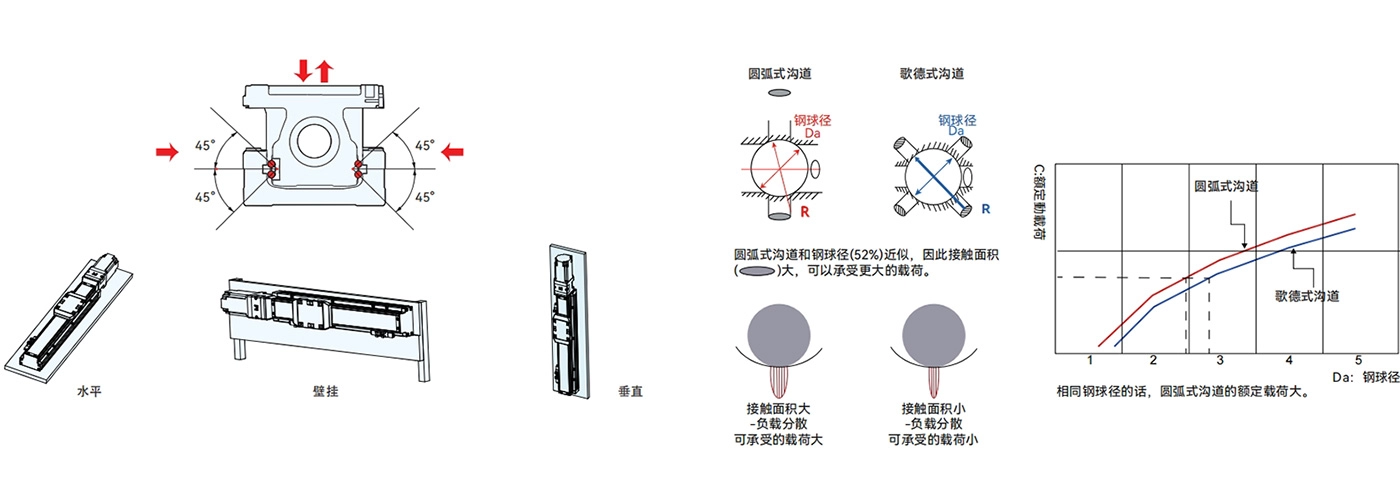

The internal slider can achieve the same rated load in all four directions, and can be used in any direction.
High rigidity, high precision, low friction, high speed motion load capacity, long service life.

More compact structure

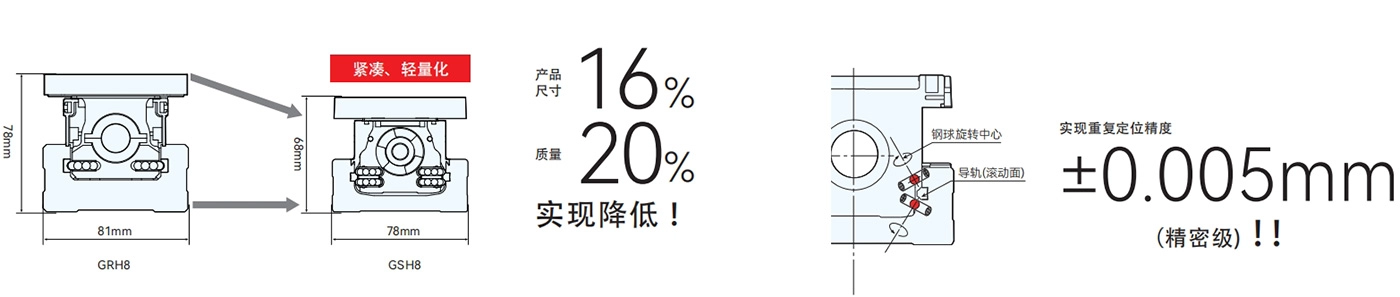

Compared to traditional products, the product size has been reduced. It is easy to assemble into equipment and also contributes to the miniaturization of the equipment itself.

Long journey

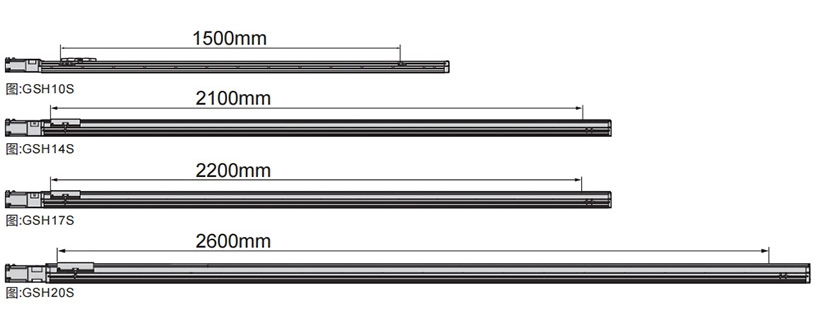

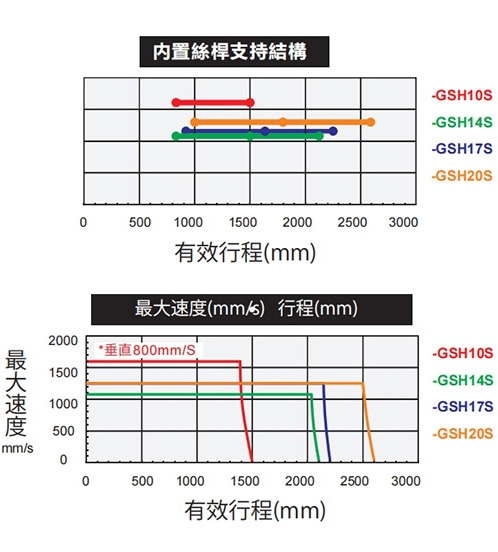

A four-column ball-screwed embedded slide table with a travel range of up to 3000mm and a maximum speed of 2200mm/s,

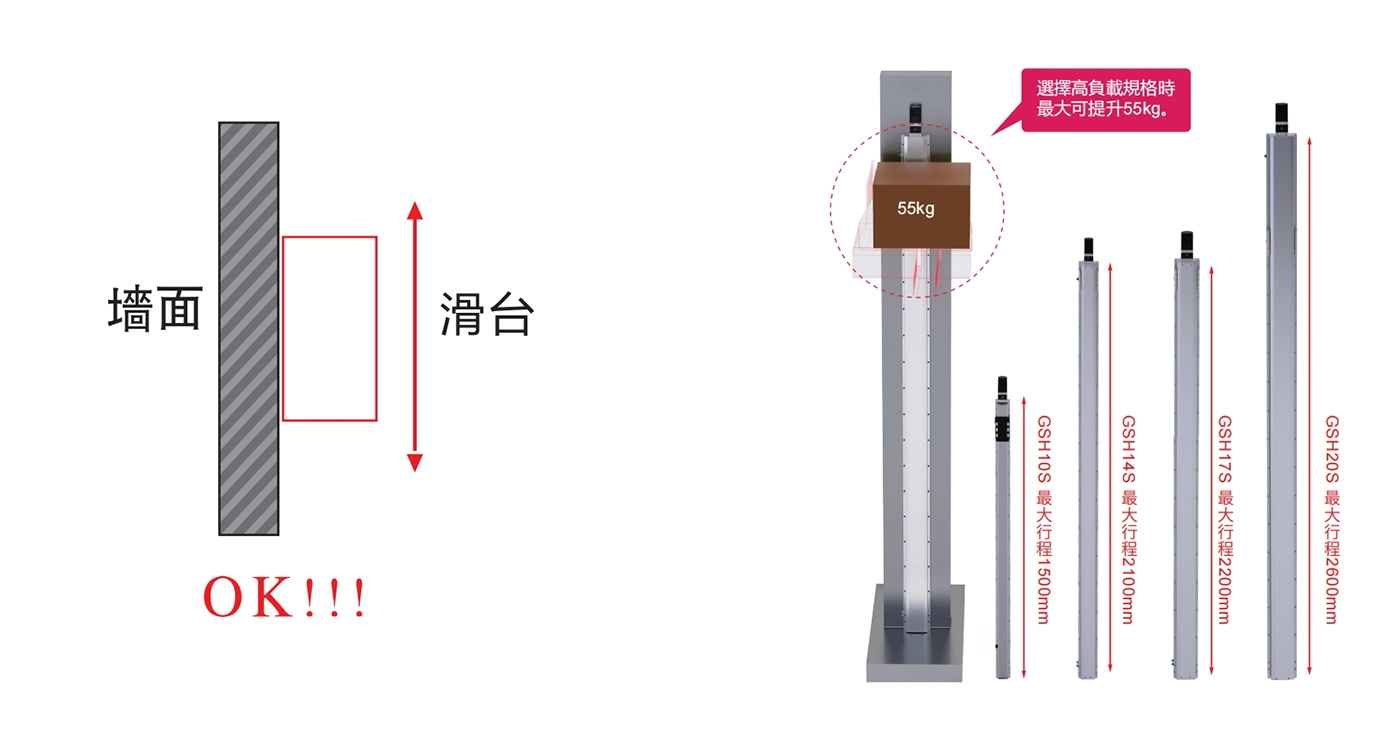

Can be installed vertically

All series can be installed vertically.

Simple maintenance - extremely low cost

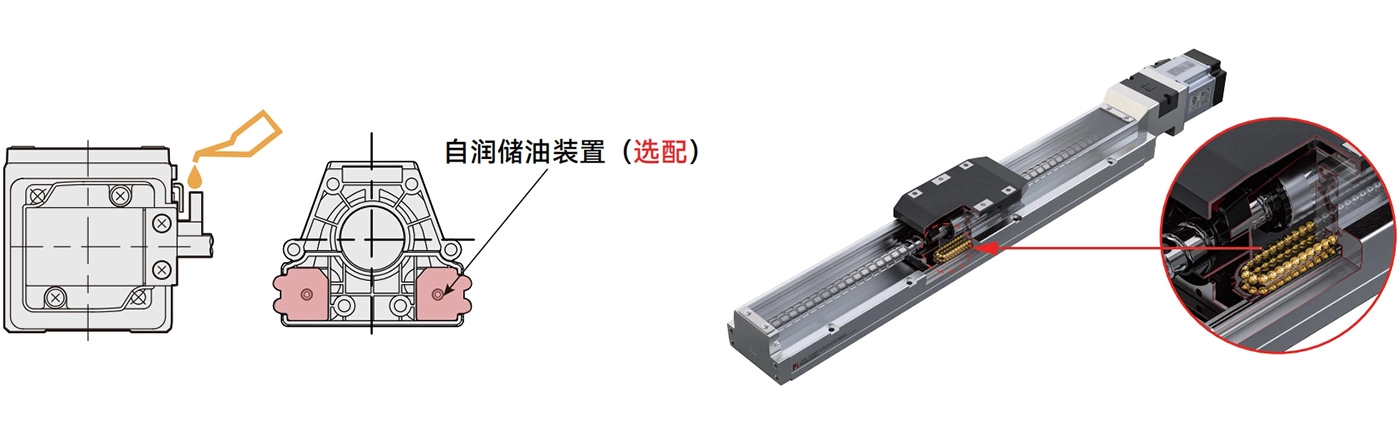

The entire series can be externally lubricated without removing the cover. It features a self-lubricating oil storage system with a special steel belt structure design.

Complete styles - numerous advantages

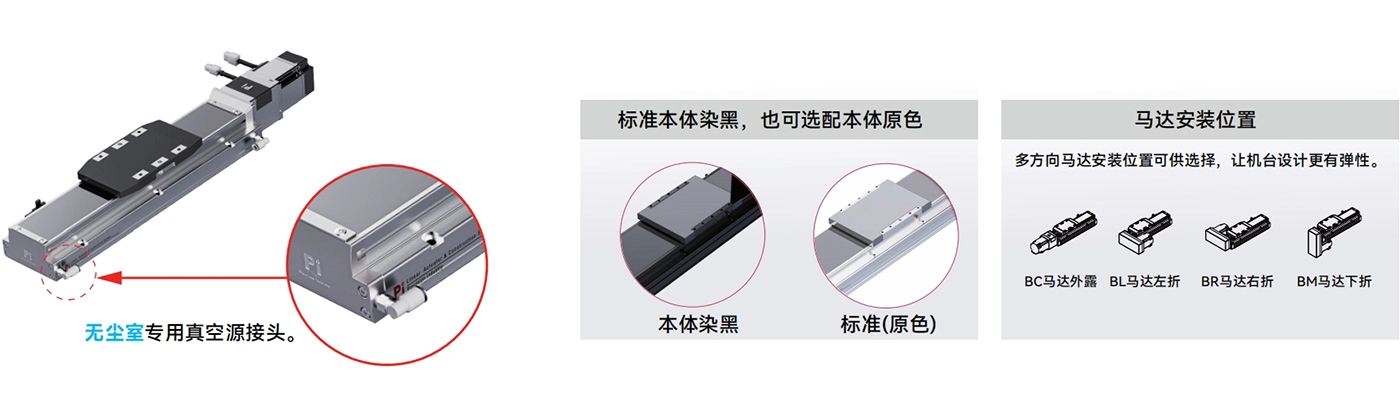

With steel belt protection, it can prevent foreign objects from directly falling into the slide table, reducing dust generation; it can be used in clean room environments and can be equipped with motors from different manufacturers and installation methods.

Ordering Method

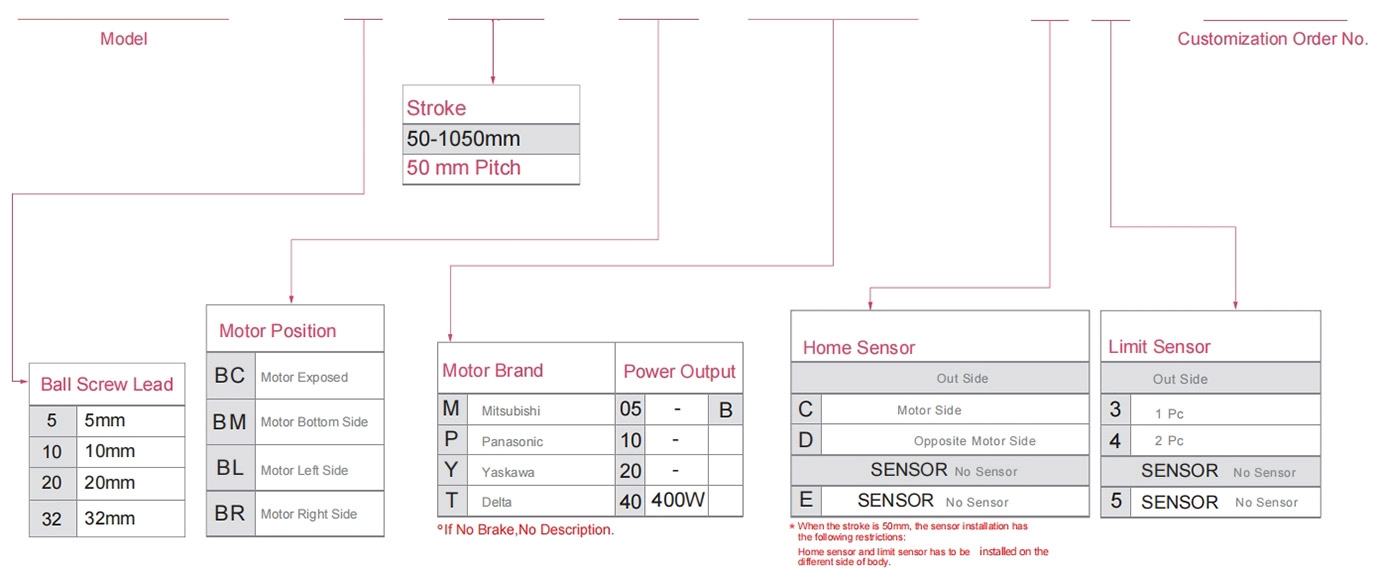

GSD10 - L5-100-BC-M40B - C4 -0001

Specification

Spec	Repeatability(mm)		±0.005/0.01
	Ball Screw Lead (mm)		5	10	20	32
	Maximum Speed (mm/s) ※1		250	500	1000	1600
	Maximum Payload	Horizontal (kg)	60	50	30	20
		Vertical (kg)	22	16	7	5
	Rated Thrust (N)		1388	694	347	218
	Stroke Pitch (mm)※2		50-1050mm/50mm Pitch
Parts	AC Servo Motor Power (W)		400
	Ball Screw Ø (mm)		C7Ø16
	High Rigidity LinearGuide(mm)		Ball Screw Actuator
	Coupling (mm)		10X14
	Home Sensor	Outside	EE-SX672(NPN)
		Built-in	EE-SX674(NPN)

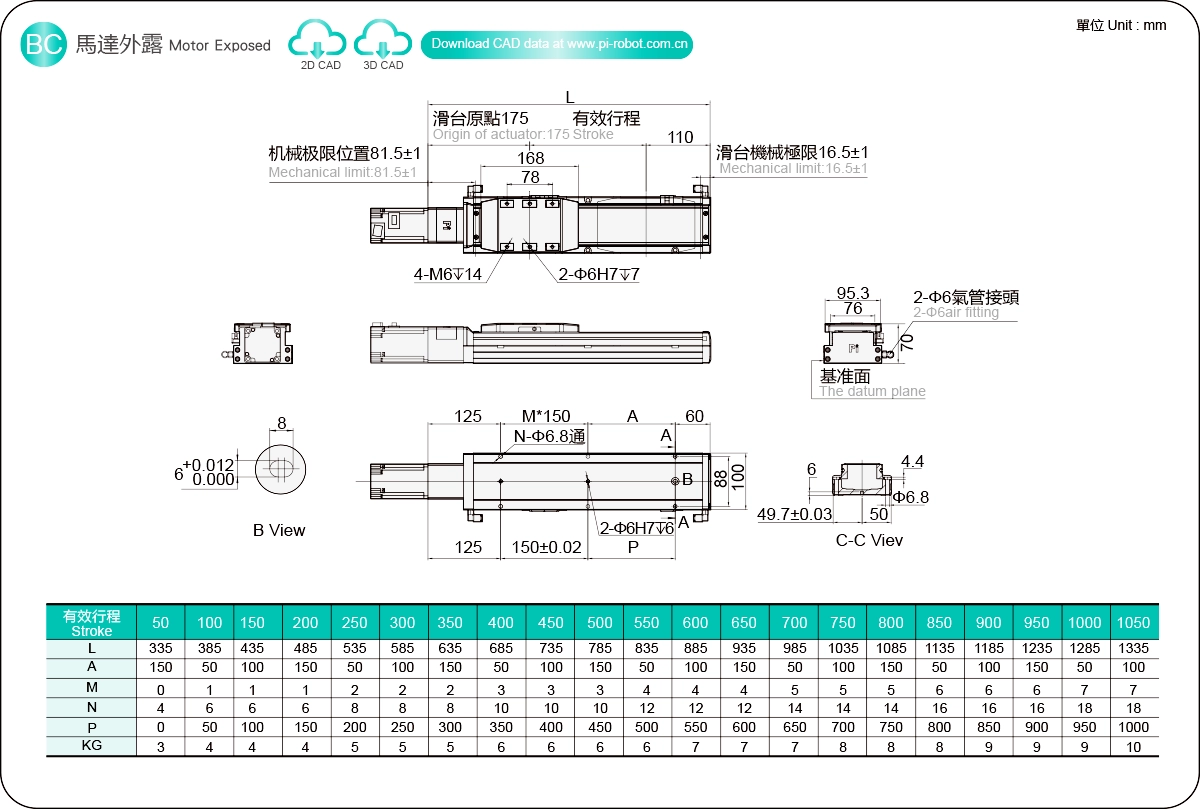

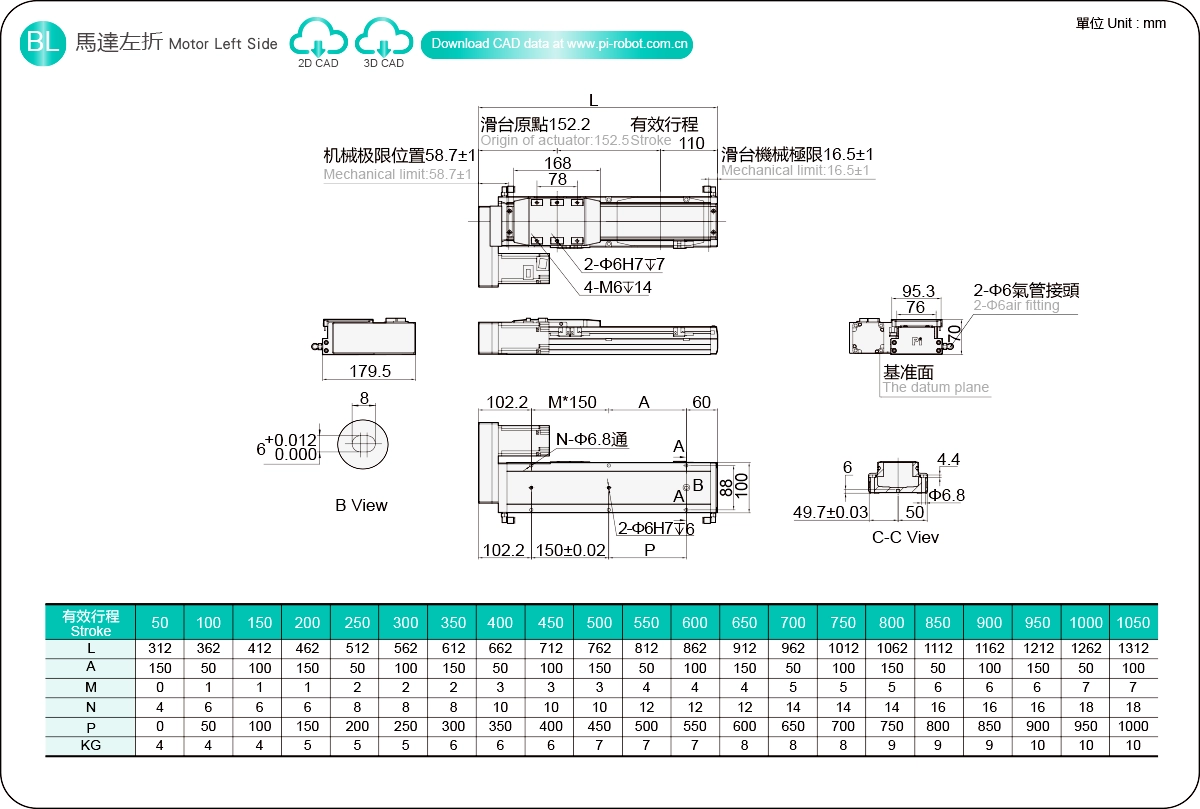

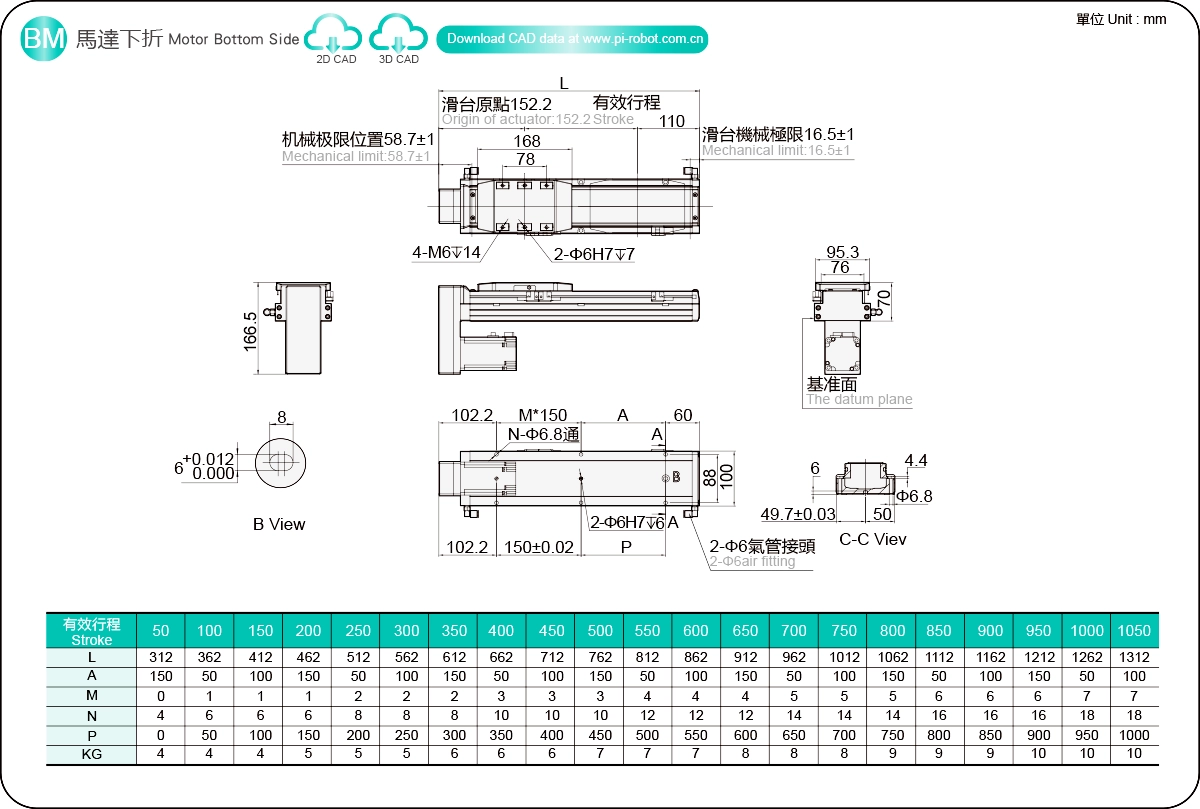

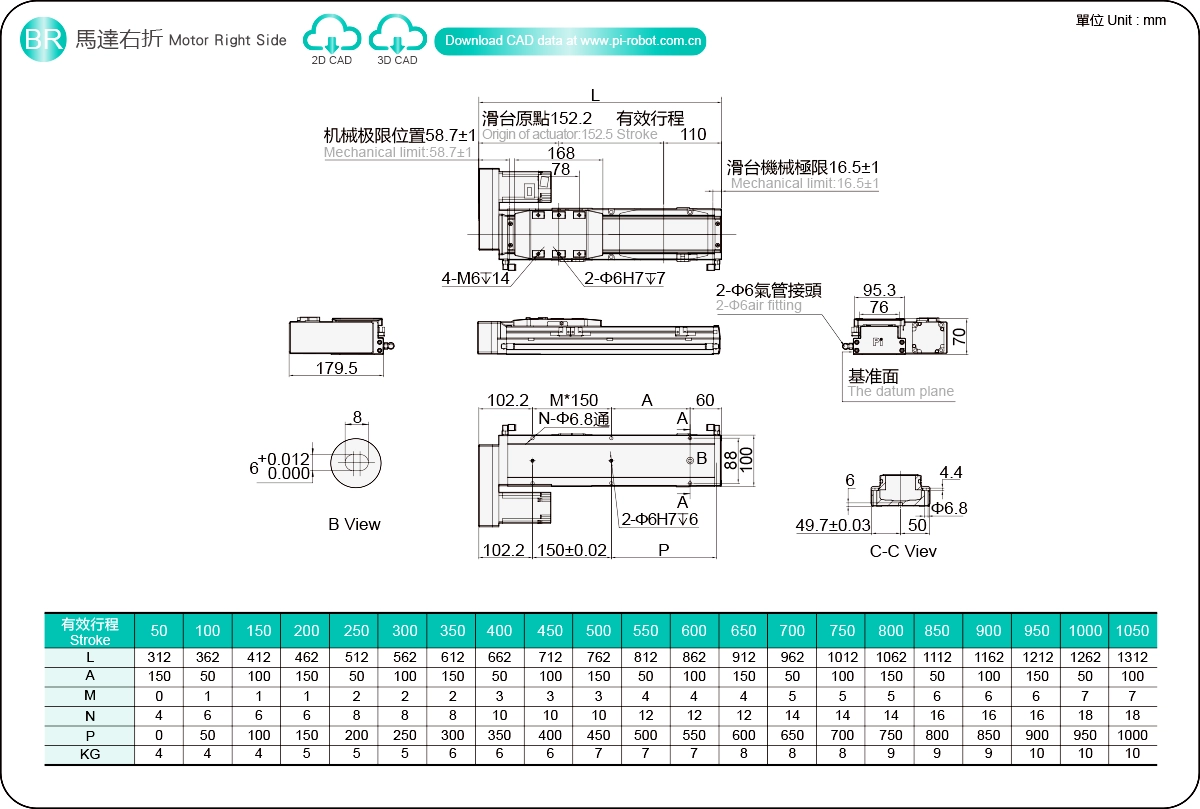

Sensor Layout

※1 Acceleration and deacceleration value is set 0.2 second.

※2 When the stroke is over 600mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances. Please refer to P85 for details.

Allowable Overhang

(Unit : mm)

Horizontal Installation		A	B	C
Lead5	30kg	400	162	247
	40kg	200	110	170
	60kg	100	62	103
Lead10	25kg	400	180	237
	40kg	200	90	165
	50kg	100	66	88
Lead20	10kg	400	384	494
	20kg	300	162	241
	30kg	200	110	143
Lead32	5kg	400	324	455
	10kg	300	114	208
	20kg	100	72	117

(Unit : mm)

Wall Installation		A	B	C
Lead5	30kg	230	100	400
	40kg	160	85	200
	60kg	101	50	100
Lead10	25kg	235	110	400
	40kg	130	70	200
	50kg	100	58	100
Lead20	10kg	420	210	500
	20kg	235	85	250
	30kg	115	75	150
Lead32	5kg	429	300	400
	10kg	230	130	250
	20kg	130	68	100

(Unit : mm)

Vertical Installation		A	C
Lead5	5kg	720	720
	15kg	240	240
	20kg	150	150
Lead10	5kg	650	650
	10kg	320	320
	16kg	200	200
Lead20	3kg	750	750
	7kg	350	350
	-	-	-
Lead32	3kg	500	500
	5kg	300	300
	-	-	-

Static Loading Moment

(Unit : Nm)

MY	384
MP	384
MR	771

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Height of the body (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
							Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical
							Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical
Stndard	Ball Screw	GSD6	100W	60	50	±0.005/0.01	12	5	30	15	250
								5	30	15	250
								10	18	7	500
								10	18	7	500
								20	12	3	1000
								20	12	3	1000
		GSD8	400W	80	68	±0.005/0.01	16	5	50	20	250
								5	50	20	250
								10	35	10	500
								10	35	10	500
								20	20	5	1000
								20	20	5	1000
		GSD10	400W	100	70	±0.005/0.01	16	5	60	22	250
								5	60	22	250
								10	45	16	500
								10	45	16	500
								20	30	7	1000
								20	30	7	1000
								32	20	5	1600
								32	20	5	1600
		GSD14	400W	135	78	±0.005/0.01	16	5	110	33	250
								5	110	33	250
								10	88	22	500
								10	88	22	500
								20	40	10	1000
								20	40	10	1000
								32	30	8	1600
								32	30	8	1600
		GSD17	750W	170	90	±0.005/0.01	20	5	120	50	250
								5	120	50	250
								10	110	40	500
								10	110	40	500
								20	75	25	1000
								20	75	25	1000
								40	35	10	2000
								40	35	10	2000
		GSD20	750W	200	102	±0.005/0.01	25	5	150	55	250
								5	150	55	250
								10	140	45	500
								10	140	45	500
								25	95	20	1250
								25	95	20	1250
							20	40	43	12	2000
							20	40	43	12	2000
