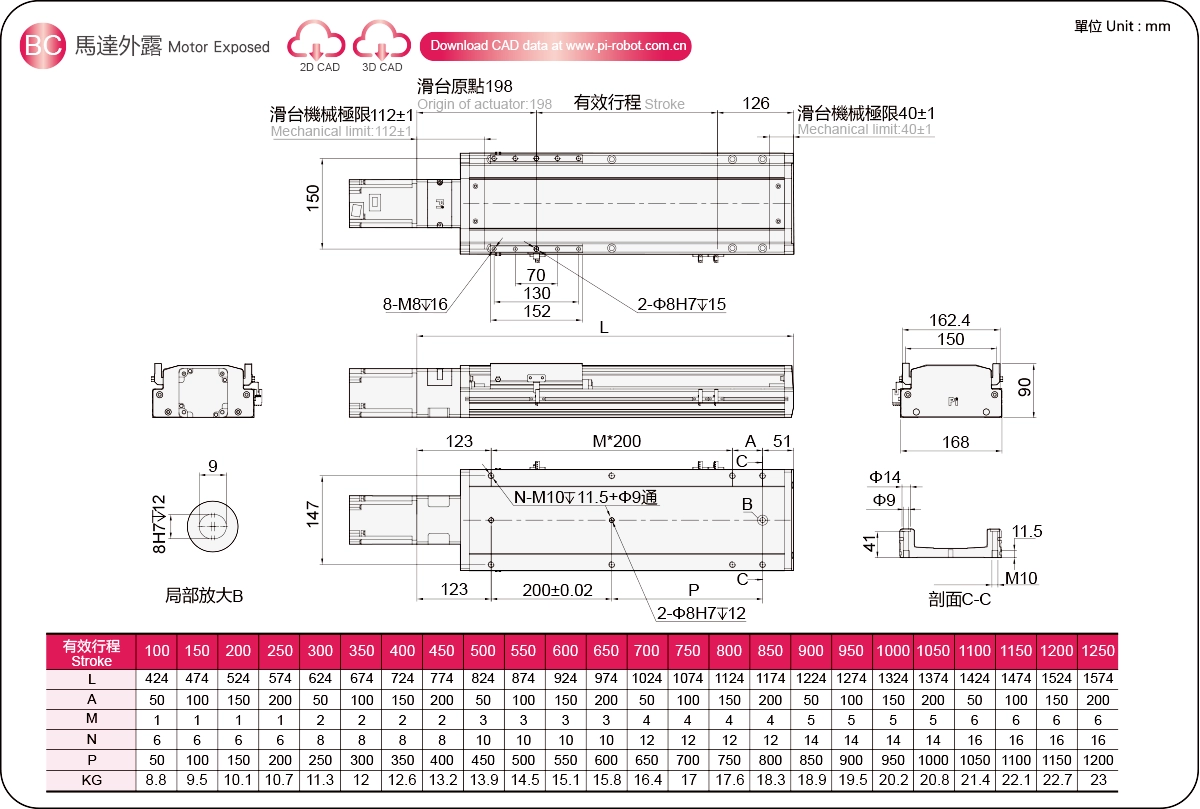

Current location：Home > Product > Screw slide table > GSH Series > GSH17 > Motor Exposed

Lightweight and Long Lifespan

Body width：60-200mm

Repeatability：±0.005/0.01mm

Horizontal Load：30kg

Vertical Load：15kg

Maximum Speed：250mm/s

Travel Range：50-800mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Four column ball design - improved accuracy

Without gaps, it can move lightly and easily to the "circular arc groove", which is easy to maintain high precision for a long time.
The internal slider can achieve the same rated load in all four directions, and can be used in any direction.
High rigidity, high precision, low friction, high speed motion load capacity, long service life.

More compact structure

Compared to traditional products, the product size has been reduced. It is easy to assemble into equipment and also contributes to the miniaturization of the equipment itself.

Long journey

A four-column ball-screwed embedded slide table with a travel range of up to 3000mm and a maximum speed of 2200mm/s,

Can be installed vertically

All series can be installed vertically.

Simple maintenance - extremely low cost

The entire series can be externally lubricated without removing the cover. It features a self-lubricating oil storage system with a special steel belt structure design.

Complete styles - numerous advantages

With steel belt protection, it can prevent foreign objects from directly falling into the slide table, reducing dust generation; it can be used in clean room environments and can be equipped with motors from different manufacturers and installation methods.

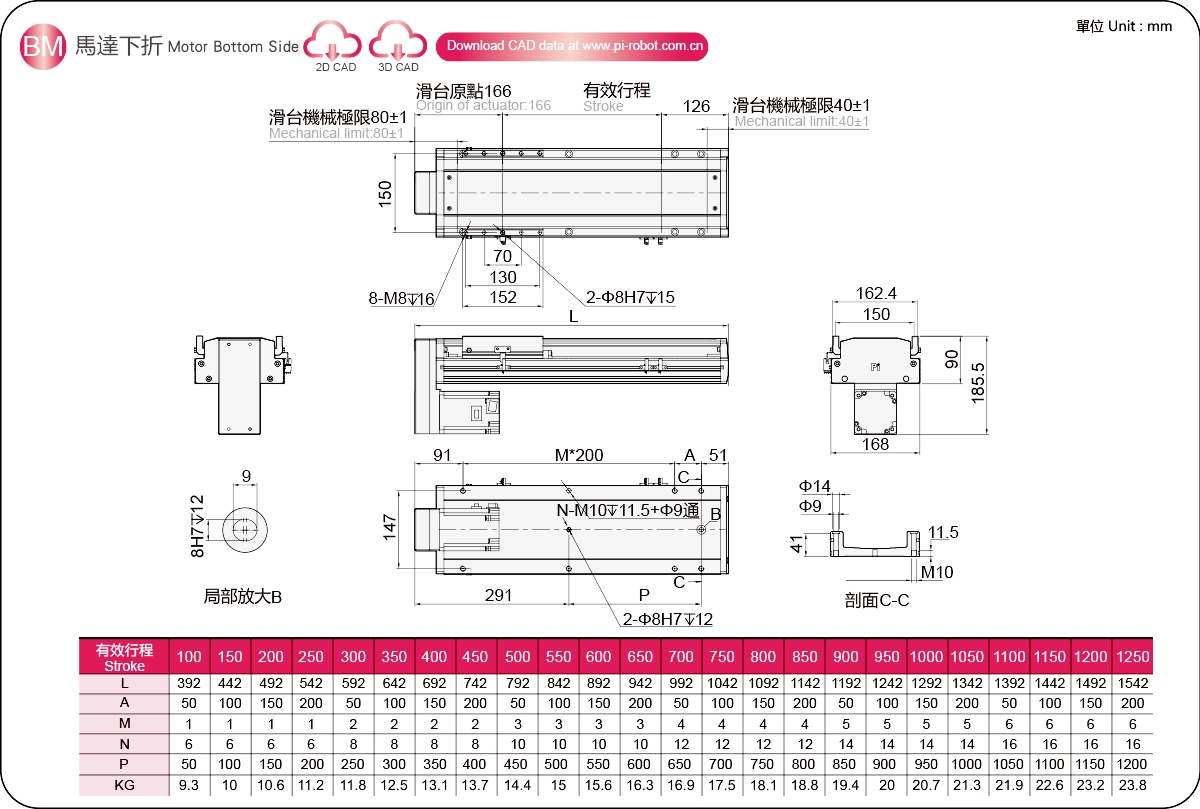

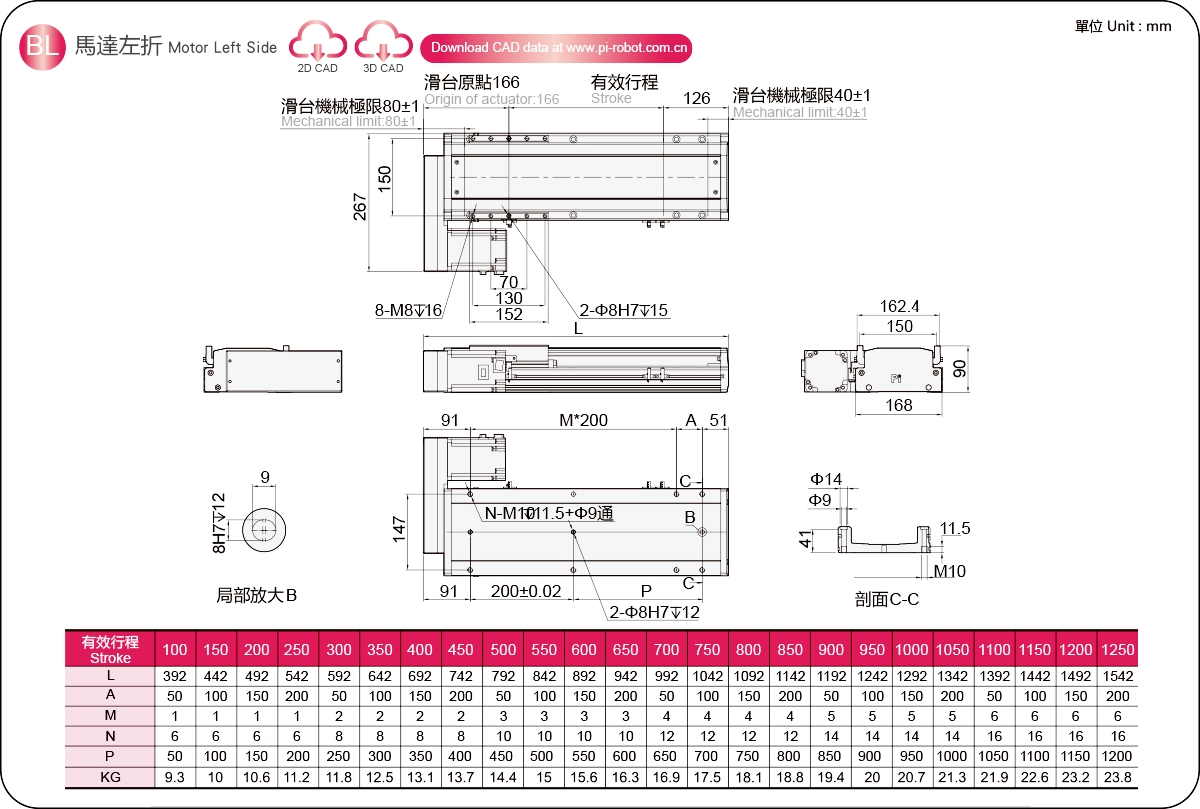

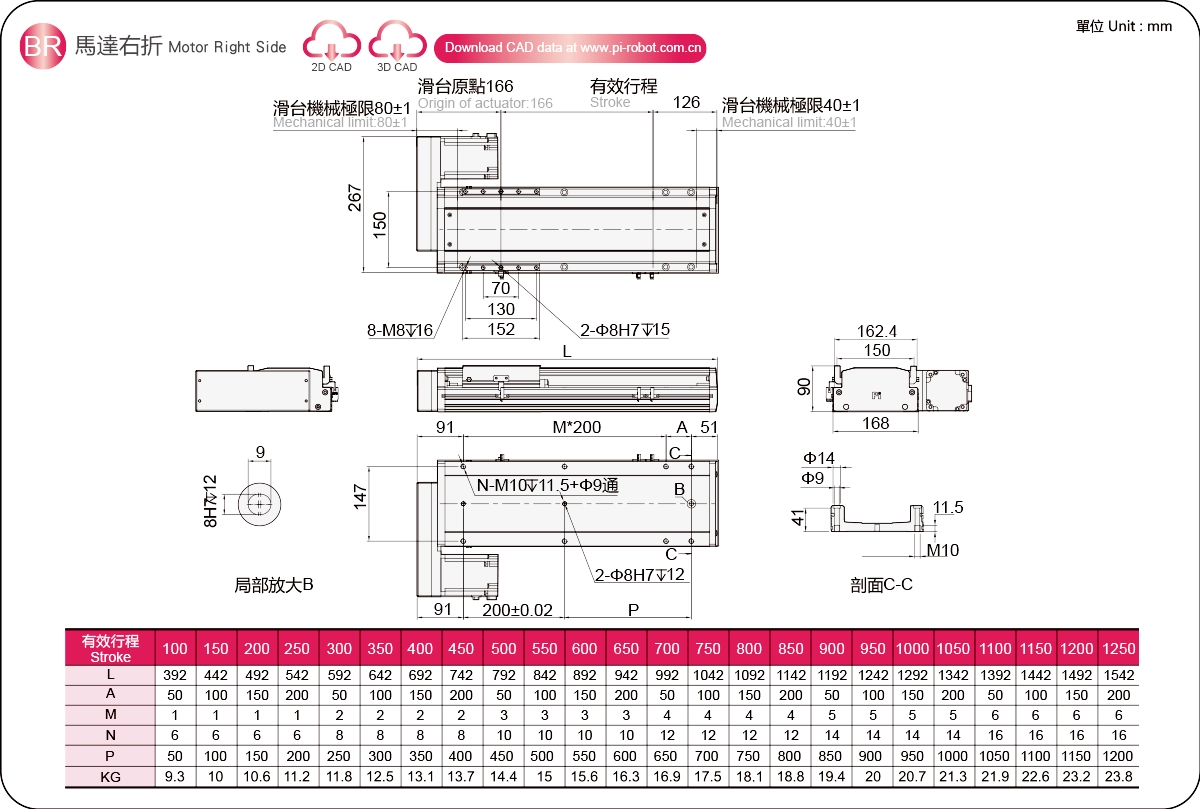

Ordering Method

GSH6 - L5-100 -BC-M10B - C4 -0001

Specification

Spec	Repeatability(mm)		±0.005/0.01
	Ball Screw Lead (mm)		5	10	20
	Maximum Speed (mm/s) ※1		250	500	1000
	Maximum Payload	Horizontal (kg)	30	18	12
		Vertical (kg)	15	7	3
	Rated Thrust (N)		341	170	85
	Stroke Pitch (mm)※2		50-800mm/50Pitch
Parts	AC Servo Motor Power (W)		100
	Ball Screw Ø (mm)		C7Ø12
	High Rigidity LinearGuide(mm)		Ball Screw Actuator
	Coupling (mm)		10X14
	Home Sensor	Outside	EE-SX672(NPN)
		Built-in	EE-SX674(NPN)

Sensor Layout

※1 Acceleration and deacceleration value is set 0.2 second.

※2 When the stroke is over 600mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances. Please refer to P85 for details.

Allowable Overhang

(Unit : mm)

Horizontal Installation		A	B	C
Lead5	10kg	300	134	246
	20kg	200	67	112
	30kg	100	45	70
Lead10	10kg	300	80	165
	15kg	200	50	110
	18kg	100	40	85
Lead20	4kg	300	204	259
	8kg	150	90	114
	12kg	100	55	88

(Unit : mm)

Wall Installation		A	B	C
Lead5	9kg	246	134	300
	18kg	112	67	200
	26kg	70	45	100
Lead10	9kg	230	95	300
	14kg	145	60	200
	18kg	95	43	100
Lead20	4kg	310	204	300
	8kg	165	90	150
	12kg	110	55	100

(Unit : mm)

Vertical Installation		A	C
Lead5	5kg	250	250
	8kg	160	160
	12kg	100	100
Lead10	2kg	500	500
	5kg	220	220
	7kg	160	160
Lead20	1.5kg	400	400
	3kg	230	230
	-	-	-

Static Loading Moment

(Unit : Nm)

MY	122
MP	122
MR	225

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Height of the body (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
							Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical
							Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical
Stndard	Ball Screw	GSH6	100W	60	50	±0.005/0.01	12	5	30	15	250
								5	30	15	250
								10	18	7	500
								10	18	7	500
								20	12	3	1000
								20	12	3	1000
		GSH8	400W	80	68	±0.005/0.01	16	5	50	20	250
								5	50	20	250
								10	35	10	500
								10	35	10	500
								20	20	5	1000
								20	20	5	1000
		GSH10	400W	100	70	±0.005/0.01	16	5	60	22	250
								5	60	22	250
								10	45	16	500
								10	45	16	500
								20	30	7	1000
								20	30	7	1000
								32	20	5	1600
								32	20	5	1600
		GSH14	400W	135	78	±0.005/0.01	16	5	110	33	250
								5	110	33	250
								10	88	22	500
								10	88	22	500
								20	40	10	1000
								20	40	10	1000
								32	30	8	1600
								32	30	8	1600
		GSH17	750W	170	90	±0.005/0.01	20	5	120	50	250
								5	120	50	250
								10	110	40	500
								10	110	40	500
								20	75	25	1000
								20	75	25	1000
								40	35	10	2000
								40	35	10	2000
		GSH20	750W	200	102	±0.005/0.01	25	5	150	55	250
								5	150	55	250
								10	140	45	500
								10	140	45	500
								25	95	20	1250
								25	95	20	1250
							20	40	43	12	2000
							20	40	43	12	2000

Extra long stroke series

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Height of the body (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
							Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical
							Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical
Stndard	Ball Screw	GSH10S	400W	100	70	±0.005/0.01	16	5	60	22	250
								5	60	22	250
								10	45	16	500
								10	45	16	500
								20	30	7	1000
								20	30	7	1000
								32	20	5	1600
								32	20	5	1600
		GSH14S	400W	135	78	±0.005/0.01	16	5	110	33	250
								5	110	33	250
								10	88	22	500
								10	88	22	500
								20	40	10	1000
								20	40	10	1000
								32	30	8	1600
								32	30	8	1600
		GSH17S	750W	170	90	±0.005/0.01	20	5	120	50	250
								5	120	50	250
								10	110	40	500
								10	110	40	500
								20	75	25	1000
								20	75	25	1000
								40	35	10	2000
								40	35	10	2000
		GSH20S	750W	200	102	±0.005/0.01	25	5	150	55	250
								5	150	55	250
								10	140	45	500
								10	140	45	500
								25	95	20	1250
								25	95	20	1250
							20	40	43	12	2000
							20	40	43	12	2000
