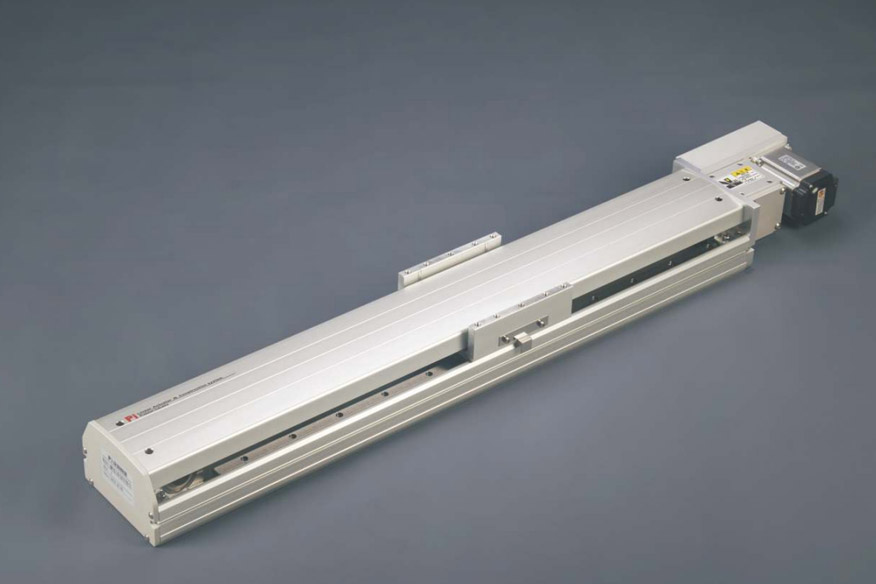

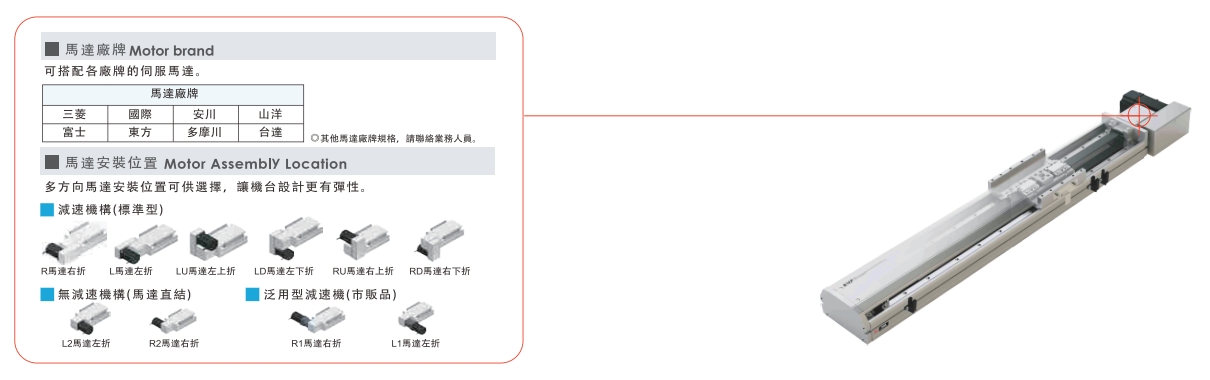

PRODUCT
Repeatability：±0.04mm
Horizontal Load：25kg
Lead：40mm
Maximum Speed：2000mm/s
Stroke Pitch：100-3050mm
Set the motor acceleration and deceleration to0.2seconds.
The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.
Delivery time: 7-10 days
| Spec | Repeatability(mm) | ±0.04 | |
| Lead (mm) | 40 | ||
| Maximum Speed (mm/s) | 2000 | ||
| Maximum Payload | Horizontal (kg) | 25 | |
| Vertical (kg) | - | ||
| Rated Thrust (N) | 100 | ||
| Stroke Pitch (mm) | 100-3050mm/50mm Pitch | ||
| Parts | AC Servo Motor Power (W) | 200W | |
| Ball Width (mm) | 22 | ||
| High Rigidity LinearGuide(mm) | W15XH12.5 | ||

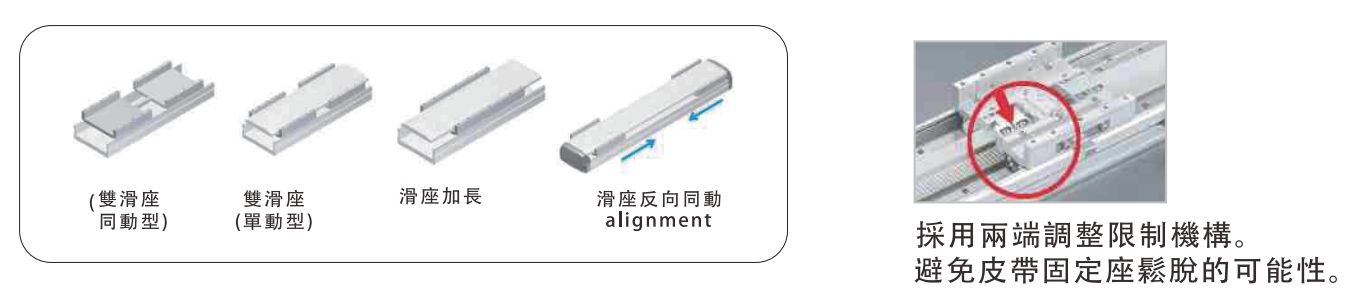

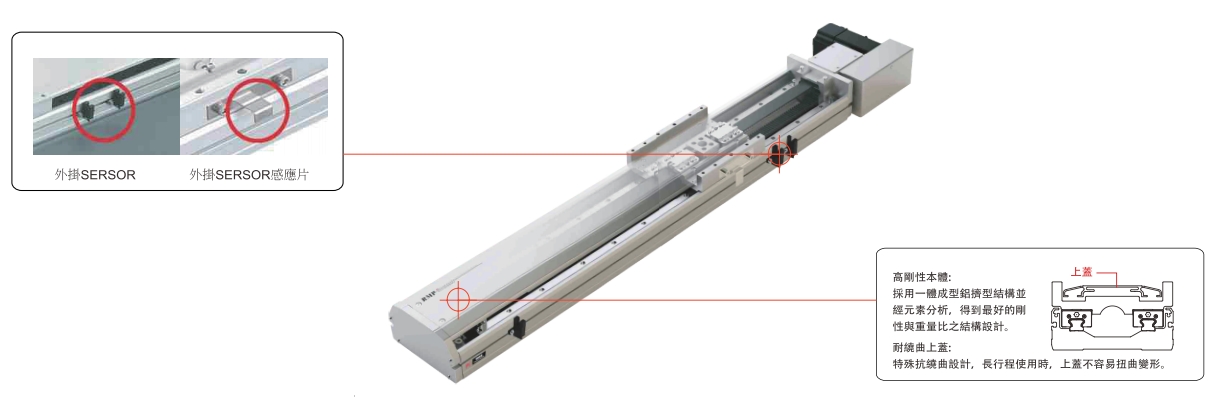

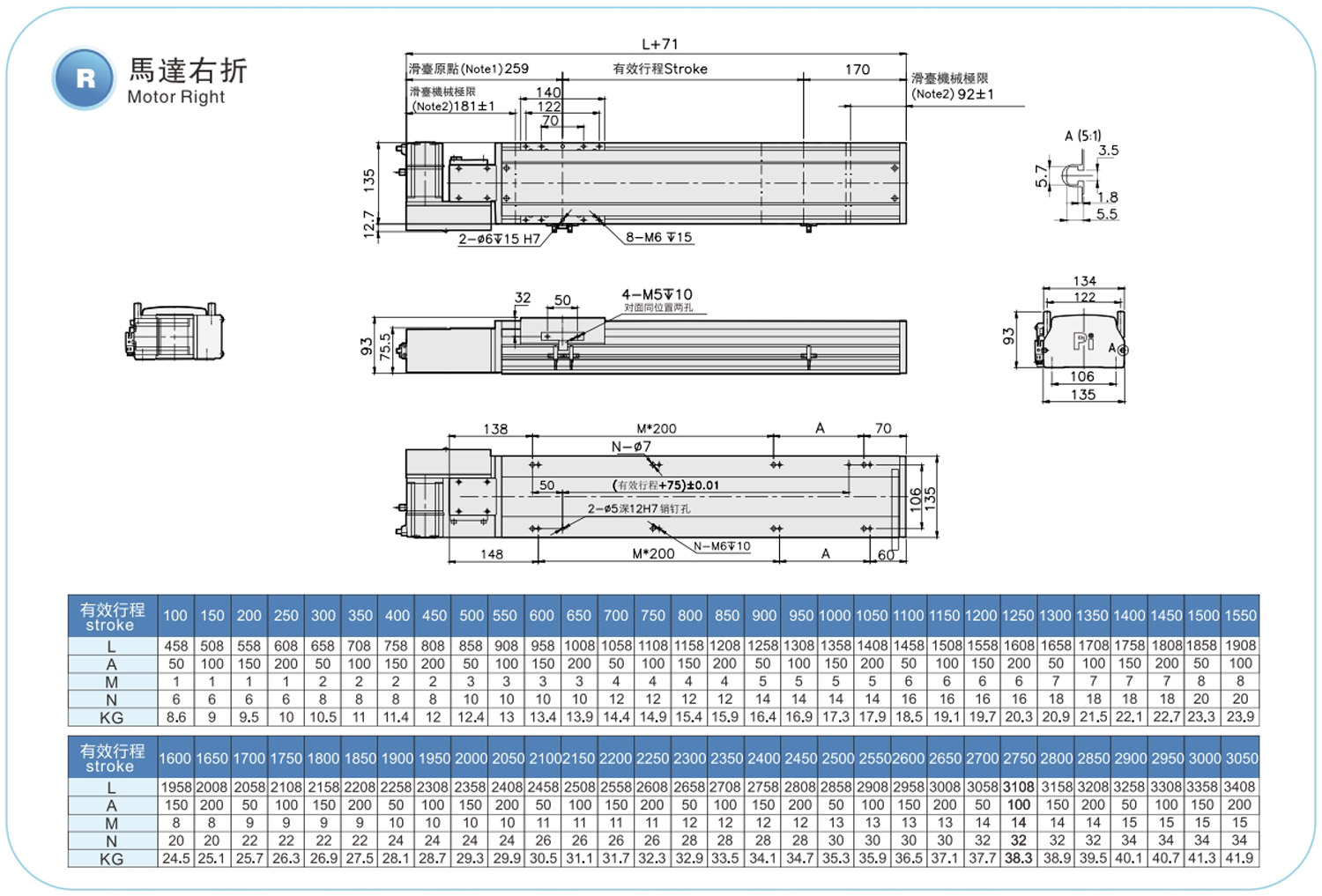

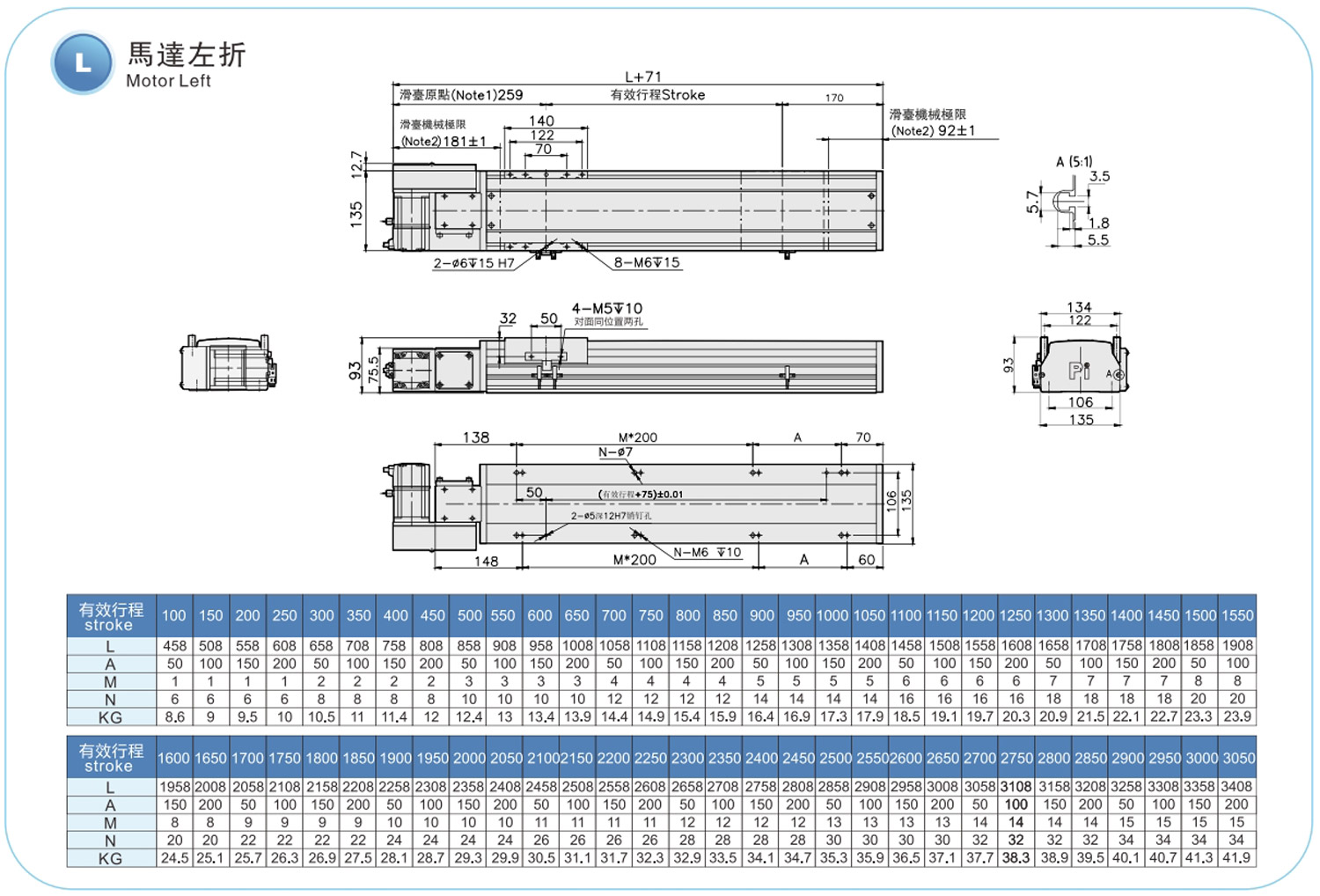

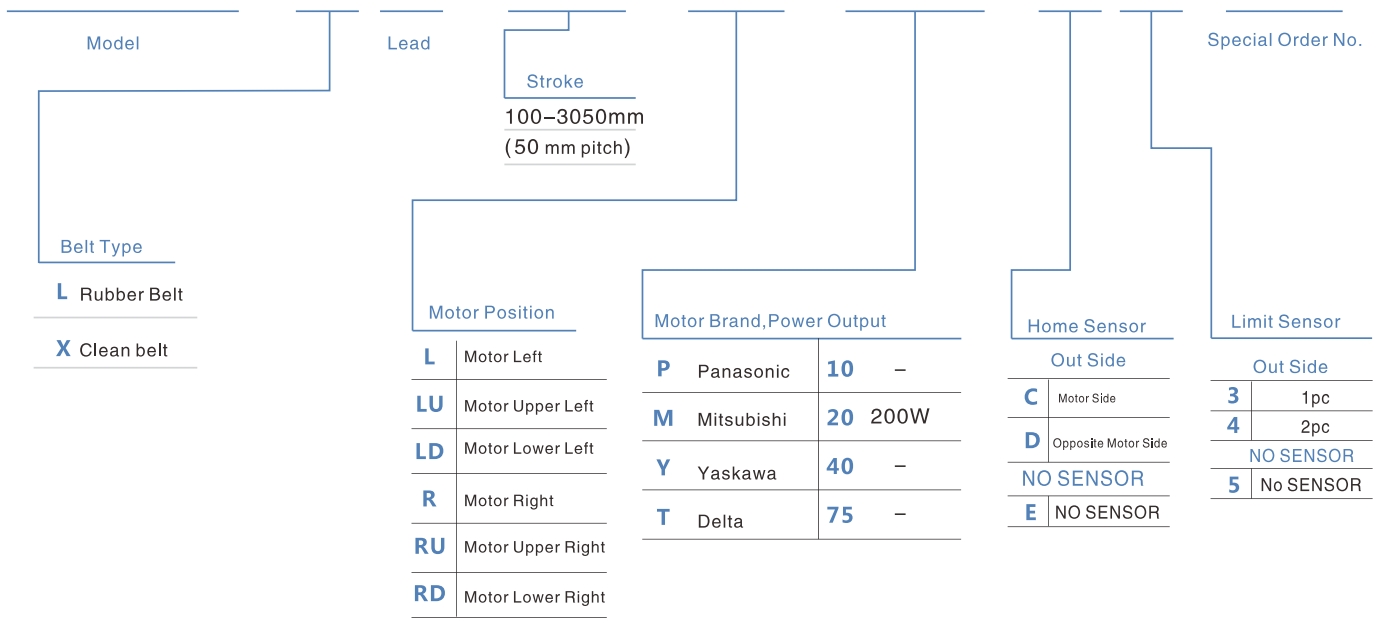

| Home Sensor | Outside | EE-SX672(NPN) | |
| Horizontal Installation | A | B | C |
| 10kg | 1794 | 688 | 538 |
| 20kg | 858 | 324 | 253 |
| 25kg | 670 | 251 | 197 |
| Wall Installation | A | B | C |
| 15kg | 348 | 446 | 1170 |
| 18kg | 285 | 365 | 961 |
| 25kg | 197 | 251 | 670 |
| MY | 337.9 |
| MP | 337.9 |
| MR | 58.6 |
| Use Where | Driven Mode | Model Specification | Reducer Mechanism | Motor Output (w) | Width (mm) | Repeatability (mm) | Belt spec | Maximum Payload(kg) | Maximum speed (mm/s)*1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Belt width(mm) | Lead(mm) | Horizontal | Vertical | ||||||||
| Standard | Balt | RMP14S | Yes | 200W | 135 | ±0.04 | 22 | 40 | 25 | - | 2000 |
| RMP17S | Yes | 400W | 170 | ±0.04 | 30 | 40 | 45 | - | 2000 | ||
| RMP22S | Yes | 750W | 220 | ±0.04 | 50 | 40 | 85 | - | 2000 | ||
| RMP28R | NO | 1000W | 280 | ±0.08 | 50 | 230 | 230 | - | 2000 | ||
| RMP28RN | NO | 1000W | 280 | ±0.08 | 50 | 230 | 200 | - | 2000 | ||
*1The highest speed is based on the maximum servo motor's rpm(3000)
*The highest speed is based on the maximum stepping motor's rpm(500).
