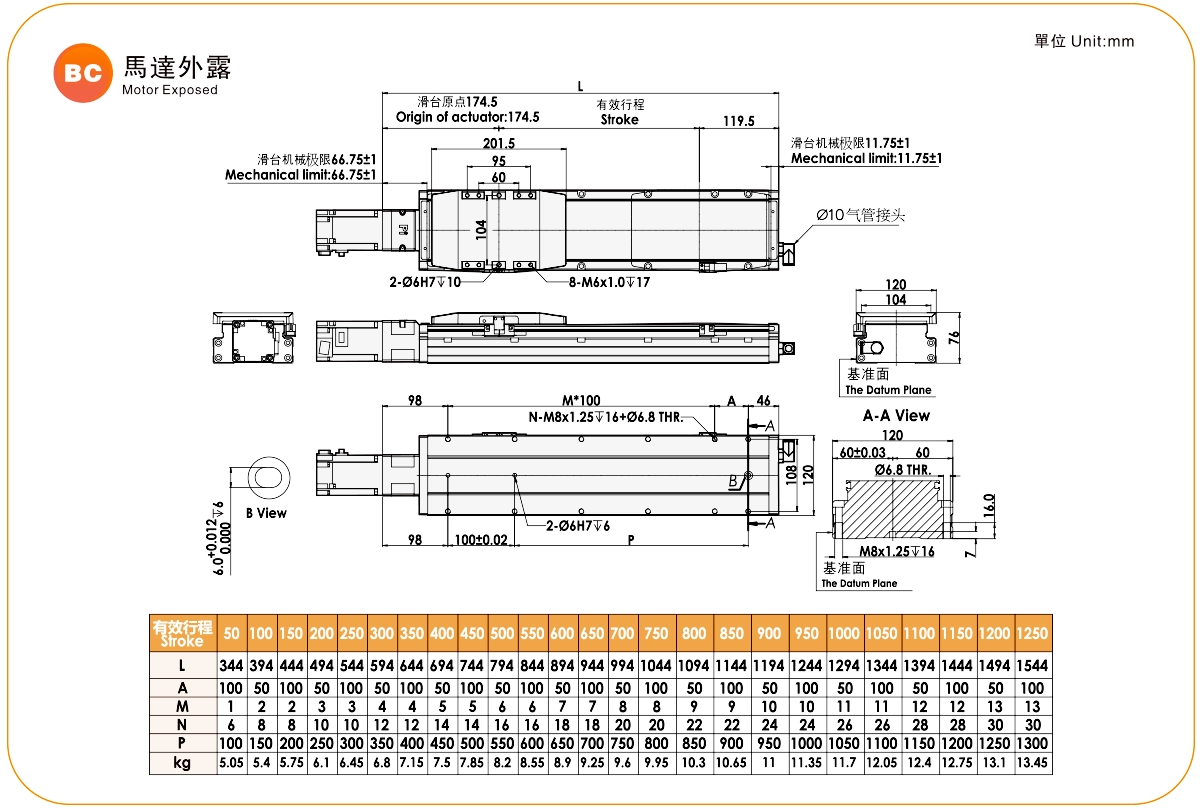

Current location：Home > Product > Clean Room Type Actuator > GRC Series > GRC12 > Motor Exposed

Lightweight and Long Lifespan

Body width：120mm

Repeatability：±0.01mm

Horizontal Load：110kg

Vertical Load：33kg

Maximum Speed：1600mm/s

Travel Range：50-1250mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Rigid reinforcement of sliding seat

The body and slide are integrally formed, which improves the problem of poor rigidity and reduces the width, making the installation space of the equipment smaller.

Easy maintenance

Both sides of the entire series have external oil injection nozzles that can be directly filled with oil without the need for a cover. Special steel belt tie design can reduce hair and can be used in cleanroom environments.

Assembly, time-saving, and convenient

It can be fixed from top to bottom or from bottom to top without dismantling the steel strip.
Add installation reference surface support on the side of the body.There is a positioning PIN hole at the bottom of the body.

The strength increases and the smoothness improves

Due to the use of aluminum body structure, the strength of the body is significantly increased. Compared with RMH5S/6S, the steel track is embedded in the aluminum body and then ground, thus improving the accuracy of the walking height and straightness to below ± 0.02MM (compared with RMH10/12)

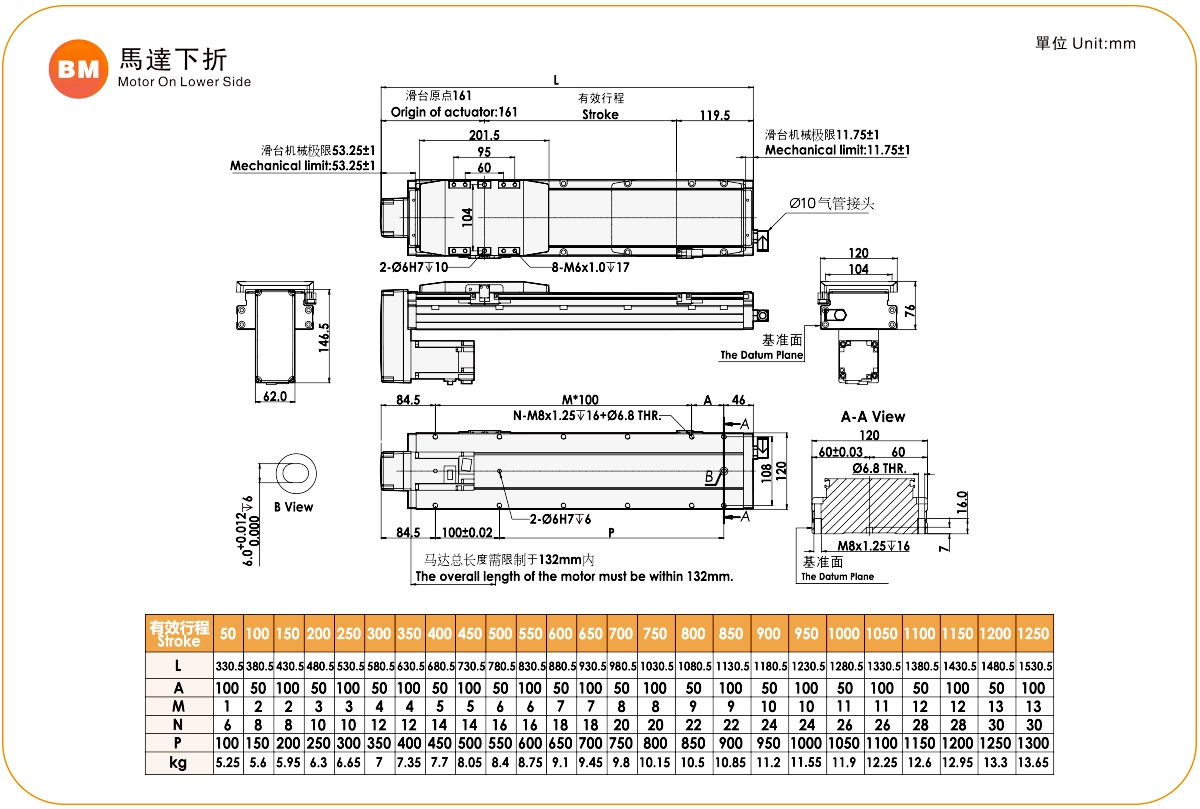

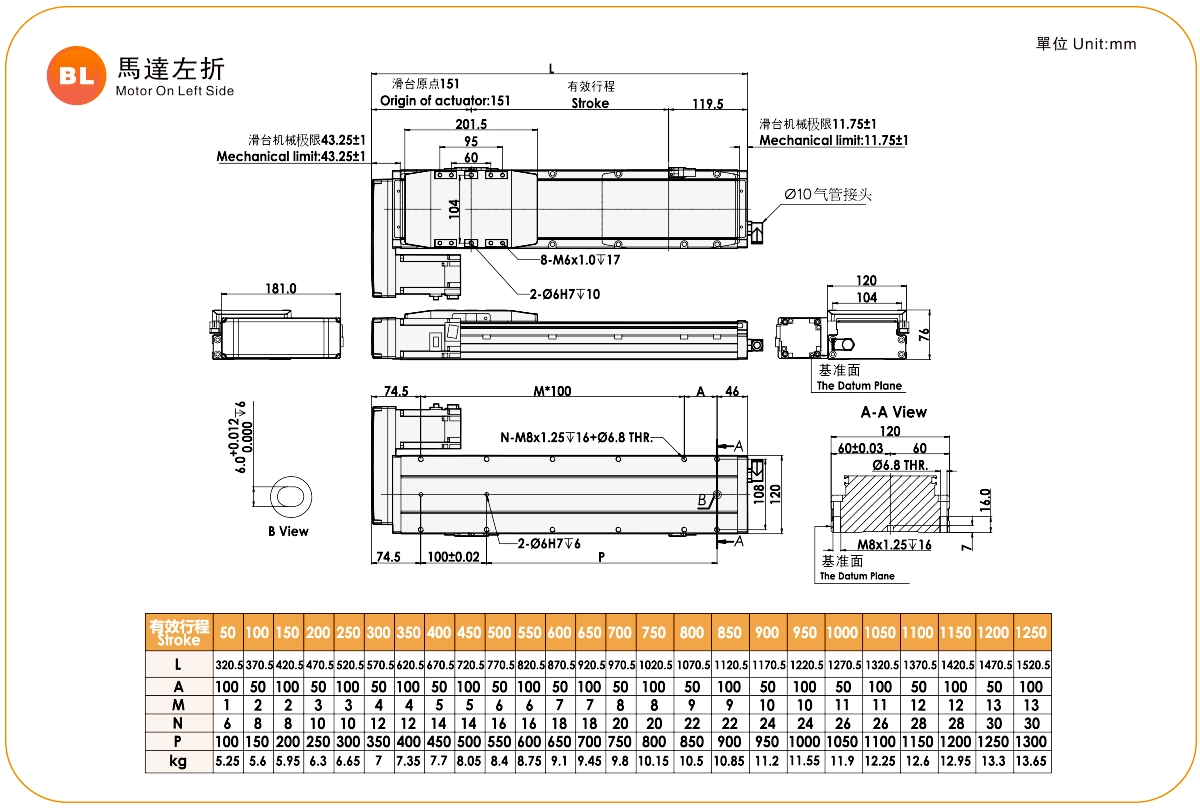

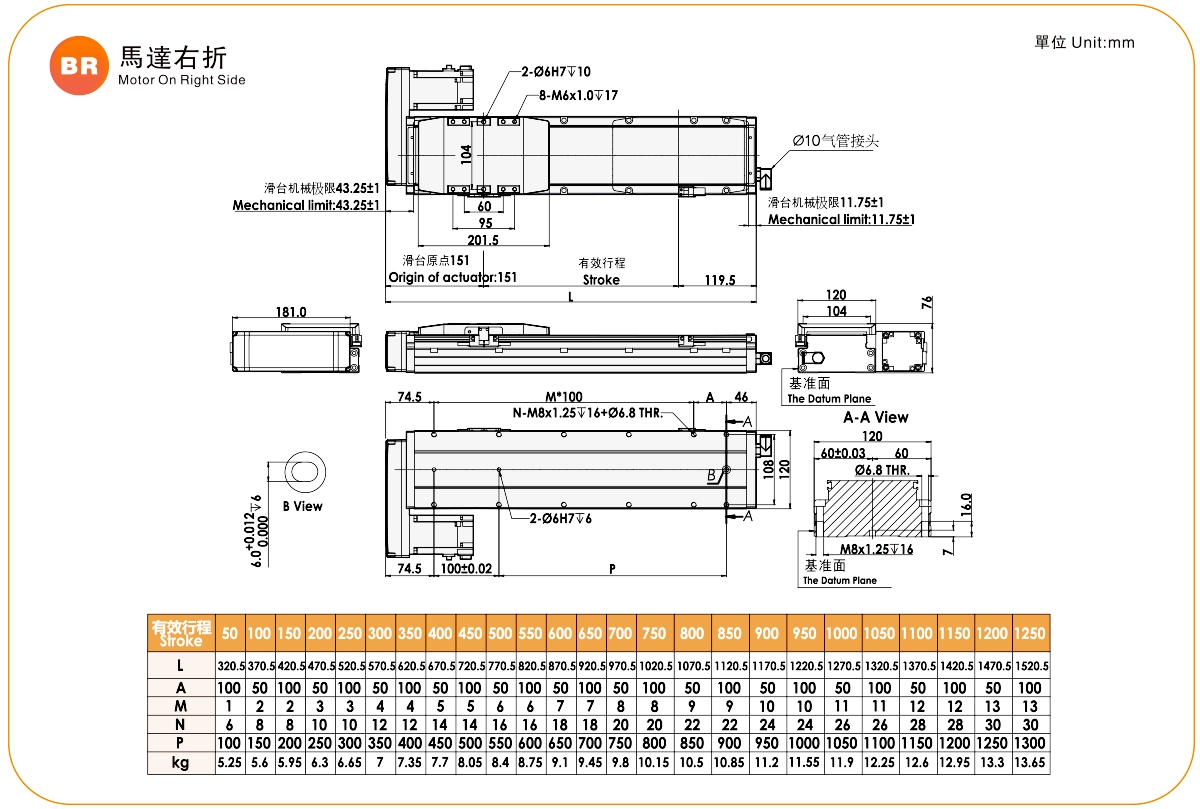

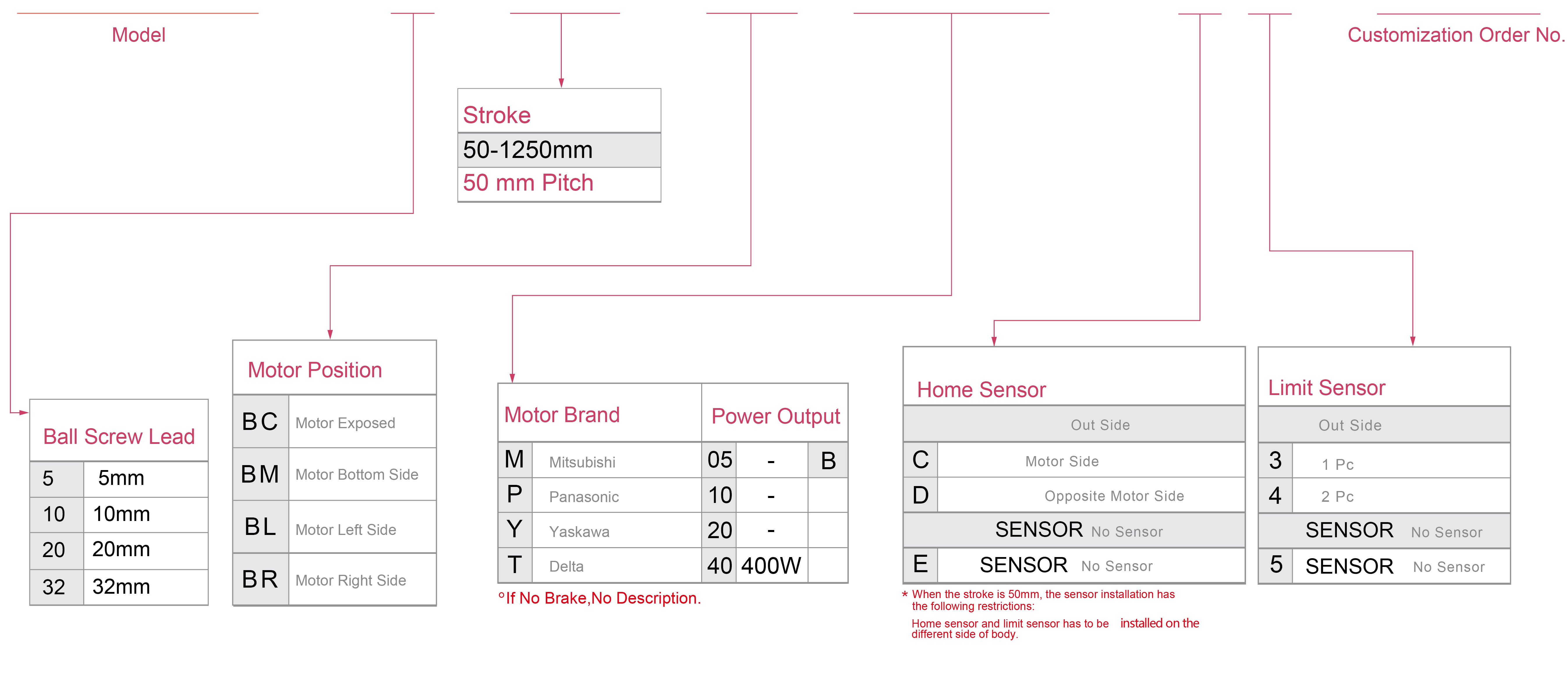

Ordering Method

GRC12 - L5-100-BC-M40B - C4 -0001

Specification

Spec	Repeatability(mm)		±0.01
	Ball Screw Lead (mm)		5	10	20	32
	Maximum Speed (mm/s) ※1		250	500	1000	1600
	Maximum Payload	Horizontal (kg)	110	88	40	30
		Vertical (kg)	33	22	10	8
	Rated Thrust (N)		1388	694	347	218
	Stroke Pitch (mm)※2		50-1250mm/50mm Pitch
Parts	AC Servo Motor Power (W)		400
	Ball Screw Ø (mm)		C7Ø16
	High Rigidity LinearGuide(mm)		Ball Screw Actuator
	Coupling (mm)		10X14
		Built-in	EE-SX674(NPN)

Sensor Layout

※1 Acceleration and deacceleration value is set 0.2 second.

※2 When the stroke is over 600mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances. Please refer to P85 for details.

Allowable Overhang

(Unit : mm)

Horizontal Installation		A	B	C
Lead5	60kg	2850	250	340
	80kg	2100	180	250
	110kg	1500	120	170
Lead10	30kg	2850	490	600
	50kg	1700	280	350
	88kg	950	140	190
Lead20	10kg	3400	1250	1400
	22kg	1650	550	620
	40kg	900	290	330
Lead32	15kg	1100	570	550
	25kg	620	330	320
	30kg	520	270	260

(Unit : mm)

Wall Installation		A	B	C
Lead5	55kg	280	280	3300
	75kg	200	195	2400
	110kg	130	125	1550
Lead10	35kg	400	410	2500
	55kg	245	250	1550
	88kg	150	150	950
Lead20	12kg	900	1070	3000
	20kg	550	630	1800
	40kg	260	300	900
Lead32	15kg	440	570	1050
	30kg	210	270	520
	-	-	-	-

(Unit : mm)

Vertical Installation		A	C
Lead5	15kg	1200	1200
	22kg	820	820
	33kg	550	550
Lead10	10kg	1600	1600
	14kg	1150	1150
	22kg	730	730
Lead20	7kg	1800	1800
	10kg	1250	1250
	-	-	-
Lead32	5kg	1600	1600
	8kg	1000	1000
	-	-	-

Static Loading Moment

(Unit : Nm)

MY	606
MP	606
MR	1168

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Stndard	Ball Screw	GRC 5	100W	54	±0.01	12	2	30	10	100
							5	30	10	250
							10	15	5	500
							20	10	2.5	1000
		GRC 8	200/400W	82	±0.01	16	5	50	15	250
							10	30	8	500
							20	18	3	1000
		GRC 12	400W	120	±0.01	16	5	110	33	250
							10	88	22	500
							20	40	10	1000
							32	30	8	1600
		GRC 15	750W	150	±0.01	20	5	120	50	250
							10	120	40	500
							20	83	25	1000
							40	43	12	2000
