Lightweight and Long Lifespan

Repeatability：±0.01mm

Horizontal Load：320kg

Vertical Load：150kg

Maximum Speed：1600mm/s

Stroke Pitch：100-1950mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Diverse slide seat styles

The body and slide are integrally formed, which improves the problem of poor rigidity and reduces the width, making the installation space of the equipment smaller. The only patented fuel nozzle design in the industry, which uses a single fuel nozzle on the slide to inject oil. It can simultaneously inject oil and maintain the nut and multiple sets of sliders, making maintenance more convenient and time-saving for you. The installation direction of the fuel nozzle can be selected according to customer needs.

High rigidity body/high rigidity upper cover

High rigidity body: Explore the use of integrated aluminum extrusion structure and obtain the best rigidity to weight ratio structural design through element analysis. Anti winding upper cover: With a special anti winding design, the upper cover is not easily twisted or deformed during long-distance use.

Motor brand

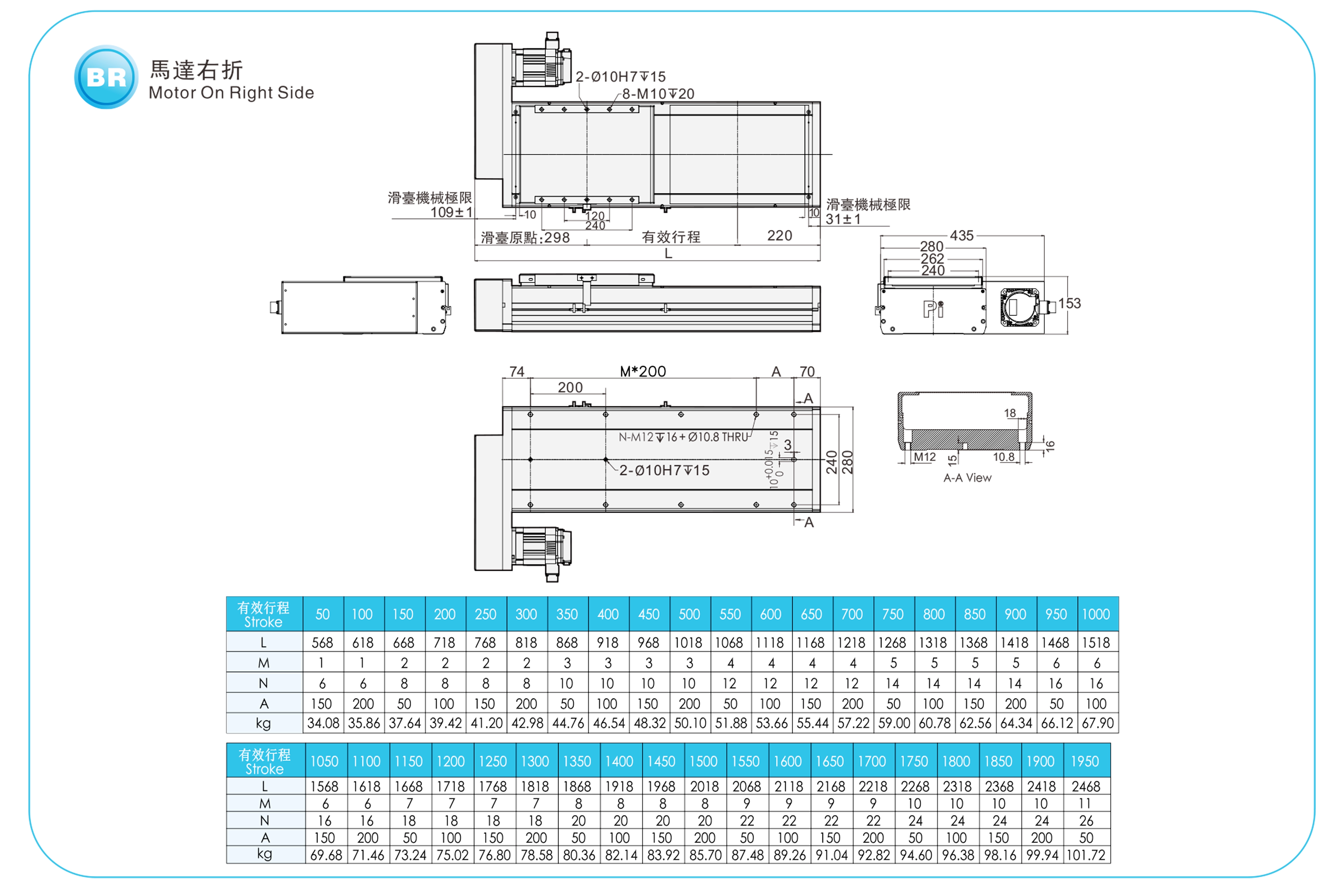

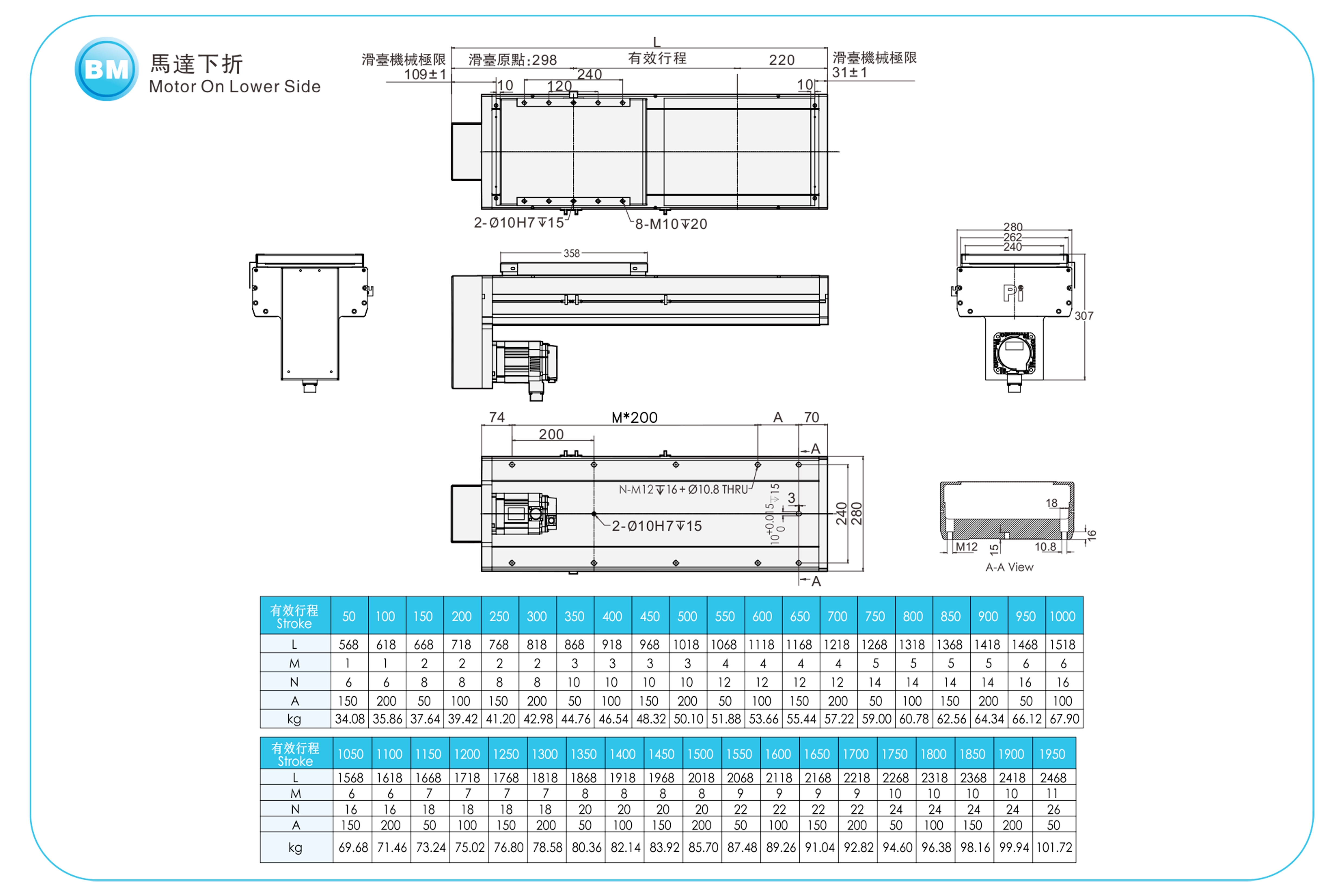

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Motor brand

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Screw brand lead, no seat available for selection

Suitable screw specifications and brands can be selected based on different precision and speed.

Ordering Method

RMD28 - L10-100- BC -M150B - C4 -0001

Specification

Spec	Repeatability(mm)		±0.01
	Ball Screw Lead (mm)		10	20	32
	Maximum Speed (mm/s)		500	1000	1600
	Maximum Payload	Horizontal (kg)	320	180	75
		Vertical (kg)	150	75	35
	Rated Thrust (N)		2546	1273	830
	Stroke Pitch (mm)		100-1950mm/50mm Pitch
Parts	AC Servo Motor Power (W)		1500W
	Ball Screw Ø (mm)		C7Ø32
	High Rigidity Linear Guide (mm)		30
	Coupling (mm)		20X24
	Home Sensor	Outside	EE-SX672(NPN)
		Built-In	EE-SX674(NPN)

Sensor Layout

Acceleration and deacceleration value is set 0.2 second.

*When the stroke is over 750mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances. Please refer to P85 for details.

Allowable Overhang

(Unit : mm)

Horizontal Installation		A	B	C
Lead10	120kg	900	610	630
	160kg	860	390	420
	320kg	800	255	265
Lead20	100kg	1100	500	490
	140kg	1100	400	395
	180kg	1000	250	260
Lead32	60kg	650	630	650
	75kg	550	330	330
	-	-	-	-

(Unit : mm)

Wall Installation		A	B	C
Lead10	100kg	610	570	780
	150kg	390	386	600
	200kg	265	285	650
Lead20	80kg	600	600	600
	120kg	390	400	450
	160kg	260	300	600
Lead32	60kg	480	500	560
	70kg	300	320	500
	-	-	-	-

(Unit : mm)

Vertical Installation		A	C
Lead10	60kg	950	950
	90kg	750	750
	150kg	430	430
Lead20	40kg	1200	1200
	60kg	850	850
	75kg	610	610
Lead3	35kg	650	650
	-	-	-
	-	-	-

Static Loading Moment

(Unit : Nm)

MY	4408
MP	4408
MR	3860

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Stndard Environment	Ball Screw	RMD12	100W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
			200W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
		RMD14	200W	135	±0.01	16	5	95	27	250
							10	75	18	500
							20	35	7	1000
							32	15	-	1600
			400W	135	±0.01	16	5	110	33	250
							10	88	22	500
							20	40	10	1000
							32	30	8	1600
		RMD17	400W	170	±0.01	20	5	120	40	250
							10	110	30	500
							20	75	14	1000
							40	22	7	2000
			750W	170	±0.01	20	5	120	50	250
							10	120	40	500
							20	83	25	1000
							40	43	12	2000
		RMD22	750W	220	±0.01	25	5	150	55	250
							10	150	45	500
							25	105	20	1250
						20	40	43	12	2000
		RMD28	1500W	280	±0.01	32	10	320	150	500
							20	180	75	1000
							32	75	35	1600
