Lightweight and Long Lifespan

Repeatability：±0.01mm

Horizontal Load：150kg

Vertical Load：55kg

Maximum Speed：2000mm/s

Stroke Pitch：100-1500mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

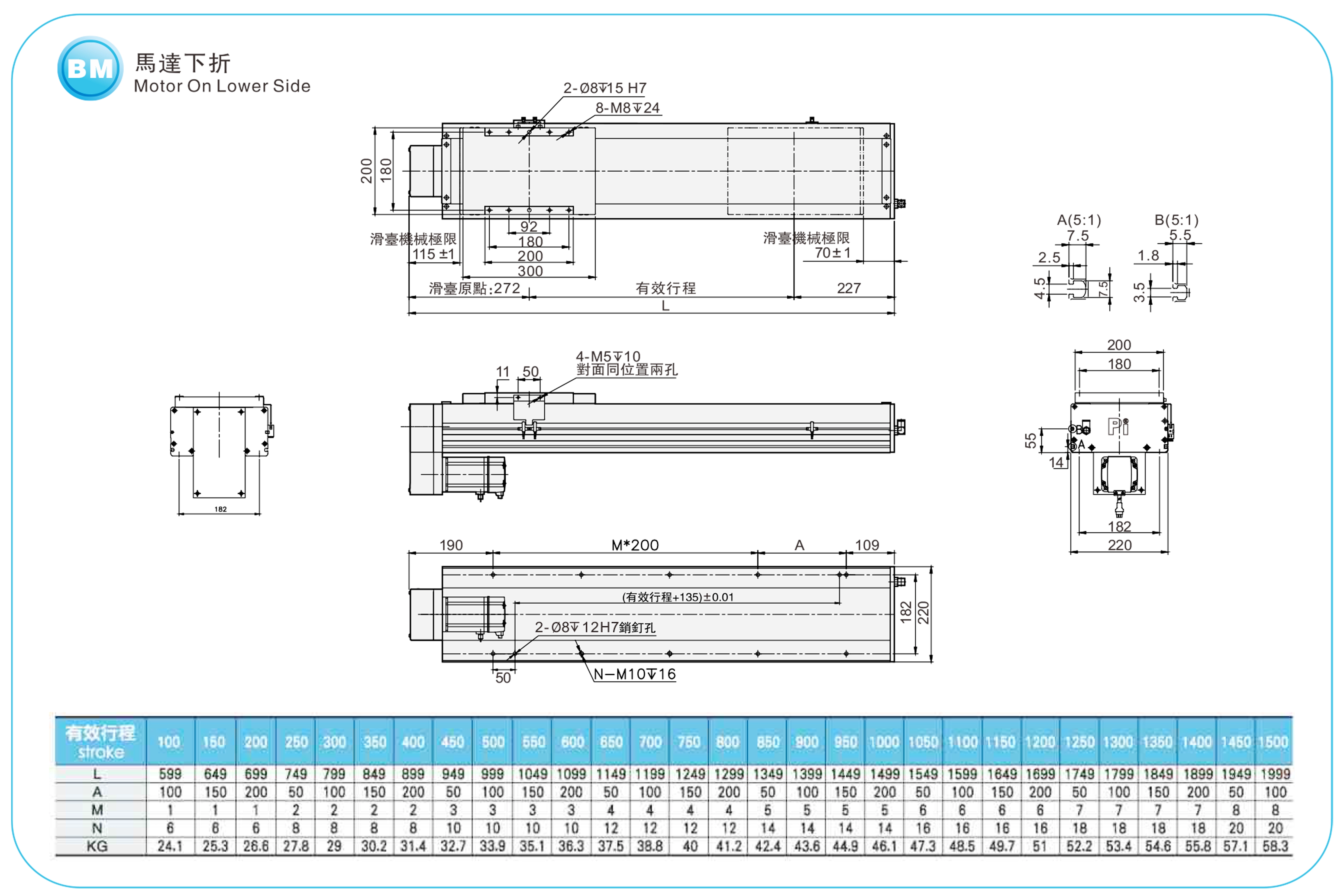

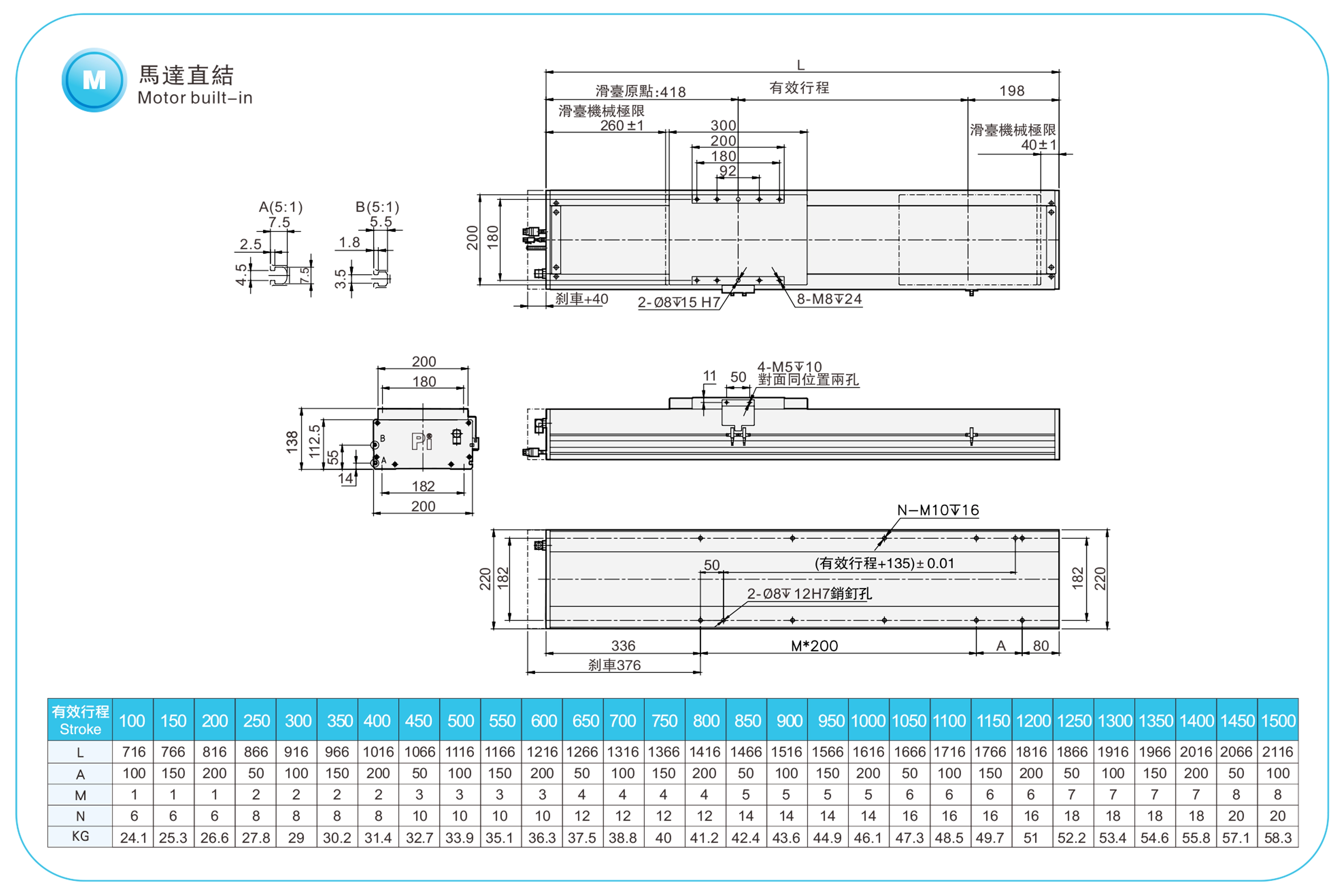

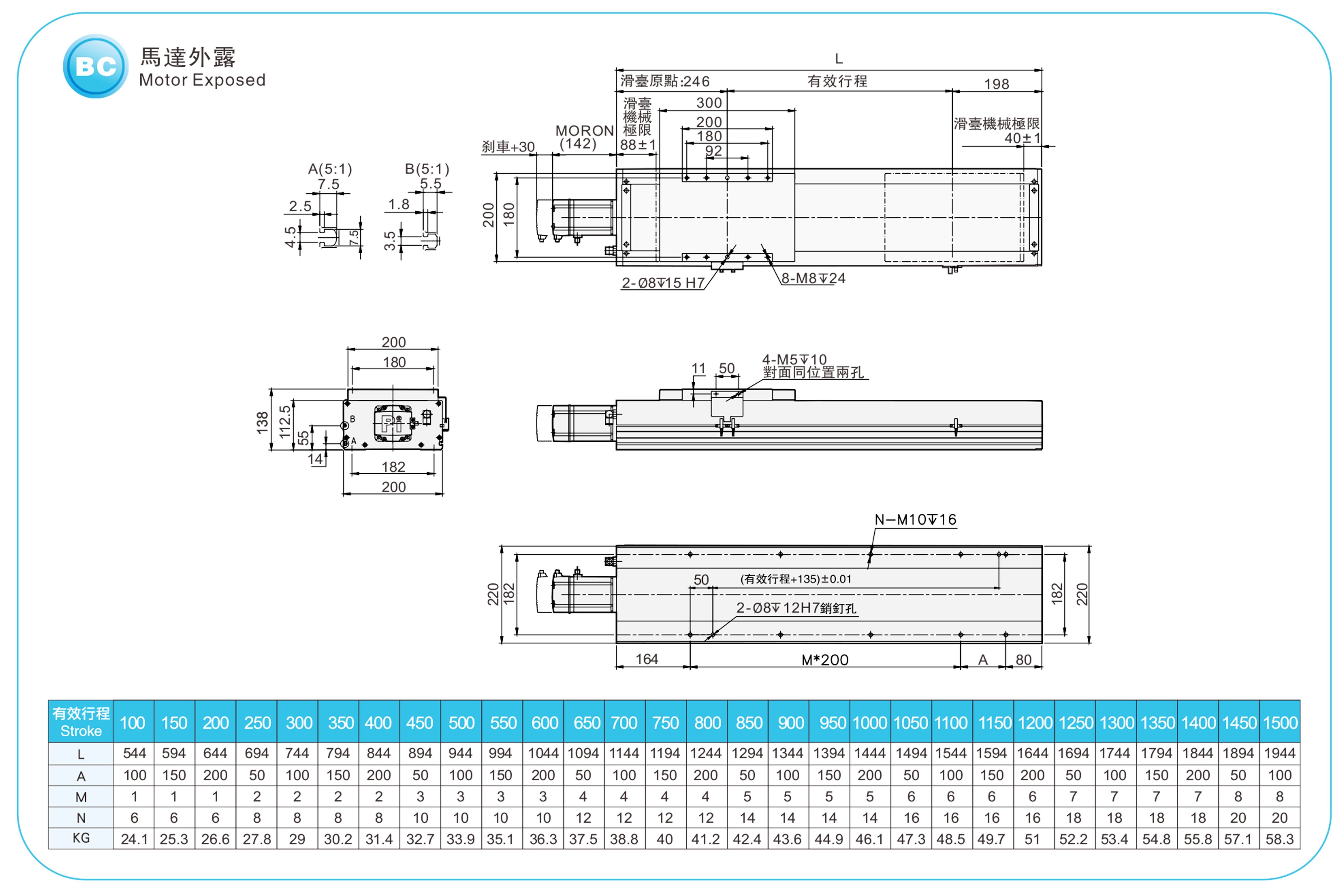

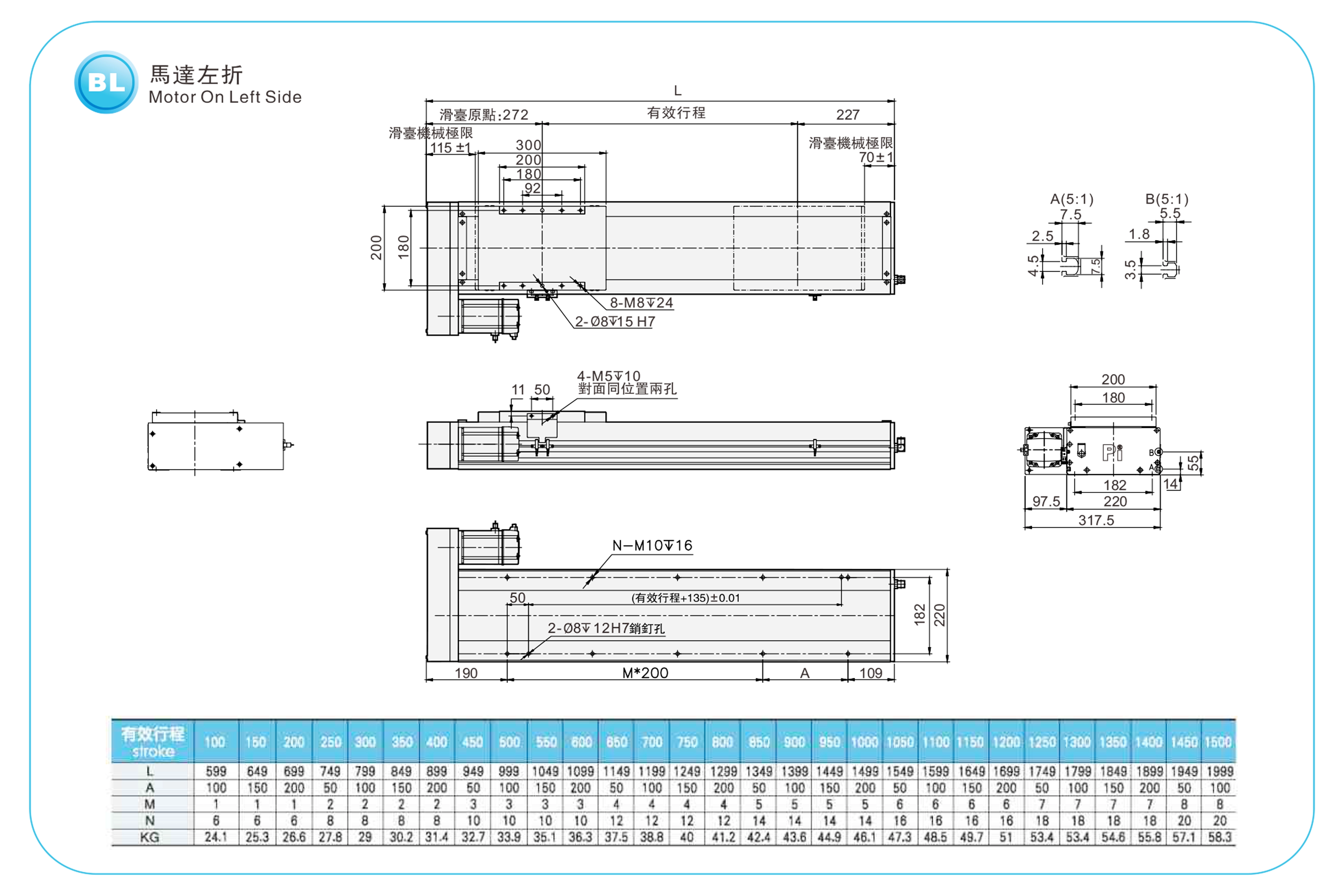

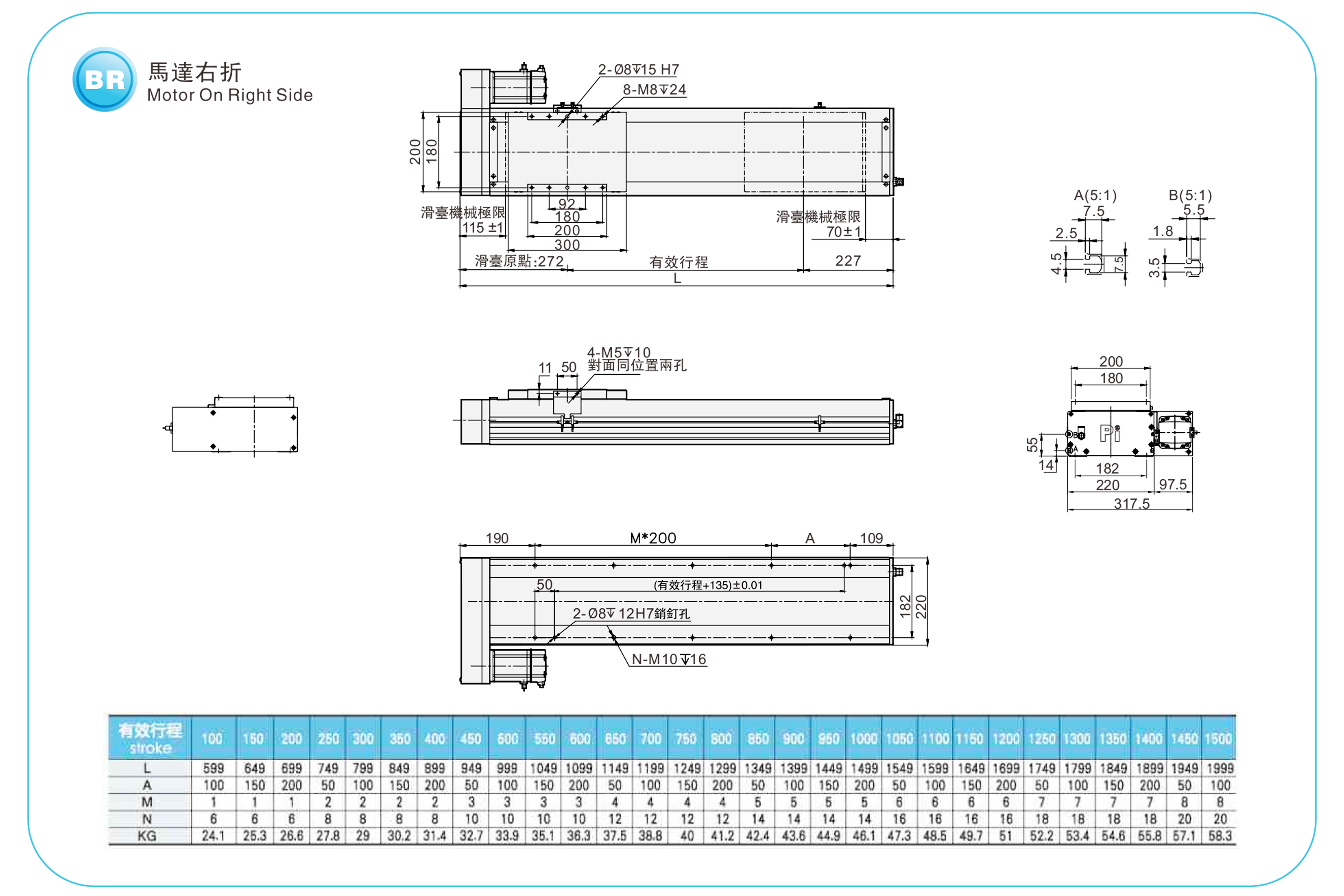

Diverse slide seat styles

The body and slide are integrally formed, which improves the problem of poor rigidity and reduces the width, making the installation space of the equipment smaller. The only patented fuel nozzle design in the industry, which uses a single fuel nozzle on the slide to inject oil. It can simultaneously inject oil and maintain the nut and multiple sets of sliders, making maintenance more convenient and time-saving for you. The installation direction of the fuel nozzle can be selected according to customer needs.

High rigidity body/high rigidity upper cover

High rigidity body: Explore the use of integrated aluminum extrusion structure and obtain the best rigidity to weight ratio structural design through element analysis. Anti winding upper cover: With a special anti winding design, the upper cover is not easily twisted or deformed during long-distance use.

Motor brand

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Motor brand

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Screw brand lead, no seat available for selection

Suitable screw specifications and brands can be selected based on different precision and speed.

Ordering Method

RMD22 - L10-100- BC -M75B - C4 -0001

Specification

Spec	Repeatability(mm)		±0.01
	Ball Screw Lead (mm)		5	10	20	40
	Maximum Speed (mm/s)		250	500	1000	2000
	Maximum Payload	Horizontal (kg)	150	150	105	40
		Vertical (kg)	55	45	20	12
	Rated Thrust (N)		2565	1281	640	320
	Stroke Pitch (mm)		100-1500mm/50mm Pitch
Parts	AC Servo Motor Power (W)		750W
	Ball Screw Ø (mm)		C7Ø25
	High Rigidity Linear Guide (mm)		W23XH18
	Coupling (mm)		17X19
	Home Sensor	Outside	EE-SX672(NPN)
		Built-In	EE-SX674(NPN)

Sensor Layout

Acceleration and deacceleration value is set 0.2 second.

*When the stroke is over 750mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances. Please refer to P85 for details.

Allowable Overhang

(Unit : mm)

Horizontal Installation		A	B	C
Lead5	100kg	5000	633	557
	125kg	3880	491	431
	150kg	3357	396	347
Lead10	100kg	3220	563	474
	125kg	2554	434	367
	150kg	2113	349	295
Lead25	65kg	1522	614	458
	85kg	1136	451	336
	105kg	893	350	262
Lead40	18kg	2445	1616	1052
	30kg	1436	938	613
	40kg	978	630	412

(Unit : mm)

Wall Installation		A	B	C
Lead5	110kg	500	569	4500
	130kg	412	469	3711
	150kg	347	396	3357
Lead10	110kg	427	503	2900
	130kg	351	414	2444
	150kg	295	349	2113
Lead25	70kg	420	564	1404
	90kg	315	420	1066
	105kg	262	350	893
Lead40	15kg	1272	1955	2948
	24kg	778	1190	1813
	43kg	412	630	978

(Unit : mm)

Vertical Installation		A	C
Lead5	30kg	2355	2355
	40kg	1768	1768
	55kg	1288	1288
Lead10	25kg	2505	2505
	35kg	1795	1795
	45kg	1396	1396
Lead25	15kg	2711	2711
	20kg	2033	2033
	20kg	2033	2033
Lead40	7kg	3511	3511
	12kg	2055	2055
	12kg	2055	2055

Static Loading Moment

(Unit : Nm)

MY	2052
MP	2052
MR	1810

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Stndard Environment	Ball Screw	RMD12	100W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
			200W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
		RMD14	200W	135	±0.01	16	5	95	27	250
							10	75	18	500
							20	35	7	1000
							32	15	-	1600
			400W	135	±0.01	16	5	110	33	250
							10	88	22	500
							20	40	10	1000
							32	30	8	1600
		RMD17	400W	170	±0.01	20	5	120	40	250
							10	110	30	500
							20	75	14	1000
							40	22	7	2000
			750W	170	±0.01	20	5	120	50	250
							10	120	40	500
							20	83	25	1000
							40	43	12	2000
		RMD22	750W	220	±0.01	25	5	150	55	250
							10	150	45	500
							25	105	20	1250
						20	40	43	12	2000
		RMD28	1500W	280	±0.01	32	10	320	150	500
							20	180	75	1000
							32	75	35	1600
