Lightweight and Long Lifespan

Repeatability：±0.01mm

Horizontal Load：130kg

Vertical Load：50kg

Maximum Speed：1600mm/s

Stroke Pitch：850-2400mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Diverse slide seat styles

The body and slide are integrally formed, which improves the problem of poor rigidity and reduces the width, making the installation space of the equipment smaller. The only patented fuel nozzle design in the industry, which uses a single fuel nozzle on the slide to inject oil. It can simultaneously inject oil and maintain the nut and multiple sets of sliders, making maintenance more convenient and time-saving for you. The installation direction of the fuel nozzle can be selected according to customer needs.

High rigidity body/high rigidity upper cover

High rigidity body: Explore the use of integrated aluminum extrusion structure and obtain the best rigidity to weight ratio structural design through element analysis. Anti winding upper cover: With a special anti winding design, the upper cover is not easily twisted or deformed during long-distance use.

Motor brand

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Motor brand

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Screw brand lead, no seat available for selection

Suitable screw specifications and brands can be selected based on different precision and speed.

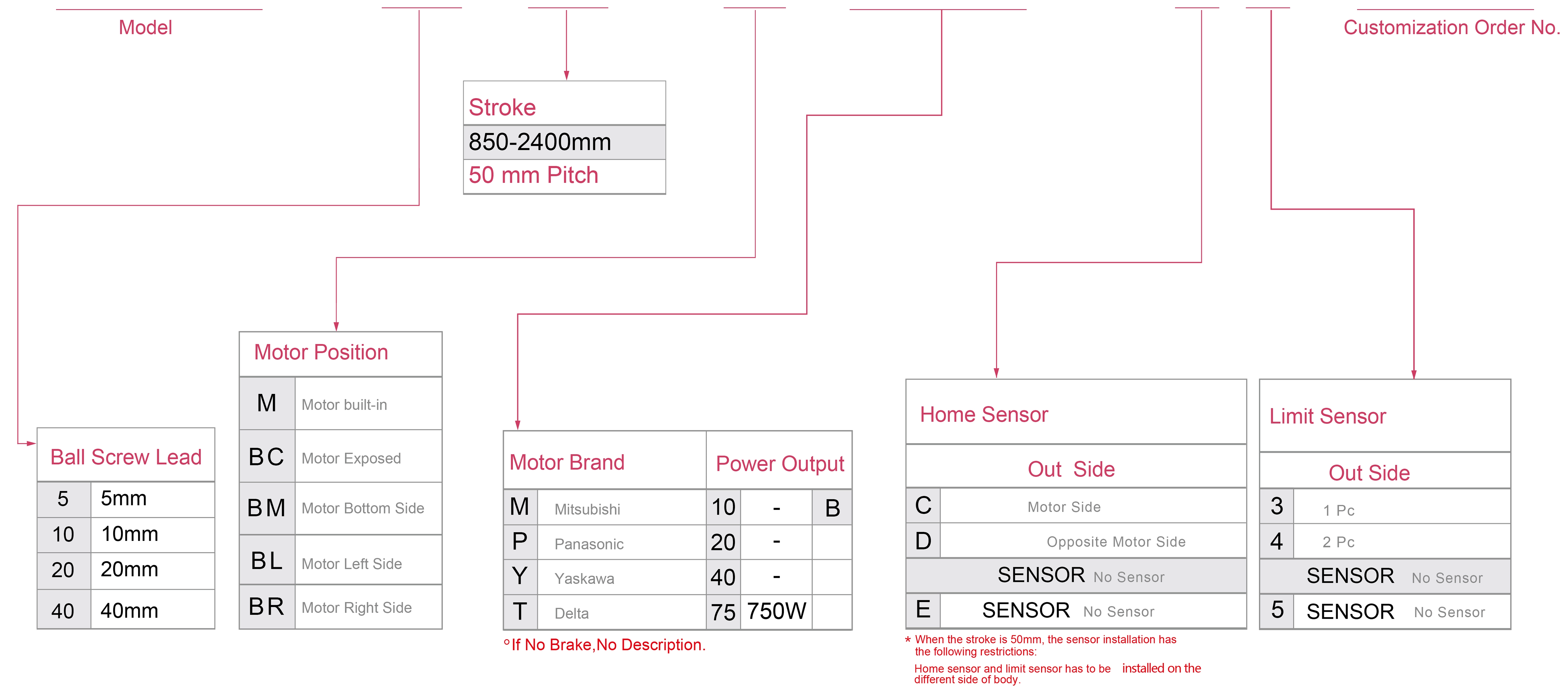

Ordering Method

RMH22S - L5-850- M -M75B - C4 -0001

Specification

Spec	Repeatability(mm)		±0.01
	Ball Screw Lead (mm)		5	10	20	40
	Maximum Speed (mm/s)		250	400	800	1600
	Maximum Payload	Horizontal (kg)	130	130	85	43
		Vertical (kg)	50	40	25	12
	Rated Thrust (N)		2563	1281	640	320
	Stroke Pitch (mm)		850-2400mm/50mm Pitch
Parts	AC Servo Motor Power (W)		750W
	Ball Screw Ø (mm)		C7Ø20
	High Rigidity Linear Guide (mm)		W20XH15
	Coupling (mm)		19X12
	Home Sensor	Outside	EE-SX672(NPN)

Sensor Layout

Acceleration and deacceleration value is set 0.2 second.

*When the stroke is over 750mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances. Please refer to P85 for details.

Allowable Overhang

(Unit : mm)

Horizontal Installation		A	B	C
Lead5	80kg	3311	411	403
	100kg	2534	320	308
	130kg	2113	228	221
Lead10	70kg	2700	430	394
	90kg	2022	320	294
	130kg	1311	198	184
Lead20	40kg	2044	662	558
	60kg	1316	417	352
	85kg	886	272	231
Lead40	20kg	1180	766	533
	25kg	927	599	418
	43kg	510	318	224

(Unit : mm)

Wall Installation		A	B	C
Lead5	85kg	370	388	3066
	105kg	288	299	2389
	130kg	221	228	2113
Lead10	75kg	368	398	2515
	95kg	277	300	1926
	130kg	184	198	1328
Lead20	45kg	490	582	1805
	65kg	321	381	1204
	85kg	231	272	886
Lead40	25kg	418	601	930
	35kg	286	408	644
	43kg	224	318	510

(Unit : mm)

Vertical Installation		A	C
Lead5	30kg	1301	1301
	40kg	977	977
	50kg	781	781
Lead10	20kg	1735	1735
	30kg	1156	1156
	40kg	867	867
Lead20	15kg	1835	1835
	20kg	1376	1376
	25kg	1101	1101
Lead40	7kg	1943	1943
	12kg	1133	1133
	-	-	-

Static Loading Moment

(Unit : Nm)

MY	1254
MP	1254
MR	1254

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Stndard Environment	Ball Screw	RMH12	100W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
			200W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
		RMH14	200W	135	±0.01	16	5	95	27	250
							10	75	18	500
							20	35	7	1000
							32	15	-	1600
			400W	135	±0.01	16	5	110	33	250
							10	88	22	500
							20	40	10	1000
							32	30	8	1600
		RMH17	400W	170	±0.01	20	5	120	40	250
							10	110	30	500
							20	75	14	1000
							40	22	7	2000
			750W	170	±0.01	20	5	120	50	250
							10	120	40	500
							20	83	25	1000
							40	43	12	2000
		RMH22	750W	220	±0.01	25	5	150	55	250
							10	150	45	500
							25	105	20	1250
						20	40	43	12	2000
		RMH28	1500W	280	±0.01	32	10	320	150	500
							20	180	75	1000
							32	75	35	1600

Extra long stroke series

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Stndard Environment	Ball Screw	RMH17S	400W	170	±0.01	16	5	110	33	200
							10	90	22	400
							20	40	10	800
							32	30	8	1280
			750W	170	±0.01	16	5	120	40	200
							10	95	25	400
							20	50	15	800
							32	35	12	1280
		RMH22S	750W	220	±0.01	20	5	130	50	200
							10	130	40	400
							20	85	25	800
							40	43	12	1600

* The highest speed is based on the maximum servo motor's rpm(3000). The highest speed is based on the maximum stepping motor's rpm(500).

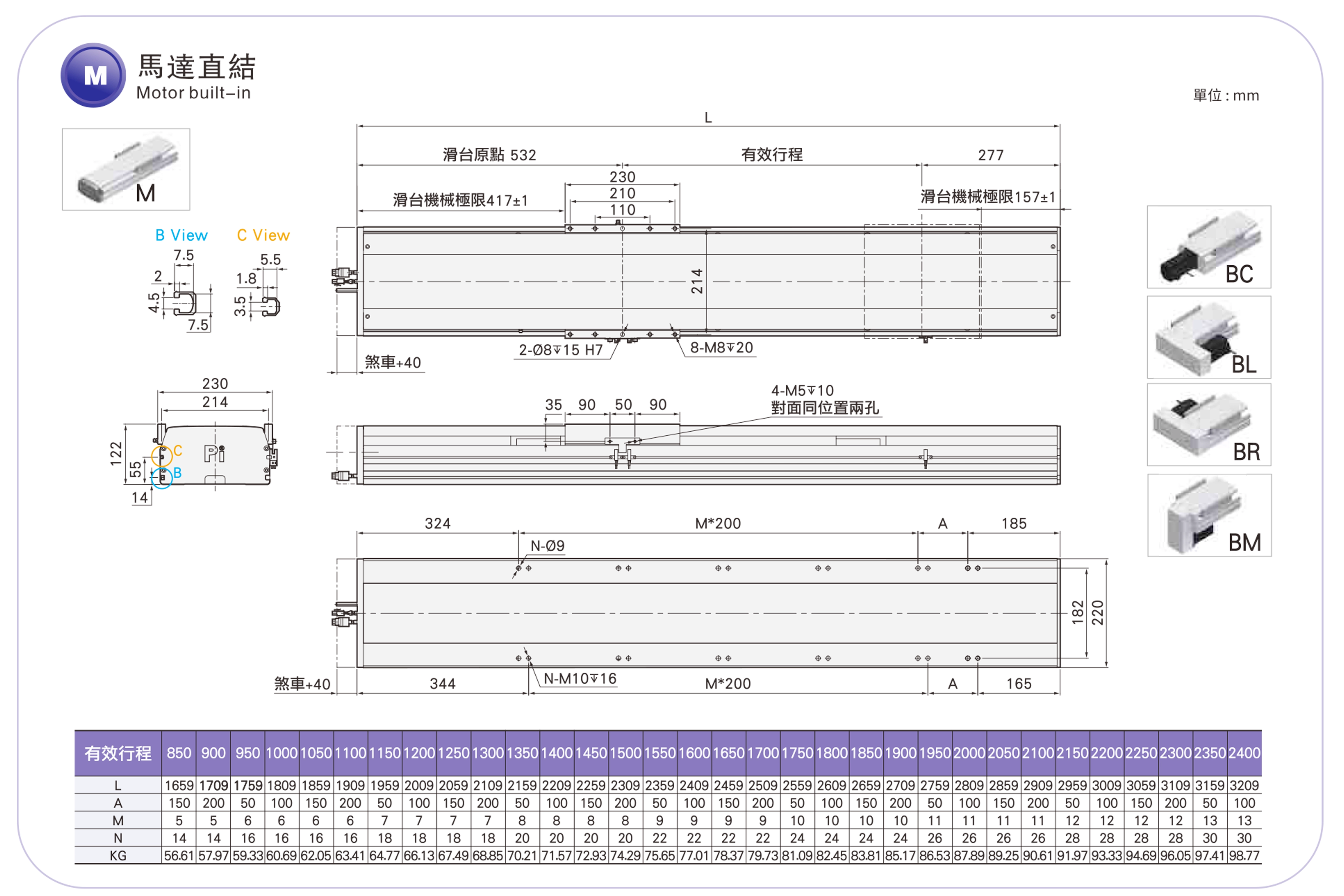

Mortor built-in
