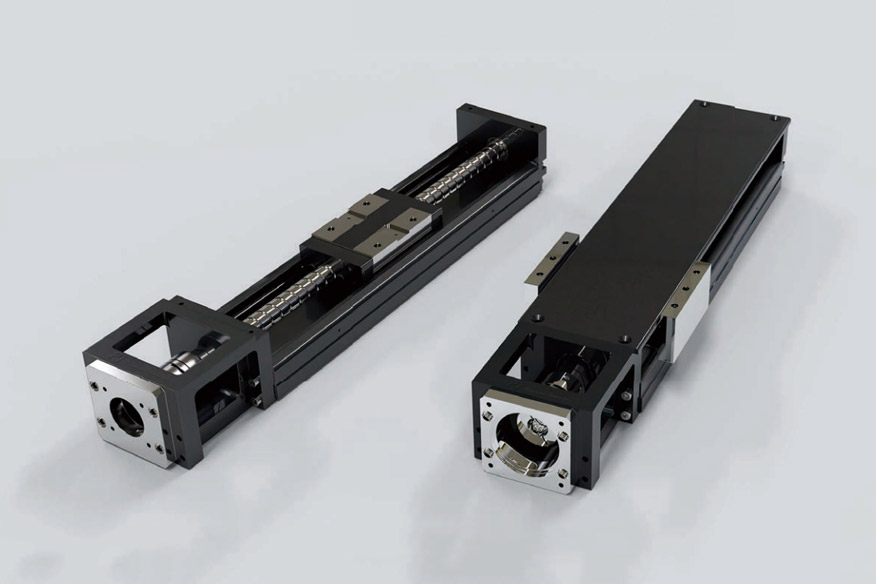

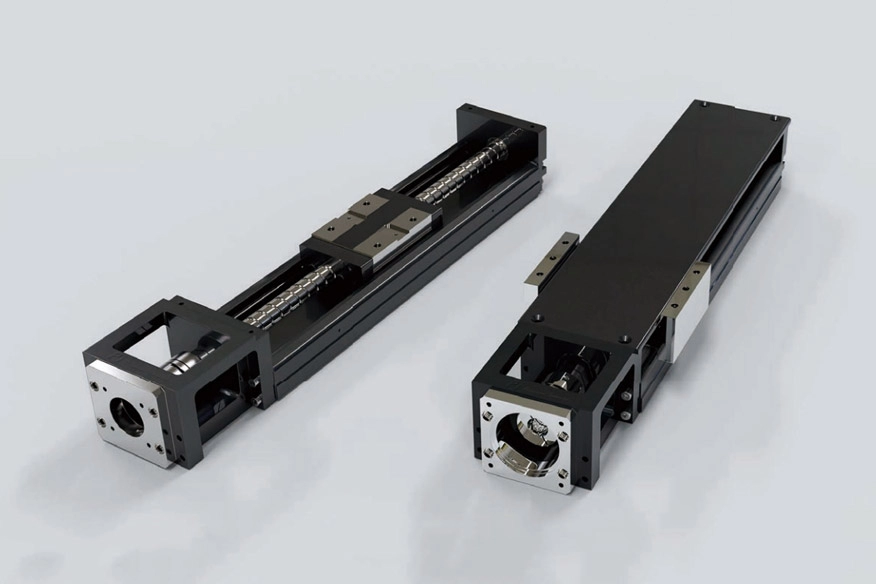

KKS Series

Specifications:

KKS50

Motor:

Direct connection

Trip mm:

Lightweight and Long Lifespan

Body width：60-200mm

Repeatability：±0.005/0.01mm

Horizontal Load：150kg

Vertical Load：55kg

Maximum Speed：250mm/s

Travel Range：800-2600mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Optional accessories

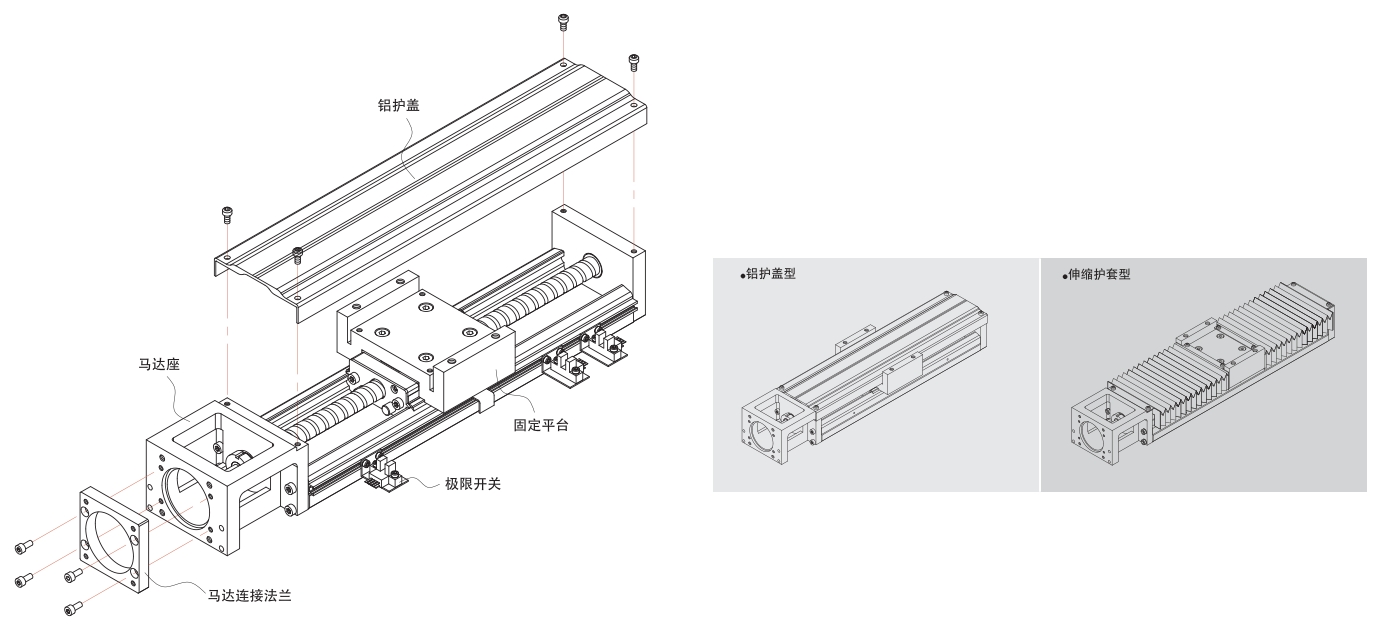

Aluminum cover and telescopic sheath: can prevent foreign objects and impurities from entering KKS industrial robots and affecting their service life, accuracy, and smoothness
Motor connection flange: can lock various types of motors onto KKS industrial robots
Limit switch: provides a safety mechanism for slider positioning, starting the origin, and preventing the slider from exceeding its travel distance

Optional accessories

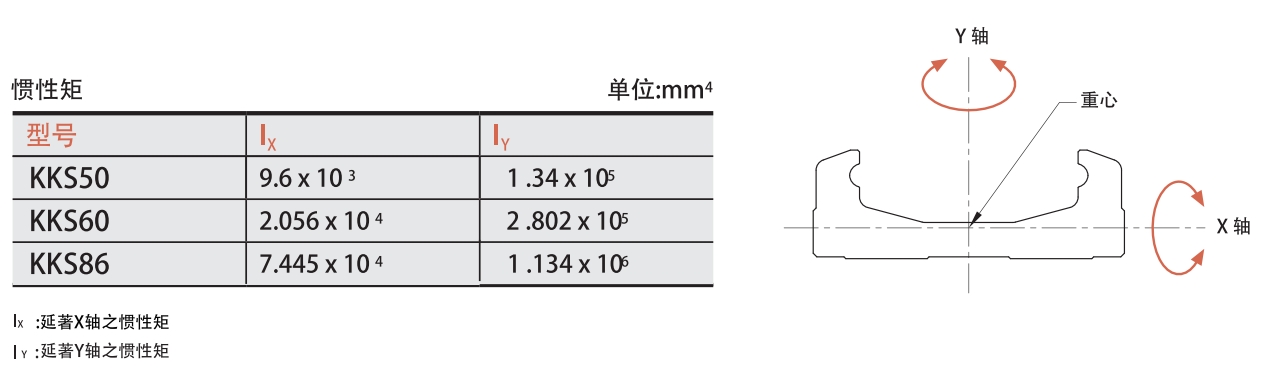

The track configuration adopts a U-shaped cross-section and is designed using finite element analysis software to achieve a balance point between volume and rigidity, making the track highly rigid, compact, and lightweight.

Four directional equal load

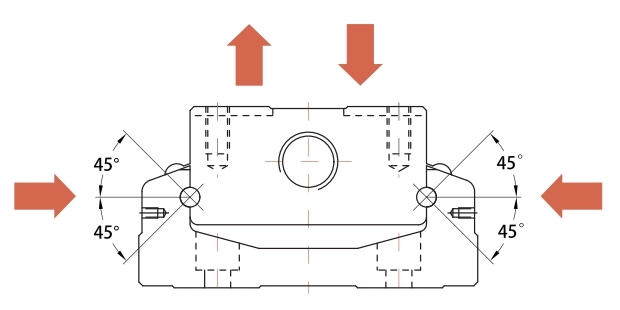

The reflux system between the track and the slider adopts a 2-row Goethe tooth design for the contact surface between the ball and the ball groove, with a characteristic of a 45 degree contact angle. This design enables the KKS industrial robot to withstand equal loads in all directions.

Modularization

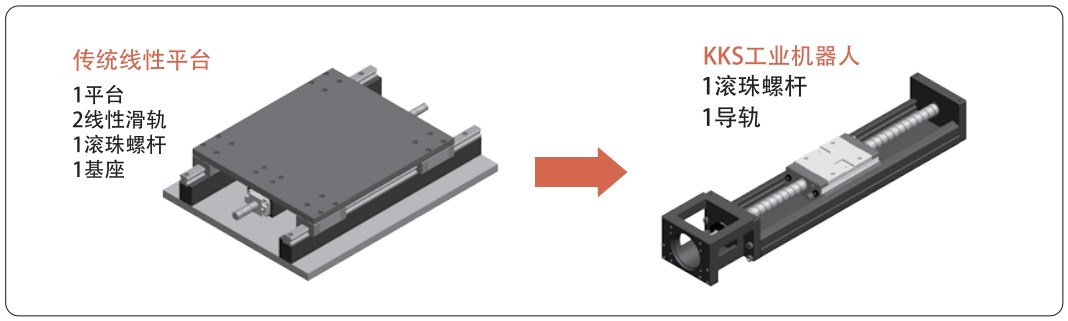

KKS industrial robots, through modular design, integrate ball screws and linear slides, which can save the disadvantages of traditional actuation platforms such as the selection, installation and calibration of guiding and driving components, large volume, and space estimation.
Therefore, KKS industrial robots can provide features such as fast selection, installation, compact size, and high rigidity, which can significantly reduce the usage space and time of clients.

Ordering Method

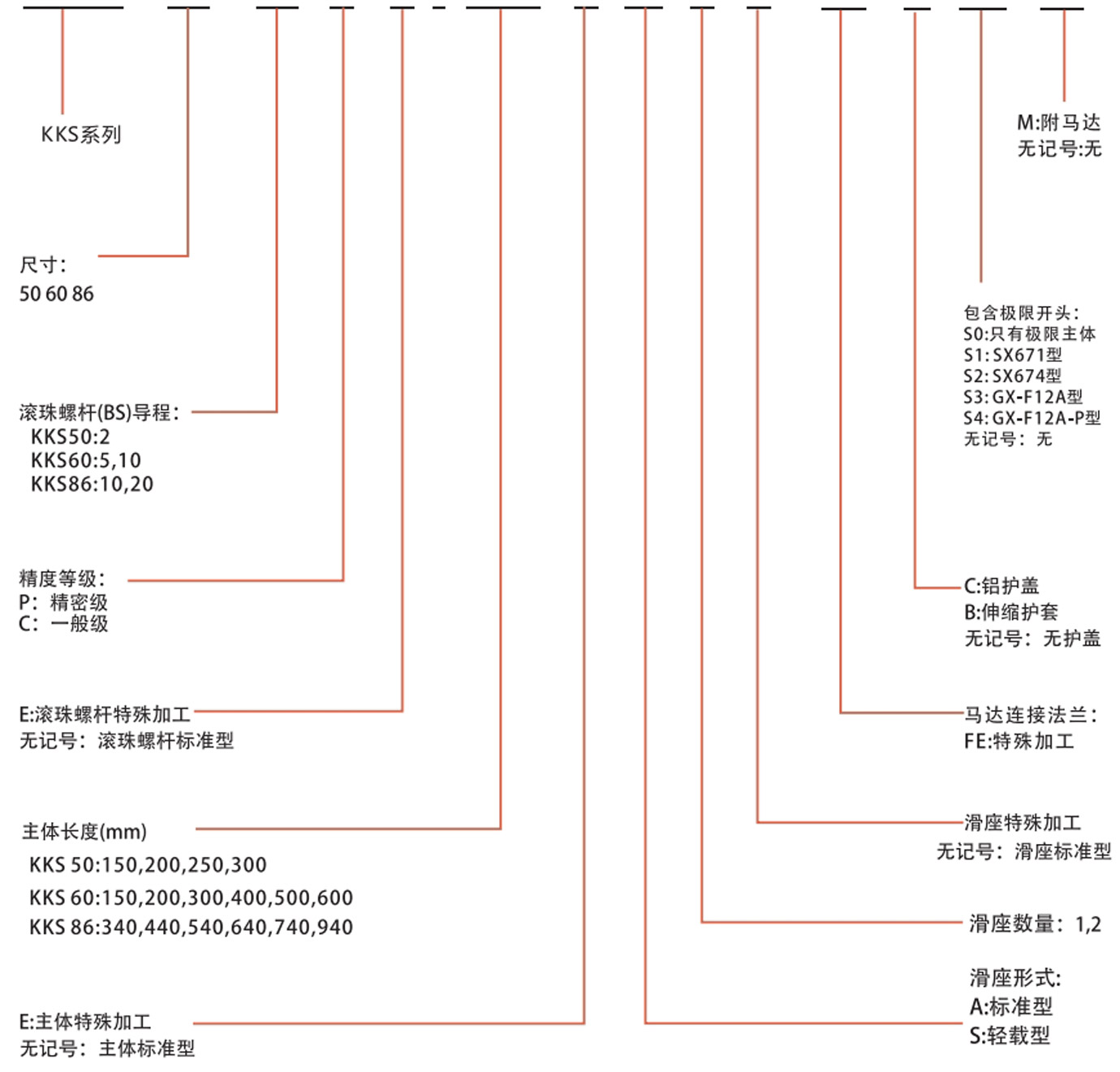

KKS 60 10 P E -400 E A 2 E-FO C SO M

Load specification

Model		Ball screw				Linear guideway
		Nominal outside diameter (mm)	Screw lead (mm)	Basic dynamic rated load(N)	Basic static rated load(N)	Basic dynamic rated load(N)		Basic static rated load(N)		Allowable static moment

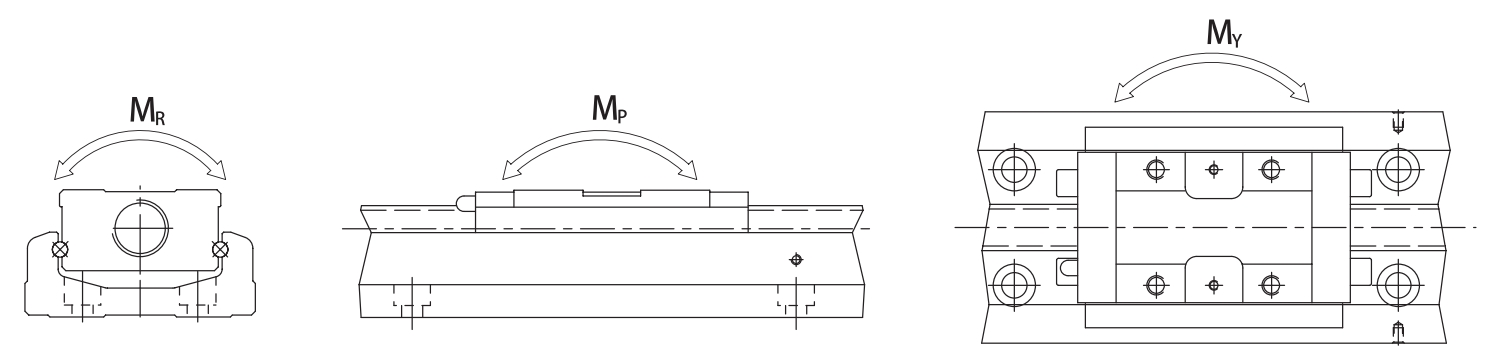

				Basic dynamic rated load(N)	Basic static rated load(N)	Basic dynamic rated load(N)		Basic static rated load(N)		Pitch MP(N-m)				Swing MY(N-m)				Rolling MR(N-m)
						A	S	A	S	A1	A2	S1	S2	A1	A2	S1	S2	A1	A2	S1	S2
KKS5002	Precision grade	8	2	2136	3489	8007	-	12916	-	116	545	-	-	116	545	-	-	222	444	-	-
KKS5002	General level	8	2	1813	2910	8007	-	12916	-	116	545	-	-	116	545	-	-	222	444	-	-
KKS5006	Precision grade	8	6	2050	2913	8007	-	12916	-	116	545	-	-	116	545	-	-	116	545	-	-
KKS5006	General level	8	6	1863	2619	8007	-	12916	-	116	545	-	-	116	545	-	-	116	545	-	-
KKS6005	Precision grade	12	5	3744	6243	13230	7173	21462	11574	152	760	72	367	152	760	72	367	419	838	241	482
KKS6005	General level	12	5	3377	5625	13230	7173	21462	11574	152	760	72	367	152	760	72	367	419	838	241	482
KKS6010	Precision grade	12	10	2410	3743	13230	7173	21462	11574	152	760	72	367	152	760	72	367	419	838	241	482
KKS6010	General level	12	10	2107	3234	13230	7173	21462	11574	152	760	72	367	152	760	72	367	419	838	241	482
KKS8610	Precision grade	16	10	7144	12642	31458	21051	50764	29475	622	3050	228	1309	622	3050	228	1309	1507	3014	847	1694
KKS8610	General level	16	10	6429	11387	31458	21051	50764	29475	622	3050	228	1309	622	3050	228	1309	1507	3014	847	1694
KKS8620	Precision grade	16	20	4645	7655	31458	21051	50764	29475	622	3050	228	1309	622	3050	228	1309	1507	3014	847	1694
KKS8620	General level	16	20	4175	6889	31458	21051	50764	29475	622	3050	228	1309	622	3050	228	1309	1507	3014	847	1694

Spec Index of Electric Actuator

Model	Track length	Localization reproducibility		Positioning accuracy		Walking parallelism		Maximum starting torque(N-cm)
Model	Track length	Precision grade	General level	Precision grade	General level	Precision grade	General level	Precision grade	General level
KKS50	150	±0.003	±0.01	0.02	-	0.01	-	4	2
	200
	250
	300
KKS60	150	±0.003	±0.01	0.02	-	0.01	-	15	7
	200
	300
	400
	500	±0.003	±0.01	0.025	-	0.015	-	15	7
	600	±0.003	±0.01	0.025	-	0.015	-	15	7
KKS86	340	±0.003	±0.01	0.025	-	0.015	-	15	10
	440
	540
	640
	740	±0.003	±0.01	0.03	-	0.02	-	17	10
	940	±0.003	±0.01	0.04	-	0.03	-	25	10

Model	Ball screw lead (mm)	Track length L2 (mm)	Speed(mm/sec)
Model	Ball screw lead (mm)	Track length L2 (mm)	Precision grade	General level
KKS50	02	150	270	270
		200	270	270
		250	270	270
		300	270	270
	06	150	270	270
		200	270	270
		250	270	270
		300	270	270
KKS60	05	150	550	390
		200	550	390
		300	550	390
		400	550	390
		500	550	390
		600	340	340
	10	150	1100	790
		200	1100	790
		300	1100	790
		400	1100	790
		500	1100	790
		600	670	670
KKS86	10	340	740	520
		440	740	520
		540	740	520
		640	740	520
		740	740	520
		940	610	430
	20	340	1480	1050
		440	1480	1050
		540	1480	1050
		640	1480	1050
		740	1480	1050
		940	1220	870

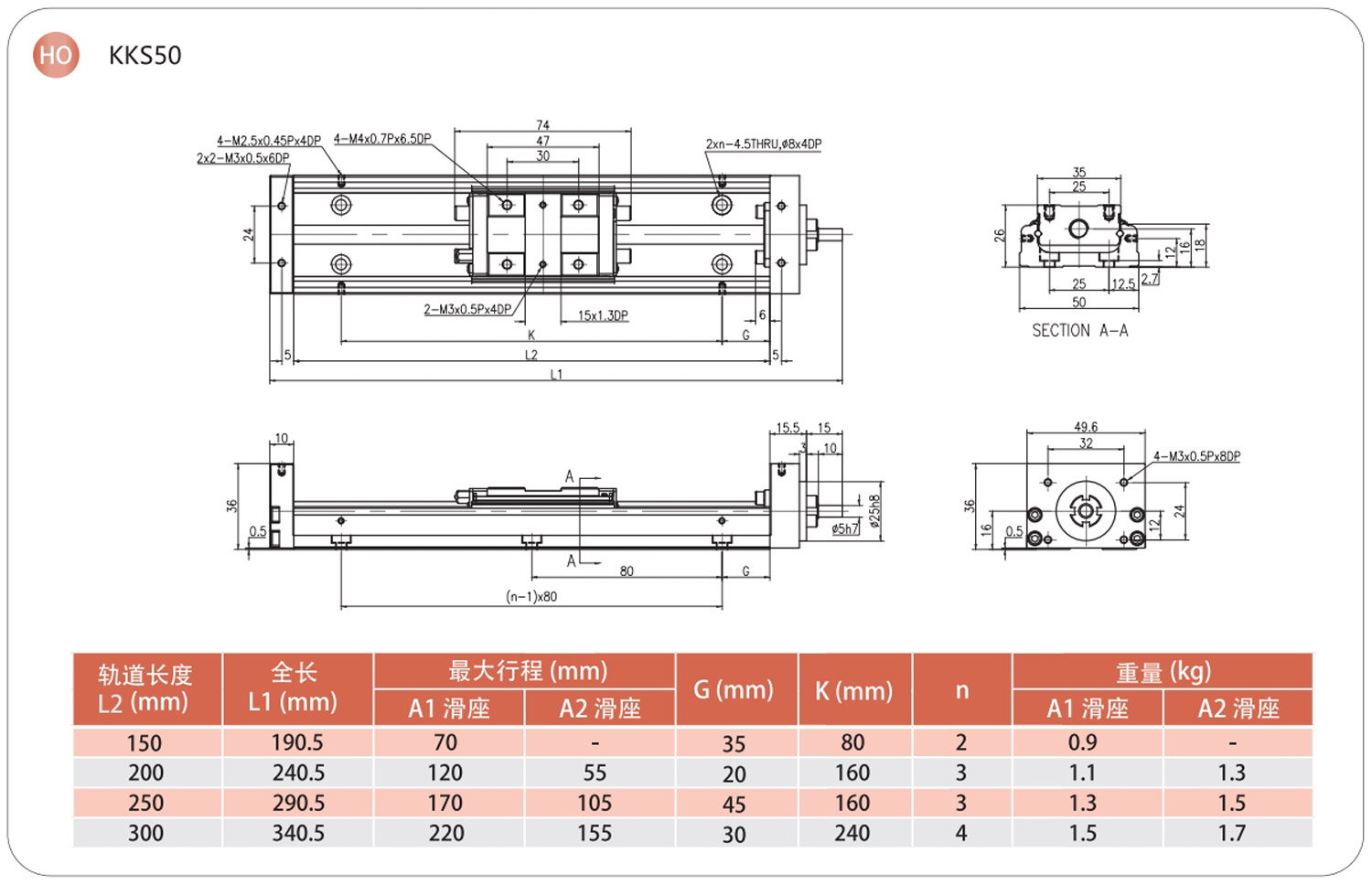

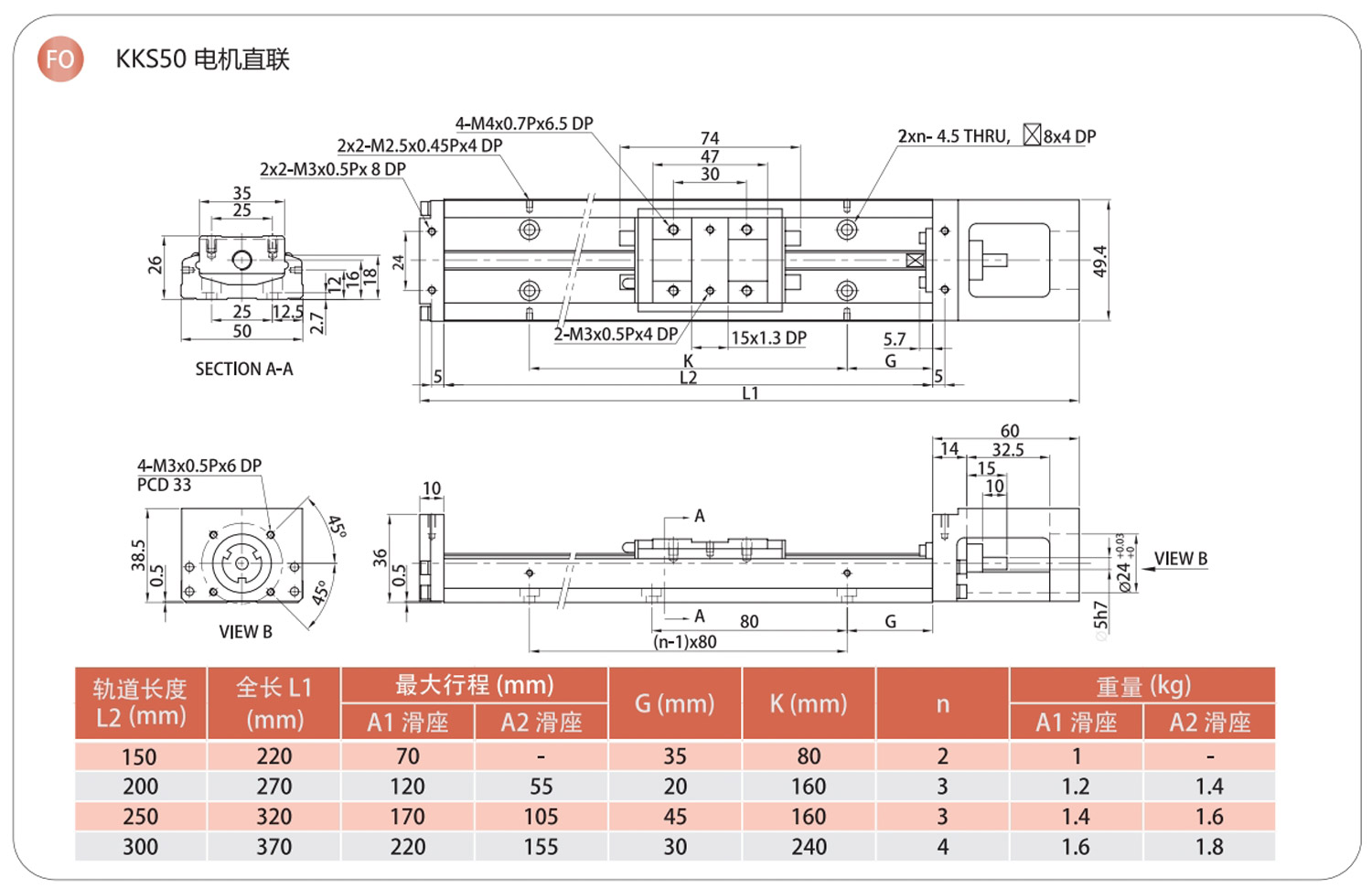

FO-BC/HO-BC
