Lightweight and Long Lifespan

Body width：60-200mm

Repeatability：±0.005/0.01mm

Horizontal Load：150kg

Vertical Load：55kg

Maximum Speed：250mm/s

Travel Range：800-2600mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

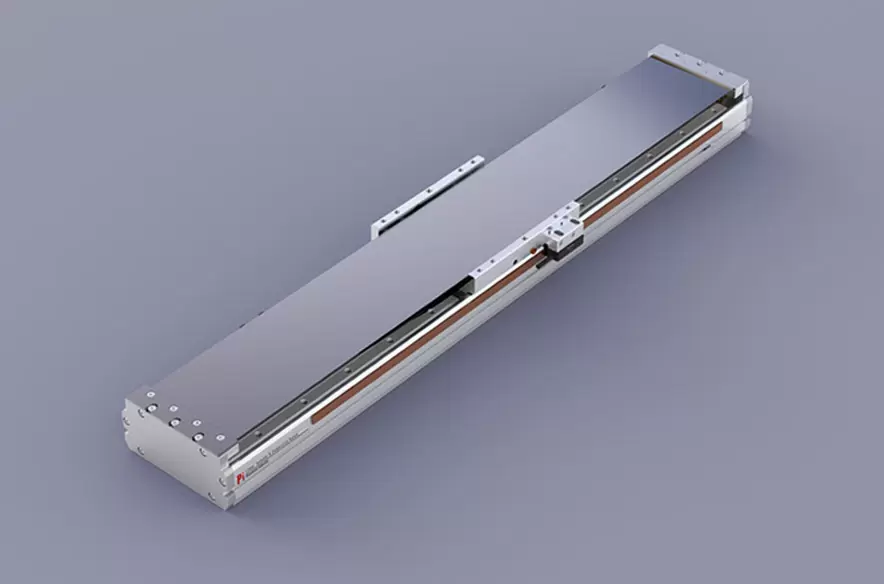

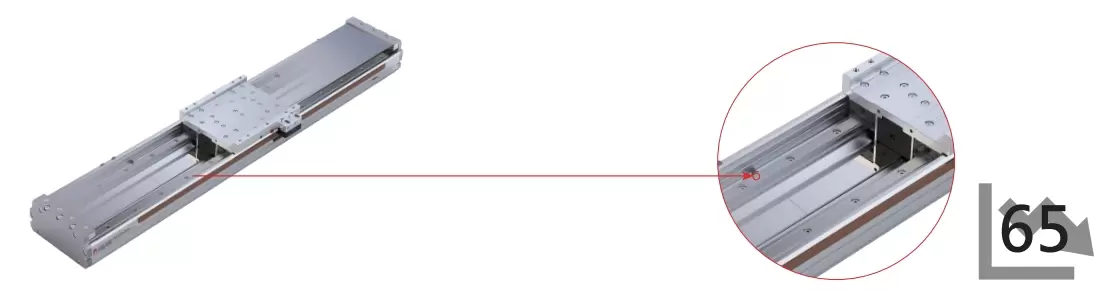

Multiple drivers are selected and imported silent high-precision slide rails are used

It can effectively reduce noise during operation, improve smoothness, lifespan, and lubrication efficiency. Suitable for high-tech industries that require high speed, tranquility, and low dust emissions.

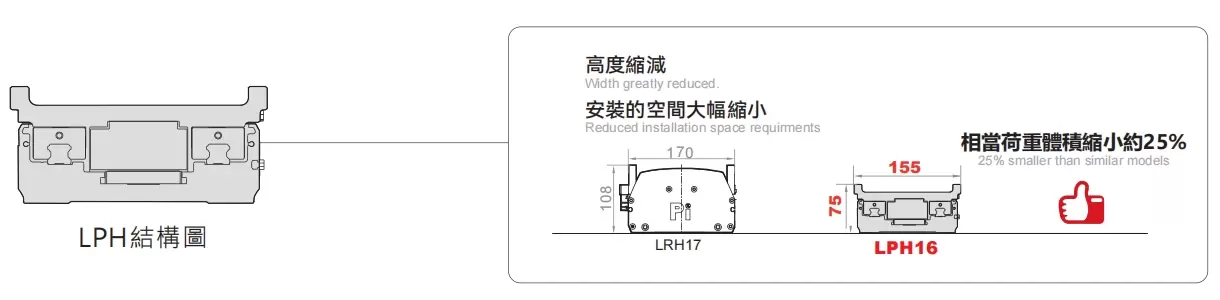

High rigidity body

By adopting an integrated aluminum extrusion structure and conducting elemental analysis, the optimal rigidity to weight ratio structural design is obtained.

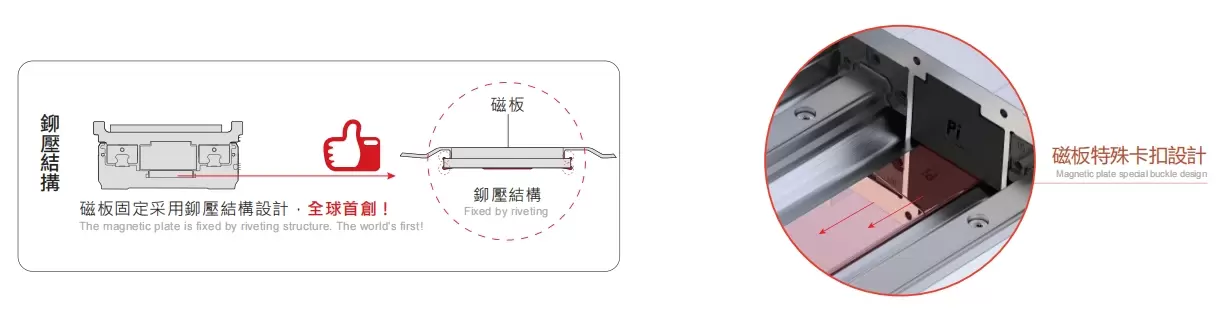

Magnetic plate special buckle design

Advantage: It prevents foreign objects from falling and does not damage internal components. Easy to maintain, long lifespan!

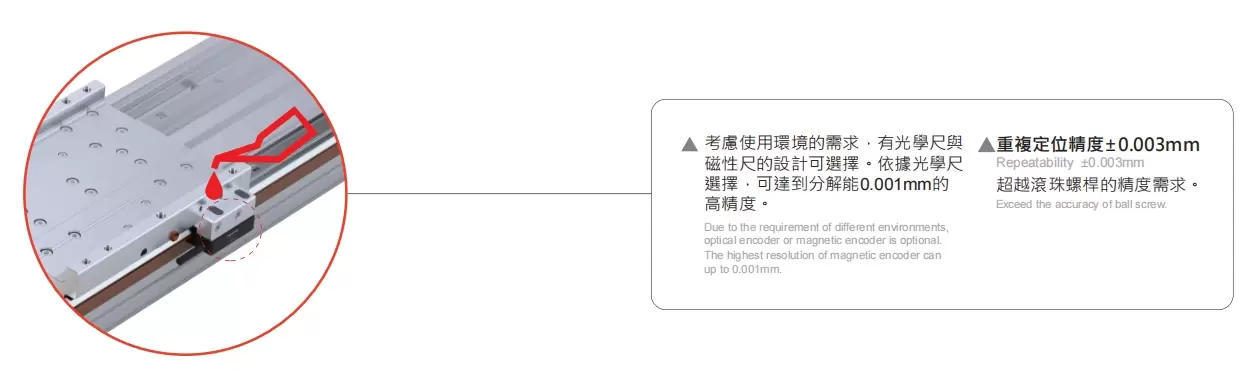

Optical ruler reading head

Elastic combination of optical ruler or magnetic ruler

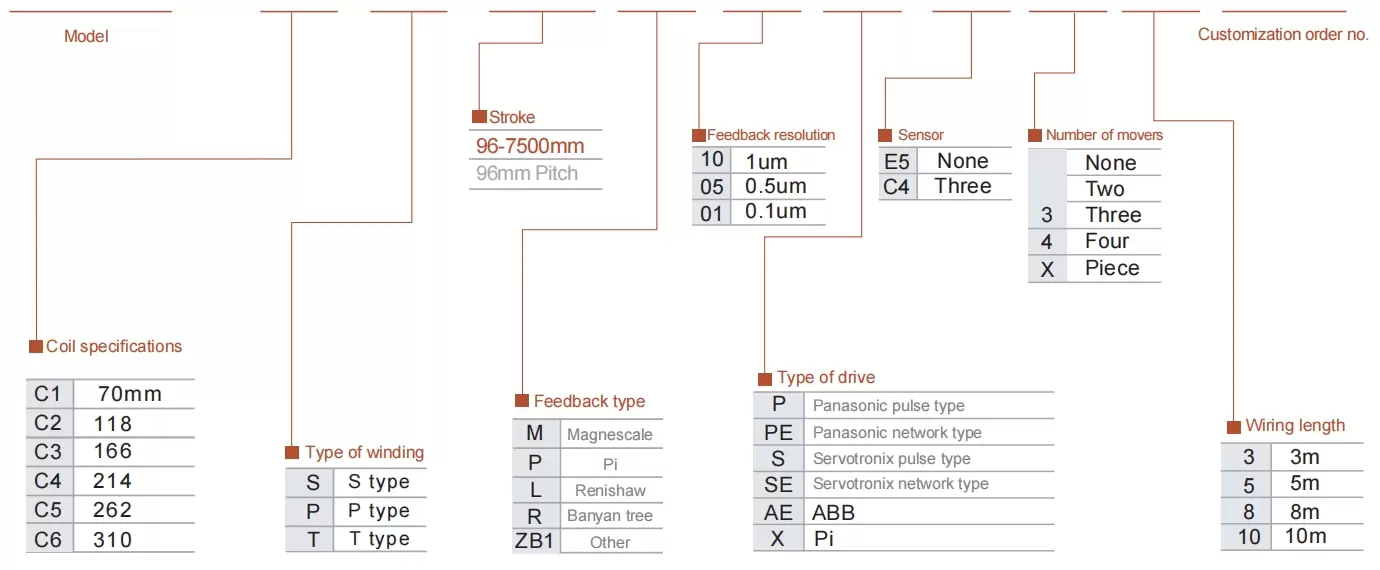

Ordering Method

LPH16- C1 -S-96-M-10-P-C4-1-3-0001

Specification

Directory	Wire circle specifications	P64-C3-S	P64-C5-P
Spec	Repeatability(mm)	±0.003
	Maximum Payload(kg)	50	60
	Maximum Speed (mm/s)	2500
	Continuous thrust(N)	264	440
	Peak thrust(N)	580	968
	Continuous current(Ams)	3.3	6.8
	Peak current(Arms)	10.5	21
	Force constant(N/Arms)	80	64.7
	Inductance(mH)	51.3	20.3
	Resistance(ohm)	8.7	3.6
	Magnetic pole distance(mm)	24

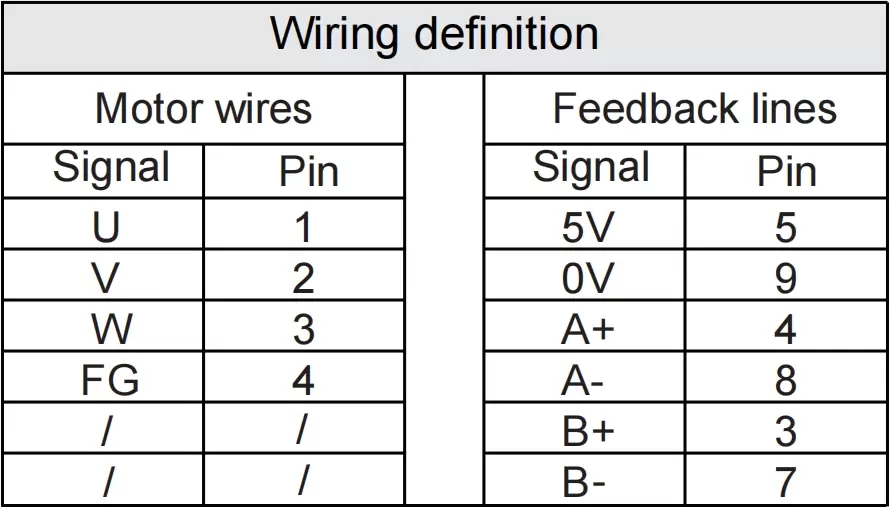

Sensor Layout

※1 Acceleration and deacceleration value is set 0.2 second.

※2 When the stroke is over 600mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.Please reeer to P85 for details.

Operation life is 10,000km when the product is using under the specified conditions.

Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

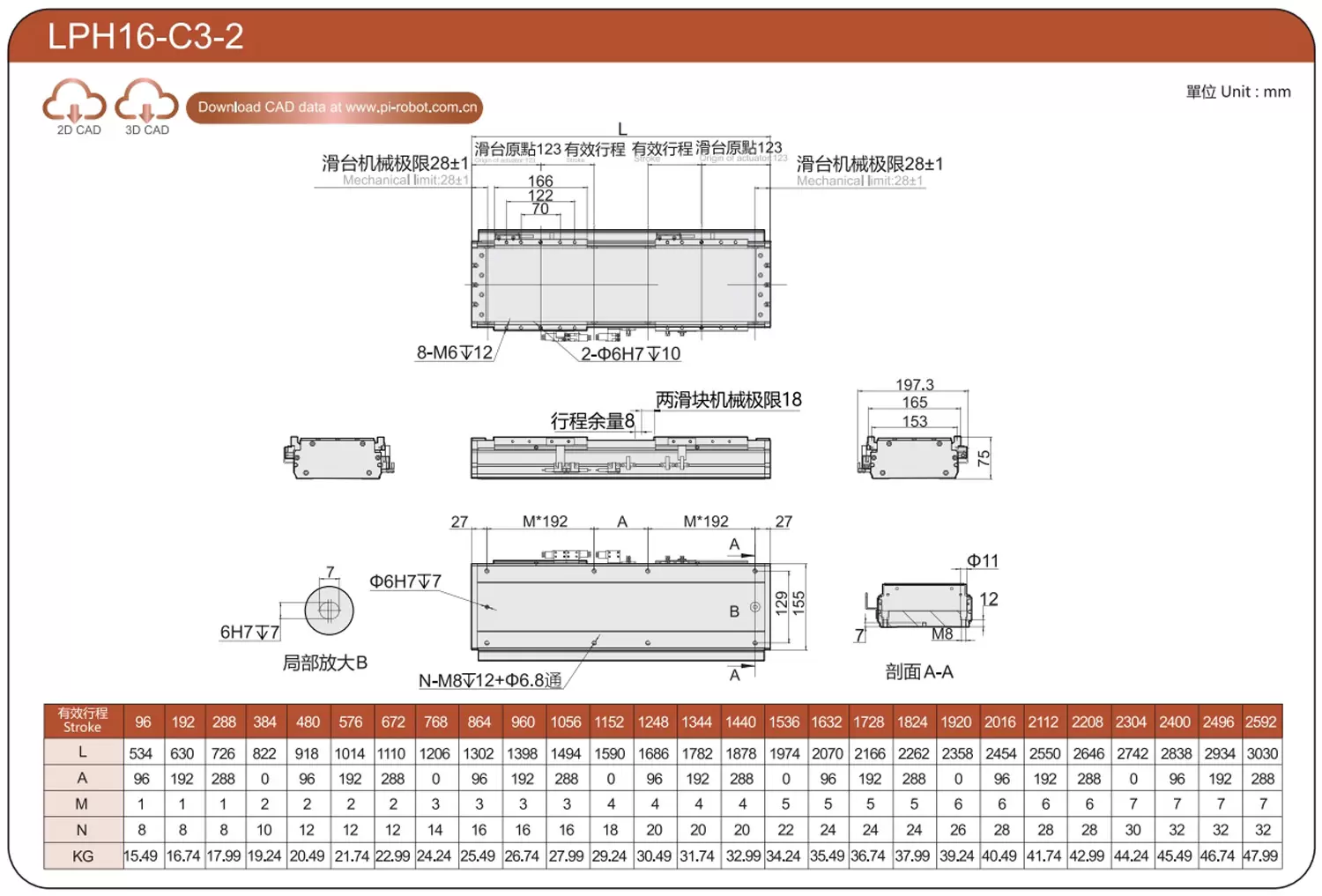

Allowable Overhang

(Unit : mm)

Horizontal Installation		Load	A	B	C
Load	P64-C3-S	20kg	320	150	300
		30kg	180	100	250
		40kg	160	70	170
		50kg	150	50	120
	P64-C5-P	30kg	300	130	320
		40kg	250	100	230
		50kg	200	90	180
		60kg	150	70	140

(Unit : mm)

Wall Installation		Load	A	B	C
Load	P64-C3-S	20kg	300	150	320
		30kg	250	100	180
		40kg	170	70	160
		50kg	120	50	150
	P64-C5-P	30kg	320	130	300
		40kg	230	100	250
		50kg	180	90	200
		60kg	140	70	150

Static Loading Moment

(Unit : Nm)

MY	816
MP	816
MR	670

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

The Relationship Between Speed And Acceleration

P44-C3-S

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s	3m/s	3.5m/s
20	2	2	2	1.5	1	0.5
30	1.6	1.6	1.5	1	0.6	0.3
50	1	1	0.9	0.6	0.4	0.2

P44-C5-P

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s	3m/s	3.5m/s
40	1.8	1.8	1.7	1.5	1.2	0.9
50	1.5	1.4	1.4	1.3	1	0.7
60	1.3	1.2	1.2	1	0.8	0.6
70	1.1	1.0	1.0	0.9	0.7	0.5

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Specifications	The width of the body(mm)	The height of the body(mm)	Repeatability(mm)	Continuous thrust(N)	Peak thrust(N)	lrms(A)	Maximum Payload(kg)	Maximum speed (mm/s)*1
Standard	Linear Motor Robot	LPH12	P40-C2-S	125	70	±0.003	80	176	3.3	20	2500
		LPH12	P40-C4-S	125	70	±0.003	160	352	3.3	25
		LPH14	P44-C3-S	135	70	±0.003	144	316	3.3	25
		LPH14	P44-C5-P	135	70	±0.003	240	528	6.8	50
		LPH16	P64-C3-S	155	75	±0.003	264	580	3.3	60
		LPH16	P64-C5-P	155	75	±0.003	440	1795	6.8	100
		LPH20	P88-C3-S	200	83	±0.003	408	897	3.3	60
		LPH20	P88-C6-P	200	83	±0.003	816	1795	6.8	100
