Lightweight and Long Lifespan

Body width：60-200mm

Repeatability：±0.005/0.01mm

Horizontal Load：150kg

Vertical Load：55kg

Maximum Speed：250mm/s

Travel Range：800-2600mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Multiple drivers are selected and imported silent high-precision slide rails are used

It can effectively reduce noise during operation, improve smoothness, lifespan, and lubrication efficiency. Suitable for high-tech industries that require high speed, tranquility, and low dust emissions.

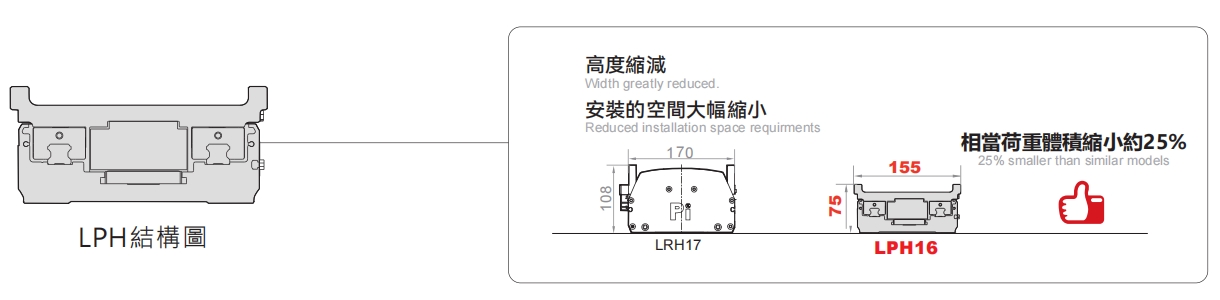

High rigidity body

By adopting an integrated aluminum extrusion structure and conducting elemental analysis, the optimal rigidity to weight ratio structural design is obtained.

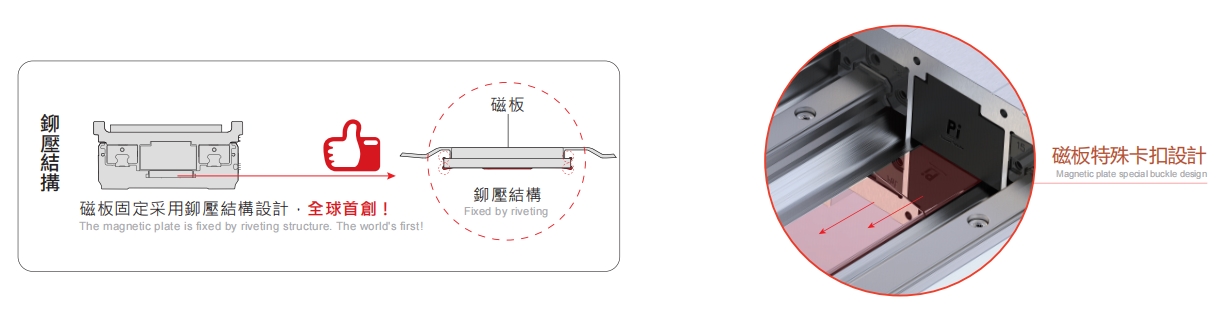

Magnetic plate special buckle design

Advantage: It prevents foreign objects from falling and does not damage internal components. Easy to maintain, long lifespan!

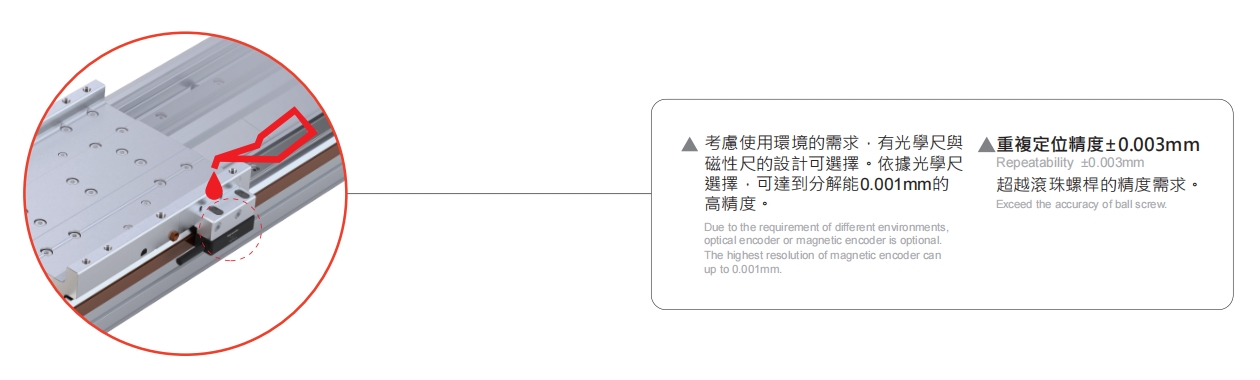

Optical ruler reading head

Elastic combination of optical ruler or magnetic ruler

Ordering Method

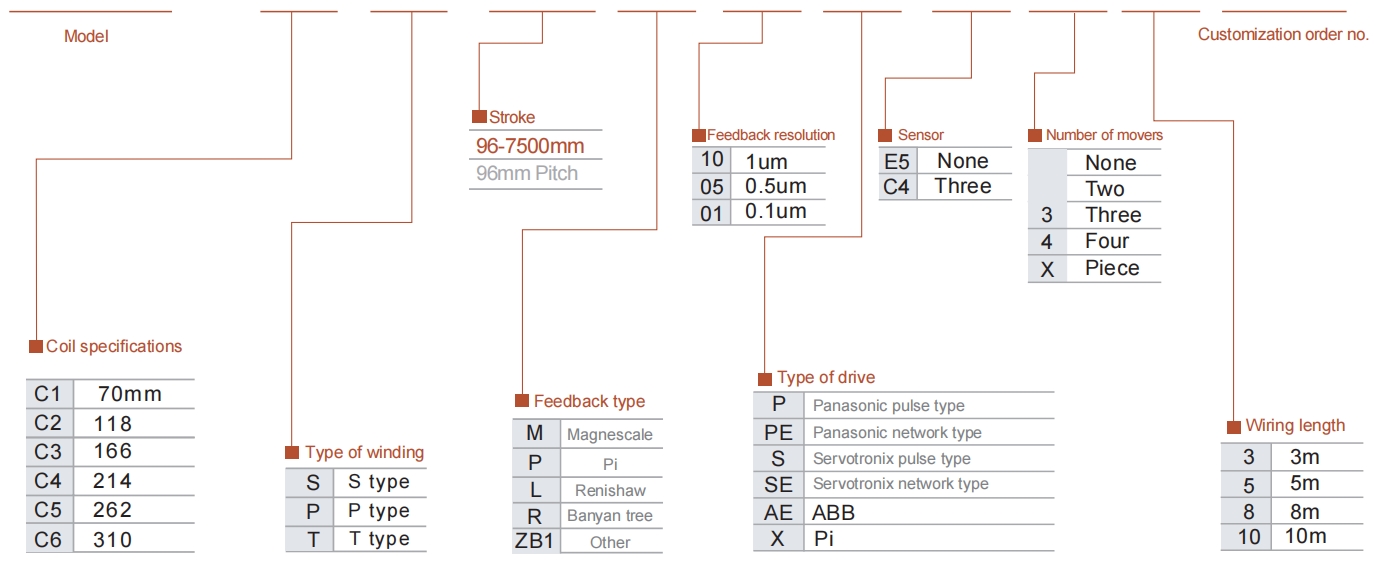

LPH20- C1 -S-96-M-10-P-C4-1-3-0001

Specification

Directory	Wire circle specifications	P88-C3-S	P88-C6-P
Spec	Repeatability(mm)	±0.003
	Maximum Payload(kg)	60	100
	Maximum Speed (mm/s)	2500
	Continuous thrust(N)	408	816
	Peak thrust(N)	897	1795
	Continuous current(Ams)	3.3	6.8
	Peak current(Arms)	10.5	21
	Force constant(N/Arms)	123.6	120
	Inductance(mH)	73.4	37.8
	Resistance(ohm)	12.6	6.3
	Magnetic pole distance(mm)	24

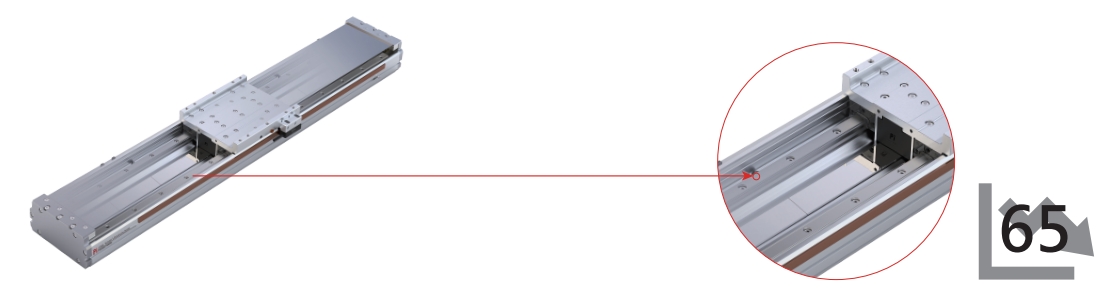

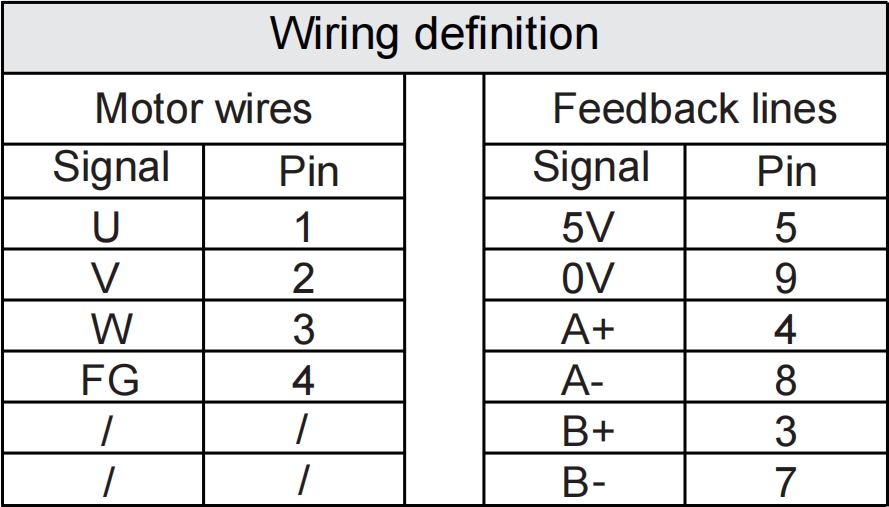

Sensor Layout

Operation life is 10,000km when the product is using under the specified conditions.

Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

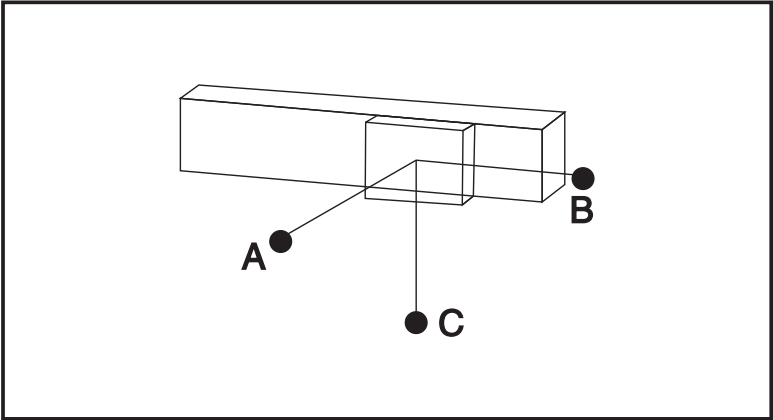

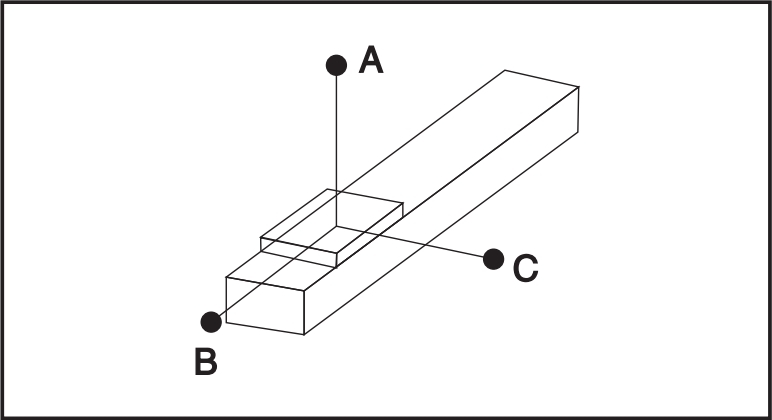

Allowable Overhang

(Unit : mm)

Horizontal Installation		Load	A	B	C
Load	P88-C3-S	30kg	350	190	370
		40kg	300	120	280
		50kg	250	90	220
		60kg	200	80	180
	P88-C6-P	70kg	350	100	250
		80kg	180	90	220
		90kg	150	80	200
		100kg	100	50	150

(Unit : mm)

Wall Installation		Load	A	B	C
Load	P88-C3-S	30kg	370	190	350
		40kg	280	120	300
		50kg	220	90	250
		60kg	180	80	200
	P88-C6-P	70kg	250	100	350
		80kg	220	90	180
		90kg	200	80	150
		100kg	150	50	100

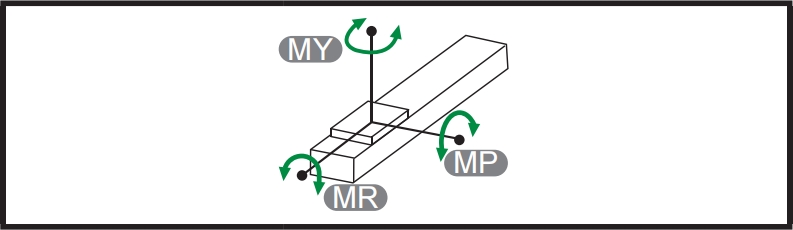

Static Loading Moment

(Unit : Nm)

MY	1355
MP	1355
MR	1210

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

The Relationship Between Speed And Acceleration

P88-C3-S

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s
30	2.1	1.9	1.1	0.5
40	1.7	1.3	0.8	0.4
50	1.4	1.1	0.6	0.3
60	1.2	0.9	0.5	0.2
70	1.1	0.8	0.4	0.2

P88-C6-P

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s
60	2.2	2	1.1	0.6
70	1.9	1.7	0.9	0.5
80	1.7	1.3	0.8	0.4
90	1.6	1.2	0.7	0.4
100	1.4	1.1	0.6	0.3

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Specifications	The width of the body(mm)	The height of the body(mm)	Repeatability(mm)	Continuous thrust(N)	Peak thrust(N)	lrms(A)	Maximum Payload(kg)	Maximum speed (mm/s)*1
Standard	Linear Motor Robot	LPH12	P40-C2-S	125	70	±0.003	80	176	3.3	20	2500
		LPH12	P40-C4-S	125	70	±0.003	160	352	3.3	25
		LPH14	P44-C3-S	135	70	±0.003	144	316	3.3	25
		LPH14	P44-C5-P	135	70	±0.003	240	528	6.8	50
		LPH16	P64-C3-S	155	75	±0.003	264	580	3.3	60
		LPH16	P64-C5-P	155	75	±0.003	440	1795	6.8	100
		LPH20	P88-C3-S	200	83	±0.003	408	897	3.3	60
		LPH20	P88-C6-P	200	83	±0.003	816	1795	6.8	100

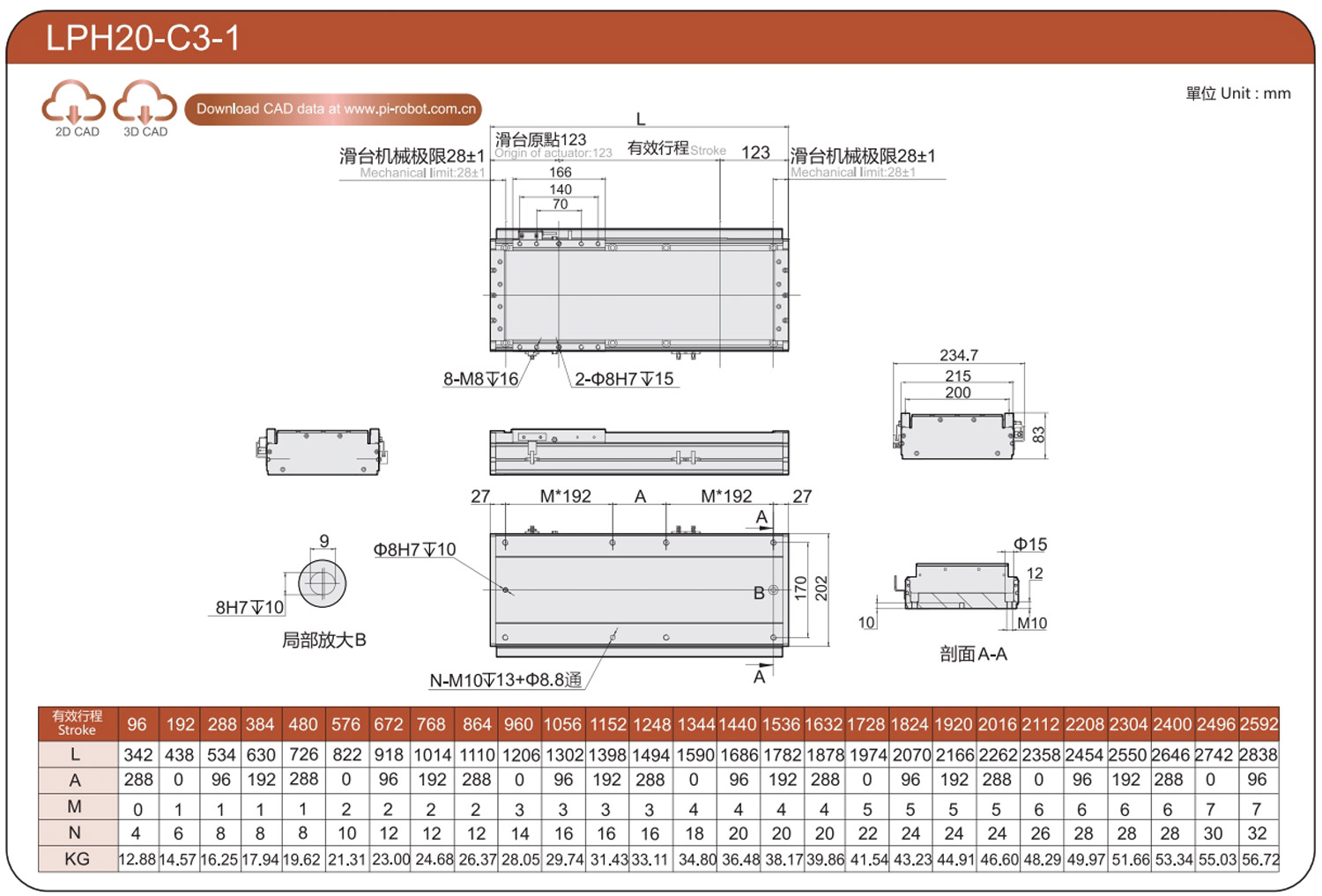

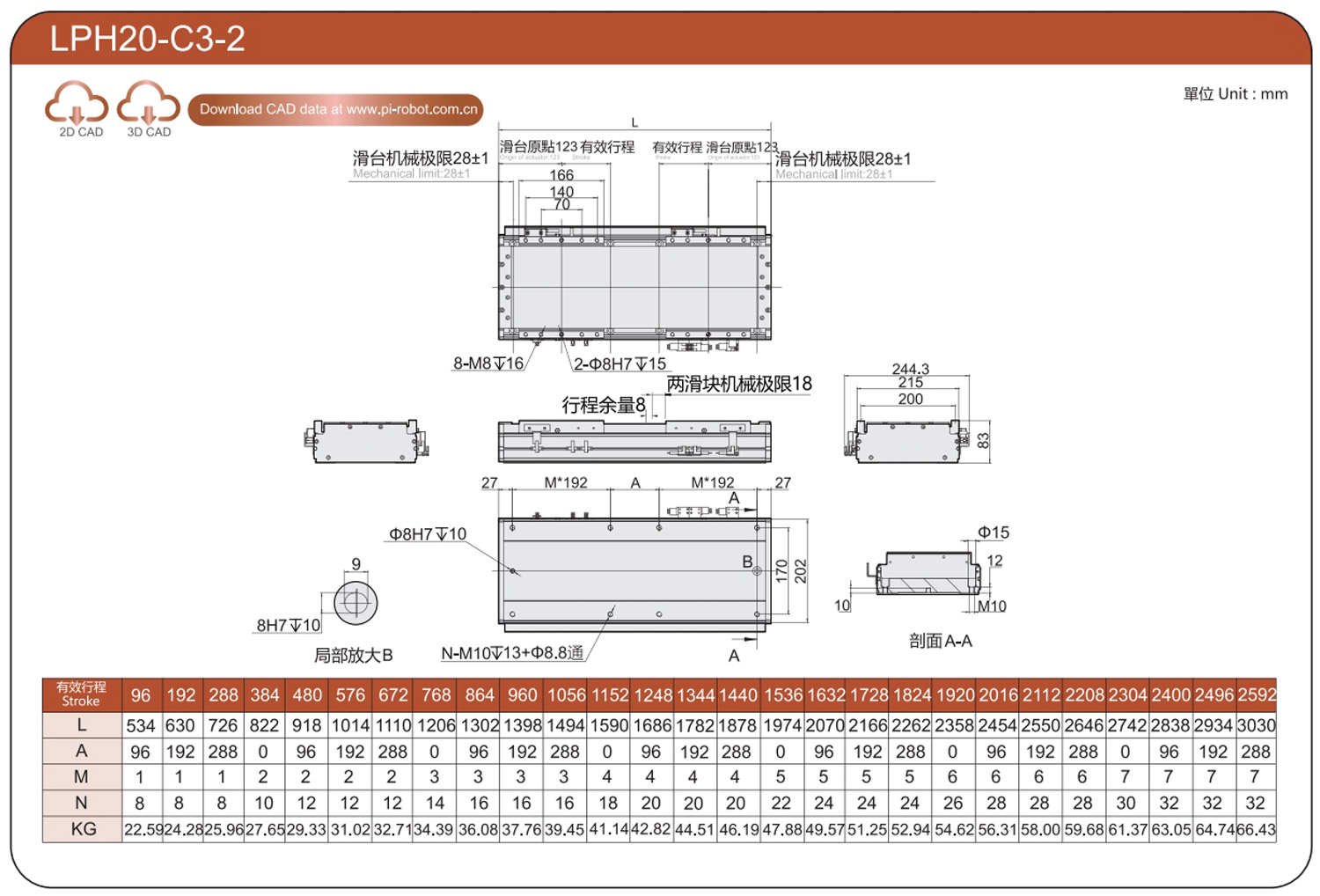

C3-1/C3-2
