Lightweight and Long Lifespan

Body width：75-65mm

Repeatability：±0.003mm

P27-C1 Load：6kg

P27-C2 Load：10kg

Maximum Speed：2500mm/s

Travel Range：48-1584mm

PDF

3D download

Cadenas3 Ddownload

High precision, high rigidity, external oil injection

The only patented fuel nozzle design in the industry, with a single fuel nozzle on the slide seat for oil injection, allows for simultaneous oil injection and maintenance of both the slide rail and slider, making maintenance more convenient and time-saving.

Long journey with complete specifications and convenient positioning

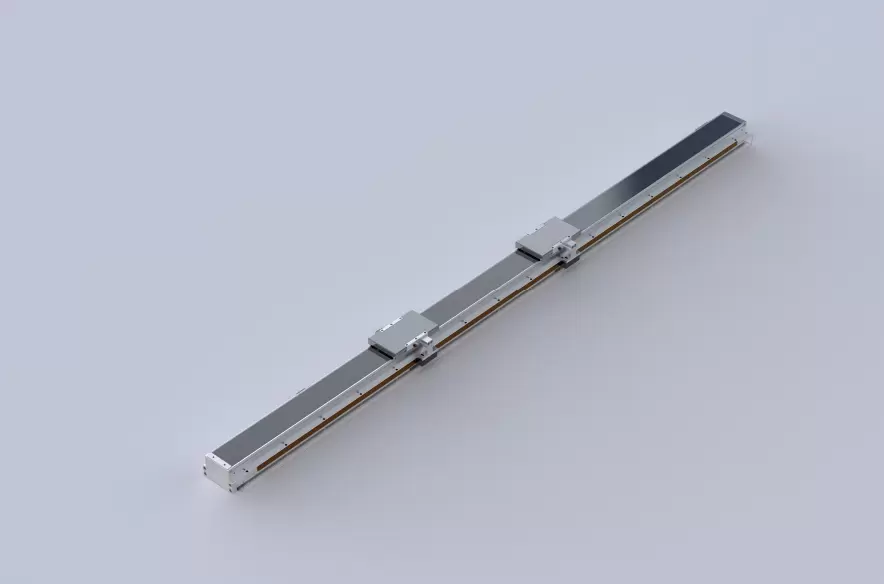

Four column ball type embedded linear motor slide table, with a stroke of up to 3744mm, and the stroke can be increased according to customer needs

Embedded ball slide rail structure

After embedding the sliding rail into the aluminum extrusion type, the parallel and equally high-precision tracks on both sides are ground by the grinding equipment, which will result in better accuracy than locking two standard line rails with the aluminum extrusion type.

Multiple optional drivers

Ordering Method

GSL7 - C1 -S - 96 - M - 10 -P -C 4 - 1- 3- 0001

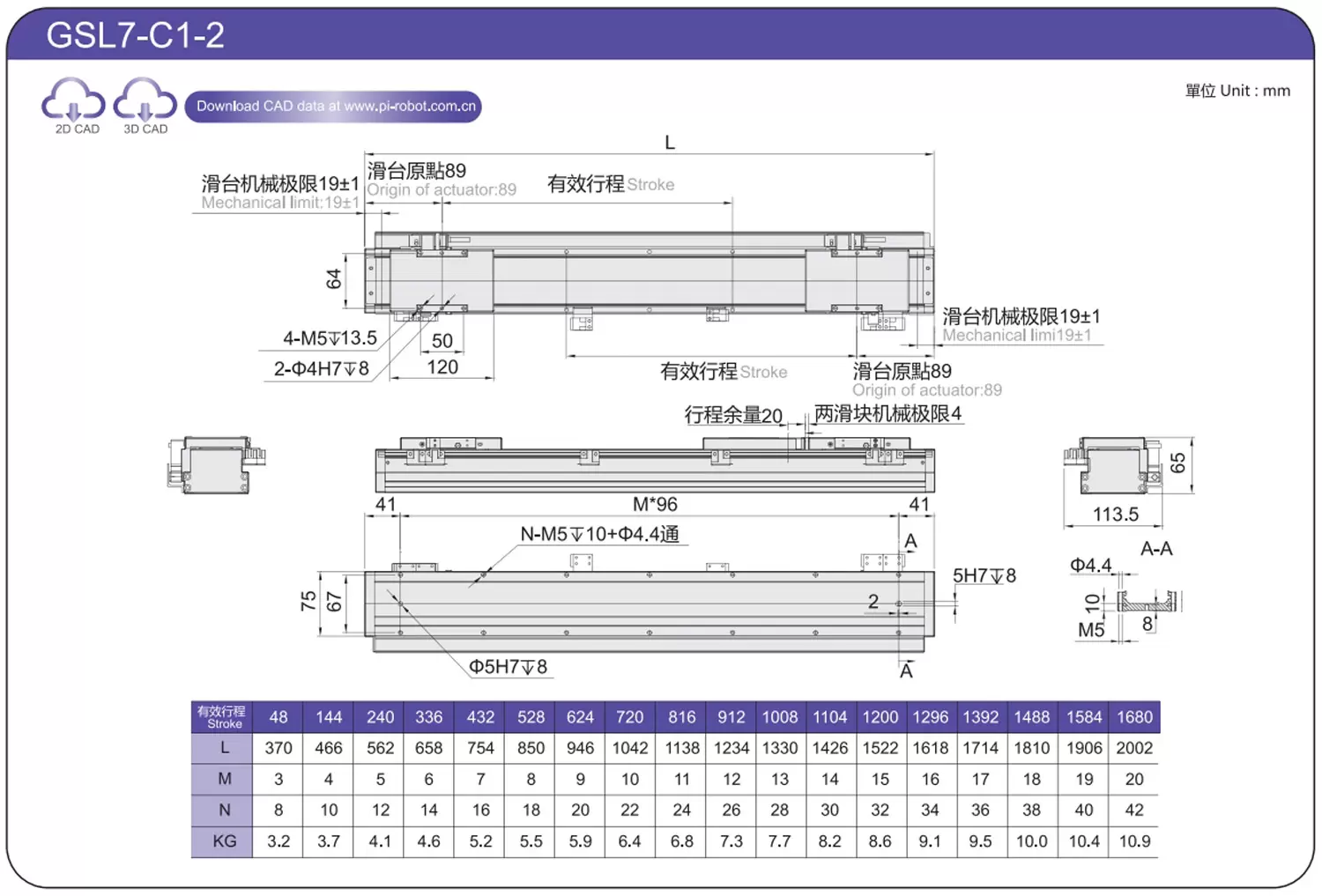

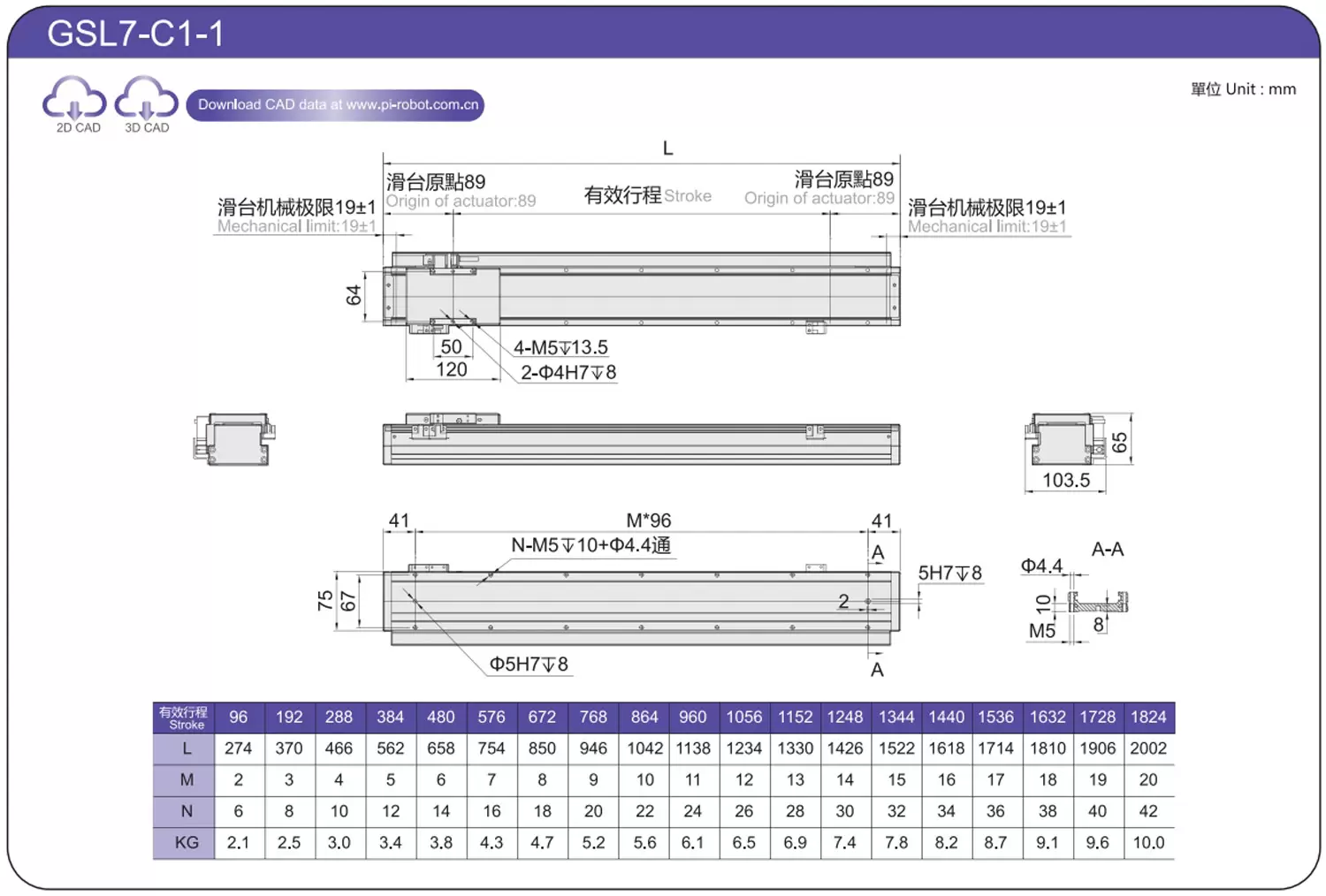

Specification

Directory	Wire circle specifications	P27-C1	P27-C2
Spec	Repeatability(mm)	±0.003
	Maximum Payload(kg)	6	10
	Maximum Speed (mm/s)	2500
	Continuous thrust(N)	26	52
	Peak thrust(N)	57	114
	Continuous current(Ams)	3.3	3.3
	Peak current(Arms)	10.5	10.5
	Force constant(N/Arms)	7.8	15.7
	Inductance(mH)	6.1	12.1
	Resistance(ohm)	1.2	2.4
	Magnetic pole distance(mm)	24

Sensor Layout

※1 Acceleration and deacceleration value is set 0.2 second.

※2 When the stroke is over 600mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.Please reeer to P85 for details.

Operation life is 10,000km when the product is using under the specified conditions.

Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Allowable Overhang

(Unit : mm)

Horizontal Installation		Load	A	B	C
Load	P27-C1	2kg	320	280	280
		3kg	260	160	160
		4kg	180	130	130
		5kg	150	100	100
		6kg	120	70	80
	P27-C2	2kg	600	500	500
		4kg	320	260	260
		6kg	220	160	160
		8kg	160	120	120
		10kg	120	100	100

(Unit : mm)

Wall Installation		Load	A	B	C
Load	P27-C1	2kg	280	280	320
		3kg	160	160	260
		4kg	130	130	180
		5kg	100	100	150
		6kg	80	70	120
	P27-C2	2kg	500	500	600
		4kg	260	260	320
		6kg	160	160	220
		8kg	120	120	160
		10kg	100	100	120

Static Loading Moment

(Unit : Nm)

Direction	P27-C1	P27-C2
MY	106	278
MP	106	278
MR	130	211

The Relationship Between Speed And Acceleration

P27-C1

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s	3m/s
2	1.7	1.6	1.6	1.6	1.5
3	1.2	1.2	1.2	1.2	1.1
4	1	1	1	1	0.9
5	0.8	0.8	0.8	0.8	0.7
6	0.7	0.7	0.7	0.7	0.6

P27-C2

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s	3m/s
2	2.9	2.9	2.9	2.9	2.7
4	1.8	1.8	1.8	1.8	1.7
6	1.2	1.2	1.2	1.1	1.1
8	1	1	1	1	1
10	0.8	0.8	0.8	0.8	0.8

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Specifications	The width of the body(mm)	The height of the body(mm)	Repeatability(mm)	Continuous thrust(N)	Peak thrust(N)	lrms(A)	Maximum Payload(kg)	Maximum speed (mm/s)*1
Standard	Linear Motor Robot	GSL7	P27-C1	75	65	±0.003	26	57	3.3	6	2500
		GSL7	P27-C2	75	65	±0.003	52	114	3.3	10
		GSL8	P35-C1	87	65	±0.003	40	88	3.3	10
		GSL8	P35-C2	87	65	±0.003	80	176	3.3	20
		GSL14	P44-C1	134	70	±0.003	48	105	3.3	11
		GSL14	P44-C3	134	70	±0.003	144	315	3.3	25
		GSL16	P64-C1	154	70	±0.003	88	193	3.3	20
		GSL16	P64-C3	154	70	±0.003	264	580	3.3	50
		GSL18	P88-C1	178	76	±0.003	136	299	3.3	23
		GSL18	P88-C3	178	76	±0.003	408	897	3.3	70
