Current location：Home > Product > Linear motor > GSL Series > GSL8 > C2-2

Lightweight and Long Lifespan

Body width：60-200mm

Repeatability：±0.005/0.01mm

Horizontal Load：150kg

Vertical Load：55kg

Maximum Speed：250mm/s

Travel Range：800-2600mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

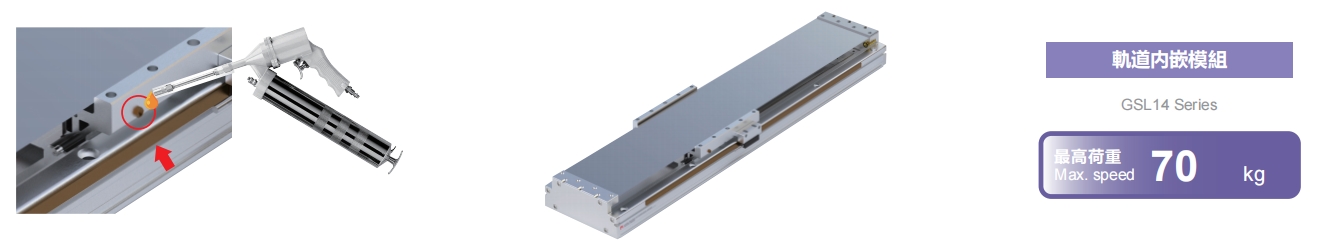

High precision, high rigidity, external oil injection

The only patented fuel nozzle design in the industry, with a single fuel nozzle on the slide seat for oil injection, allows for simultaneous oil injection and maintenance of both the slide rail and slider, making maintenance more convenient and time-saving.

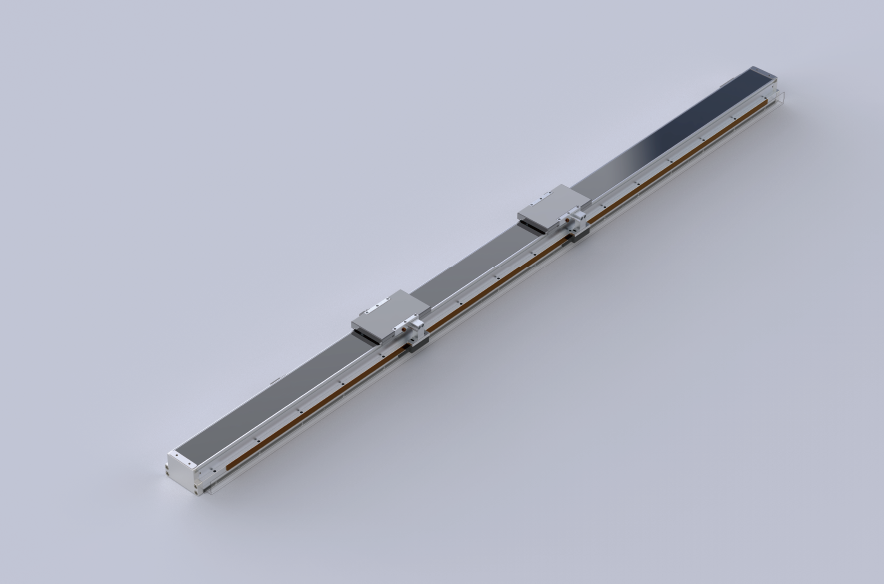

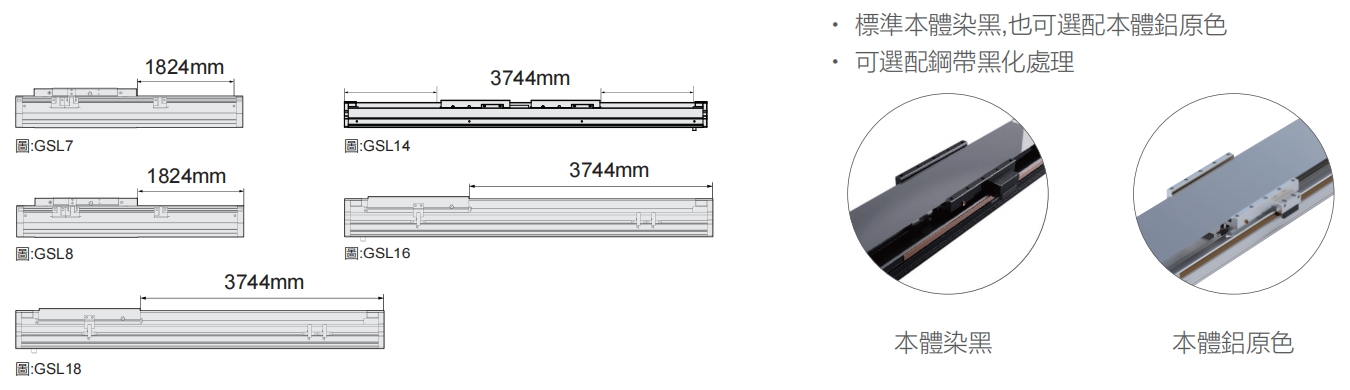

Long journey with complete specifications and convenient positioning

Four column ball type embedded linear motor slide table, with a stroke of up to 3744mm, and the stroke can be increased according to customer needs

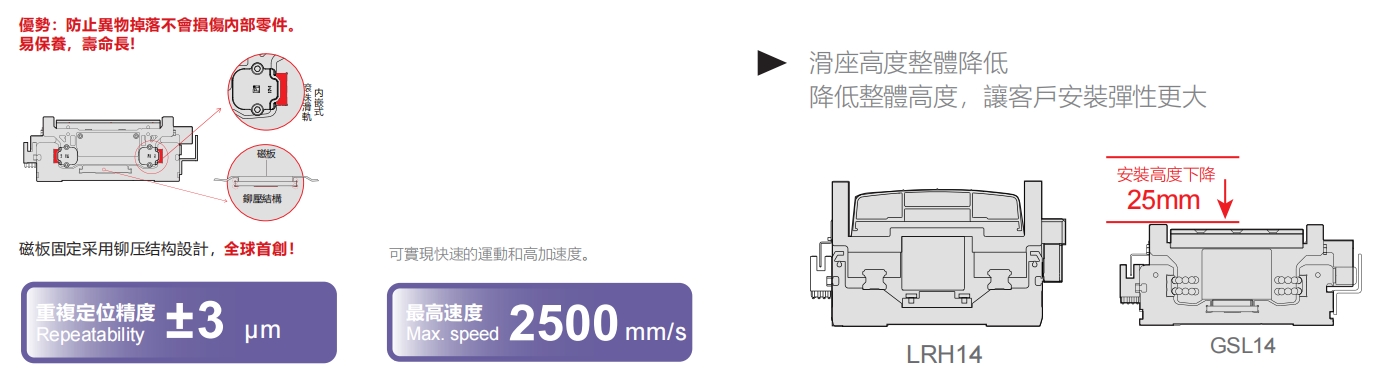

Embedded ball slide rail structure

After embedding the sliding rail into the aluminum extrusion type, the parallel and equally high-precision tracks on both sides are ground by the grinding equipment, which will result in better accuracy than locking two standard line rails with the aluminum extrusion type.

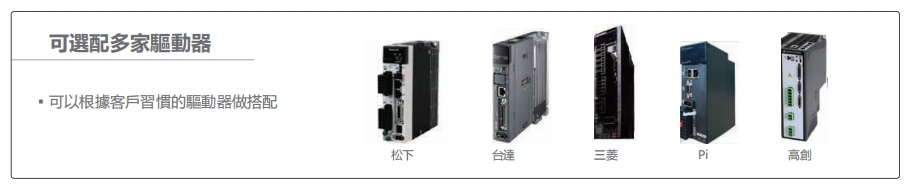

Multiple optional drivers

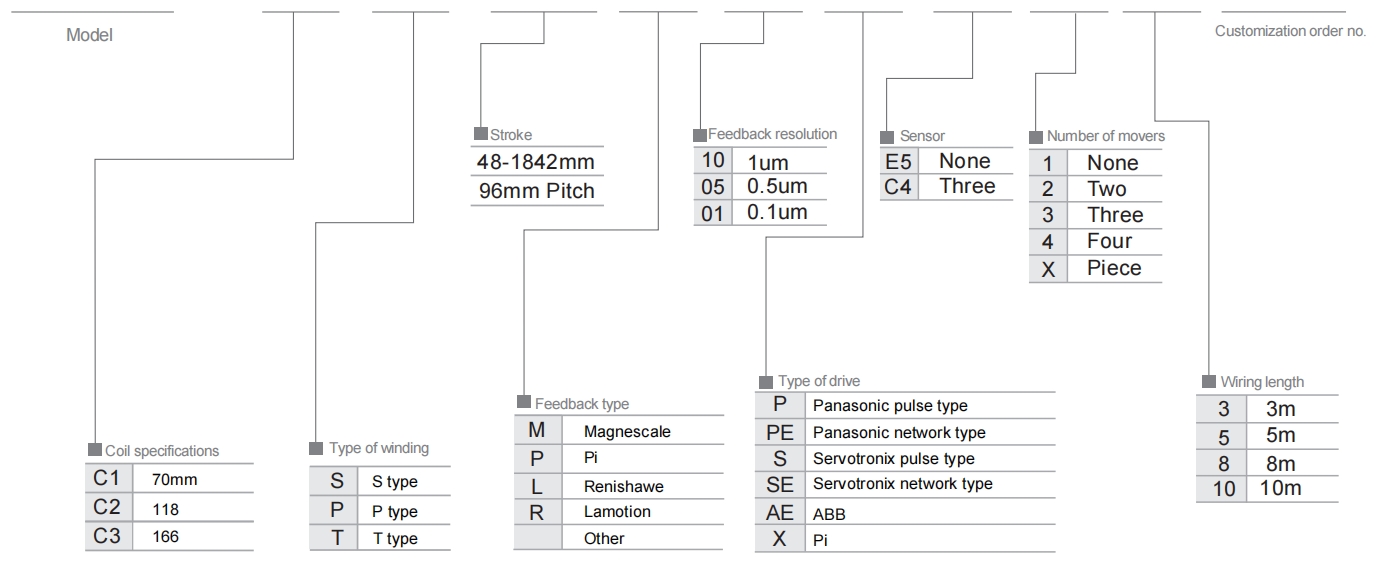

Ordering Method

GSL8 - C1 -S-96-M-10-P-C4-1-3-0001

Specification

Directory	Wire circle specifications	P35-C1	P35-C2
Spec	Repeatability(mm)	±0.003
	Maximum Payload(kg)	10	20
	Maximum Speed (mm/s)	2500
	Continuous thrust(N)	40	80
	Peak thrust(N)	88	176
	Continuous current(Ams)	3.3	3.3
	Peak current(Arms)	10.5	10.5
	Force constant(N/Arms)	12.1	24.2
	Inductance(mH)	9.4	18.7
	Resistance(ohm)	1.7	3.4
	Magnetic pole distance(mm)	24

Sensor Layout

※1 Acceleration and deacceleration value is set 0.2 second.

※2 When the stroke is over 600mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.Please reeer to P85 for details.

Operation life is 10,000km when the product is using under the specified conditions.

Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Allowable Overhang

(Unit : mm)

Horizontal Installation		Load	A	B	C
Load	P35-C1	2kg	320	300	300
		4kg	160	140	140
		6kg	110	80	80
		8kg	90	60	60
		10kg	70	50	50
	P35-C2	4kg	350	300	300
		8kg	170	150	150
		12kg	110	90	90
		16kg	90	60	60
		20kg	70	50	50

(Unit : mm)

Wall Installation		Load	A	B	C
Load	P35-C1	2kg	300	300	320
		4kg	140	140	160
		6kg	90	80	110
		8kg	60	60	90
		10kg	50	50	70
	P35-C2	4kg	300	300	350
		8kg	150	150	170
		12kg	90	90	110
		16kg	60	60	90
		20kg	50	50	70

Static Loading Moment

(Unit : Nm)

Direction	P35-C1	P35-C2
MY	106	277
MP	106	277
MR	160	260

The Relationship Between Speed And Acceleration

P35-C1

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s	3m/s	3.5m/s
2	2.1	2.1	2.1	2	2	1.8
4	1.4	1.3	1.3	1.3	1.2	1.1
6	1	1	0.9	0.8	0.8	0.7
8	0.7	0.7	0.7	0.6	0.6	0.6
10	0.6	0.6	0.5	0.5	0.5	0.4

P35-C2

Velocity(m/s) Acceleration(G) Load(Kg)	1m/s	1.5m/s	2m/s	2.5m/s	3m/s	3.5m/s
4	2.6	2.6	2.6	2.6	2.5	2.5
8	1.4	1.4	1.4	1.4	1.4	1.3
12	1	1	1	1	1	0.9
16	0.7	0.7	0.7	0.7	0.7	0.6
20	0.6	0.6	0.6	0.6	0.6	0.5

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Specifications	The width of the body(mm)	The height of the body(mm)	Repeatability(mm)	Continuous thrust(N)	Peak thrust(N)	lrms(A)	Maximum Payload(kg)	Maximum speed (mm/s)*1
Standard	Linear Motor Robot	GSL7	P27-C1	75	65	±0.003	26	57	3.3	6	2500
		GSL7	P27-C2	75	65	±0.003	52	114	3.3	10
		GSL8	P35-C1	87	65	±0.003	40	88	3.3	10
		GSL8	P35-C2	87	65	±0.003	80	176	3.3	20
		GSL14	P44-C1	134	70	±0.003	48	105	3.3	11
		GSL14	P44-C3	134	70	±0.003	144	315	3.3	25
		GSL16	P64-C1	154	70	±0.003	88	193	3.3	20
		GSL16	P64-C3	154	70	±0.003	264	580	3.3	50
		GSL18	P88-C1	178	76	±0.003	136	299	3.3	23
		GSL18	P88-C3	178	76	±0.003	408	897	3.3	70

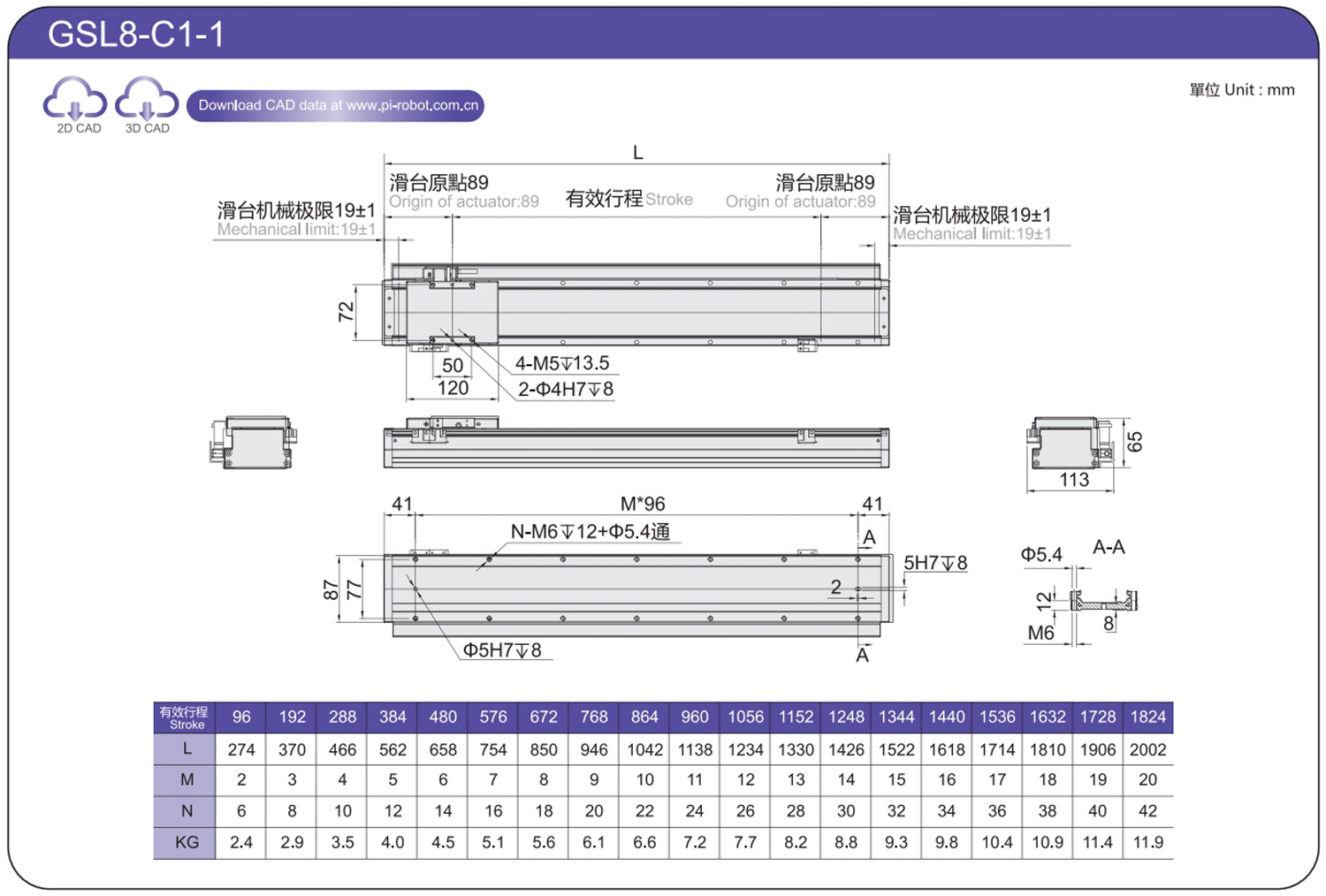

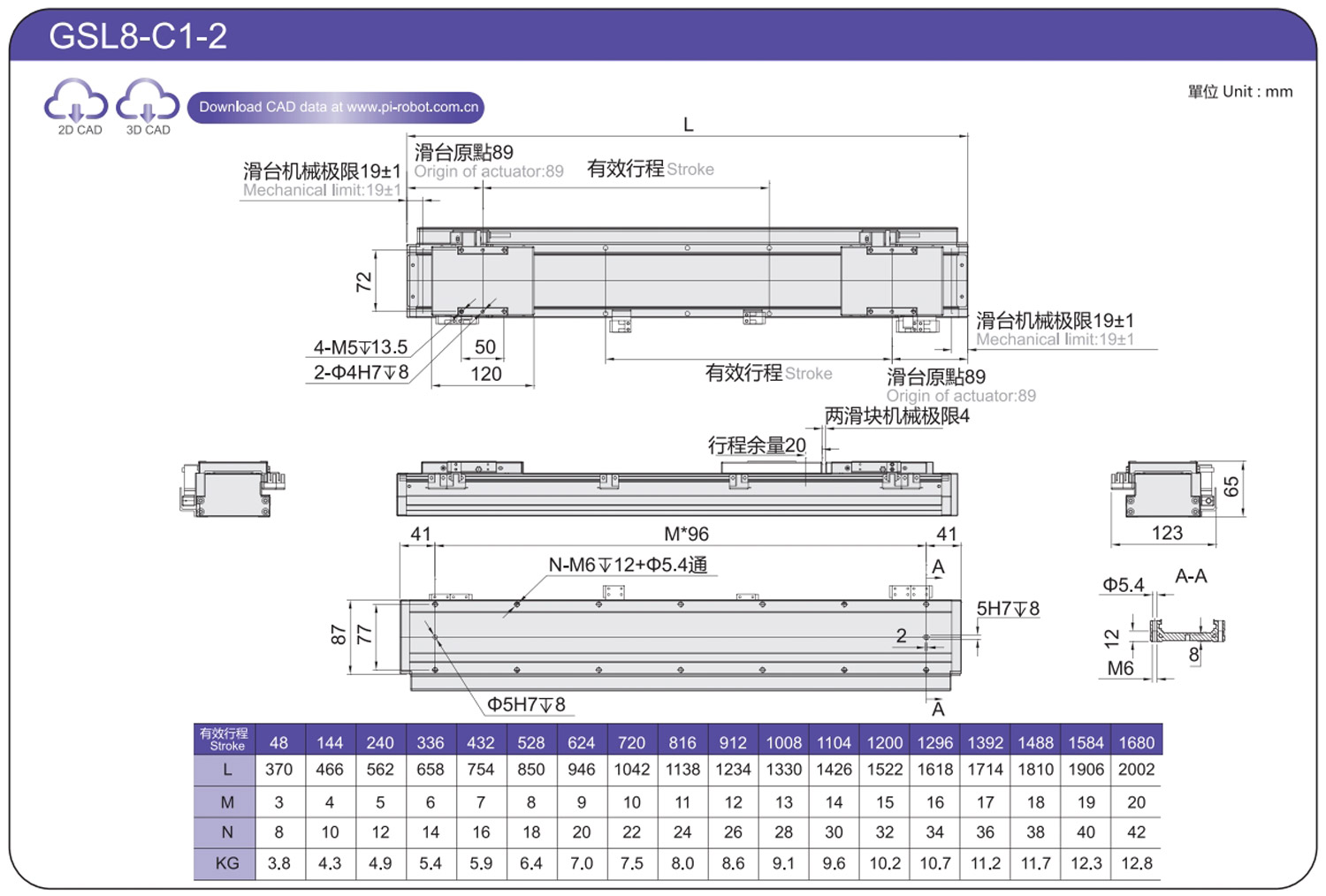

C1-1/C1-2
