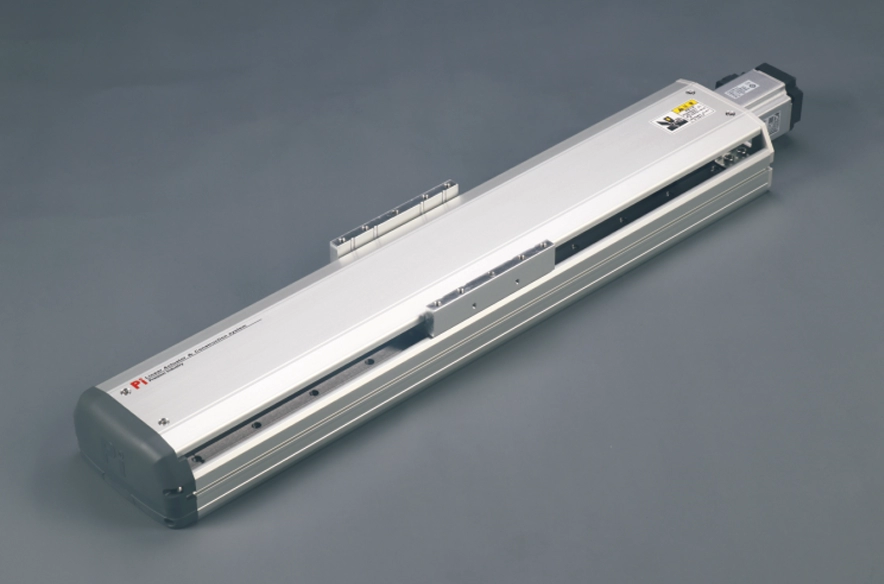

Lightweight and Long Lifespan

Repeatability：±0.01mm

Horizontal Load：50kg

Vertical Load：12kg

Maximum Speed：250mm/s

Stroke Pitch：100-1050mm

Set the motor acceleration and deceleration to0.2seconds.

The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.

Delivery time: 7-10 days

PDF

3D download

Cadenas3 Ddownload

Diverse slide seat styles

The body and slide are integrally formed, which improves the problem of poor rigidity and reduces the width, making the installation space of the equipment smaller. The only patented fuel nozzle design in the industry, which uses a single fuel nozzle on the slide to inject oil. It can simultaneously inject oil and maintain the nut and multiple sets of sliders, making maintenance more convenient and time-saving for you. The installation direction of the fuel nozzle can be selected according to customer needs.

High rigidity body/high rigidity upper cover

High rigidity body: Explore the use of integrated aluminum extrusion structure and obtain the best rigidity to weight ratio structural design through element analysis. Anti winding upper cover: With a special anti winding design, the upper cover is not easily twisted or deformed during long-distance use.

Motor brand

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Motor brand

Can be paired with servo motors from various brands. Multi directional motor installation positions are available for selection, making machine design more flexible

Screw brand lead, no seat available for selection

Suitable screw specifications and brands can be selected based on different precision and speed.

Ordering Method

RMH14 - L5-100- M -M20B - C4 -0001

Specification

Spec	Repeatability(mm)		±0.01
	Ball Screw Lead (mm)		5	10	20	32
	Maximum Speed (mm/s)		250	500	1000	1600
	Maximum Payload	Horizontal (kg)	95	75	35	15
		Vertical (kg)	27	18	7	-
	Rated Thrust (N)		683	341	174	107
	Stroke Pitch (mm)		100-1050mm/50mm Pitch
Parts	AC Servo Motor Power (W)		200W
	Ball Screw Ø (mm)		C7Ø16
	High Rigidity Linear Guide (mm)		W15XH12.5
	Coupling (mm)		10X14
	Home Sensor	Outside	EE-SX672(NPN)
		Built-In	EE-SX674(NPN)

Sensor Layout

Acceleration and deacceleration value is set 0.2 second.

*When the stroke is over 750mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances. Please refer to P85 for details.

Allowable Overhang

(Unit : mm)

Horizontal Installation		A	B	C
Lead5	60kg	2515	242	232
	80kg	1811	172	164
	95kg	1537	138	133
Lead10	30kg	2727	470	430
	50kg	1577	266	242
	75kg	1004	164	150
Lead20	10kg	2304	1222	1028
	22kg	1443	540	451
	35kg	1005	324	271
Lead32	10kg	1555	840	623
	15kg	1033	545	405
	-	-	-	-

(Unit : mm)

Wall Installation		A	B	C
Lead5	55kg	257	269	2883
	75kg	178	186	2000
	95kg	133	138	1537
Lead10	35kg	363	395	2368
	55kg	218	238	1445
	75kg	150	164	1004
Lead20	12kg	854	1019	2552
	20kg	500	296	1588
	35kg	271	324	1005
Lead32	8kg	787	1060	1980
	15kg	405	545	1033
	-	-	-	-

(Unit : mm)

Vertical Installation		A	C
Lead5	15kg	1118	1118
	22kg	770	770
	27kg	626	626
Lead10	10kg	1500	1500
	14kg	1072	1072
	18kg	833	833
Lead20	4kg	2980	2980
	7kg	1700	1700
	-	-	-

Static Loading Moment

(Unit : Nm)

MY	551
MP	552
MR	485

*The torque value in the chart indicate the center of gravity.

*Operation life is 10,000km when the product is using under the specified conditions.

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

Spec Index of Electric Actuator

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Stndard Environment	Ball Screw	RMH12	100W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
			200W	102	±0.01	16	5	50	12	250
							10	30	8	500
							20	18	3	1000
							32	5	-	1600
		RMH14	200W	135	±0.01	16	5	95	27	250
							10	75	18	500
							20	35	7	1000
							32	15	-	1600
			400W	135	±0.01	16	5	110	33	250
							10	88	22	500
							20	40	10	1000
							32	30	8	1600
		RMH17	400W	170	±0.01	20	5	120	40	250
							10	110	30	500
							20	75	14	1000
							40	22	7	2000
			750W	170	±0.01	20	5	120	50	250
							10	120	40	500
							20	83	25	1000
							40	43	12	2000
		RMH22	750W	220	±0.01	25	5	150	55	250
							10	150	45	500
							25	105	20	1250
						20	40	43	12	2000
		RMH28	1500W	280	±0.01	32	10	320	150	500
							20	180	75	1000
							32	75	35	1600

Extra long stroke series

Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Ball Screw Spec		Maximum Payload(kg)		Maximum speed (mm/s)*1
Use Where	Driven Mode	Model Specification	Motor Output (w)	Width (mm)	Repeatability (mm)	Outer Diameter （mm）	Lead(mm)	Horizontal	Vertical	Maximum speed (mm/s)*1
Stndard Environment	Ball Screw	RMH17S	400W	170	±0.01	16	5	110	33	200
							10	90	22	400
							20	40	10	800
							32	30	8	1280
			750W	170	±0.01	16	5	120	40	200
							10	95	25	400
							20	50	15	800
							32	35	12	1280
		RMH22S	750W	220	±0.01	20	5	130	50	200
							10	130	40	400
							20	85	25	800
							40	43	12	1600
