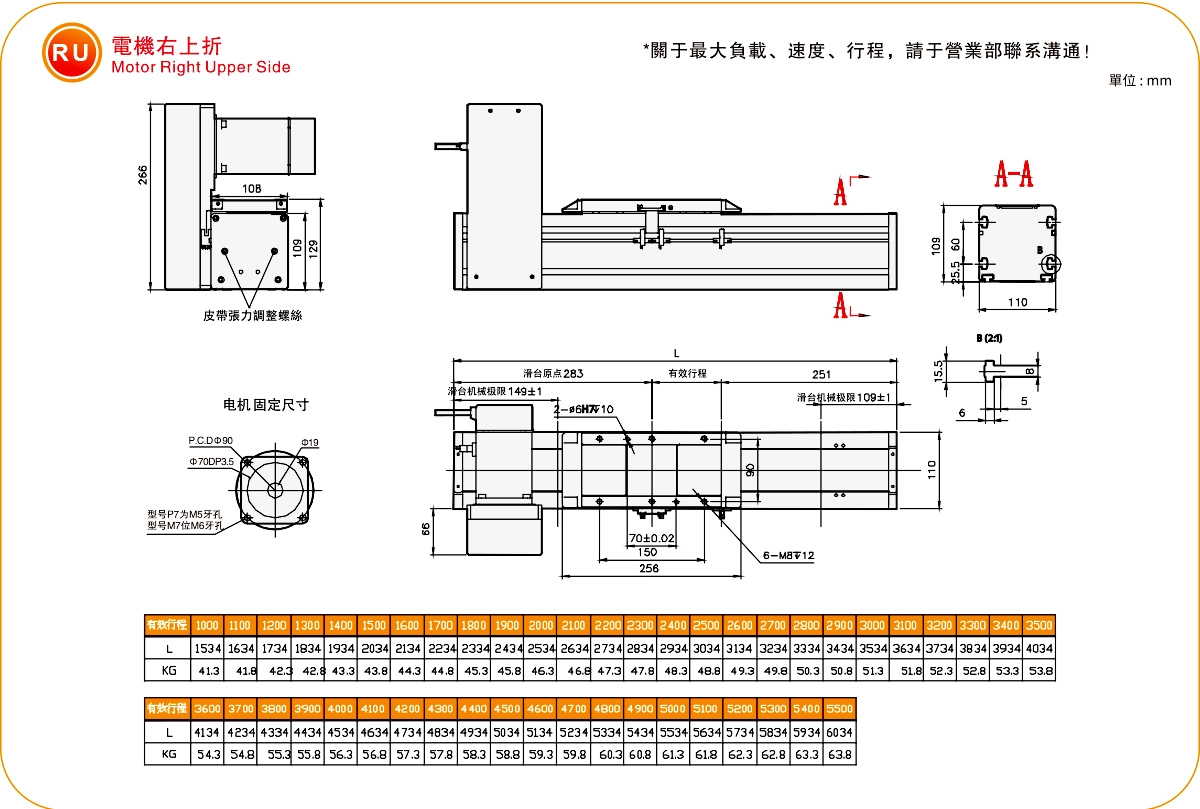

Current location：Home > Product > Standard Belt Actuator > MKR Series > MKR110 > Motor Right Upper Side
Repeatability：±0.1mm
Horizontal Load：200kg
Lead：280mm
Maximum Speed：1400mm/s
Stroke Pitch：100-5500mm
Set the motor acceleration and deceleration to0.2seconds.
The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.
Delivery time: 7-10 days

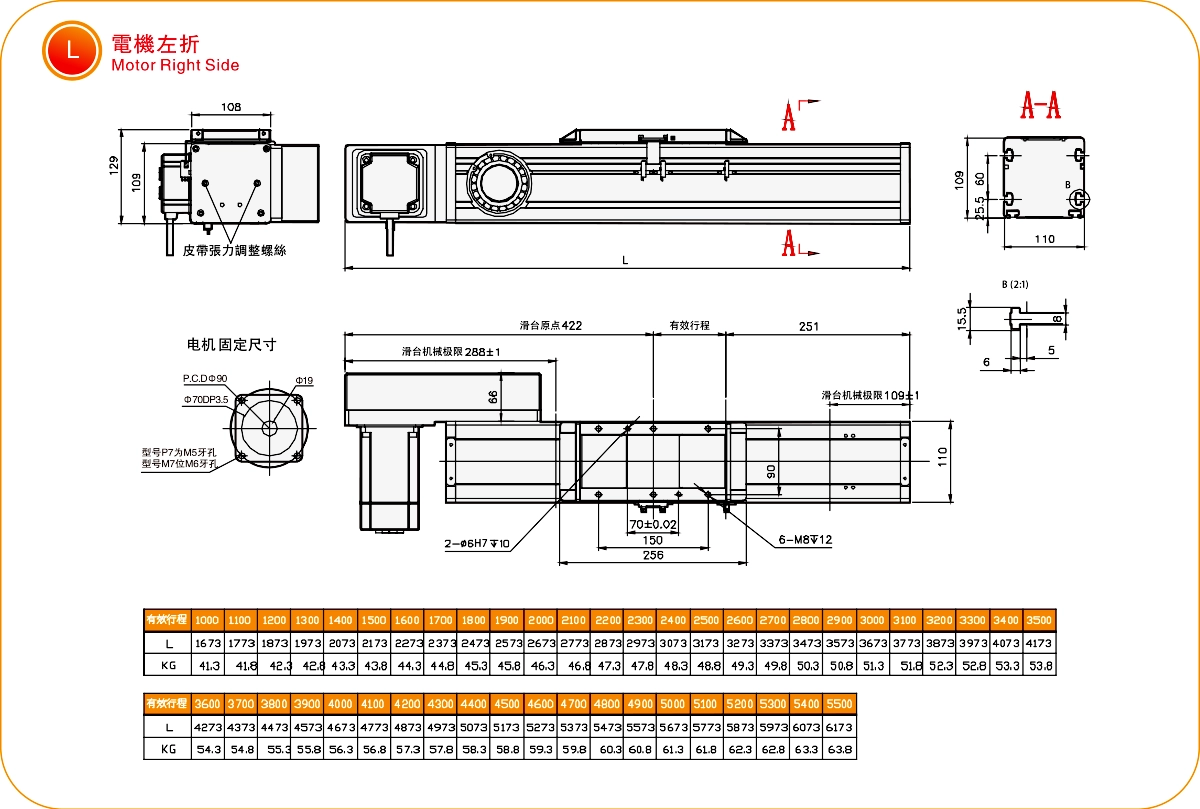

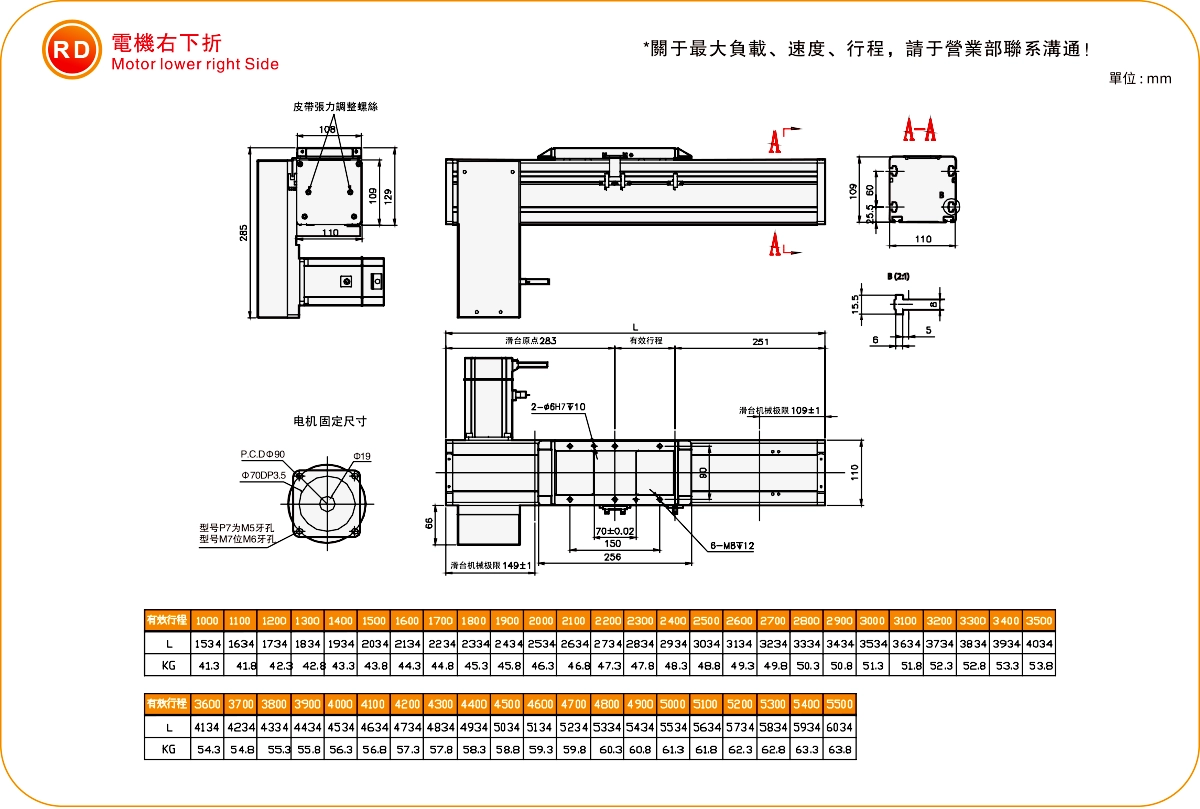

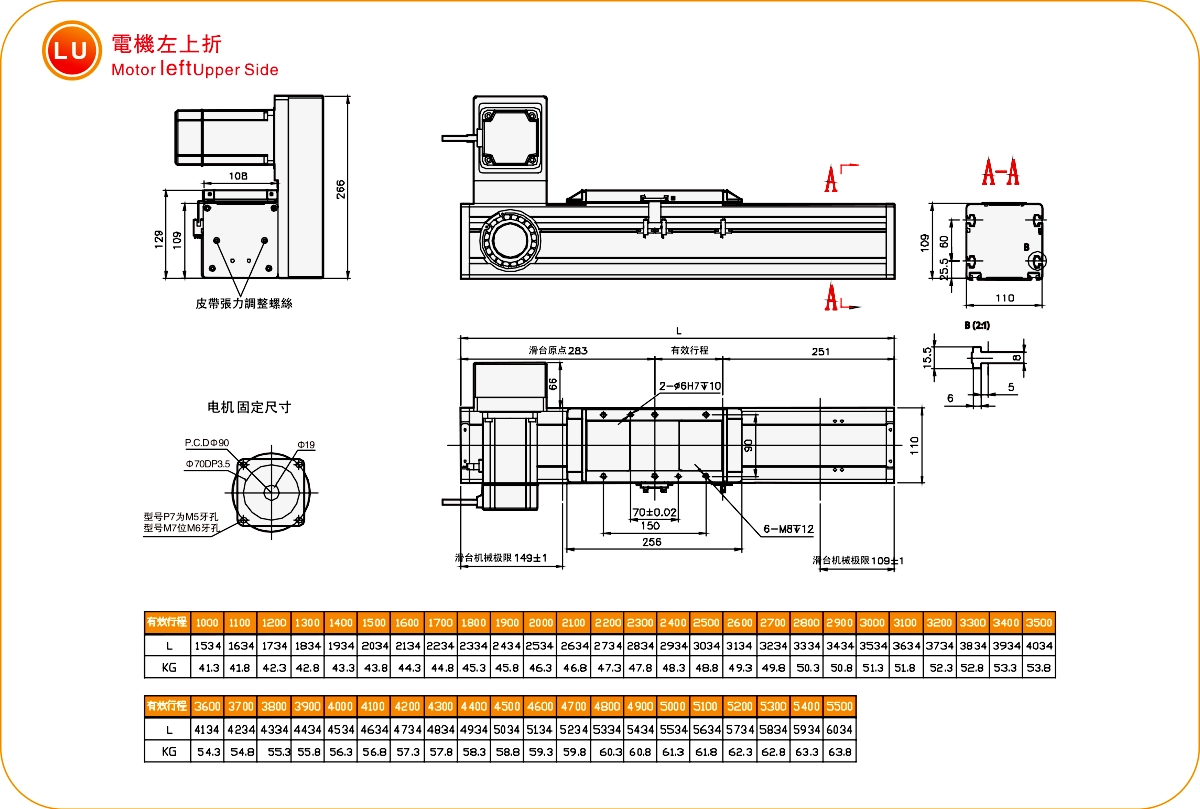

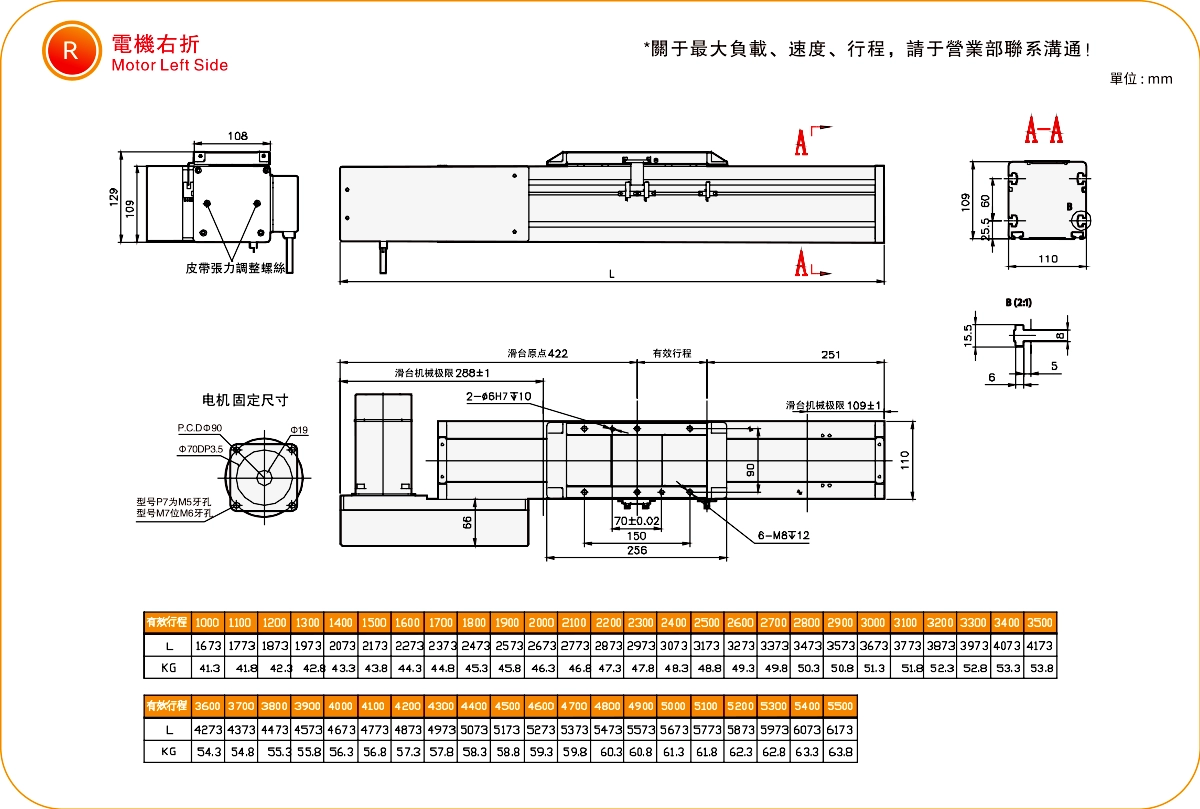

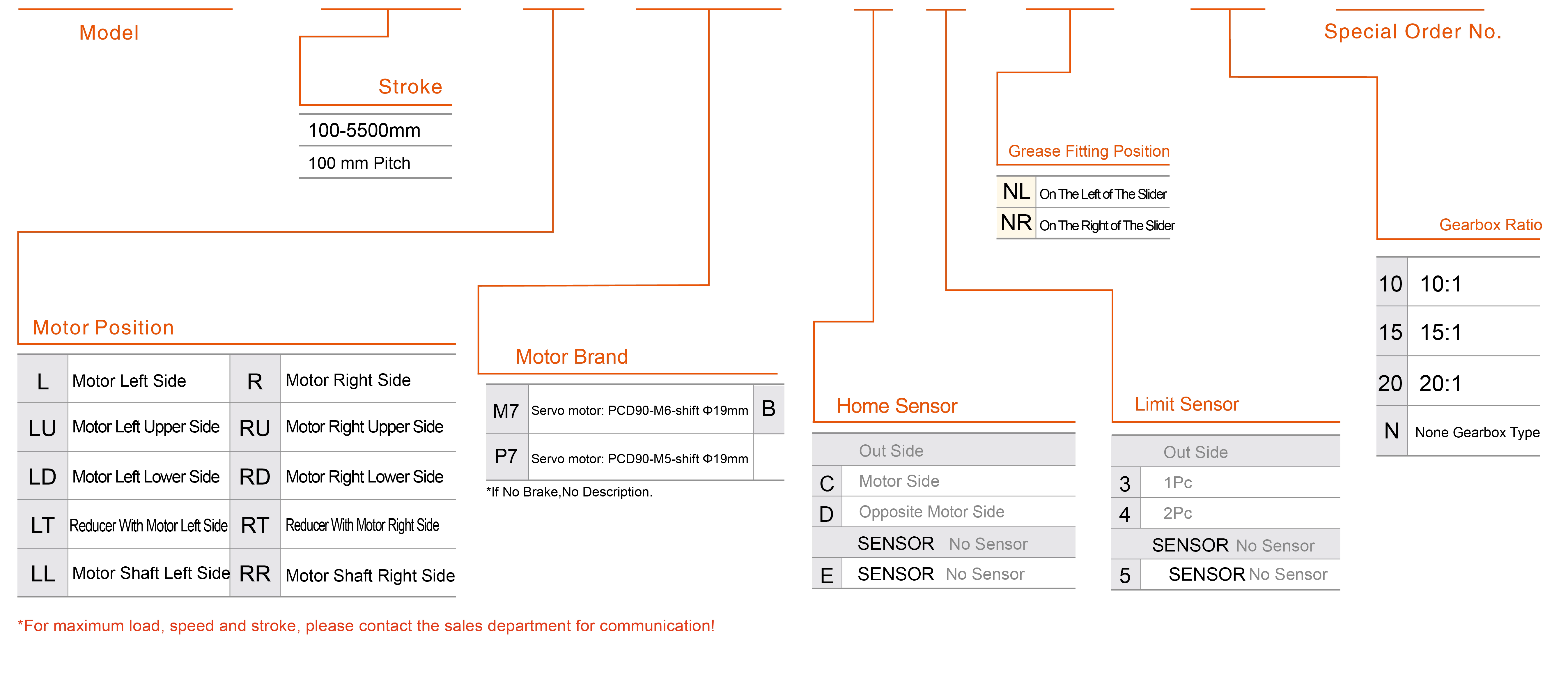

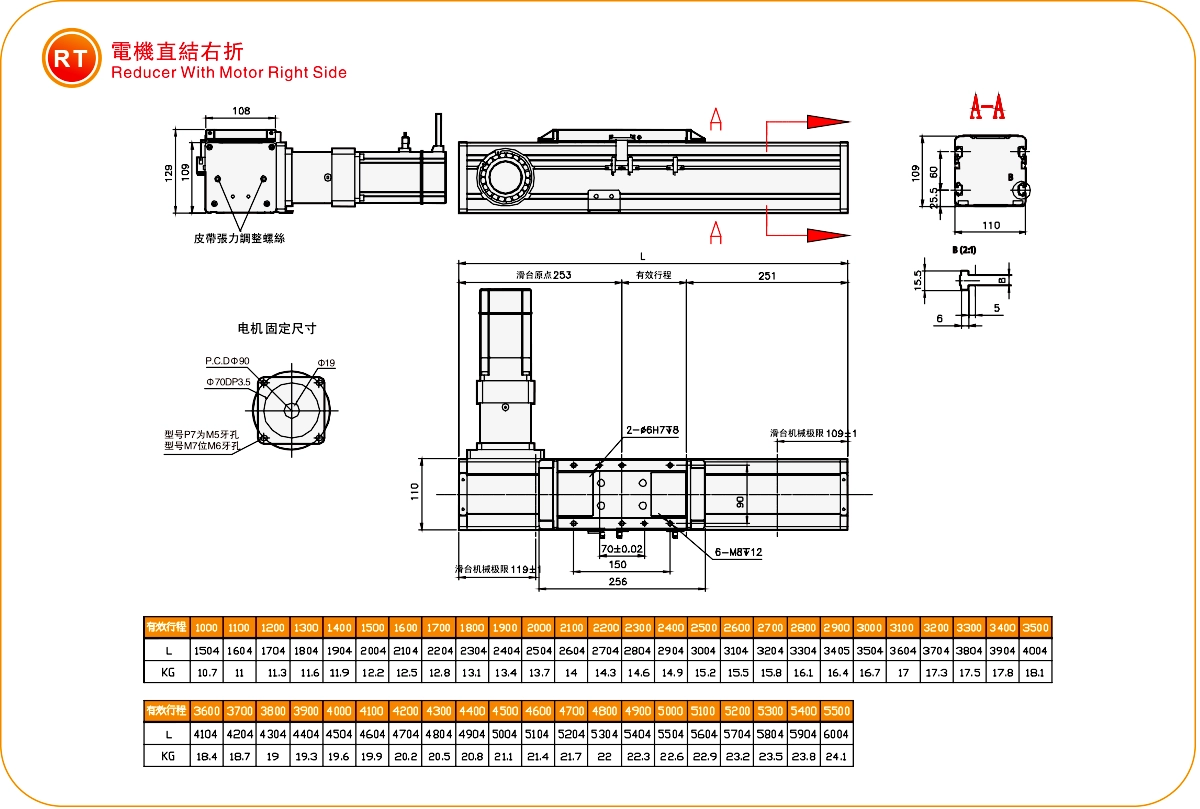

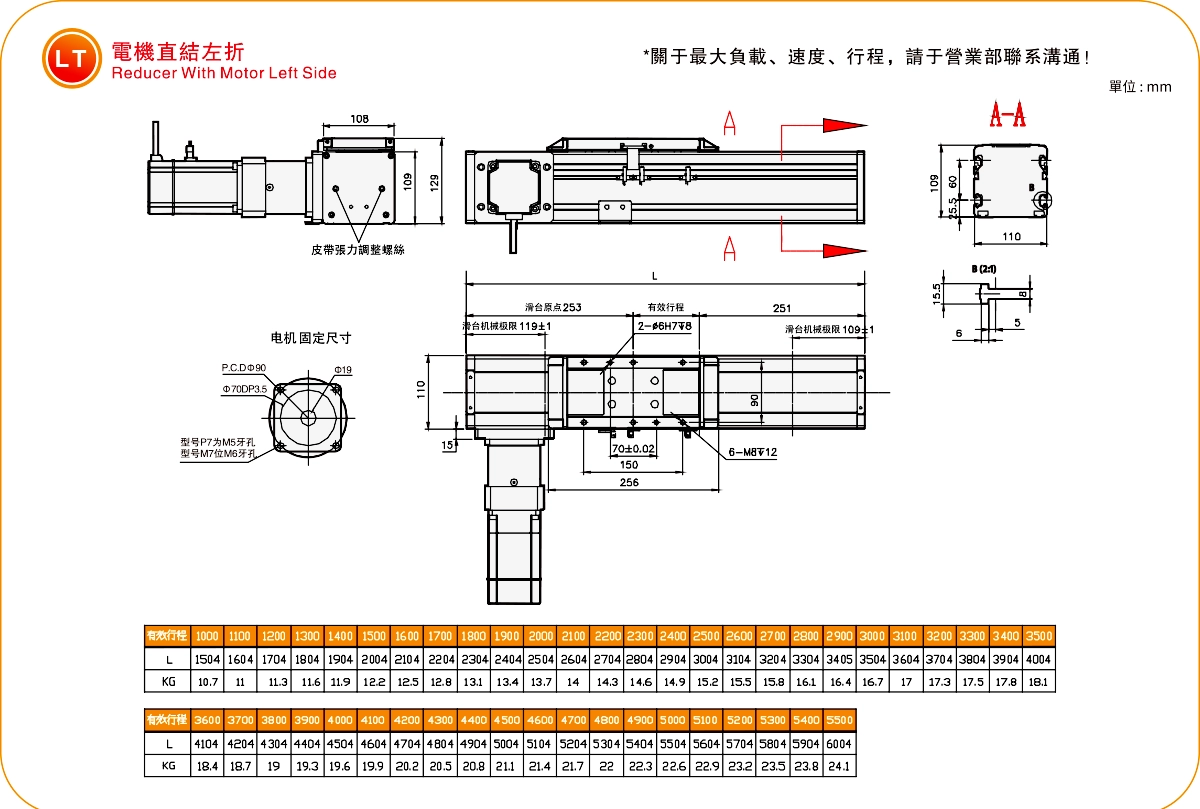

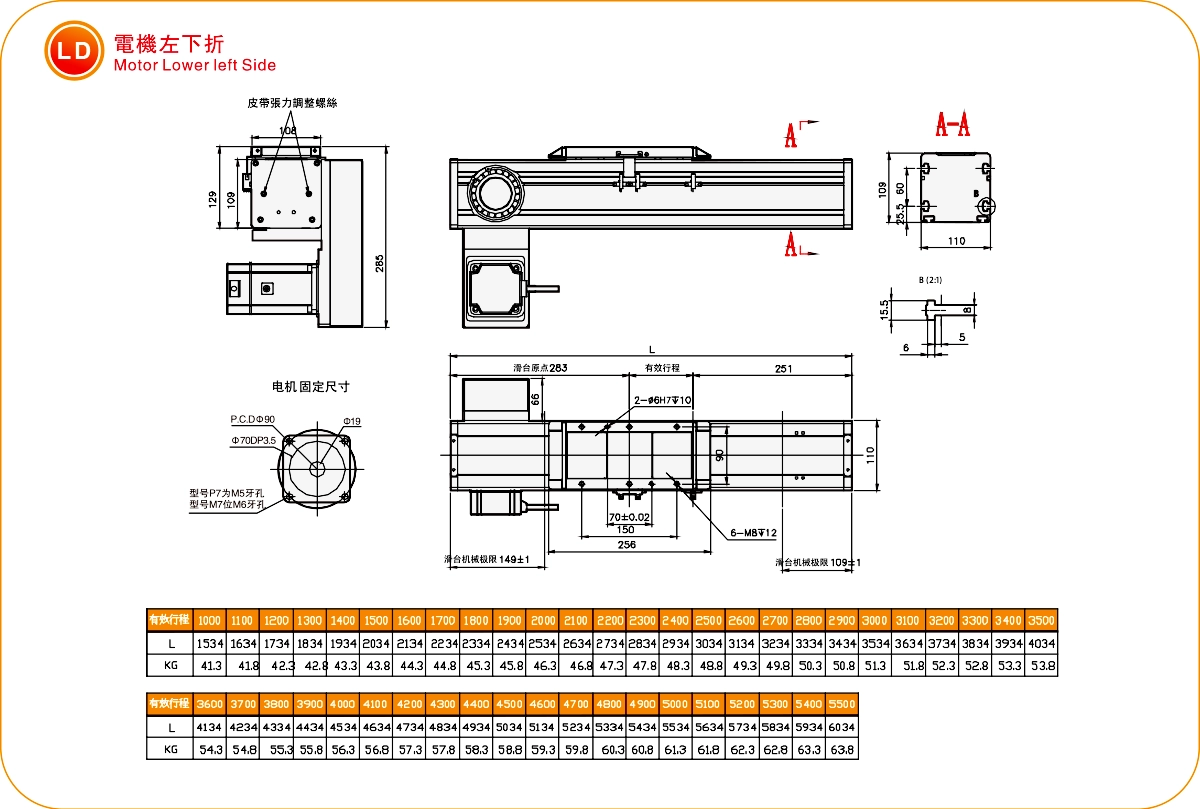

| Spec | Repeatability(mm) | ±0.1 | ||||||
| Lead (mm) | 200 | |||||||
| Reduction ratio | 10:1 | 15:1 | 20:1 | |||||
| Maximum Speed (mm/s) | 1400 | 933 | 700 | |||||
| Maximum Payload | Horizontal (kg) | 100 | 150 | 200 | ||||
| Vertical (kg) | 23 | 36 | 50 | |||||
| Rated Thrust (N) | 517 | 774 | 1034 | |||||
| Stroke Pitch (mm) | 100-5500mm/100mm Pitch | |||||||
| Parts | AC Servo Motor Power (W) | 750W | ||||||
| Ball Width (mm) | 50 | |||||||
| High Rigidity LinearGuide(mm) | W23XH19 | |||||||
| Home Sensor | Outside | EE-SX672(NPN) | ||||||
| Horizontal Installation | A | B | C |
| 3kg | 250 | 220 | 200 |
| 5kg | 110 | 90 | 70 |
| 8kg | 0 | 0 | 0 |
| Wall Installation | A | B | C |
| 2kg | 130 | 180 | 225 |
| 4kg | 20 | 60 | 100 |
| 6kg | 0 | 0 | 0 |
| MY | 337.9 |
| MP | 337.9 |
| MR | 58.6 |
| Use Where | Driven Mode | Model Specification | Reducer Mechanism | Motor Output (w) | Width (mm) | Repeatability (mm) | Belt spec | Maximum Payload(kg) | Maximum speed (mm/s)*1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Belt width(mm) | Lead(mm) | Horizontal | Vertical | ||||||||
| Standard | Timing Belt | MKR40 | Yes | 100W | 40 | ±0.1 | 15 | 90 | 8 | 2 | 4500 |
| MKR65 | Yes | 400W | 65 | ±0.1 | 30 | 130 | 60 | 17 | 5000 | ||
| MKR80 | Yes | 750W | 80 | ±0.1 | 35 | 200 | 100 | 24 | 5000 | ||
| MKR110 | Yes | 750W/1000 | 110 | ±0.1 | 50 | 280 | 200 | 50 | 5000 | ||
| OBB65 | Yes | 400W | 65 | ±0.1 | 30 | 110 | 25 | 6 | 5000 | ||
